Is a seat included, and which seats does the rail accept?

No seat is included. The rail is made only for full bucket seats that bolt in through four mounting points on the sides of the shell. It does not work with the factory S2000 seats or with reclining semi-bucket seats, and final seat height depends on the bucket you use.

How much lower does the Ultra-Low Seat Rail for AP1 cars sit?

The Ultra-Low Seat Rail for AP1 cars is quoted at a 40mm drop compared with the factory seat, measured with a Recaro bucket bolted in its lowest position. The manufacturer stresses this is a reference value, since the seat, the car and individual differences all change the result.

How many rails come in one order?

One. Each rail is sold individually as a left or right part, so pick the side you need. The driver side and passenger side each need their own rail, and the two carry separate part numbers. Order both if you are lowering both seats.

Is it strong enough for track driving?

Yes. The frame is built stiff, and the rail locks on levers at both sides so it can take the lateral loads of circuit driving. The manufacturer had it destruction tested in 2010 and sled tested at the Japan Automobile Research Institute in 2014 and 2017.

Does it fit the AP2 as well?

Yes. The rail is listed for both S2000 generations, the 1999 to 2003 AP1 and the 2004 to 2009 AP2. Check steering wheel alignment and trim clearance with your chosen seat, since some combinations can shift the seat off center or bring it close to interior panels.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

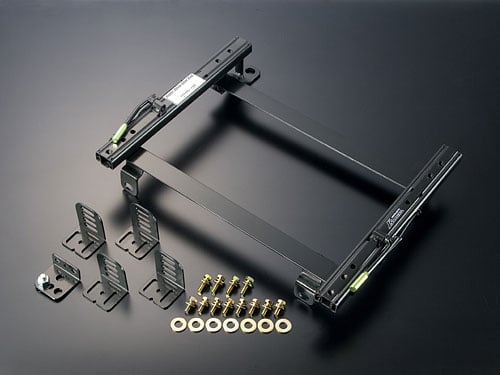

J’s Racing Ultra-Low Seat Rail for AP1 / AP2 Honda S2000

J’s Racing’s Ultra-Low Seat Rail for AP1 and AP2 S2000s is for drivers who already run a full bucket seat and still sit too high on the seat maker’s own rails. J’s Racing moved the lock levers to the sides of the rail, so the seat shell drops down between the rails instead of sitting on top of them. The reference figure is a 40mm drop against the factory seat, measured with a Recaro bucket in its lowest mounting position, and the rail is 395mm wide. Levers locking on both sides give the strength for circuit cornering loads. It is made for side-mount full buckets only, so it does nothing for an owner keeping the stock seats.

Development and Testing

J’s Racing set its own strength standard and had the rail destruction tested at a public industrial testing laboratory in June 2010. It then commissioned sled tests, a crash safety procedure, at the Japan Automobile Research Institute in October 2014 and again in March 2017, and the company states those results confirmed the strength and safety of its seat rails.

Features

Side-mounted lock levers let the seat sit between the rails
Reference drop of 40mm versus the factory seat
395mm rail width
Locks on both left and right levers
Stiff frame designed for circuit cornering loads
Sled tested at the Japan Automobile Research Institute

Applications

Honda S2000: AP1 | 1999-2003 | 2.0L F20C
Honda S2000: AP2 | 2004-2009 | 2.2L F22C

Notes

Seat not included; the rail accepts full bucket seats with four side mounting points only
Not compatible with factory seats or reclining semi-bucket seats
Sold per side, so choose Left or Right; each seat needs its own rail
The 40mm figure is a reference, not a guarantee, and seat height varies with the seat, the car and individual differences
Depending on the seat, the steering wheel center may sit off the seat centerline, or the seat may touch interior trim
Ordered in from J’s Racing in Japan, and Bulletproof Automotive confirms lead time and stock once you check out

Frequently Asked Questions

Is a seat included, and which seats does the rail accept? No seat is included. The rail is made only for full bucket seats that bolt in through four mounting points on the sides of the shell. It does not work with the factory S2000 seats or with reclining semi-bucket seats, and final seat height depends on the bucket you use.
How much lower does the Ultra-Low Seat Rail for AP1 cars sit? The Ultra-Low Seat Rail for AP1 cars is quoted at a 40mm drop compared with the factory seat, measured with a Recaro bucket bolted in its lowest position. The manufacturer stresses this is a reference value, since the seat, the car and individual differences all change the result.
How many rails come in one order? One. Each rail is sold individually as a left or right part, so pick the side you need. The driver side and passenger side each need their own rail, and the two carry separate part numbers. Order both if you are lowering both seats.
Is it strong enough for track driving? Yes. The frame is built stiff, and the rail locks on levers at both sides so it can take the lateral loads of circuit driving. The manufacturer had it destruction tested in 2010 and sled tested at the Japan Automobile Research Institute in 2014 and 2017.
Does it fit the AP2 as well? Yes. The rail is listed for both S2000 generations, the 1999 to 2003 AP1 and the 2004 to 2009 AP2. Check steering wheel alignment and trim clearance with your chosen seat, since some combinations can shift the seat off center or bring it close to interior panels.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
