Is the diffuser included with the Aero Rear Bumper for AP1?

No. The diffuser is an optional extra that Go Tuning lists separately, and BA sells it as its own item. The Aero Rear Bumper for AP1 and AP2 works without it, venting air from behind the wheels and through its cutouts, but the diffuser completes the rear for owners who want the full Spoon package.

Does the bumper help cooling?

Yes. Go Tuning notes that the cutouts which let trapped air escape also help cool the rear differential and the exhaust. On an S2000 driven hard in hot weather, the differential sees sustained load on track, so extra airflow at the back of the car is a practical benefit beyond downforce.

Does it fit both AP1 and AP2?

Yes. Spoon registers it for all S2000 versions sold in Japan from 1999 to 2009, with the F20C AP1 and the F22C AP2, and Go Tuning sells it for 2000 to 2009 US model years. Spoon gives no note about modifying the rear bumper stay for this bumper, unlike the earlier S-Tai rear.

It is FRP with a white gel coat that serves as a base for paint. Start by removing the production wax with a degreaser, key the surface, and fill any pinholes before primer and color. Spoon asks for a test fit before painting, and natural drying keeps the bumper from distorting.

Why does a raised bumper create downforce?

Raising the bumper gives the air coming off the rear wheels a clear exit, so pressure does not build up behind them. Go Tuning explains that this release is what generates rear downforce on the Spoon design, which Spoon developed with CFD alongside the Aero front. The result is a cleaner, more settled rear at speed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

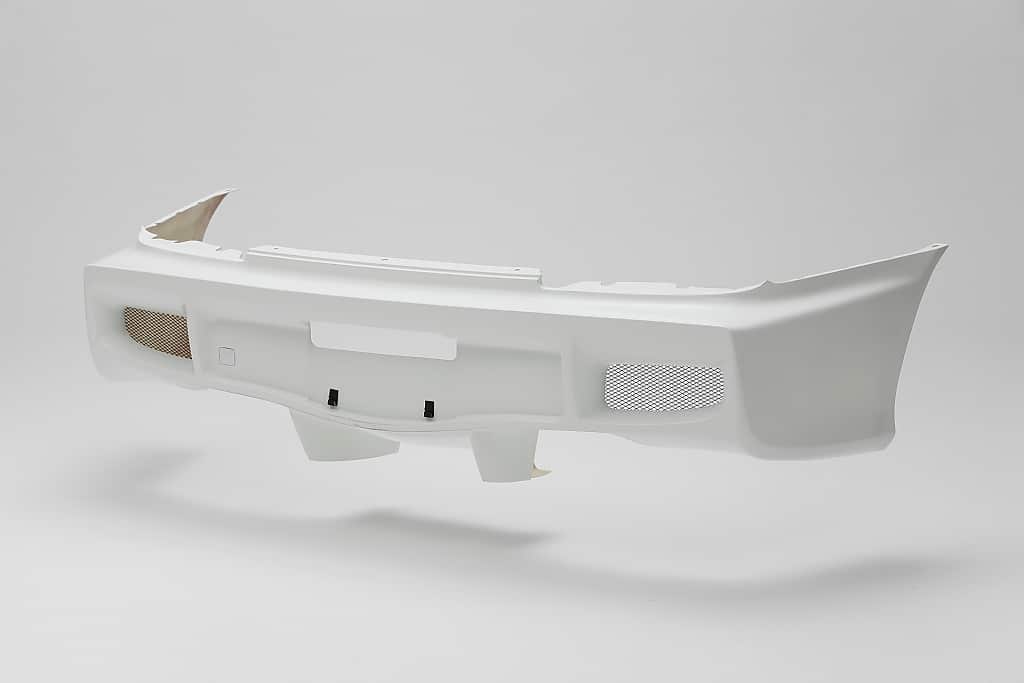

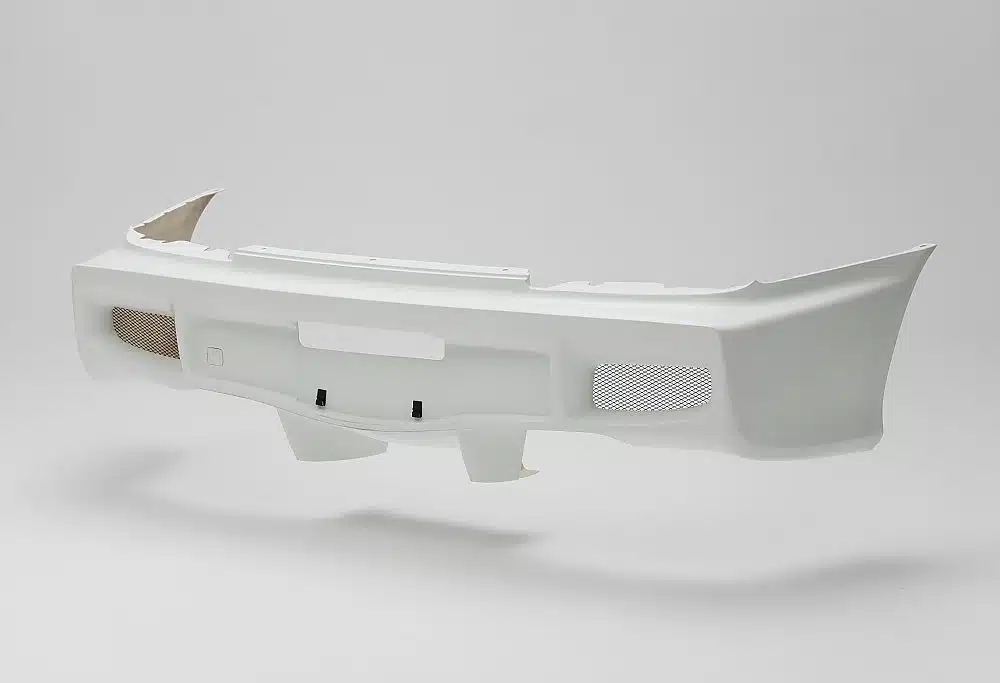

Spoon Sports Aero Rear Bumper for AP1 / AP2 Honda S2000

The Spoon Sports Aero Rear Bumper for AP1 and AP2 Honda S2000 raises the bumper line so the air spilling from behind the rear wheels has somewhere to go, and Go Tuning, the US distributor for Spoon, says that release is what generates its rear downforce. Cutouts in the bumper let trapped air escape, cutting drag and helping cool the rear differential and exhaust. Spoon developed it alongside the matching Aero front with CFD analysis, drawing on what Go Tuning describes as 15 years of S2000 racing, and ran the pair in competition for a year before release. Spoon reports lower drag and better use of engine power through corners from the new aero. It is FRP with a white gel coat, listed at 15.9 kg. A separate rear diffuser is offered; the bumper works on its own, but a car chasing lap times will want both.

Features

Raised bumper height releases air from behind the rear wheels
Cutouts vent trapped air to reduce drag
Extra airflow for rear differential and exhaust cooling
CFD-led development with the matching front bumper
FRP with a white gel coat finish

Applications

Honda S2000: AP1 | 1999-2005 | 2.0L F20C
Honda S2000: AP2 | 2005-2009 | 2.2L F22C

Notes

The rear diffuser is optional and sold separately: Spoon Aero Bumper Rear Diffuser
The Aero Rear Bumper for AP1 and AP2 pairs with the Spoon Aero Front Bumper
White gel coat finish; paint is required after degreasing, keying and a test fit

Frequently Asked Questions

Is the diffuser included with the Aero Rear Bumper for AP1? No. The diffuser is an optional extra that Go Tuning lists separately, and BA sells it as its own item. The Aero Rear Bumper for AP1 and AP2 works without it, venting air from behind the wheels and through its cutouts, but the diffuser completes the rear for owners who want the full Spoon package.
Does the bumper help cooling? Yes. Go Tuning notes that the cutouts which let trapped air escape also help cool the rear differential and the exhaust. On an S2000 driven hard in hot weather, the differential sees sustained load on track, so extra airflow at the back of the car is a practical benefit beyond downforce.
Does it fit both AP1 and AP2? Yes. Spoon registers it for all S2000 versions sold in Japan from 1999 to 2009, with the F20C AP1 and the F22C AP2, and Go Tuning sells it for 2000 to 2009 US model years. Spoon gives no note about modifying the rear bumper stay for this bumper, unlike the earlier S-Tai rear.
How is it finished? It is FRP with a white gel coat that serves as a base for paint. Start by removing the production wax with a degreaser, key the surface, and fill any pinholes before primer and color. Spoon asks for a test fit before painting, and natural drying keeps the bumper from distorting.
Why does a raised bumper create downforce? Raising the bumper gives the air coming off the rear wheels a clear exit, so pressure does not build up behind them. Go Tuning explains that this release is what generates rear downforce on the Spoon design, which Spoon developed with CFD alongside the Aero front. The result is a cleaner, more settled rear at speed.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
