What is the difference between this and the adjustable CRB version?

The adjustable CRB has FK spherical bearings and lets you tune caster. The non-adjustable CRBN keeps OEM caster geometry but stiffens the bushing, sharpening response without changing alignment.

Will I feel more road noise?

Slightly, but much less than the adjustable version.

Do I need an alignment after install?

Recommended after any front suspension service, but caster alignment will not change.

How long do these last?

Significantly longer than OEM rubber, particularly on track-driven cars.

Are stud kits required?

SPL recommends the SRK stud replacement kit on F-chassis BMWs to avoid breaking OEM aluminum studs during install.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

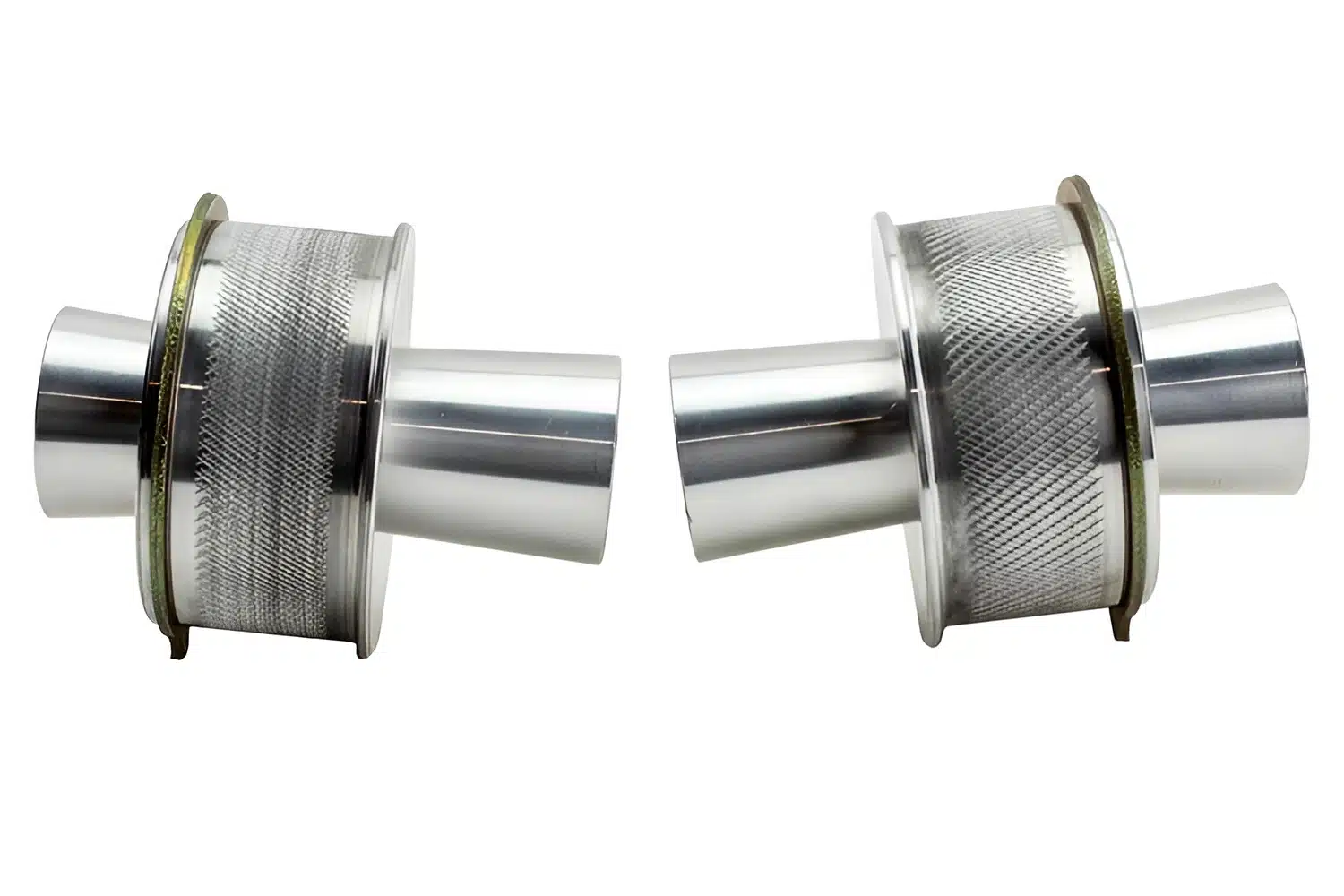

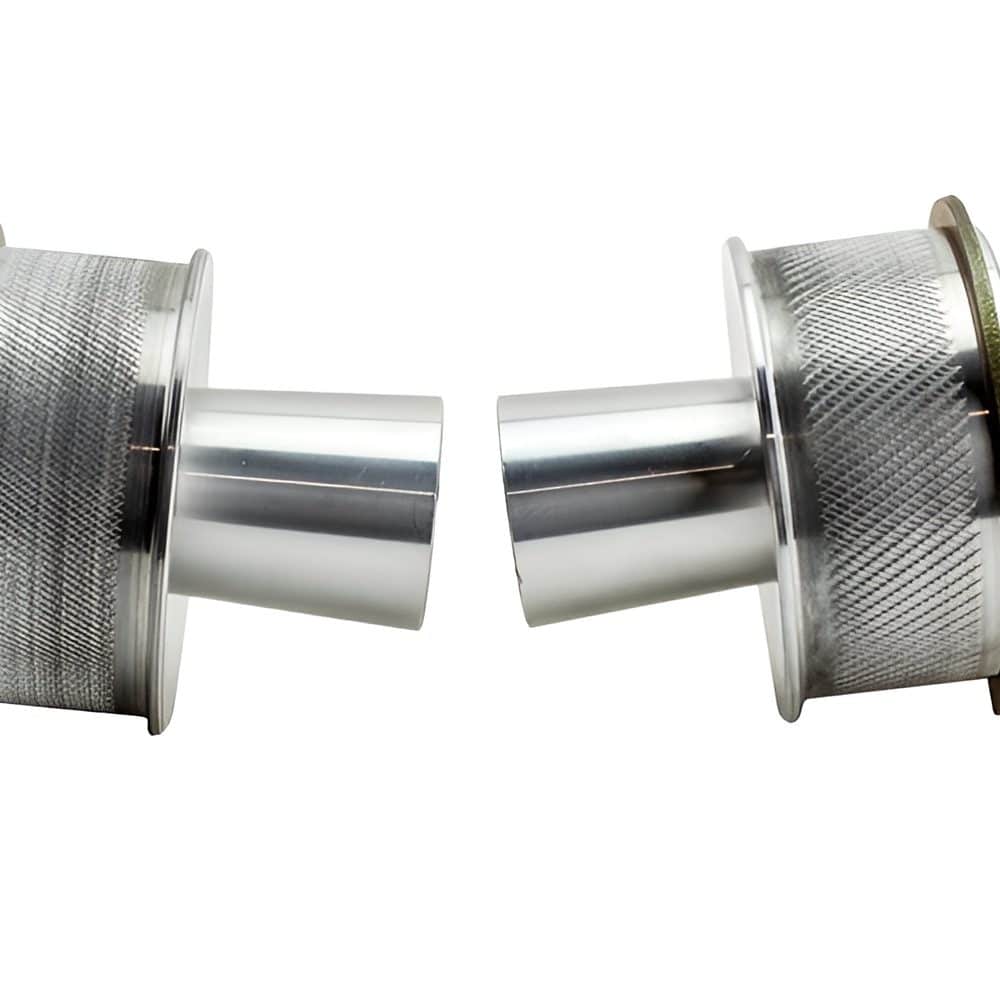

SPL Parts Non-Adjustable Front Caster Rod Bushings for F2x / F3x BMW 1, 2, 3, and 4 Series

There is a version of your F2x or F3x that exists under the factory rubber bushing compliance, and it handles better than what you’re currently experiencing. The front geometry on these platforms is well thought out from the factory; the problem is that rubber caster rod bushings don’t hold it there under load. When the caster rod bushing compresses and deflects under braking or cornering force, the geometry shifts in real time, introducing a layer of imprecision between driver input and tire response that rubber-bushed cars simply live with. The SPL Parts CRBN F3x addresses that directly.

Features

Eliminates factory rubber caster rod bushing deflection with 1-inch FK Racing spherical bearings using self-lubricating Teflon liners; no greasing required
Non-adjustable; no offset spacers; caster geometry remains at its current set position
6061-T6 aluminum bearing housing with outer knurl; presses into the OEM caster rod arm with no modification required
Holds front geometry at its set position under braking and cornering load; improves braking consistency, turn-in response, and steering feedback
All materials sourced from American suppliers; CNC machining and TIG welding performed locally by SPL Parts to tight tolerance specifications
Sold as a pair; left and right bushings with hardware included
Backed by SPL Parts’ 10-year/100,000-mile warranty against defects in material and workmanship
Made in the USA

Specifications

Material: CNC-machined billet aluminum
Adjustment: None — fixed geometry

Applications

BMW 116d: F20, F21 | 2012-2019
BMW 118d: F20, F21 | 2012-2019
BMW 120d: F20, F21 | 2012-2019
BMW 125d: F20, F21 | 2012-2019
BMW 128ti: F20, F21 | 2019-2019
BMW 114i: F20, F21 | 2012-2019
BMW 116i: F20, F21 | 2012-2019
BMW 118i: F20, F21 | 2012-2019
BMW 120i: F20, F21 | 2012-2019
BMW 125i: F20, F21 | 2012-2019
BMW 135i: F20, F21 | 2012-2016
BMW 220d: F22, F23 | 2014-2021
BMW 225d: F22, F23 | 2014-2021
BMW 220i: F22, F23 | 2014-2021
BMW 228i: F22, F23 | 2014-2016
BMW 230i: F22, F23 | 2016-2021
BMW 240i: F22, F23 | 2016-2021
BMW 316d: F30, F31 | 2012-2019
BMW 318d: F30, F31 | 2012-2019
BMW 320d: F30, F31 | 2012-2019
BMW 325d: F30, F31 | 2012-2019
BMW 330d: F30, F31 | 2012-2019
BMW 335d: F30, F31 | 2012-2019
BMW 330e: F30, F31 | 2015-2019
BMW 316i: F30, F31 | 2012-2019
BMW 318i: F30, F31 | 2012-2019
BMW 320i: F30, F31 | 2012-2019
BMW 328i: F30, F31 | 2012-2016
BMW 330i: F30, F31 | 2016-2019
BMW 335i: F30, F31 | 2012-2015
BMW 340i: F30, F31 | 2015-2019
BMW 420d: F32, F33, F36 | 2014-2020
BMW 425d: F32, F33, F36 | 2014-2020
BMW 430d: F32, F33, F36 | 2014-2020
BMW 435d: F32, F33, F36 | 2014-2020
BMW 420i: F32, F33, F36 | 2014-2020
BMW 428i: F32, F33, F36 | 2014-2016
BMW 430i: F32, F33, F36 | 2016-2020
BMW 435i: F32, F33, F36 | 2014-2016
BMW 440i: F32, F33, F36 | 2016-2020
BMW M135i: F20, F21 | 2012-2016
BMW M140i: F20, F21 | 2016-2019
BMW M235i: F22, F23 | 2014-2016
BMW M240i: F22, F23 | 2016-2021
BMW M340i: F30, F31 | 2019-2019

Notes

Installation Instructions
Not compatible with xDrive/AWD models
OEM arms not included
For adjustable bushings click here
SPL components are made-to-order in the USA; build time will be confirmed at the time of order

Frequently Asked Questions

What is the difference between the SPL CRBN F3X and the adjustable SPL CRB F3X? The CRBN F3X is the non-adjustable version. It replaces the factory rubber with an FK spherical bearing, eliminating caster rod deflection while keeping caster at its current aligned position. The adjustable CRB F3X adds CNC-machined offset aluminum spacers providing up to +/- 4 degrees of caster adjustment. If the alignment is already correct or being adjusted via SPL tension rods or another method, the CRBN F3X eliminates the deflection problem without changing anything else. If caster adjustment is needed at the bushing itself, the CRB F3X is the right choice.
Does the SPL CRBN F3X fit xDrive or AWD F2x and F3x models? No. The CRBN F3X is designed exclusively for RWD F2x and F3x models and replaces BMW part number 31126855743, which is RWD-specific. The xDrive equivalent is the SPL CRBN F3iX, which replaces BMW part number 31126854729. The two parts are not interchangeable; confirm your drivetrain configuration before ordering.
When is the non-adjustable version the better choice over the adjustable version? The CRBN F3X is the better choice in three situations: when the current caster setting is already correct for your alignment target; when caster adjustment is being handled by another component such as SPL tension rods; or when the goal is simply eliminating rubber deflection without introducing any new geometry changes. It is also typically priced lower than the adjustable version, making it the more efficient choice for builds that don’t need caster adjustment at this point in the suspension.
What warranty does SPL Parts provide on the CRBN F3X? SPL Parts backs this product with a 10-year/100,000-mile warranty against defects in material and workmanship from the date of purchase. If a product fails to meet specifications within that period, SPL Parts will repair, replace, or make appropriate adjustment at their discretion.
Are OEM caster rod arms included? No. The CRBN F3X replaces the rubber bushing inserts within the existing OEM caster rod arms. The arms themselves stay in the car and are not included with this purchase. Replaces BMW part number 31126855743.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
