How is the SPL EL E9M different from the SPL EL E9X non-M combined lockout?

Both kits eliminate both rear camber and toe arm eccentric bolts in a single purchase, but they are designed for different rear subframe configurations. The EL E9M is for the E8X M-Series (E82M, 1M) and E9X M-Series (M3), which use the M Version rear subframe. The EL E9X is for the non-M E8X and E9X standard models. The two kits are not interchangeable; confirm your specific chassis and trim level before ordering.

Does the SPL EL E9M cover both the E8X 1M and the E9X M3?

Yes. One part number covers both the E8X M-Series (E82M and 1M) and the E9X M-Series (M3) platforms under the same kit. Both models share the M Version rear subframe configuration that this kit is designed for.

Do I need adjustable camber and toe arms before installing the EL E9M?

Yes, and both are hard requirements. Removing the camber arm eccentric eliminates the factory camber adjustment mechanism; without adjustable rear upper camber arms, camber cannot be set after installation. Removing the toe arm eccentric eliminates the factory toe adjustment mechanism; without adjustable rear toe arms, toe cannot be set after installation. The SPL RUA E9X provides rear camber adjustment and the SPL RTA E9M provides rear toe adjustment for M Version models; both should be installed before or at the same time as this lockout kit.

Can I buy just the camber lockout or just the toe lockout if I only need one position addressed?

Yes. The SPL ELC E9X (camber arm only) and SPL ELT E9X (toe arm only) are available separately for builds that only need one position locked out. For builds addressing both positions simultaneously, the EL E9M combined kit is the more efficient choice.

What hardware is included in the SPL EL E9M kit?

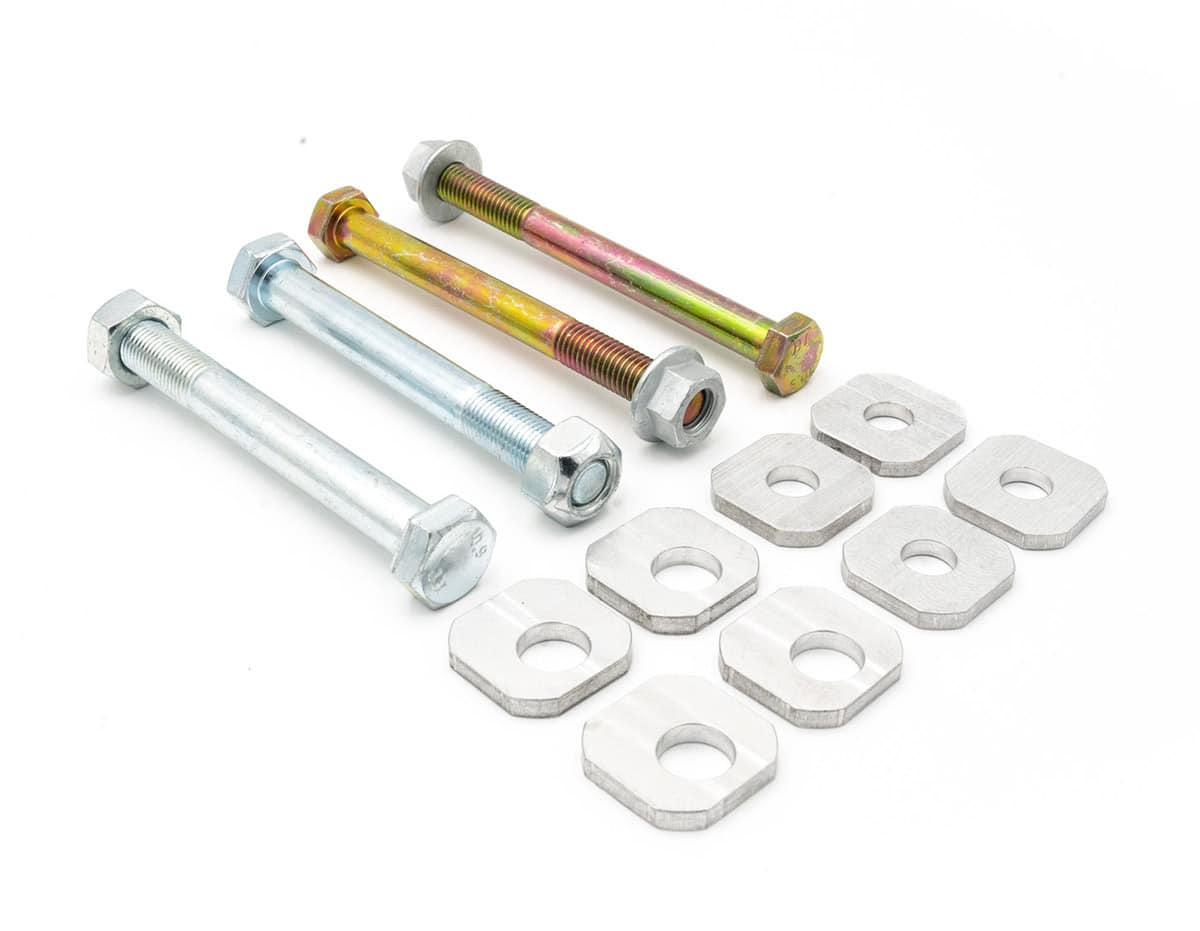

The kit includes CNC-machined 6061-T6 aluminum lockout plates, CAD-plated grade 10.9 bolts, lock nuts, and washers for both the rear camber arm and rear toe arm positions at both rear corners. Sold as a complete one-car kit at $65.00. Part number: SPL EL E9M.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

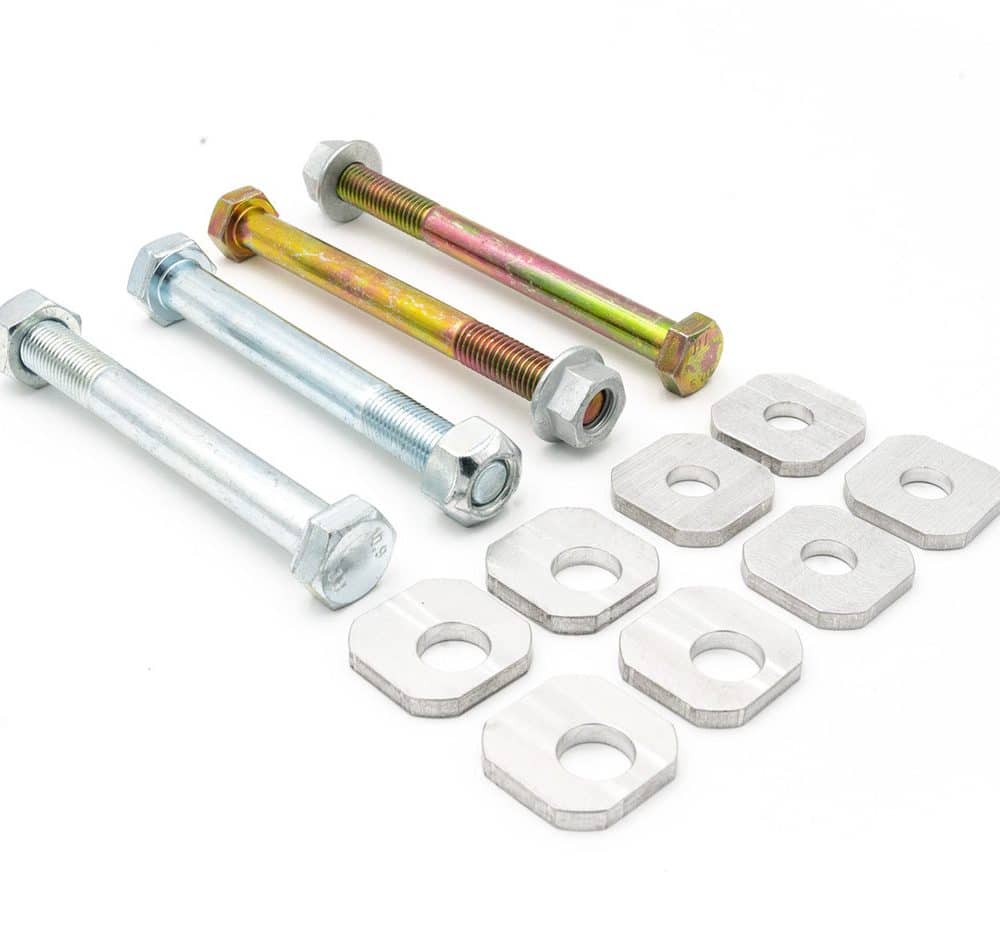

SPL Parts Rear Camber and Toe Eccentric Lockout Kit for E8M BMW 1M and E9M M3

The E9x M3 and E8x 1M generate substantially higher lateral loads than the standard 3 and 1 Series models they share a platform with. The factory eccentric bolts managing rear camber and toe alignment on these M cars are the same friction-based hardware as the rest of the range; they were not upgraded for the M model’s higher cornering forces. Under sustained hard driving, those bolts rotate, and when they do, both camber and toe shift simultaneously. The alignment the driver expected for the session is no longer what the car is running; handling consistency degrades mid-session in a way that’s hard to diagnose and impossible to address without going back on the alignment rack. The SPL EL E9M combined eccentric lockout kit eliminates that problem at both positions in a single purchase. CNC-machined 6061-T6 aluminum lockout plates replace the factory eccentric bolt hardware at both the rear camber arm and rear toe arm positions on both rear corners. CAD-plated grade 10.9 bolts with lock nuts create mechanically fixed connections; neither position can rotate under any load applied during performance driving. The alignment set before the session holds through every corner of every lap.

Features

Eliminates OEM eccentric bolt slip — alignment stays where you set it
CNC-machined 6061-T6 aluminum lockout plates
Class 10.9 metric hardware
Direct OEM-style fit — no chassis modification
Sold as a complete kit (one car)
Made in the USA

Specifications

Material: 6061-T6 aluminum
Hardware: Class 10.9 metric
Replaces: OEM rear eccentric bolts
Required: Adjustable arms must be used to retain alignment range
Origin: Made in the USA

Applications

BMW 1M Coupé: E82 | 2011-2012
BMW M3: E90, E92, E93 | 2007-2013

Notes

Only compatible with M models
SPL components are made-to-order in the USA; build time will be confirmed at the time of order

Frequently Asked Questions

How is the SPL EL E9M different from the SPL EL E9X non-M combined lockout? Both kits eliminate both rear camber and toe arm eccentric bolts in a single purchase, but they are designed for different rear subframe configurations. The EL E9M is for the E8X M-Series and E9X M-Series, which use the M Version rear subframe. The EL E9X is for the non-M E8x and E9x standard models. The two kits are not interchangeable; confirm your specific chassis and trim level before ordering.
Does the SPL EL E9M cover both the E8x 1M and the E9x M3? Yes. One part number covers both the E8x M-Series and the E9x M-Series platforms under the same kit. Both models share the M Version rear subframe configuration that this kit is designed for.
Do I need adjustable camber and toe arms before installing the EL E9M? Yes, and both are hard requirements. Removing the camber arm eccentric eliminates the factory camber adjustment mechanism; without adjustable rear upper camber arms, camber cannot be set after installation. Removing the toe arm eccentric eliminates the factory toe adjustment mechanism; without adjustable rear toe arms, toe cannot be set after installation. The SPL RUA E9X provides rear camber adjustment and the SPL RTA E9M provides rear toe adjustment for M Version models; both should be installed before or at the same time as this lockout kit.
Can I buy just the camber lockout or just the toe lockout if I only need one position addressed? Yes. The SPL ELC E9X (camber arm only) and SPL ELT E9X (toe arm only) are available separately for builds that only need one position locked out. For builds addressing both positions simultaneously, the EL E9M combined kit is the more efficient choice.
What hardware is included in the SPL EL E9M kit? The kit includes CNC-machined 6061-T6 aluminum lockout plates, CAD-plated grade 10.9 bolts, lock nuts, and washers for both the rear camber arm and rear toe arm positions at both rear corners.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
