Is there a separate version of these bushings for xDrive BMW F2X and F3X models?

Yes. This listing, part number SPL CRB F3X, fits rear-wheel-drive F2X and F3X models only. SPL Parts produces a separate caster rod bushing set specifically for F2X and F3X xDrive AWD variants. Confirm your drivetrain configuration before ordering; the two parts are not interchangeable.

What does replacing the factory rubber caster rod bushings actually improve on the F2X and F3X?

The factory rubber bushings deflect under braking and lateral load, allowing the front geometry to shift away from its set position when it matters most. Replacing them with FK spherical bearings keeps the caster rod at its set position under all load conditions. The most noticeable improvements are more consistent and stable braking, sharper turn-in with more accurate steering feedback, and front suspension behavior that behaves the same at the limit as it does in normal driving.

How much caster adjustment do the SPL CRB F3X bushings provide, and why does it matter?

The CNC-machined aluminum offset spacers provide up to +/- 4 degrees of caster adjustment. Most F2X and F3X models arrive from the factory with less front caster than is optimal for track use. More caster improves steering return-to-center feel, high-speed stability, and front grip balance at the limit. The adjustment range also allows left-to-right caster to be equalized, which is important on cars that have been lowered or have uneven front geometry from use.

Will these bushings increase road noise or harshness on my daily-driven BMW?

Some increase in NVH is possible. Replacing the rubber with a spherical bearing removes one of the front suspension's compliant elements, which can result in more transmitted road noise, particularly on rough surfaces. If these are installed alongside SPL front lower control arms, which also replace rubber with spherical bearings, all compliant front bushings are eliminated and NVH increases more noticeably. SPL describes this as road noise and impact harshness rather than a jarring or uncomfortable force. For primarily track-use vehicles, this is generally a non-issue.

What BMW part number do the SPL CRB F3X bushings replace?

The SPL Parts CRB F3X replaces BMW part number 31126855743, which is the factory rubber caster rod bushing used across F20, F21, F22, F23, F30, F31, F32, F33, F34, F35, and F36 RWD models.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

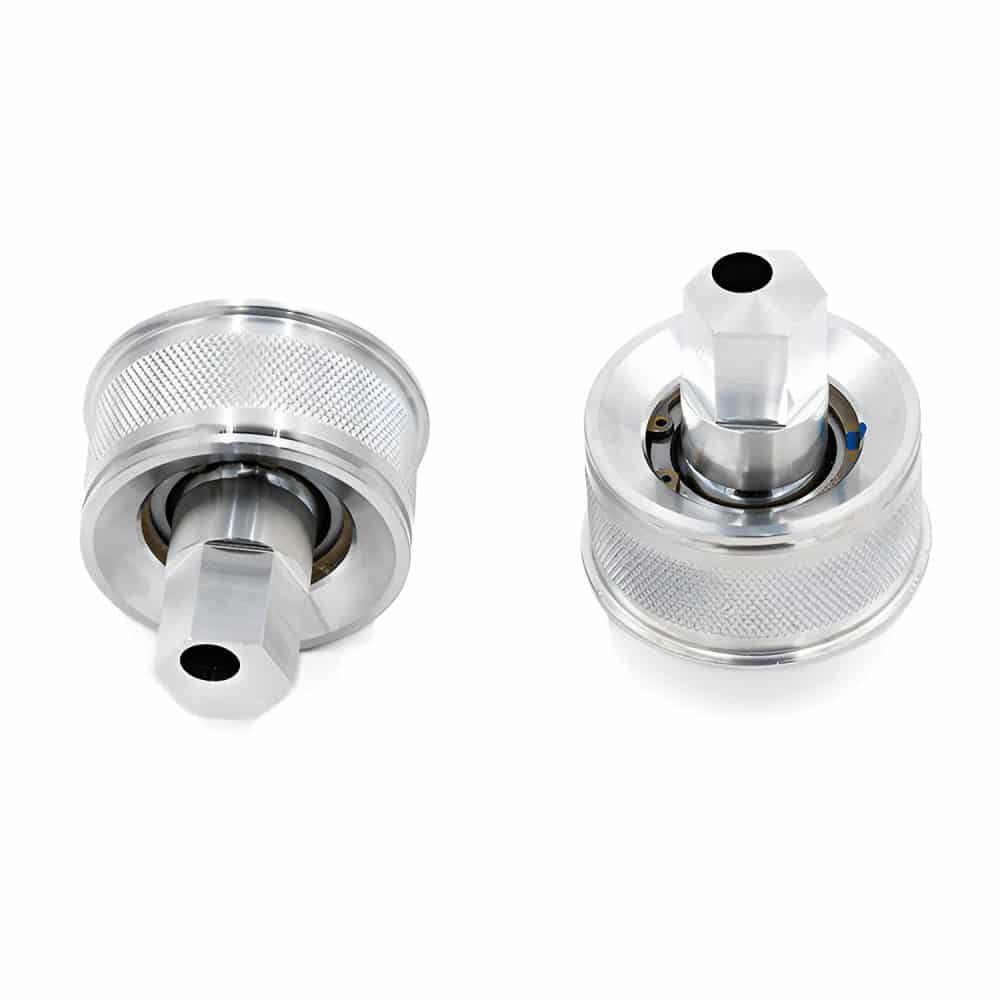

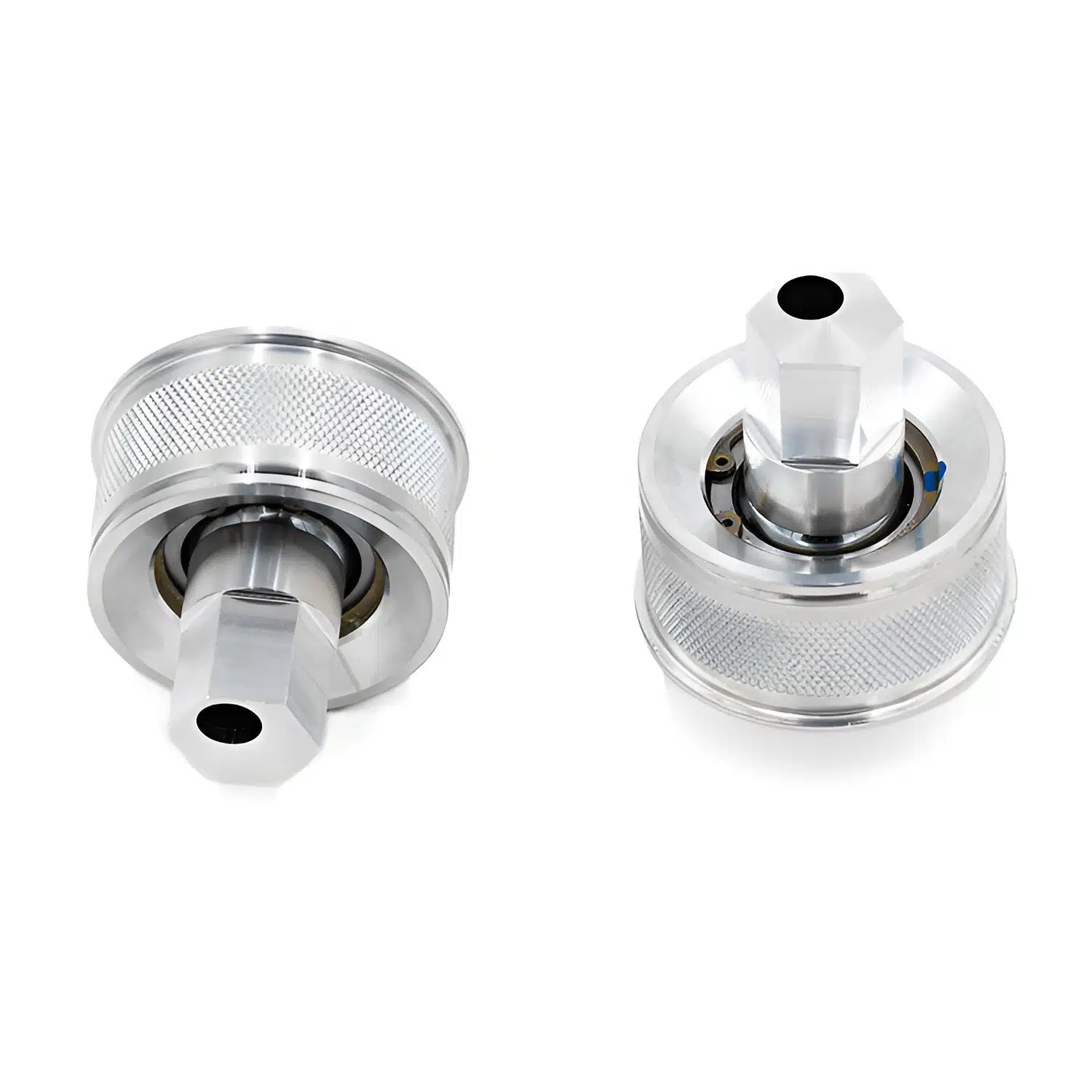

SPL Parts Adjustable Front Caster Rod Monoball Bushings for F2x BMW 2 Series and F3x 3 / 4 Series

SPL FKS Series Adjustable Front Caster Rod Bushings (CRB) for the BMW F2X / F3X replace the soft OEM rubber bushings with low-friction articulating FK USA spherical bearings, eliminating bushing deflection and reducing friction. Massive 1″ FK racing bearings with self-lubricating Teflon liners maintain optimum suspension geometry under braking and cornering load, while integrated caster adjustment lets you dial in exactly the angle you want.

Features

Replaces factory rubber caster rod bushings with low-friction, articulating FK Racing 1-inch spherical bearings; eliminates bushing deflection under braking and cornering load
Self-lubricating Teflon-lined bearings require no greasing and maintain performance durability through sustained track use
CNC-machined 6061-T6 aluminum offset bearing spacers provide +/- 4 degrees of caster adjustment
6061-T6 aluminum bearing housing with outer knurl for precise press-fit into the OEM caster rod arm
Maintains optimum front suspension geometry under load; improves braking stability and steering feedback
Sold as a pair; includes left and right bushings with hardware
Made in the USA

Specifications

Material: Billet aluminum mounts
Bushings: 1″ FK USA spherical bearings, Teflon-lined
Adjustment: Caster — wide range

Applications

BMW 220d: F22, F23 | 2014-2021
BMW 225d: F22, F23 | 2014-2021
BMW 220i: F22, F23 | 2014-2021
BMW 228i: F22, F23 | 2014-2016
BMW 230i: F22, F23 | 2016-2021
BMW 235i: F22, F23 | 2014-2016
BMW 240i: F22, F23 | 2016-2021
BMW 318d: F30, F31 | 2012-2019
BMW 320d: F30, F31 | 2012-2019
BMW 330d: F30, F31 | 2012-2019
BMW 325d: F30, F31 | 2012-2019
BMW 335d: F30, F31 | 2012-2019
BMW 330e: F30, F31 | 2015-2019
BMW 316i: F30, F31 | 2012-2019
BMW 318i: F30, F31 | 2012-2019
BMW 320i: F30, F31 | 2012-2019
BMW 328i: F30, F31 | 2012-2016
BMW 330i: F30, F31 | 2016-2019
BMW 335i: F30, F31 | 2012-2015
BMW 340i: F30, F31 | 2015-2019
BMW 420d: F32, F33, F36 | 2014-2020
BMW 425d: F32, F33, F36 | 2014-2020
BMW 430d: F32, F33, F36 | 2014-2020
BMW 435d: F32, F33, F36 | 2014-2020
BMW 420i: F32, F33, F36 | 2014-2020
BMW 428i: F32, F33, F36 | 2014-2016
BMW 430i: F32, F33, F36 | 2016-2020
BMW 435i: F32, F33, F36 | 2014-2016
BMW 440i: F32, F33, F36 | 2016-2020
BMW M235i: F22, F23 | 2014-2016
BMW M240i: F22, F23 | 2016-2021
BMW M340i: F30, F31 | 2019-2019

Complete the Kit

Notes

Installation Instructions
OEM arms not included
Not compatible with xDrive/AWD
SPL components are made-to-order in the USA; build time will be confirmed at the time of order.

Frequently Asked Questions

Is there a separate version of these bushings for xDrive BMW F2x and F3x models? Yes. This listing, part number SPL CRB F3x, fits rear-wheel-drive F2x and F3x models only. SPL Parts produces a separate caster rod bushing set specifically for F2x and F3x xDrive AWD variants. Confirm your drivetrain configuration before ordering; the two parts are not interchangeable.
What does replacing the factory rubber caster rod bushings actually improve on the F2x and F3x? The factory rubber bushings deflect under braking and lateral load, allowing the front geometry to shift away from its set position when it matters most. Replacing them with FK spherical bearings keeps the caster rod at its set position under all load conditions. The most noticeable improvements are more consistent and stable braking, sharper turn-in with more accurate steering feedback, and front suspension behavior that behaves the same at the limit as it does in normal driving.
How much caster adjustment do the SPL CRB F3x bushings provide, and why does it matter? The CNC-machined aluminum offset spacers provide up to +/- 4 degrees of caster adjustment. Most F2X and F3X models arrive from the factory with less front caster than is optimal for track use. More caster improves steering return-to-center feel, high-speed stability, and front grip balance at the limit. The adjustment range also allows left-to-right caster to be equalized, which is important on cars that have been lowered or have uneven front geometry from use.
Will these bushings increase road noise or harshness on my daily-driven BMW? Some increase in NVH is possible. Replacing the rubber with a spherical bearing removes one of the front suspension’s compliant elements, which can result in more transmitted road noise, particularly on rough surfaces. If these are installed alongside SPL front lower control arms, which also replace rubber with spherical bearings, all compliant front bushings are eliminated and NVH increases more noticeably. SPL describes this as road noise and impact harshness rather than a jarring or uncomfortable force. For primarily track-use vehicles, this is generally a non-issue.
What BMW part number do the SPL CRB F3x bushings replace? The SPL Parts CRB F3x replaces BMW part number 31126855743, which is the factory rubber caster rod bushing used across F20, F21, F22, F23, F30, F31, F32, F33, F34, F35, and F36 RWD models.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
