Does the 4POT Caliper Kit for Honda Prelude include rotors?

No. Endless USA lists this kit for the 1992 to 1996 Prelude VTEC with the factory 282mm x 23mm front rotors retained, which is why it costs less than a full big brake kit. Fit new factory-size rotors at the same time if the originals are worn or scored.

Which Preludes does it fit?

Endless lists it for the Prelude VTEC, chassis BB1 and BB4, from 1992 to 1996. The 1997 to 2001 Prelude has its own Endless 4POT kit, which includes 282mm one-piece rotors, so give us your model year and chassis code when you order.

What does the upgrade change if the rotors stay the same?

The caliper and pad. The forged four-piston 4POT replaces the factory caliper with a stiffer opposed-piston design that firms the pedal and clamps the pad from both sides. Pad choice also opens up, with Endless compounds from street to track for the RCP151 shape.

Which pad compound should I choose?

Endless offers the RCP151 shape in SSM, Type R, MX72 and MX72 PLUS. SSM and Type R suit street driving, while MX72 and MX72 PLUS are aimed at harder use and track days. Tell us how the Prelude is driven and we will suggest one.

Two Endless 4POT calipers, RCP151 Endless pads, mounting brackets and two brake lines. Rotors are not supplied because this Caliper Kit for Honda Prelude uses the factory 282mm x 23mm rotors, and DOT4 or higher brake fluid is needed for the bleed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

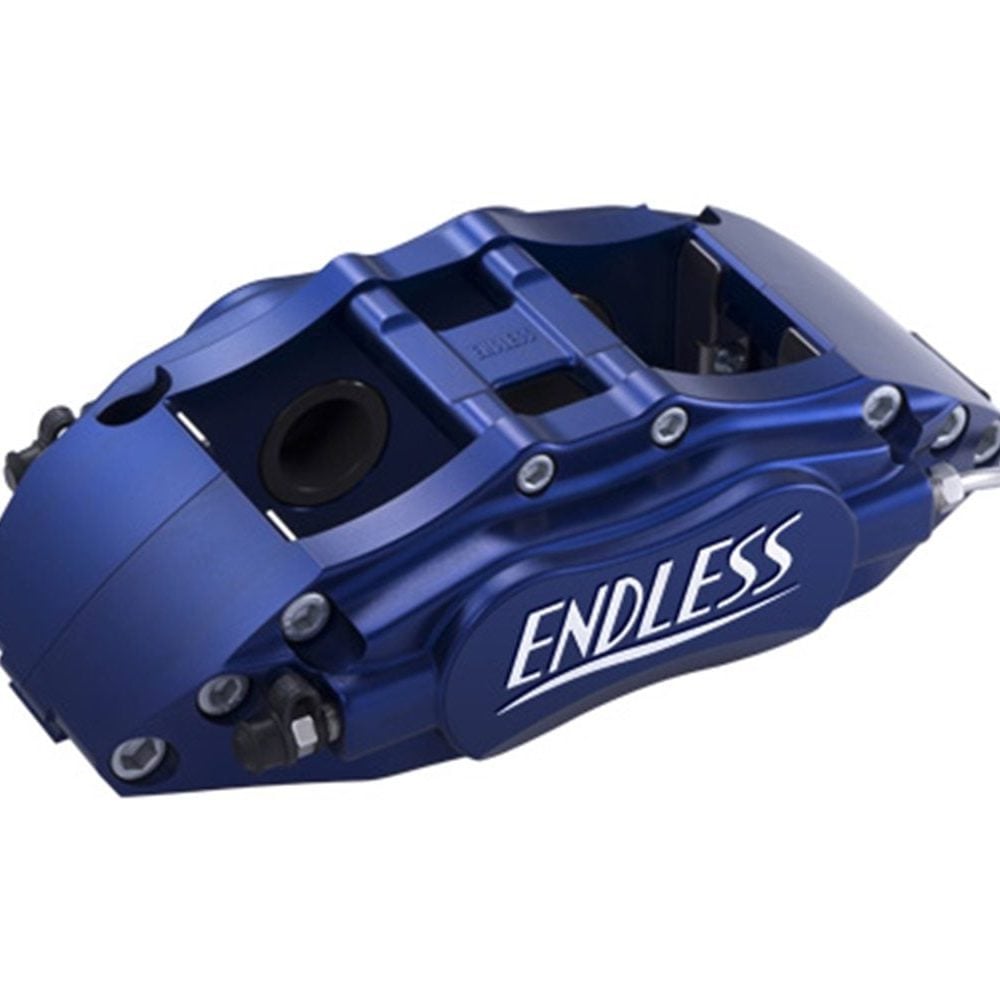

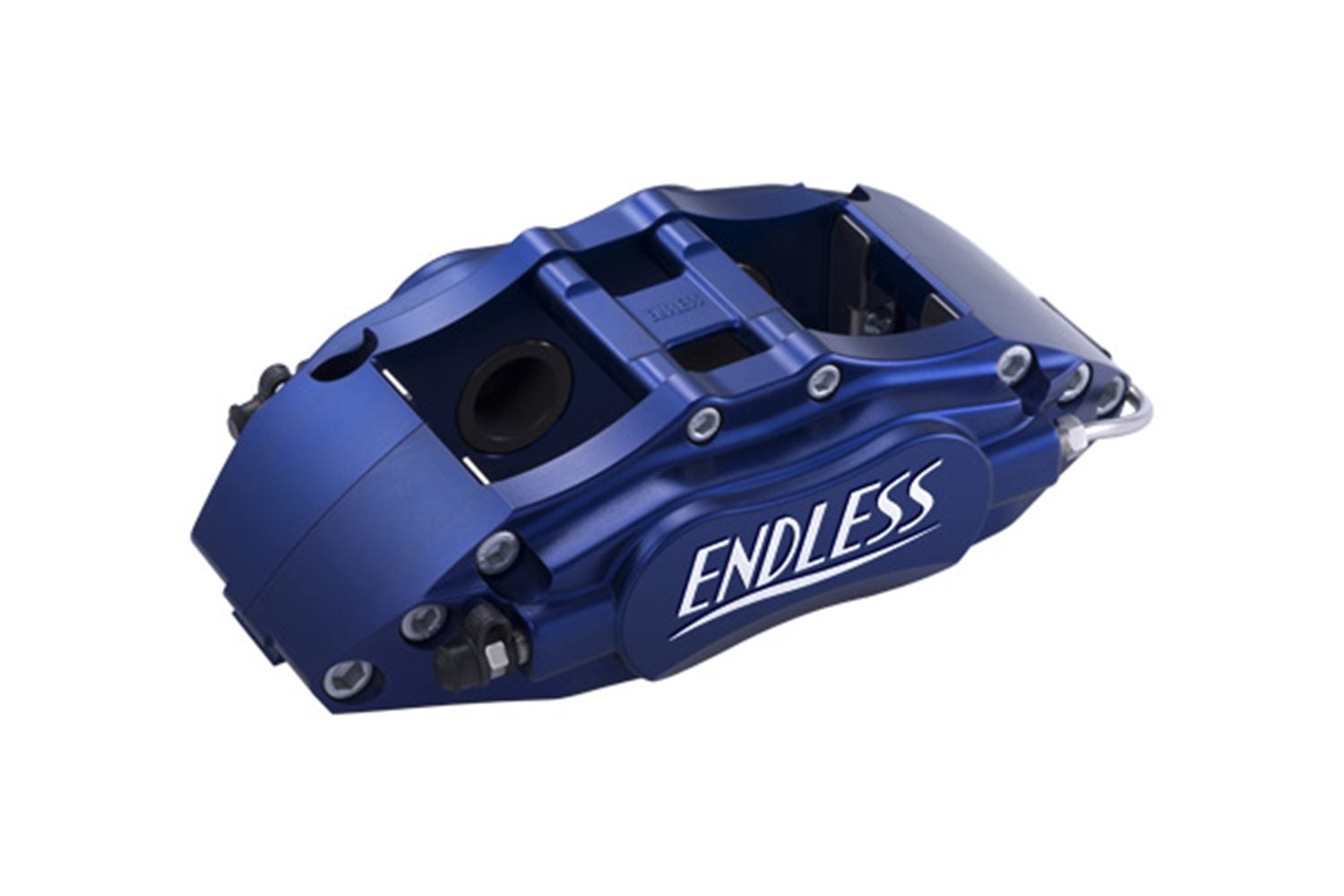

Endless 4POT Front Caliper Kit for Honda Prelude VTEC BB1 / BB4 on OEM 282mm Rotors

Endless’s 4POT Front Caliper Kit for Honda Prelude VTEC BB1 / BB4 replaces the factory front calipers on the 1992 to 1996 Prelude VTEC with forged four-piston Endless calipers while keeping the original 282mm x 23mm rotors. The EC460 4POT is a forged two-piece body weighing 2,143g, with two 34mm and two 41mm pistons, finished in blue anodise, and it clamps a 15mm RCP151 pad. Because the rotors stay, the kit costs less than a full big brake kit and fits behind 15 inch wheels. It suits a Prelude that wants a firmer pedal and better pad choice without changing wheels.

Features

EC460 forged two-piece four-piston caliper, 2,143g
Two 34mm and two 41mm pistons
Runs on the factory 282mm x 23mm front rotors
15mm RCP151 pad shape
15 inch minimum wheel, per Endless
Blue anodise finish

Specifications

Caliper: Endless 4POT (EC460), four-piston forged two-piece
Caliper weight: 2,143g
Caliper size: 135mm x 73.2mm x 250mm
Piston sizes: 34mm x 2, 41mm x 2
Rotors: Not included; the kit runs on the factory 282mm x 23mm front rotors
Caliper rotor capacity: up to 300mm diameter and 25mm thickness
Pad shape: RCP151, 15mm thick
Minimum wheel size: 15 inch, per Endless
Finish: Blue anodise

What’s Included

Endless 4POT calipers (2)
Endless RCP151 brake pad set
Caliper mounting brackets (2)
Brake lines (2)
Rotors are not included; the factory 282mm x 23mm rotors are retained

Applications

Honda Prelude VTEC: BB1 / BB4 | 1992-1996

Notes

Rotors are not included. This Caliper Kit for Honda Prelude reuses the factory front rotors, so check their thickness before fitting
For the 1992 to 1996 Prelude VTEC, BB1 and BB4; Endless lists a separate 4POT kit with 282mm rotors for the 1997 to 2001 Prelude
Endless rates the 4POT for rotors up to 300mm in diameter and 25mm thick
Endless offers RCP151 pads in SSM, Type R, MX72 and MX72 PLUS compounds
Fit new rotors if the factory rotors are worn, scored or below minimum thickness
Made to order in Japan; use DOT4 or higher fluid

Frequently Asked Questions

Does the 4POT Caliper Kit for Honda Prelude include rotors? No. Endless USA lists this kit for the 1992 to 1996 Prelude VTEC with the factory 282mm x 23mm front rotors retained, which is why it costs less than a full big brake kit. Fit new factory-size rotors at the same time if the originals are worn or scored.
Which Preludes does it fit? Endless lists it for the Prelude VTEC, chassis BB1 and BB4, from 1992 to 1996. The 1997 to 2001 Prelude has its own Endless 4POT kit, which includes 282mm one-piece rotors, so give us your model year and chassis code when you order.
What does the upgrade change if the rotors stay the same? The caliper and pad. The forged four-piston 4POT replaces the factory caliper with a stiffer opposed-piston design that firms the pedal and clamps the pad from both sides. Pad choice also opens up, with Endless compounds from street to track for the RCP151 shape.
Which pad compound should I choose? Endless offers the RCP151 shape in SSM, Type R, MX72 and MX72 PLUS. SSM and Type R suit street driving, while MX72 and MX72 PLUS are aimed at harder use and track days. Tell us how the Prelude is driven and we will suggest one.
What is in the kit? Two Endless 4POT calipers, RCP151 Endless pads, mounting brackets and two brake lines. Rotors are not supplied because this Caliper Kit for Honda Prelude uses the factory 282mm x 23mm rotors, and DOT4 or higher brake fluid is needed for the bleed.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
