Do I need the Adjustable Stabilizer Link for FL5?

Only if you run the Spoon front bar. Spoon requires the Adjustable Stabilizer Link for FL5 when the front of the car is more than 40 mm below stock height or when its front bar is used in the inner 136 percent holes. At milder drops on the outer holes, the factory links remain correct.

Will it work with the factory stabilizer bar?

No. Spoon describes this link as dedicated to its own front stabilizer, part 51300-FL5-000, and lists no fitment with the Honda bar. Owners keeping the stock bar on a lowered car should look at a link designed for that bar instead.

How much adjustment does it have?

Spoon gives a range from 50 mm shorter to 30 mm longer than the factory link. Shortening is the side that matters on a lowered car, since dropping the body raises the bar ends relative to the control arm. The extra length allows for setups that sit near stock height.

How should the links be set up?

Set the car at its normal ride height on the ground or on ramps, with the weight of the driver ideally included, and adjust each link until it drops into the bar end without pushing or pulling. Matching both sides keeps the bar free of preload so it does not bias the car to one side.

Is this a good part for a Spoon progressive spring setup?

It is not needed for that setup. Spoon lists its FL5 progressive springs at about 20 mm lower than stock, well inside the 40 mm limit, so the factory links suit the outer 130 percent hole. The adjustable link becomes necessary only if you also want the 136 percent setting.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

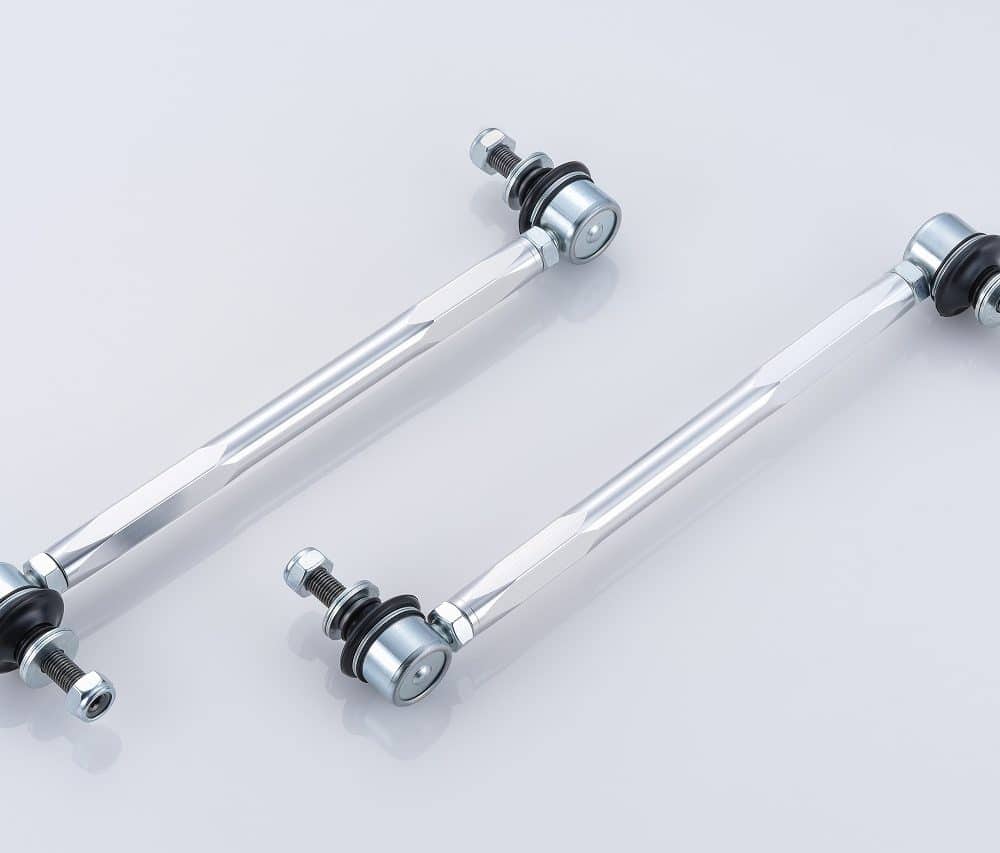

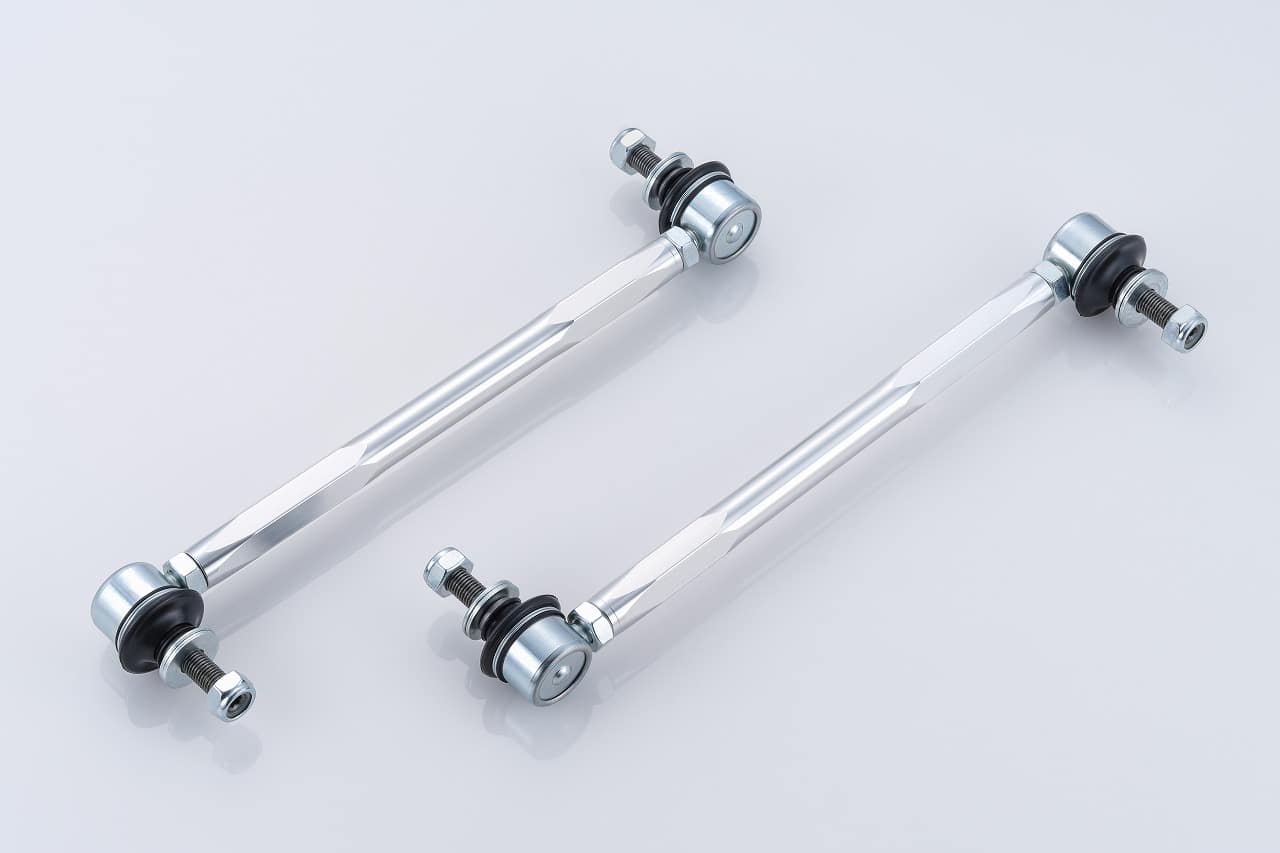

Spoon Sports Adjustable Stabilizer Link for FL5 Honda Civic Type R

The Spoon Sports Adjustable Stabilizer Link for FL5 Honda Civic Type R exists for one job: keeping the Spoon front stabilizer working at the right angle once the car is lowered past the point the factory link can manage. Its length adjusts from 50 mm shorter to 30 mm longer than stock, so the bar can be set level at rest and free of preload at almost any ride height an FL5 is likely to run. Spoon made it specifically for its 51300-FL5-000 front bar and requires it in two situations: a front ride height more than 40 mm below stock, and use of the bar’s inner 136 percent holes. If neither applies, the factory links do the job and this part is not needed. For a coilover car set low for the track, it is the piece that lets the front bar behave as Spoon intended.

Features

Length adjusts from 50 mm shorter to 30 mm longer than stock
Made specifically for the Spoon front stabilizer for the FL5
Lets the bar sit free of preload at low ride heights
Required for the stiffer 136 percent inner bar position

Applications

Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

The Adjustable Stabilizer Link for FL5 works only with the Spoon Front Stabilizer Set for FL5, sold separately
Required when the front is lowered more than 40 mm or the Spoon bar uses the 136 percent holes; otherwise the factory links can stay
A corner-balanced setup and alignment after fitting is recommended

Frequently Asked Questions

Do I need the Adjustable Stabilizer Link for FL5? Only if you run the Spoon front bar. Spoon requires the Adjustable Stabilizer Link for FL5 when the front of the car is more than 40 mm below stock height or when its front bar is used in the inner 136 percent holes. At milder drops on the outer holes, the factory links remain correct.
Will it work with the factory stabilizer bar? No. Spoon describes this link as dedicated to its own front stabilizer, part 51300-FL5-000, and lists no fitment with the Honda bar. Owners keeping the stock bar on a lowered car should look at a link designed for that bar instead.
How much adjustment does it have? Spoon gives a range from 50 mm shorter to 30 mm longer than the factory link. Shortening is the side that matters on a lowered car, since dropping the body raises the bar ends relative to the control arm. The extra length allows for setups that sit near stock height.
How should the links be set up? Set the car at its normal ride height on the ground or on ramps, with the weight of the driver ideally included, and adjust each link until it drops into the bar end without pushing or pulling. Matching both sides keeps the bar free of preload so it does not bias the car to one side.
Is this a good part for a Spoon progressive spring setup? It is not needed for that setup. Spoon lists its FL5 progressive springs at about 20 mm lower than stock, well inside the 40 mm limit, so the factory links suit the outer 130 percent hole. The adjustable link becomes necessary only if you also want the 136 percent setting.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
