Which cars do the Coilovers for B9 Audi RS4 / RS5 fit?

Öhlins lists kit AUS MU00S1 for the whole B9 range: the A4 and A5, the S4 and S5, and the RS4 and RS5. The earlier B8 cars use a different Öhlins kit, AUS MS00S1.

Do I need the cancellation kit?

Only on cars with factory adaptive dampers. Öhlins lists cancellation kit 35020-31 for the B9 A4, S4, A5, S5, RS4 and RS5 to prevent fault codes once the electronic dampers come out. Cars on passive dampers do not need it.

What damping setting should I use?

Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 2 to 7 for track use. Each click changes compression and rebound together through the DFV valve.

How low does the car sit on the Öhlins kit?

On the Öhlins recommended settings the car sits about 35 mm lower than stock at both ends. Öhlins gives a lowering range of roughly 10 to 35 mm, with separate damper length adjusters for ride height.

Does the kit reuse the factory top mounts?

Yes. Both ends use the original Audi top mounts, with the rubber insert removed from the front mounts and new upper spring seats supplied. A four-wheel alignment is recommended after fitting.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

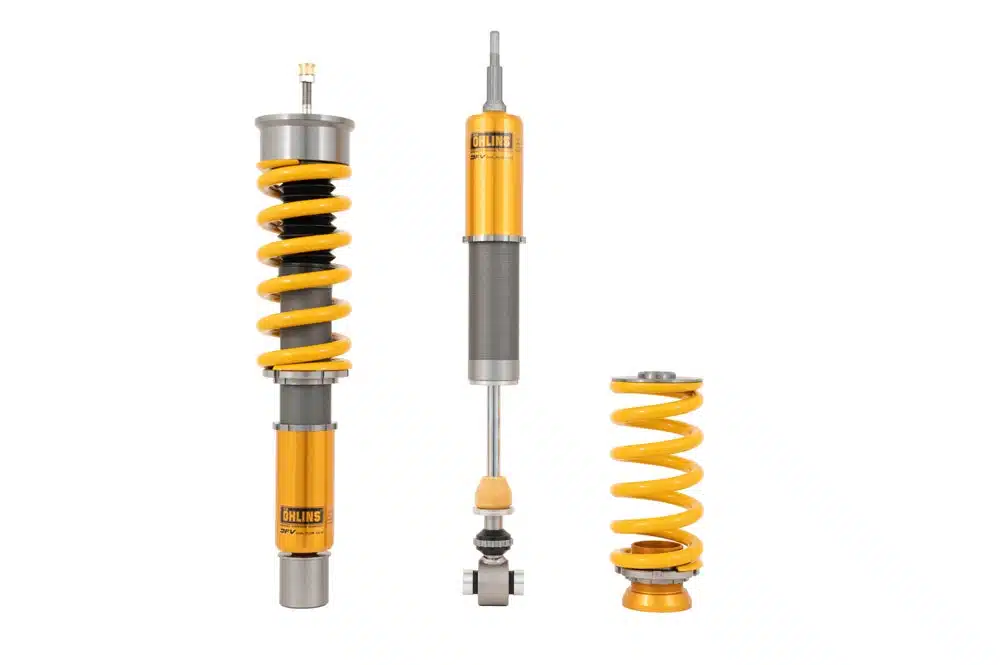

Öhlins DFV Road & Track Coilovers for B9 Audi RS4 / RS5, A4, S4, A5 and S5

Öhlins’ DFV Road & Track Coilovers for B9 Audi RS4 / RS5 models replace all four dampers and springs with Öhlins kit AUS MU00S1, which Öhlins lists across the B9 range, from the A4 and A5 through the S4, S5, RS4 and RS5. A gold knob on each damper switches between street and track settings in seconds, and on Öhlins’ recommended setup the car sits about 35 mm lower than stock. It suits the owner who drives to the circuit and home again; a car trailered to every event wants a dedicated track damper.

Design and Performance

The Dual Flow Valve lets one adjuster shift low and high speed compression and rebound together, so road and track settings are a knob turn apart rather than a session of separate changes. Front and rear use aluminum monotube shock absorbers, each with a spring preload adjuster and a separate damper length adjuster, so ride height and spring preload are set independently. Both ends keep the original Audi top mounts, with the rubber insert removed from the front mounts.

Features

DFV (Dual Flow Valve) damping technology
Single 25-click knob adjusts compression and rebound together
Aluminum monotube shock absorbers front and rear
Spring preload and separate damper length adjusters front and rear
Uses the original top mounts front and rear
Rebuildable dampers for service and custom valving
Salt spray corrosion tested to ISO 9227
2-year Öhlins warranty

Specifications

Ride height at recommended setup: approximately 35 mm below stock, front and rear
Lowering range: approximately 10-35 mm, front and rear
Front spring rate: 685 lb/in (120 N/mm)
Rear spring rate: 799 lb/in (140 N/mm)
Damping adjustment: 25 clicks, compression and rebound combined

What’s Included

Front shock absorbers (x2)
Front springs (x2)
Front adjustment knobs (x2)
Rear shock absorbers (x2)
Rear springs (x2)
Rear spring preload adjusters (x2)
Spring seats, spacers, upright spacers, dust boots and lock nuts
C-spanners (x2), Öhlins sticker kit and emblem kit
Owner’s manual

Applications

Audi RS4: B9 | 2018-2024
Audi RS5: B9 | 2019-2024
Audi S4 / S5: B9 | 2017-2024
Audi A4 / A5: B9 | 2016-2024

Notes

Cars with factory adaptive dampers also need the Öhlins Cancellation Kit for the B9 range
The Öhlins mounting instructions call for removing the rubber insert from the front top mounts; an upright spacer is supplied for cars that need it
The earlier B8 generation uses the Öhlins kit for the B8 RS4 / RS5 and the Öhlins kit for the B8 A4 / S4 / A5 / S5
Professional installation and a four-wheel alignment are recommended when fitting the Coilovers for B9 Audi RS4 / RS5 and the rest of the B9 range

Frequently Asked Questions

Which cars do the Coilovers for B9 Audi RS4 / RS5 fit? Öhlins lists kit AUS MU00S1 for the whole B9 range: the A4 and A5, the S4 and S5, and the RS4 and RS5. The earlier B8 cars use a different Öhlins kit, AUS MS00S1.
Do I need the cancellation kit? Only on cars with factory adaptive dampers. Öhlins lists cancellation kit 35020-31 for the B9 A4, S4, A5, S5, RS4 and RS5 to prevent fault codes once the electronic dampers come out. Cars on passive dampers do not need it.
What damping setting should I use? Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 2 to 7 for track use. Each click changes compression and rebound together through the DFV valve.
How low does the car sit on the Öhlins kit? On the Öhlins recommended settings the car sits about 35 mm lower than stock at both ends. Öhlins gives a lowering range of roughly 10 to 35 mm, with separate damper length adjusters for ride height.
Does the kit reuse the factory top mounts? Yes. Both ends use the original Audi top mounts, with the rubber insert removed from the front mounts and new upper spring seats supplied. A four-wheel alignment is recommended after fitting.

About Öhlins

Öhlins was founded in 1976 by former motocross racer Kenth Öhlin and is based in Upplands Väsby, Sweden, where it develops dampers for motorcycles, cars and motorsport. Its suspension has won more than 300 world championship titles across motorcycle and car racing, its CES electronic damping went into series production on the Volvo S60R in 2003, and the company has been part of the Brembo group since 2025.
