Which Audi B8 models does the Ohlins DFV Road & Track suspension fit?

The Ohlins DFV Road & Track suspension fits the Audi A4 and A5 (B8, B8.5) from 2008 to 2016, the Audi S4 (B8, B8.5) from 2010 to 2016, and the Audi S5 (B8, B8.5) from 2008 to 2016. It is compatible with both FWD and Quattro models. If you have questions about your specific variant, contact Bulletproof Automotive before ordering.

What does the DFV technology do for the B8 Audi platform?

DFV stands for Dual Flow Valve; an Ohlins damper design that reacts quickly to changing road and track surfaces. Across the A4, S4, A5, and S5, this delivers faster response times, better bump absorption, and more consistent grip at the limit, keeping the car stable and on line through bumps and curbs on track.

Does this kit work on both FWD and Quattro versions of the B8 A4, S4, A5, and S5?

Yes. The Ohlins DFV Road & Track coilovers are compatible with both front-wheel drive and Quattro all-wheel drive variants across the B8 and B8.5 model range.

Can I use the Ohlins Road & Track coilovers for daily driving?

Yes. The system includes a road mode for street use, providing a more relaxed and comfortable ride while still offering more grip and better response than the stock suspension.

Is the Ohlins DFV a good fit if I use my car for both track days and everyday driving?

Yes. The Ohlins DFV Road & Track coilovers are built for that exact combination. Run road mode on the drive to the circuit and switch to track mode once you arrive, with no extra hardware required.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

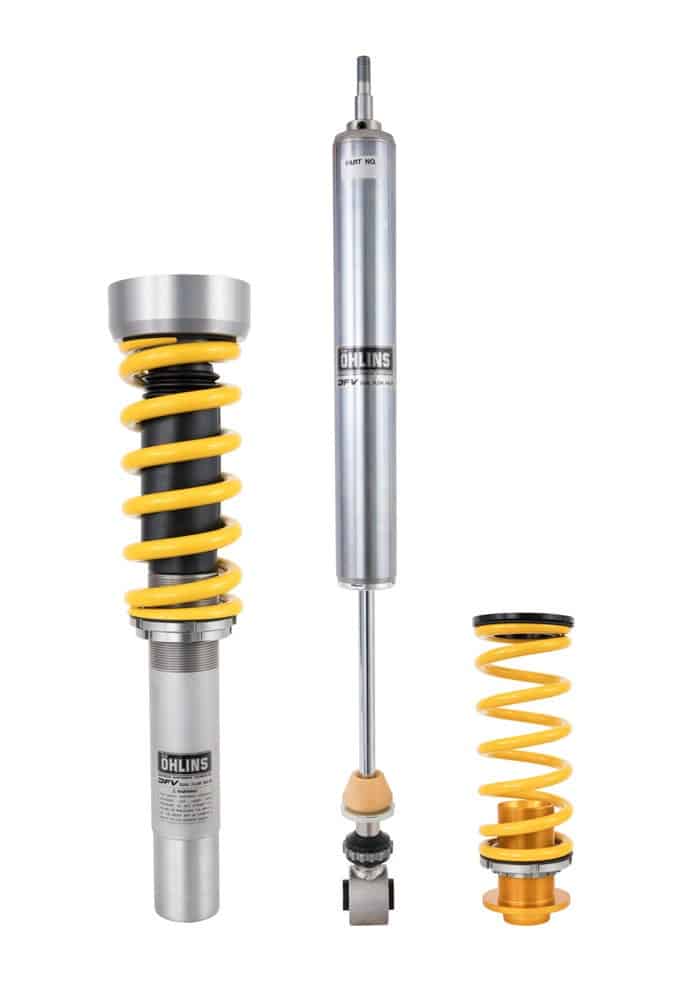

Öhlins DFV Road & Track Coilovers for B8 Audi A4 / S4 / A5 / S5

Öhlins’ DFV Road & Track Coilovers for B8 Audi A4, S4, A5 and S5 models replace all four dampers and springs with Öhlins kit AUS MS00S1, the same kit Öhlins builds for the B8 RS4 and RS5. A gold knob on each damper switches between street and track settings in seconds, and on Öhlins’ recommended setup the car sits about 15 mm lower than stock. It suits the owner who drives to the circuit and home again; a car trailered to every event wants a dedicated track damper.

Design and Performance

The Dual Flow Valve lets one adjuster shift low and high speed compression and rebound together, so road and track settings are a knob turn apart rather than a session of separate changes. Spring preload adjusters set ride height at each corner, and both ends keep the original Audi top mounts.

Features

DFV (Dual Flow Valve) damping technology
Single 25-click knob adjusts compression and rebound together
Monotube dampers front and rear
Threaded spring preload adjusters for ride height
Uses the original top mounts front and rear
Rebuildable dampers for service and custom valving
Salt spray corrosion tested to ISO 9227
TÜV approved
2-year Öhlins warranty

Specifications

Front lowering range: approximately 10-30 mm
Rear lowering range: approximately 10-30 mm
Ride height at recommended setup: approximately 15 mm below stock
Front spring rate: 685 lb/in (120 N/mm)
Rear spring rate: 286 lb/in (50 N/mm)
Damping adjustment: 25 clicks, compression and rebound combined

What’s Included

Front shock absorbers (x2)
Front springs (x2)
Rear shock absorbers (x2)
Rear springs (x2)
Rear spring seat adjusters (x2)
Spring seats, spacers, dust boots, lock nuts and mounting hardware
C-spanners (x2), Öhlins sticker kit and emblem kit
Owner’s manual

Applications

Audi A4: B8 | 2008-2016
Audi S4: B8 | 2008-2016
Audi A5: B8 | 2007-2016
Audi S5: B8 | 2007-2017

Notes

Cars with factory adaptive dampers also need the Öhlins DCC Cancellation Kit
Öhlins sells the same kit for the B8 RS4 and RS5, listed separately as the Öhlins DFV Road and Track Suspension Upgrade for B8 Audi RS4 / RS5
Professional installation and a four-wheel alignment are recommended when fitting the Coilovers for B8 Audi A4 and S4 models

Frequently Asked Questions

Do I need the cancellation kit with these coilovers? Only on cars with factory adaptive dampers. Öhlins lists its cancellation kit for the B8 A4, A5, S4 and S5, part 35020-19, alongside this kit to prevent fault codes once the electronic dampers come out. Cars on passive dampers do not need it.
Which cars do the Coilovers for B8 Audi A4 fit? Öhlins lists kit AUS MS00S1 for the B8 Audi A4, S4, A5 and S5, and the same kit fits the B8 RS4 and RS5. The later B9 A4 and A5 use a different Öhlins kit.
What damping setting should I use? Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 2 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.
How low does the car sit on the Öhlins kit? On the Öhlins recommended preload settings the car sits about 15 mm lower than stock at both ends. Ride height is set with the spring preload adjusters, and Öhlins gives a lowering range of roughly 10 to 30 mm.
Does the kit reuse the factory top mounts? Yes. The front and rear shock absorbers both use the original Audi top mounts, and the kit includes new upper spring seats at each corner. A four-wheel alignment is still recommended after fitting, because any change in ride height alters the suspension geometry.

About Öhlins

Öhlins was founded in 1976 by former motocross racer Kenth Öhlin and is based in Upplands Väsby, Sweden, where it develops dampers for motorcycles, cars and motorsport. Its suspension has won more than 300 world championship titles across motorcycle and car racing, its CES electronic damping went into series production on the Volvo S60R in 2003, and the company has been part of the Brembo group since 2025.
