How is the Nitron VX220 Turbo RacePro 3 different from the Nitron VX220 Turbo NTR-R1 ClubSport?

The Nitron VX220 Turbo NTR-R1 ClubSport uses one adjuster for bump and rebound and has no reservoirs, which suits regular track days. The Nitron VX220 Turbo RacePro 3 adds independent 3-way adjustment, a 46mm piston and hose-mounted reservoirs for cars built to race.

Can the Nitron VX220 Turbo RacePro 3 help tame power oversteer on corner exit?

Yes. Adjusting rear low-speed compression and the front-to-rear rebound balance on the Nitron VX220 Turbo RacePro 3 changes how weight settles onto the rear tires when boost arrives. You can find the balance that lets the car put its torque down cleanly.

How do the reservoirs on the Nitron VX220 Turbo RacePro 3 cope with turbo heat?

Nitron's Bi-Axis fittings swivel on two axes at the damper, so the Nitron VX220 Turbo RacePro 3 hoses can be routed away from the turbocharger and exhaust. The included brackets let you mount the reservoirs in cooler spots, which helps keep damping consistent.

Does the Nitron VX220 Turbo RacePro 3 let the car ride curbs harder?

Yes. High-speed compression on the Nitron VX220 Turbo RacePro 3 controls the damper's response to sharp, fast hits. Softening it lets the car take more curb without upsetting the chassis, and the low-speed settings that hold its platform stay unchanged.

Is the Nitron VX220 Turbo RacePro 3 a good choice for a road-driven Turbo?

The Nitron VX220 Turbo RacePro 3 is built for competition, with springs and valving chosen for racing. A VX220 Turbo that's mostly driven on the road with track days is better served by the Nitron NTR-R1 FastRoad or ClubSport kits.

What comes with the Nitron VX220 Turbo RacePro 3?

The Nitron VX220 Turbo RacePro 3 includes four dampers with fitted springs, hose-mounted reservoirs, a full set of bearing spacers and mounting brackets for your car's drive side.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

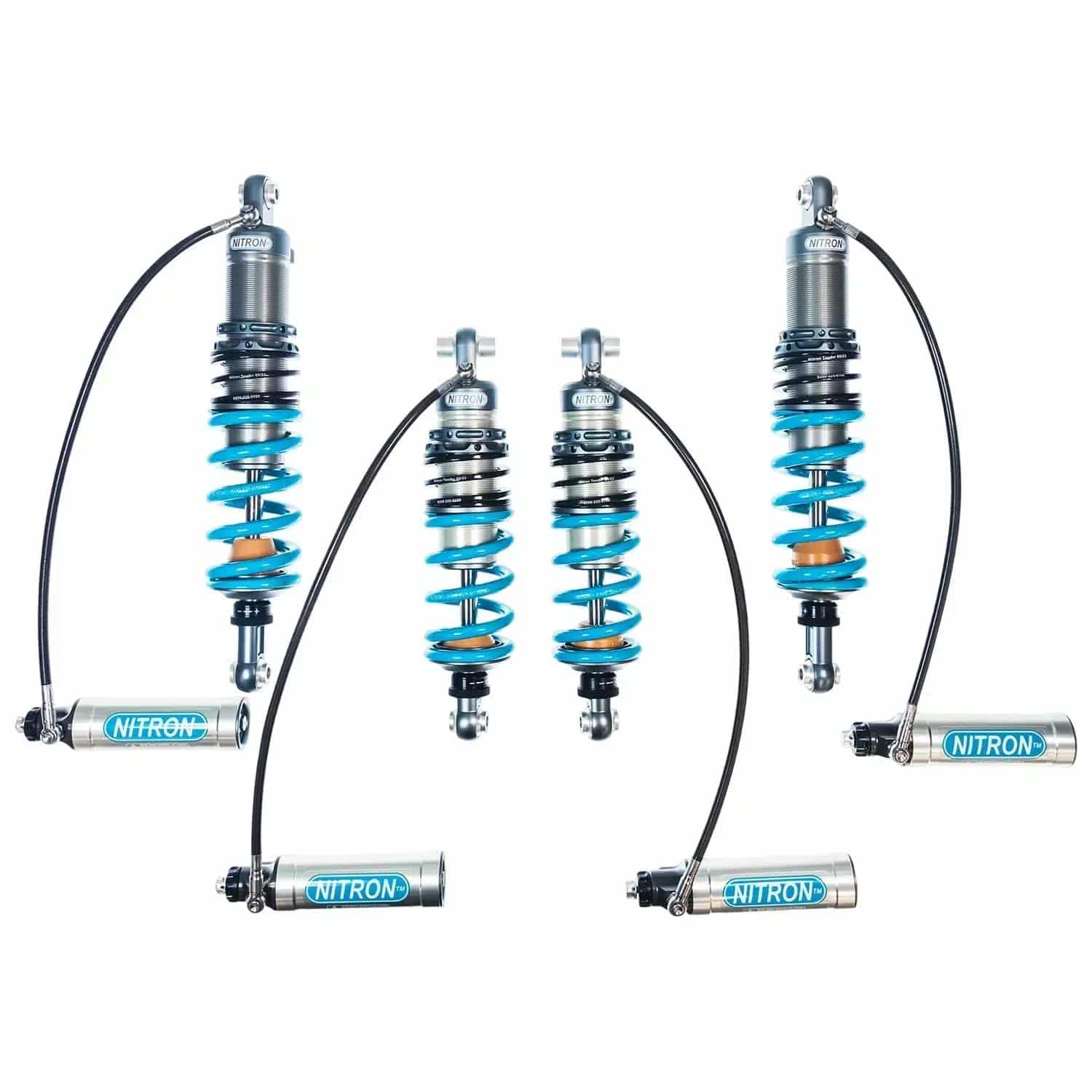

Nitron RacePro 3 Coilover Kit for 116 Vauxhall VX220 Turbo

A VX220 Turbo set up for racing is a demanding car to tune. Its torque is strong in the midrange, it carries a lot of speed into braking zones, and its rear bay runs hot. A single-adjuster damper can’t separate the problems all of that creates. The Nitron VX220 Turbo RacePro 3 kit is Nitron’s full-race answer, with independent rebound, low-speed compression and high-speed compression adjustment at every corner. You can work on how the car rotates on entry, how it puts boost down on exit and how it handles curbs, and each change stays within its own area. The Nitron VX220 Turbo RacePro 3 uses a 46mm piston for precise, repeatable control under heavy loads. Inverted mounting cuts unsprung weight, and hose-mounted reservoirs front and rear keep the damping consistent across a full race weekend, from qualifying through the last lap. Mounting brackets come with the kit, supplied for your car’s drive side.

Specialized Bi-Axis Hose Fittings

The rear of a VX220 Turbo is a hard place to run hoses. The turbocharger, its intake and charge plumbing, the exhaust and the subframe all compete for room, and the bay gets very hot. At the front, the hoses have to clear the wishbones, steering rack and radiator ducting. On the Nitron VX220 Turbo RacePro 3, Nitron’s Bi-Axis fittings let each hose swivel on two axes where it leaves the damper. You can aim each line along a clean path from the start, away from the turbo and exhaust, without tight bends or contact with moving parts. That freedom also lets you mount the reservoirs where heat won’t affect them and where the adjusters are quick to reach between sessions.

Unique Technology

Nitron builds the Nitron VX220 Turbo RacePro 3 on the 46mm damper it uses in competition, with the adjustment split into three separate circuits. Low-speed compression controls roll and pitch from driver inputs. It sets how firmly the car holds its platform under braking and how much weight moves to the rear when boost arrives. Rebound controls how quickly each corner extends. Balancing it front to rear changes how the car rotates on entry and how planted the rear feels as you accelerate out of a corner. High-speed compression handles fast, sharp inputs from curbs and track seams on its own, so the car can ride curbs aggressively without changing the platform you’ve set. The hose-mounted reservoirs give the oil and nitrogen extra volume, which keeps pressure stable and controls temperature as the damper works through a long stint. Very low internal friction and inverted mounting let the Nitron VX220 Turbo RacePro 3 respond to the first millimeter of wheel movement. Every click gives a precise, repeatable change, so a setup that works at one circuit can be put back on the car exactly next time.
- Basic Damper Design:
  - End Eye / Top Mount
  - Damper Piston & Shim Stack
  - Shaft / Rod
  - Floating / Separator Piston
  - Suspension Oil
  - Compressed Nitrogen Gas

Bespoke Engineering

Nitron hand-builds every Nitron VX220 Turbo RacePro 3 kit only after it’s ordered. Springs and base valving are set around the car’s tires, aero, ballast and the series it runs in. The adjusters begin with useful range on either side of the setting the car needs, so there’s room to tune at the track. Titanium and hard-anodized components keep weight down at every corner and resist corrosion through a season of wet weekends and washdowns. Every Nitron VX220 Turbo RacePro 3 damper is fully serviceable and can be revalved when your tires, power level, aero or class rules change. If you’d like to talk through setup direction or spring choices before ordering, contact us directly.

Features

Hose reservoir type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and mounting brackets (LHD or RHD)
Hand made to order

Specifications

Coilover Type: RacePro 3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Mounting Brackets: Included (LHD or RHD)
Recommended Spring Rates:
- Front: 550lbs/inch (96N/mm)
- Rear: 700lbs/inch (123N/mm)

Applications

Vauxhall VX220 Turbo: 116 | 2004-2005

Other Suspension Kits for the Vauxhall VX220 Turbo

Notes

Options for LHD or RHD mounting brackets
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

How is the Nitron VX220 Turbo RacePro 3 different from the Nitron VX220 Turbo NTR-R1 ClubSport? The Nitron VX220 Turbo NTR-R1 ClubSport uses one adjuster for bump and rebound and has no reservoirs, which suits regular track days. The Nitron VX220 Turbo RacePro 3 adds independent 3-way adjustment, a 46mm piston and hose-mounted reservoirs for cars built to race.
Can the Nitron VX220 Turbo RacePro 3 help tame power oversteer on corner exit? Yes. Adjusting rear low-speed compression and the front-to-rear rebound balance on the Nitron VX220 Turbo RacePro 3 changes how weight settles onto the rear tires when boost arrives. You can find the balance that lets the car put its torque down cleanly.
How do the reservoirs on the Nitron VX220 Turbo RacePro 3 cope with turbo heat? Nitron’s Bi-Axis fittings swivel on two axes at the damper, so the Nitron VX220 Turbo RacePro 3 hoses can be routed away from the turbocharger and exhaust. The included brackets let you mount the reservoirs in cooler spots, which helps keep damping consistent.
Does the Nitron VX220 Turbo RacePro 3 let the car ride curbs harder? Yes. High-speed compression on the Nitron VX220 Turbo RacePro 3 controls the damper’s response to sharp, fast hits. Softening it lets the car take more curb without upsetting the chassis, and the low-speed settings that hold its platform stay unchanged.
Is the Nitron VX220 Turbo RacePro 3 a good choice for a road-driven Turbo? The Nitron VX220 Turbo RacePro 3 is built for competition, with springs and valving chosen for racing. A VX220 Turbo that’s mostly driven on the road with track days is better served by the Nitron NTR-R1 FastRoad or ClubSport kits.
What comes with the Nitron VX220 Turbo RacePro 3? The Nitron VX220 Turbo RacePro 3 includes four dampers with fitted springs, hose-mounted reservoirs, a full set of bearing spacers and mounting brackets for your car’s drive side.
