Why does the VX220 need its own kit instead of an Elise kit?

The VX220 uses its own version of the S2 Elise chassis, with a longer wheelbase and very few parts shared with the Elise. The Nitron VX220 NTR-R1 is sprung, valved and built specifically for the VX220, so it works with the car's own geometry and mounting points.

How does the Nitron VX220 NTR-R1 change the ride on rough roads?

Very low internal friction lets the Nitron VX220 NTR-R1 react to small, sharp bumps immediately, so less of the impact reaches the cabin. On rough back roads the car stays composed instead of crashing or bouncing, while body control is much tighter than on worn factory dampers.

Which mounting brackets come with the Nitron VX220 NTR-R1?

The Nitron VX220 NTR-R1 includes mounting brackets supplied for your car's drive side. Choose LHD or RHD from the drop-down when ordering.

How is the Nitron VX220 NTR-R1 adjusted?

Each Nitron VX220 NTR-R1 damper has a single adjuster that changes bump and rebound together. Turn it firmer for smooth, fast roads or track sessions, and softer for broken pavement and long trips.

Is the Nitron VX220 NTR-R1 FastRoad suitable for track days?

Yes, for occasional ones. The Nitron VX220 NTR-R1 FastRoad resists fade and can be set firmer for a track session. If the car spends a lot of time at the track, the firmer Nitron VX220 NTR-R1 ClubSport kit is the better choice.

What else should be checked when installing the Nitron VX220 NTR-R1 on an older car?

Droplinks are not included with the Nitron VX220 NTR-R1, so check the condition of the existing ones. The wishbone inner bearings are also worth inspecting, and a replacement bearing kit is available separately. Finish with a four-wheel alignment and corner weighting.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

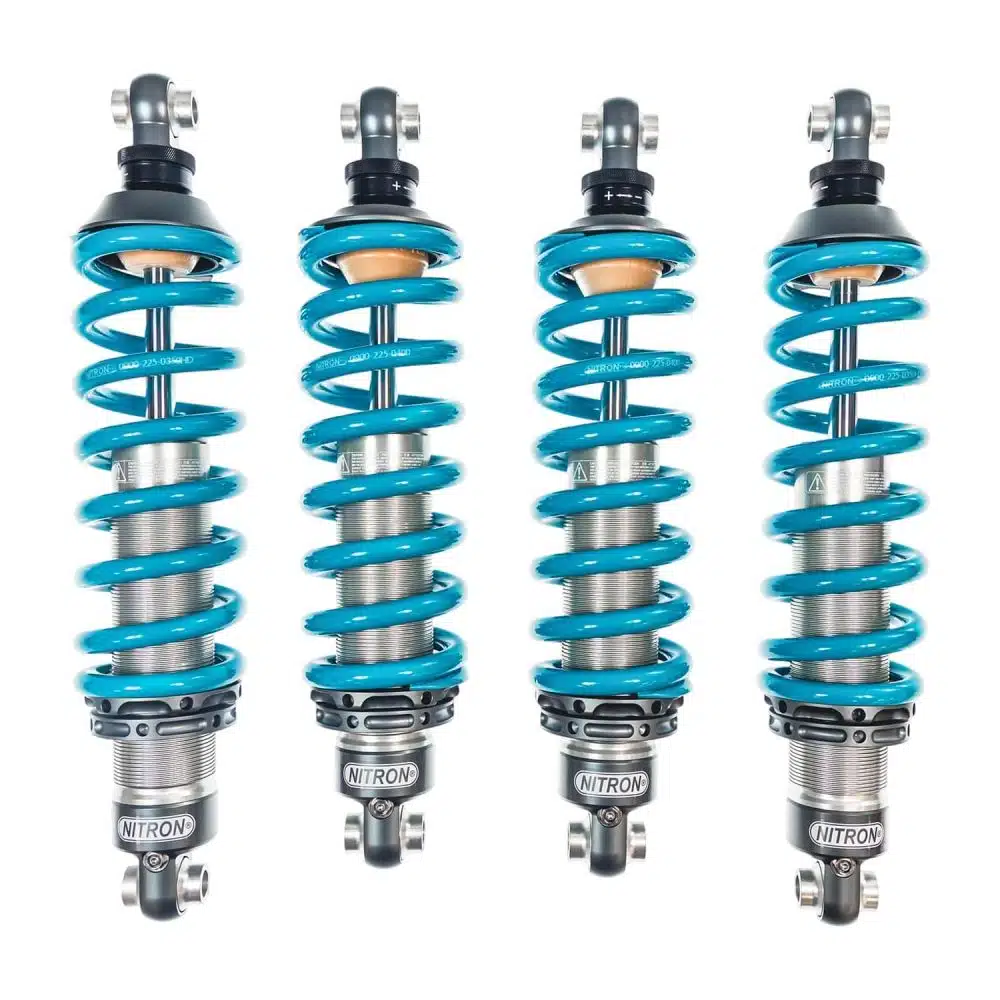

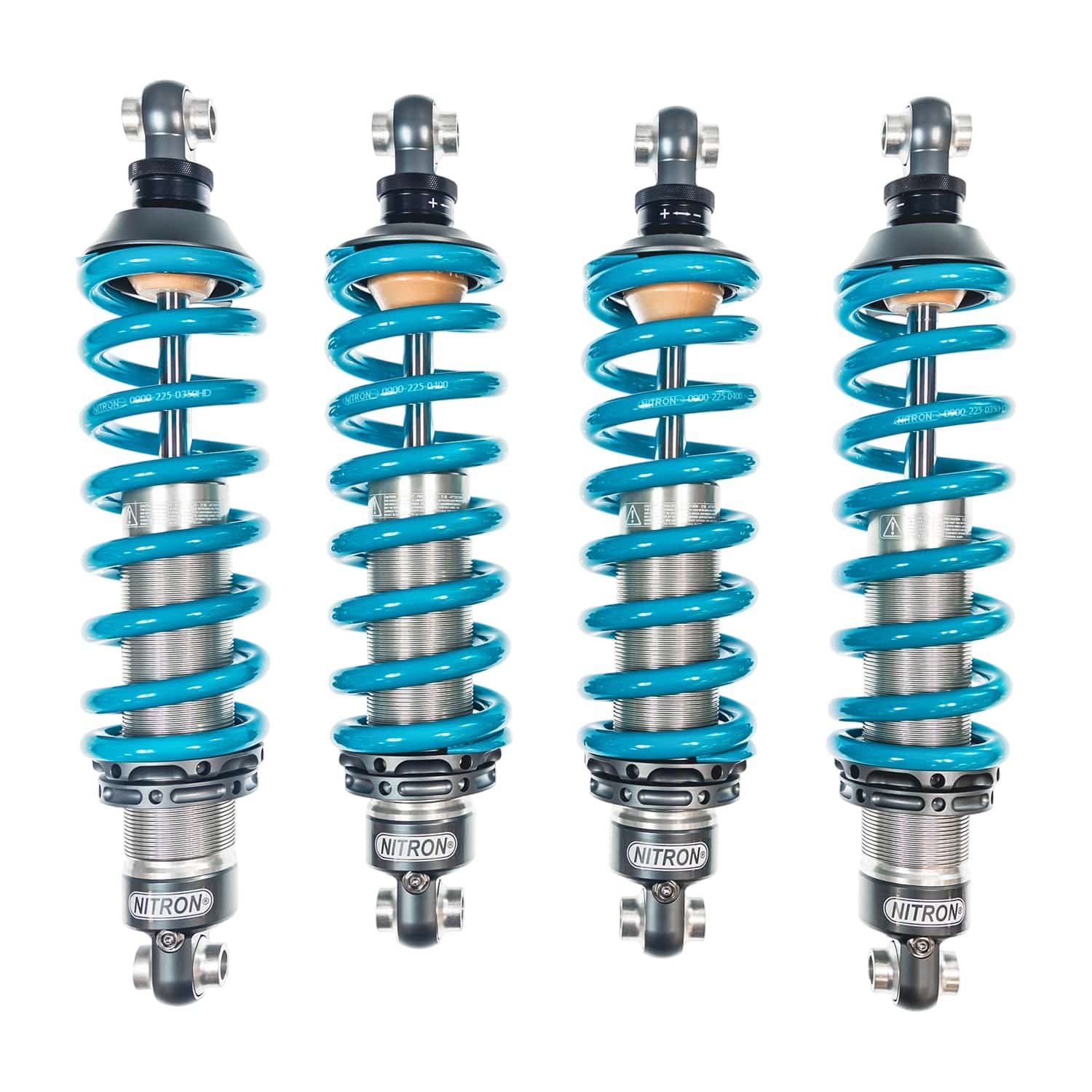

Nitron NTR-R1 FastRoad Coilover Kit for 116 Vauxhall VX220

The VX220 is easy to dismiss as an Elise with a Vauxhall badge. In fact Lotus built it at Hethel on its own version of the S2 Elise chassis, with a longer wheelbase and very few parts shared with the Elise. That means its suspension needs to be developed for the VX220 itself. The Nitron VX220 NTR-R1 FastRoad kit is built specifically for the car. Its hand-built coilovers are sprung and valved for owners who drive their VX220 hard on back roads and take it to an occasional track day. Over the years the original dampers have worn out. The car wallows over crests, thumps through potholes and loses composure when a corner tightens mid-bend. The Nitron VX220 NTR-R1 restores proper control and keeps enough compliance for long drives on uneven roads. A single adjuster at each corner sets bump and rebound together. You can firm up the setup for a smooth, fast road or soften it for broken pavement in a few seconds. Mounting brackets come with the kit, supplied for your car’s drive side.

Unique Technology

The NTR-R1 comes out of Nitron’s racing work, and the Nitron VX220 NTR-R1 shares much of its internal hardware with the NTR-R3 that Nitron races internationally. Each damper’s gas charge sits inside the body. Nothing mounts remotely, and installation is a straightforward swap at each corner. The dampers run inverted, which takes weight off the wheel side and helps the tires follow the road surface instead of skipping over it. Friction inside the Nitron VX220 NTR-R1 is kept very low, so the damper begins working the instant the wheel moves. That quick response holds the VX220 steady through a dip in the middle of a fast corner. It also smooths out the sharp jolts from broken pavement before they reach the cabin. The damping stays consistent as the oil warms up, so a long drive or a hot track session doesn’t wear down the car’s balance.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron starts building a Nitron VX220 NTR-R1 kit only after it’s ordered, and every damper is assembled by hand. The springs and valving are matched to the VX220’s own chassis and to a fast-road brief. The goal is strong grip and body control with a ride you can live with, not a stiff track setup. Titanium and hard-anodized components keep weight down at each corner and resist corrosion, which matters on a car that may be twenty years old and still sees wet roads. Every Nitron VX220 NTR-R1 damper is fully serviceable, so the kit can be refreshed to as-built performance and stay on the car for the long term. If you’d like to talk about spring rates or which Nitron kit fits how you drive your VX220, contact us directly before ordering.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies and mounting brackets (LHD or RHD)
Hand made to order

Specifications

Coilover Type: NTR-R1 FastRoad
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Mounting Brackets: Included (LHD or RHD)
Recommended Spring Rates:
- Front: 400lbs/inch (70N/mm)
- Rear: 475lbs/inch (83N/mm)

Applications

Vauxhall VX220: 116 | 2000-2005

Other Suspension Kits for the Vauxhall VX220

Notes

Options for LHD or RHD mounting brackets
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Why does the VX220 need its own kit instead of an Elise kit? The VX220 uses its own version of the S2 Elise chassis, with a longer wheelbase and very few parts shared with the Elise. The Nitron VX220 NTR-R1 is sprung, valved and built specifically for the VX220, so it works with the car’s own geometry and mounting points.
How does the Nitron VX220 NTR-R1 change the ride on rough roads? Very low internal friction lets the Nitron VX220 NTR-R1 react to small, sharp bumps immediately, so less of the impact reaches the cabin. On rough back roads the car stays composed instead of crashing or bouncing, while body control is much tighter than on worn factory dampers.
Which mounting brackets come with the Nitron VX220 NTR-R1? The Nitron VX220 NTR-R1 includes mounting brackets supplied for your car’s drive side. Choose LHD or RHD from the drop-down when ordering.
How is the Nitron VX220 NTR-R1 adjusted? Each Nitron VX220 NTR-R1 damper has a single adjuster that changes bump and rebound together. Turn it firmer for smooth, fast roads or track sessions, and softer for broken pavement and long trips.
Is the Nitron VX220 NTR-R1 FastRoad suitable for track days? Yes, for occasional ones. The Nitron VX220 NTR-R1 FastRoad resists fade and can be set firmer for a track session. If the car spends a lot of time at the track, the firmer Nitron VX220 NTR-R1 ClubSport kit is the better choice.
What else should be checked when installing the Nitron VX220 NTR-R1 on an older car? Droplinks are not included with the Nitron VX220 NTR-R1, so check the condition of the existing ones. The wishbone inner bearings are also worth inspecting, and a replacement bearing kit is available separately. Finish with a four-wheel alignment and corner weighting.
