What does Nitron's Clio RS NTR-R1 Coilover Kit replace?

It replaces the springs and dampers at every corner. The passive NTR-R1 uses monotube nitrogen-pressurized dampers and race springs to cut pitching under braking and float after bumps.

How do I adjust the damping on the Clio RS NTR-R1?

Each corner has a single adjuster that moves compression and rebound together.

Do the dampers need remote reservoirs or hoses?

No. The reservoir is inside each damper, so there is nothing to mount separately and no hoses to route.

Do I get top plates with the kit?

Yes. Adjustable top plates come with the kit.

Can the spring rates be changed?

Yes. Custom spring rates are available by contacting us directly, and we can help you pick a rate for how the car is used.

Does the car need aligning after the kit goes on?

Yes. A professional alignment is required after installation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

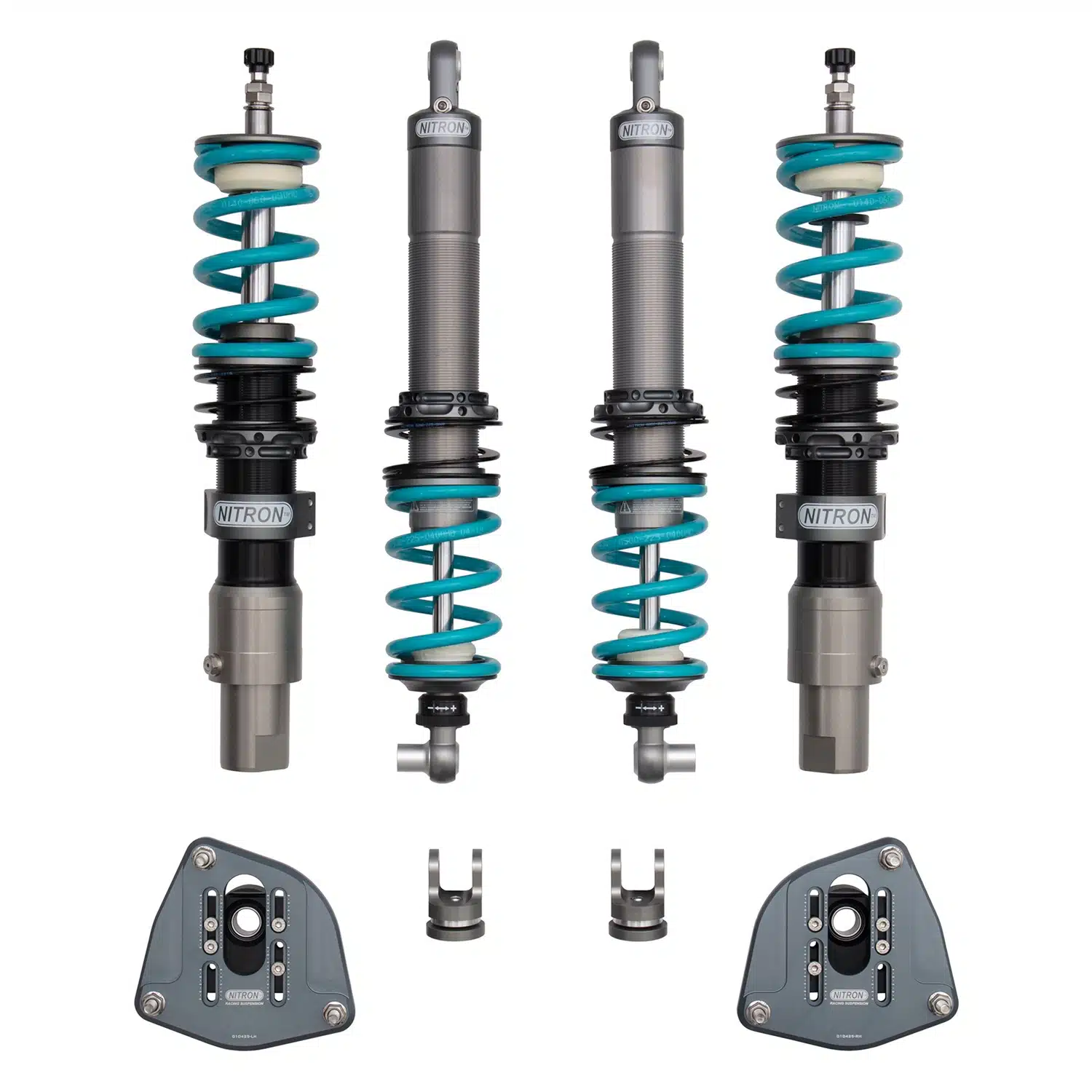

Nitron NTR-R1 Coilover Kit for X85 Renault Clio RS

The Renault Clio RS NTR-R1 Coilover Kit from Nitron replaces worn factory springs and dampers on the X85 with a passive, adjustable setup that keeps the body under control. Tired dampers show up as pitching under braking and float after bumps, and fresh springs on their own will not cure that. Nitron’s Clio RS NTR-R1 kit fits a monotube nitrogen-pressurized damper and a race spring at every corner, rear included, with a single adjuster at each wheel to set the damping the way you drive. Adjustable spring perches let you set the ride height to suit your wheels and tires, so the same kit works for a daily road car and an occasional track day.

Unique Technology

Setup is a one-dial job. Each corner has a single adjuster that moves compression and rebound together, so you turn it firmer or softer and feel the change on the next corner. The damper is a nitrogen-pressurized monotube with its reservoir inside the body, which leaves out remote hoses and any extra mounting. Ride height comes from adjustable spring perches, set to suit your wheels and tires.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Spring rate is the part owners most often want to change, because a daily road setup and a circuit setup call for very different rates. The standard rates can be changed, so contact us directly to talk through what you are building. Every kit is hand assembled to order in the UK, with dampers built for this car instead of adapted from another application. The result is a front and rear that were set up to work together.

Features

Coilover rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: Coilover
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 514lbs/inch (90N/mm)
  - Rear: 400lbs/inch (70N/mm)
- TDS – Track Day Spec:
  - Front: 628lbs/inch (110N/mm)
  - Rear: 450lbs/inch (79N/mm)

Applications

Renault Clio RS: X85 | 2005-2012

Other Suspension Kits for X85 Renault Clio RS

NTR-R3 Coilover Kit

Notes

Custom spring rates also available
Please feel free to contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

What does Nitron’s Clio RS NTR-R1 Coilover Kit replace? It replaces the springs and dampers at every corner. The passive NTR-R1 uses monotube nitrogen-pressurized dampers and race springs to cut pitching under braking and float after bumps.
How do I adjust the damping on the Clio RS NTR-R1? Each corner has a single adjuster that moves compression and rebound together.
Do the dampers need remote reservoirs or hoses? No. The reservoir is inside each damper, so there is nothing to mount separately and no hoses to route.
Do I get top plates with the kit? Yes. Adjustable top plates come with the kit.
Can the spring rates be changed? Yes. Custom spring rates are available by contacting us directly, and we can help you pick a rate for how the car is used.
Does the car need aligning after the kit goes on? Yes. A professional alignment is required after installation.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
