What does 3-way independent adjustment actually give you over the R1's combined adjuster?

The R1 uses a single knob that moves compression and rebound together. The R3 separates high speed compression, low speed compression, and rebound into three independent circuits with 16, 26, and 24 clicks respectively. That separation lets you address specific handling characteristics without the adjustment trade-offs that come with a combined system; you can tune for a particular corner type, surface, or driving style without affecting everything else at once.

How does the R3 FastRoad differ from the R3 ClubSport?

The same 3-way adjustment architecture runs through both. The difference is in the spring rates and valving; the FastRoad uses softer rates with road-biased tuning, while the ClubSport runs stiffer rates with track-focused valving. The FastRoad is the better starting point if the car sees significant road use alongside circuit work.

What are the piggyback reservoirs for?

The reservoirs increase oil volume, which improves thermal stability and fade resistance during extended track sessions. On the R3 they also house the high and low speed compression adjusters, keeping both accessible without routing hoses across the chassis.

Can the spring rates be changed from the recommended spec?

Yes. The recommended rates for the Emira V6 in R3 FastRoad specification are 550lbs/inch front and 700lbs/inch rear, but every kit is custom built to order.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

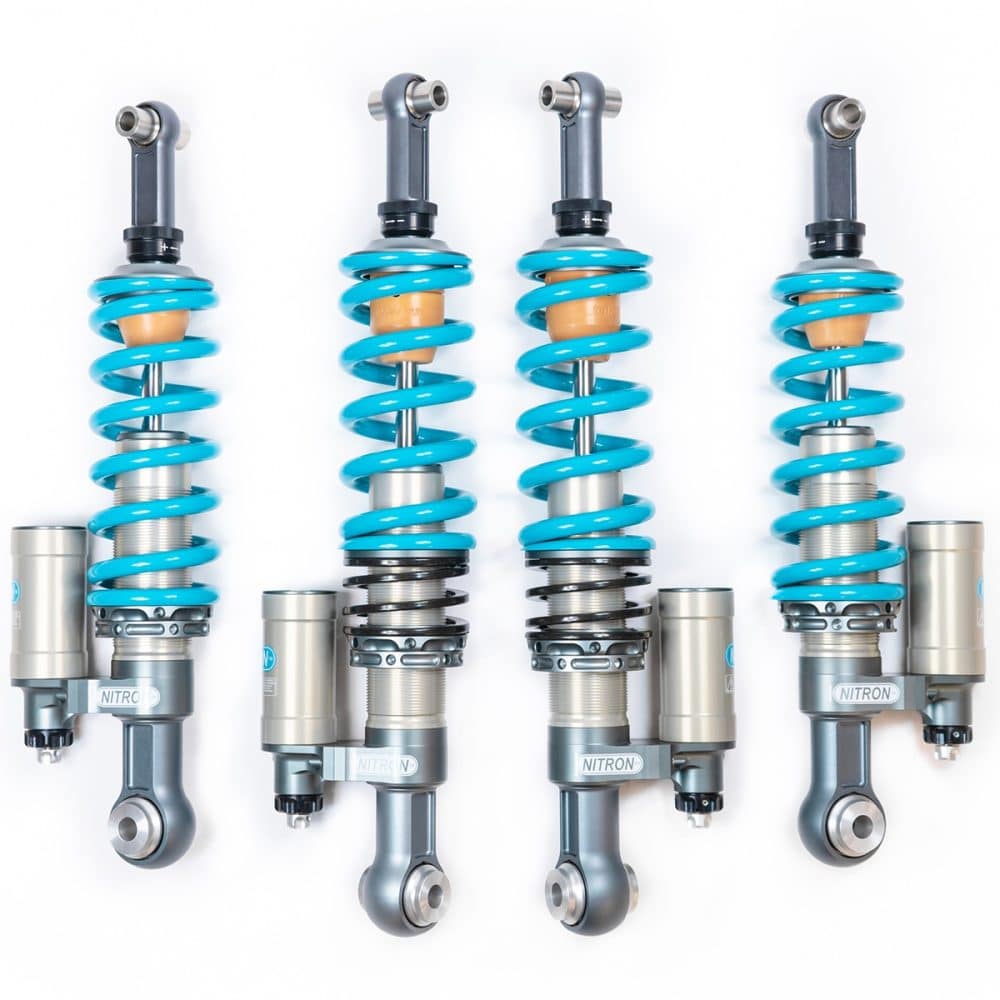

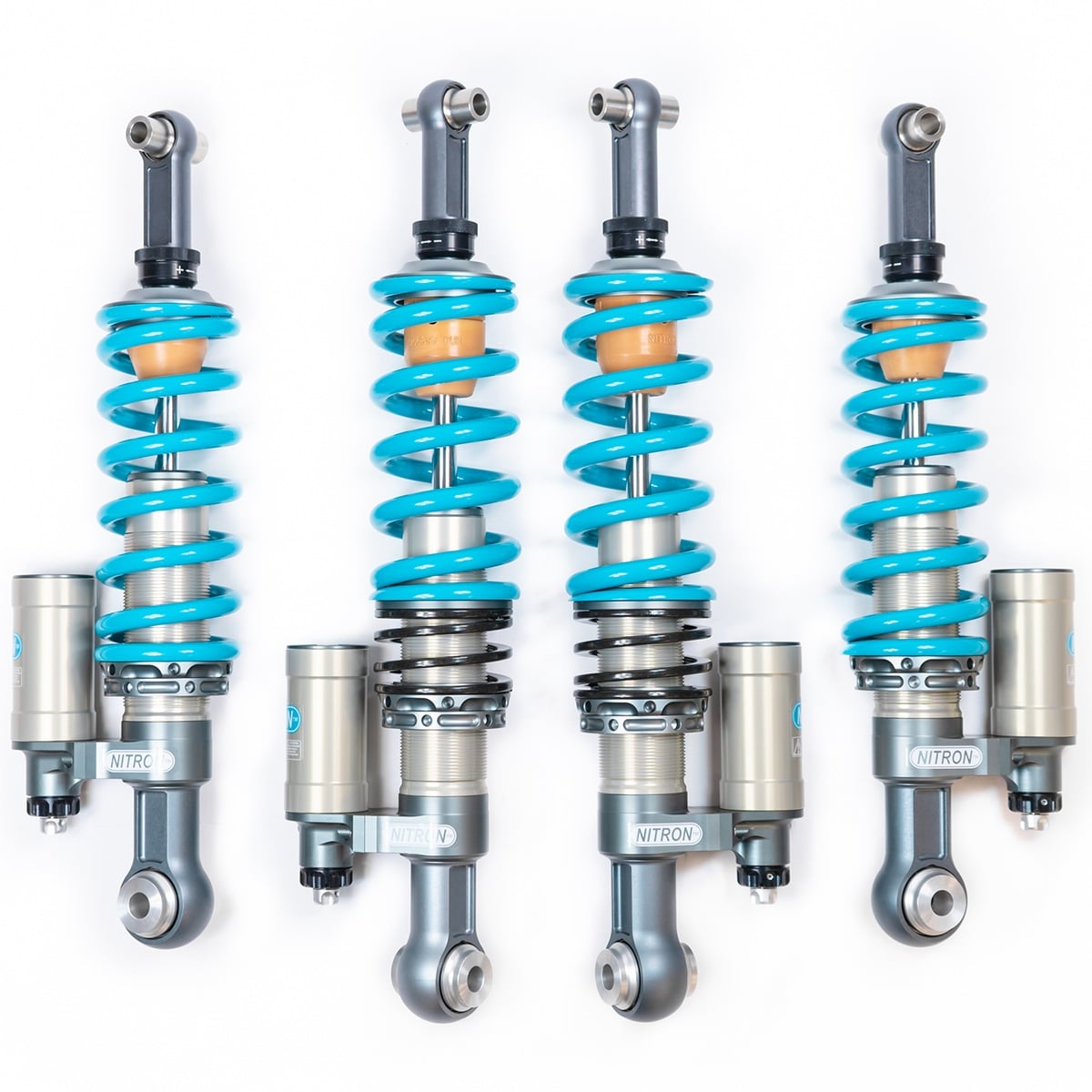

Nitron NTR-R3 FastRoad Coilover Kit for 131 Lotus Emira (with V6)

The Nitron NTR R3 FastRoad Coilover Kit for the Type 131 Lotus Emira V6 gives drivers and engineers the adjustment range needed to properly develop the car’s setup across different circuits and conditions. Independent 3-way damping adjustment with separate high and low speed compression control sits at the core of the R3; a large diameter piston and ultra-strong piston rod provide the damping control and chassis feedback that serious setups depend on, and that the Emira V6’s mid-engine balance rewards when the suspension is dialed in correctly. Both front and rear units use piggyback reservoirs, keeping high and low speed compression adjustment accessible at both ends without adding complexity to the installation. The R3 is a proven race winner with lap records across a wide range of international motorsport formulas, and every kit is custom built, custom sprung, and fully serviceable.

Unique Technology

Nitron builds every shock from precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the flexibility to approach each application on its own terms without cutting corners on part quality or how components perform together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; that quality control runs through every stage of production rather than being concentrated at the end. New materials, finishes, and processes are validated extensively before adoption, with proprietary Nitron technologies integrated throughout to produce shocks that consistently hold up against the competition on road and track. That engineering standard is what the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the Type 131 Lotus Emira V6; they engineer one around it. Every application goes through a dedicated development process where components, spring rates, and damping characteristics are determined by the specific platform, not borrowed from something close enough. The geometry, weight distribution, and suspension travel of the Emira V6 are part of the design from the beginning, not corrections introduced later. That’s the difference between suspension that works with a car and suspension that was developed for it.

Features

Piggyback reservoir type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3 FastRoad
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Piggyback
Mounting Brackets: Not required
Recommended Spring Rates:
- Front: 550lbs/inch (96N/mm)
- Rear: 700lbs/inch (123N/mm)

Applications

Lotus Emira: 131 | 2022-present | 2GR-FE 3.5L V6 supercharged

Other Suspension Kits for Lotus Emira V6

NTR-R1 FastRoad Coilover Kit
NTR-R1 FastRoad Coilover Kit w/ Standalone FAL
NTR-R1 ClubSport Coilover Kit
NTR-R1 ClubSport Coilover Kit w/ Standalone FAL
NTR-R3 FastRoad Coilover Kit w/ Standalone FAL
NTR-R3 ClubSport Coilover Kit
NTR-R3 ClubSport Coilover Kit w/ Standalone FAL
elec-TRON R1 FastRoad Coilover Kit
elec-TRON R1 FastRoad Coilover Kit w/ Standalone FAL
elec-TRON R1 ClubSport Coilover Kit
elec-TRON R1 ClubSport Coilover Kit w/ Standalone FAL
elec-TRON R3 FastRoad Coilover Kit
elec-TRON R3 FastRoad Coilover Kit w/ Standalone FAL
elec-TRON R3 ClubSport Coilover Kit
elec-TRON R3 ClubSport Coilover Kit w/ Standalone FAL

Notes

Only compatible on V6 models, does not fit models equipped with 2.0L I4 turbocharged engine
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

What does 3-way independent adjustment actually give you over the R1’s combined adjuster? The R1 uses a single knob that moves compression and rebound together. The R3 separates high speed compression, low speed compression, and rebound into three independent circuits with 16, 26, and 24 clicks respectively. That separation lets you address specific handling characteristics without the adjustment trade-offs that come with a combined system; you can tune for a particular corner type, surface, or driving style without affecting everything else at once.
How does the R3 FastRoad differ from the R3 ClubSport? The same 3-way adjustment architecture runs through both. The difference is in the spring rates and valving; the FastRoad uses softer rates with road-biased tuning, while the ClubSport runs stiffer rates with track-focused valving. The FastRoad is the better starting point if the car sees significant road use alongside circuit work.
What are the piggyback reservoirs for? The reservoirs increase oil volume, which improves thermal stability and fade resistance during extended track sessions. On the R3 they also house the high and low speed compression adjusters, keeping both accessible without routing hoses across the chassis.
Can the spring rates be changed from the recommended spec? Yes. The recommended rates for the Emira V6 in R3 FastRoad specification are 550lbs/inch front and 700lbs/inch rear, but every kit is custom built to order.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
