Do I need Nitron coilovers to use these GC Impreza Front Plates?

Yes. The Nitron Front Adjustable Top Plates are designed only for use with Nitron coilovers, and fitting them to another manufacturer’s dampers may require modification.

What do these Nitron GC Impreza Front Plates adjust?

Both camber and caster at the front of the GC Impreza. The standard geometry settings can also be kept if preferred.

Why do the plates have no rubber in them?

Without rubber, nothing in the mount can flex under load, so the alignment set on the rack holds through hard braking and cornering instead of shifting.

Are the top plates sold as a pair?

Yes. One order supplies both front plates, one for each corner.

What are the plates made from?

High-quality aluminum with Nitron’s titanium grey anodized finish.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

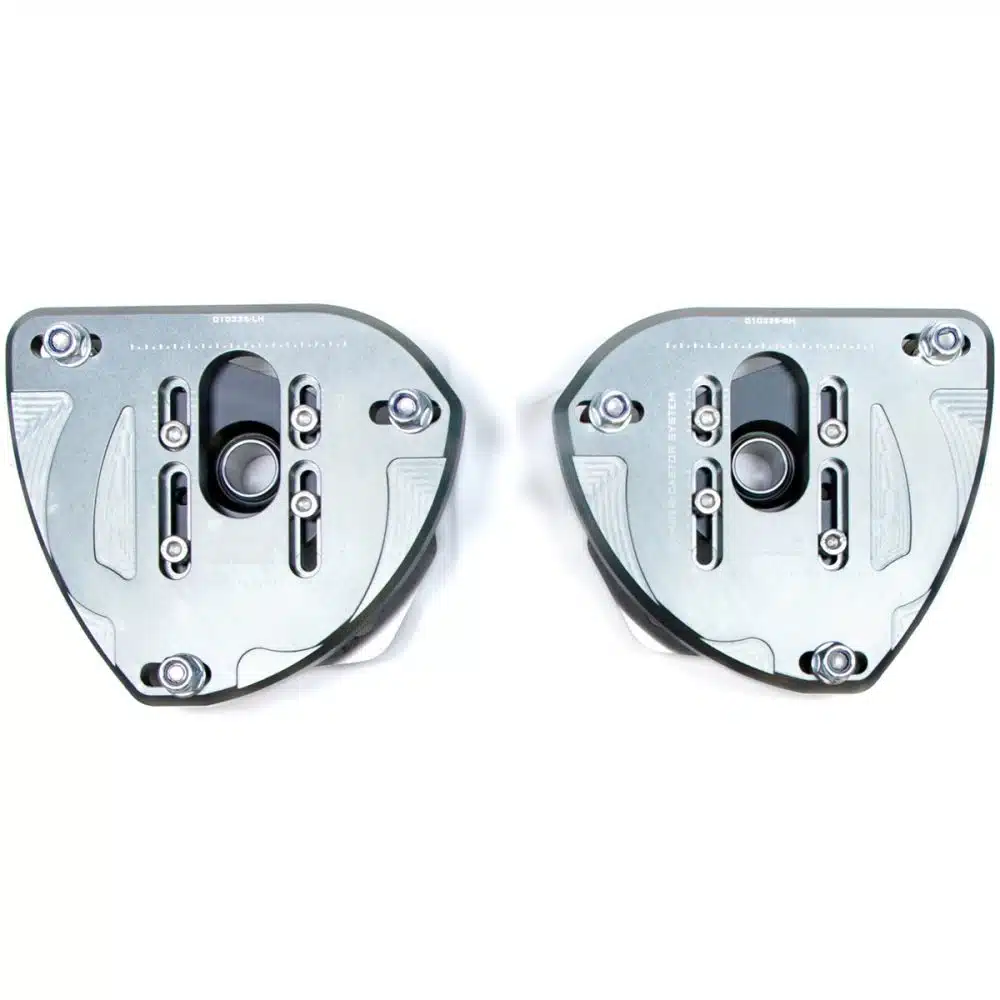

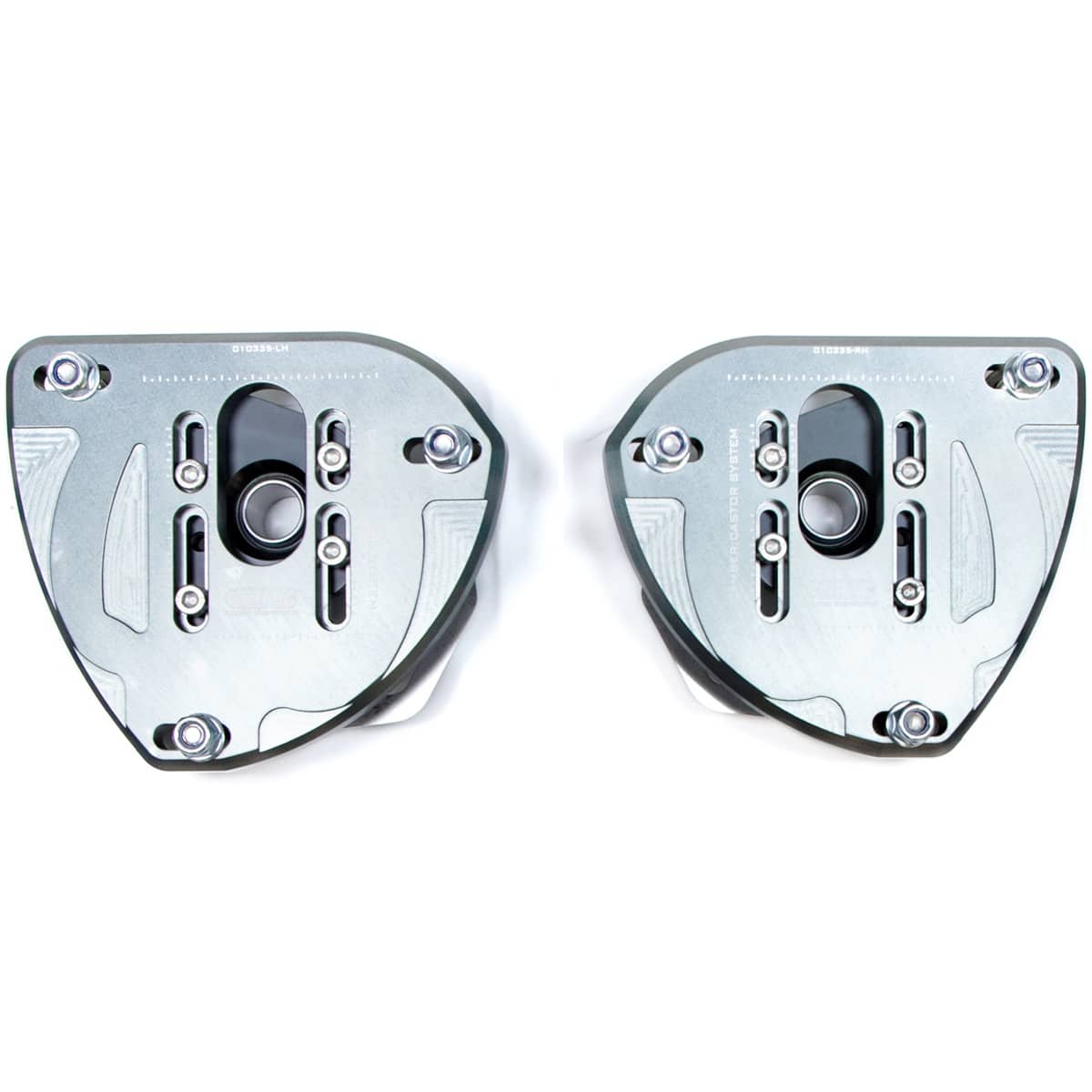

Nitron Front Adjustable Top Plates for GC Subaru Impreza

The Nitron GC Impreza Front Plates are top plates for owners who’ve fitted Nitron coilovers to their GC and want the front alignment to be set properly and stay that way. The factory strut mount on a GC relies on rubber, which flexes under load and gives little room for adjustment, so once the car is lowered on firmer springs and driven hard on a rough road or a stage, the alignment set on the rack tends to move as the suspension works, and the front end stops turning in the way it did when it was set up. Nitron’s top plates replace that mount with a machined aluminum plate that locates the strut positively and lets both camber and caster be set where the driver wants them. They’re sold as a pair for the two front corners and fit the GC Subaru Impreza in the 1.6, 1.6 AWD, 1.8 AWD, 2.0 AWD, 2.0 Turbo GT AWD, and 2.2 AWD variants, which covers everything from a lightly modified road car to a turbocharged build that gets used for rallying or track days.

Rubber-Free Construction

Rubber is what lets a set alignment drift under load, and there’s none anywhere in the design of the Nitron Front Adjustable Top Plates. With nothing compliant in the mount, hard braking and cornering have nothing to move, and positive location and adjustment mechanisms hold the camber and caster settings exactly where they were put. The front end behaves the same on the last stage of the day as it did on the first, and the alignment set on the rack is the alignment the car actually runs.

Machined for Nitron Coilovers

Each plate is machined from high-quality aluminum and finished in Nitron’s titanium grey anodized coating, which keeps weight low and stands up to the corrosion that comes with a car that lives outdoors. The Nitron Front Adjustable Top Plates are designed for use with Nitron coilovers, so they sit naturally with the Nitron NTR-R1 and NTR-R3 kits for the GC Impreza instead of working as a universal part that needs adapting.

Bespoke Engineering

A universal top plate adapted to fit a car is a compromise, and Nitron doesn’t build these that way. The Nitron Front Adjustable Top Plates for the GC Impreza are engineered around the strut layout of this platform, so the adjustment range, location system, and material choices are set by what the front of a GC needs instead of being carried over from a plate that’s close enough to work. The geometry of the car is part of the design from the start rather than something worked around afterward, which is the difference between a top plate that fits an Impreza and one that was built for it.

Features

Independent camber and caster adjustment
No rubber components
Positive location and adjustment systems
High-grade aluminium construction
Titanium grey anodized finish
Rear plates available separately
Supplied as pairs

Applications

Subaru Impreza: GC | 1992-2000 | EJ16 1.6L H4 (FWD, AWD)
Subaru Impreza: GC | 1992-2000 | EJ18 1.8L H4
Subaru Impreza: GC | 1992-2000 | EJ20 2.0L H4
Subaru Impreza: GC | 1992-2000 | EJ20 2.0L H4 turbo
Subaru Impreza: GC | 1992-2000 | EJ22 2.2L H4

Notes

Sold as a pair
Does not fit Coupe or Wagon models
Fitment includes the 1.6, 1.6 AWD, 1.8 AWD, 2.0 AWD, 2.0 Turbo GT AWD, and 2.2 AWD variants
Rear plates available separately
Suitable only for use with smaller diameter motorsport springs
Designed only to be used with Nitron coilovers; modification may be required for them to be used with other manufacturers shock absorbers
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Do I need Nitron coilovers to use these GC Impreza Front Plates? Yes. The Nitron Front Adjustable Top Plates are designed only for use with Nitron coilovers, and fitting them to another manufacturer’s dampers may require modification.
What do these Nitron GC Impreza Front Plates adjust? Both camber and caster at the front of the GC Impreza. The standard geometry settings can also be kept if preferred.
Why do the plates have no rubber in them? Without rubber, nothing in the mount can flex under load, so the alignment set on the rack holds through hard braking and cornering instead of shifting.
Are the top plates sold as a pair? Yes. One order supplies both front plates, one for each corner.
Which GC Subaru Impreza models do these Nitron front adjustable top plates fit? The GC Impreza in the 1.6, 1.6 AWD, 1.8 AWD, 2.0 AWD, 2.0 Turbo GT AWD, and 2.2 AWD variants.
What are the plates made from? High-quality aluminum with Nitron’s titanium grey anodized finish.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
