Which GC Subaru Impreza models does the GC Impreza NTR-R1 kit fit?

The Nitron NTR-R1 fits the GC Impreza in the 1.6, 1.6 AWD, 1.8 AWD, 2.0 AWD, 2.0 Turbo GT AWD, and 2.2 AWD variants.

What does the Nitron NTR-R1 replace on the GC Impreza?

It replaces the factory springs and dampers at all four corners with Nitron NTR-R1 coilover units, adding adjustable damping, adjustable ride height, and firmer race springs.

What kind of adjustment does the Nitron NTR-R1 offer?

Combined compression and rebound adjustment at each corner, with an internal reservoir so there is no remote reservoir to mount or route.

Is the Nitron NTR-R1 suitable for a daily driven GC Impreza?

Yes. The Nitron NTR-R1 is built for owners who want firmer springs and real damper control for spirited road driving, rally, and track days, and the adjustment lets it be set up for how the car is used.

Can the ride height and top mounts be adjusted?

Yes. The Nitron NTR-R1 has adjustable spring perches for independent ride height setting at each corner, and adjustable top mounts at both the front and rear.

Can I get custom spring rates for my setup?

Yes. Every kit is hand assembled to order, and custom spring rates outside the standard range are available by contacting us directly.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

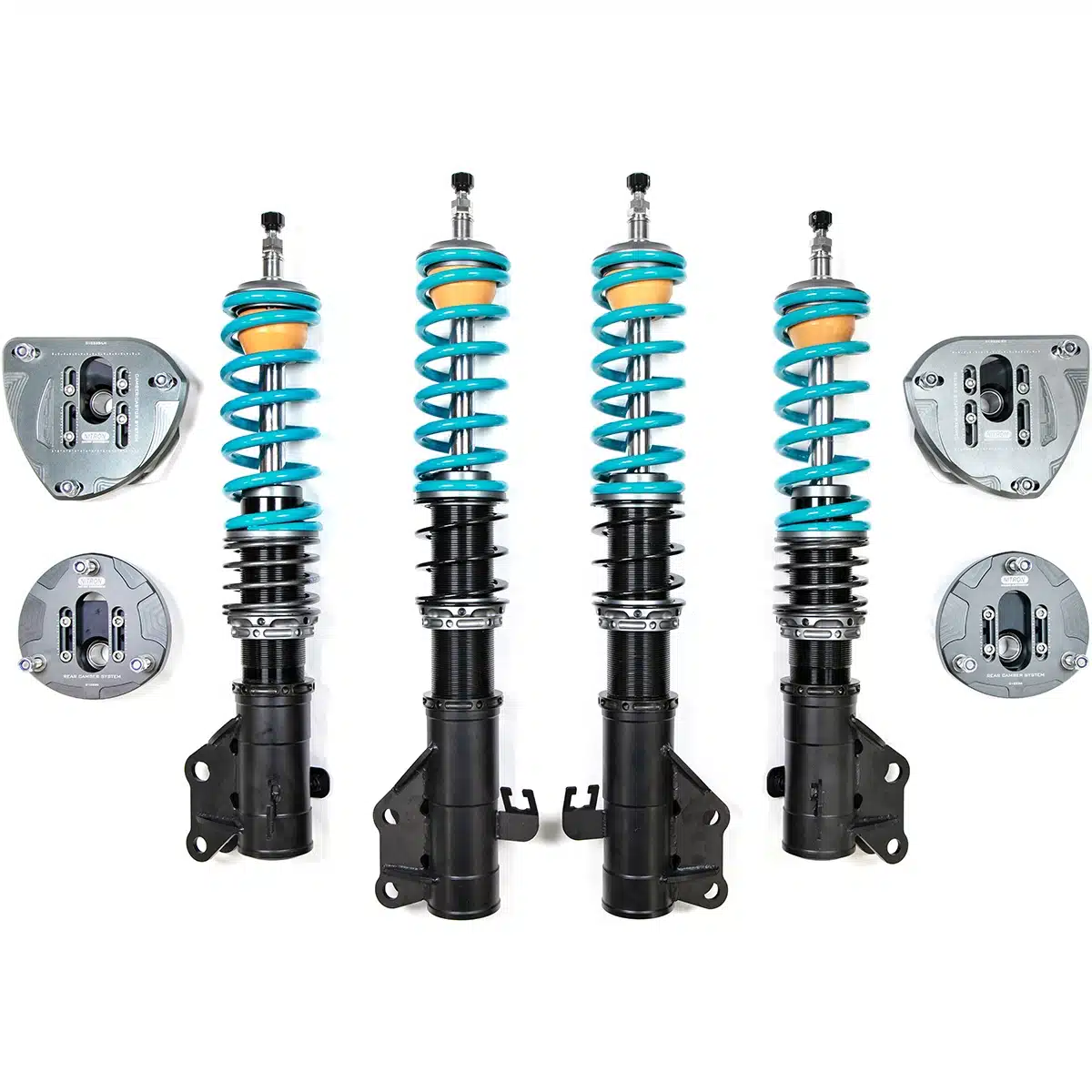

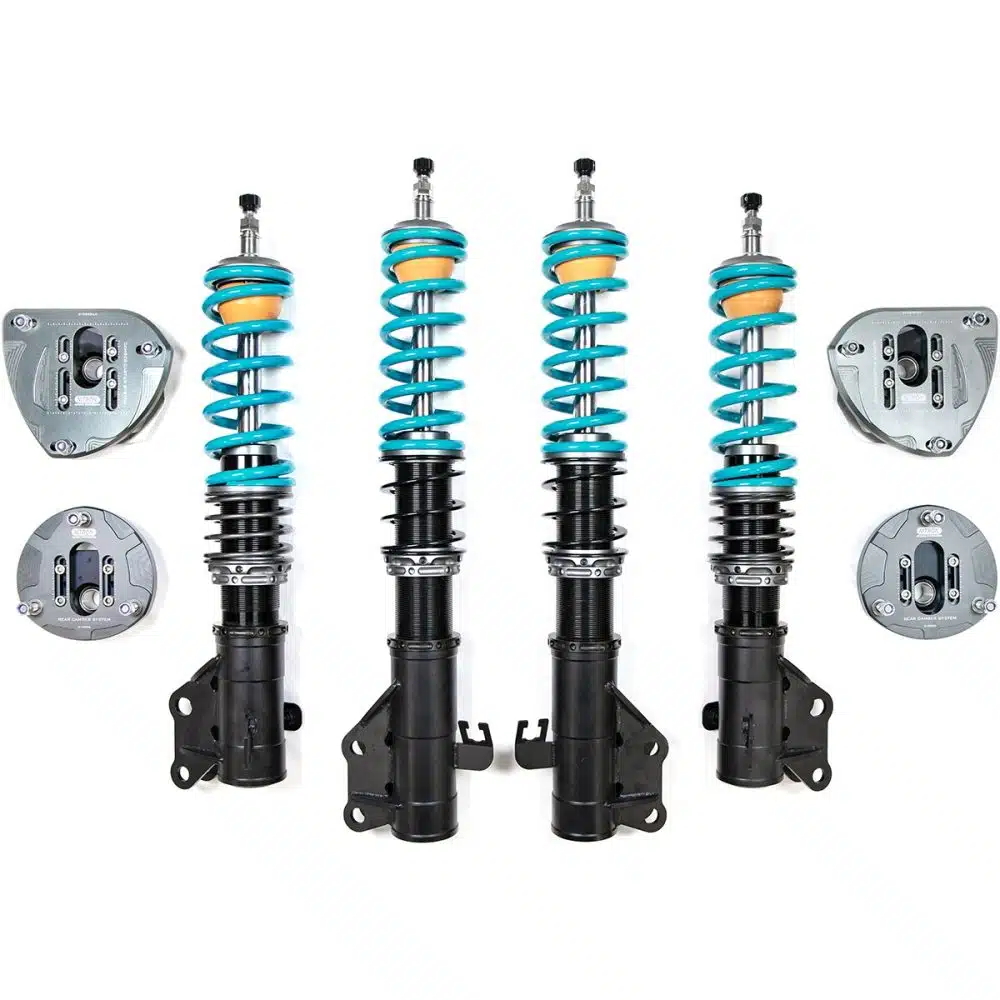

Nitron NTR-R1 Coilover Kit for GC Subaru Impreza

The Nitron GC Impreza NTR-R1 Coilover Kit is for the first-generation Impreza that has been driven hard for a long time and now needs the suspension to catch up. The GC is a light, boxer-powered car with MacPherson struts at the front and rear, and it earned its reputation by being quick on rough, broken surfaces, but factory struts that have gone soft after decades of use let the body float and wallow on exactly the roads these cars are best at. Nitron’s NTR-R1 replaces the factory spring and damper at each corner with an adjustable coilover unit and firmer race springs, with a damper built to control them, so the car holds its line through a corner, stays settled over a crest, and doesn’t dive nose-first under braking. Adjustable top mounts at both the front and rear give the alignment room to be set up for how the car is driven instead of leaving it to the factory mounts. It covers the full range of GC variants, the 1.6, 1.6 AWD, 1.8 AWD, 2.0 AWD, 2.0 Turbo GT AWD, and 2.2 AWD, so the same kit suits a lightly modified road car and a turbocharged build that gets used for rallying or track days.

Unique Technology

Each Nitron NTR-R1 damper is a monotube design pressurized with nitrogen gas, which keeps the oil from aerating and holds damping consistent as the dampers heat up over a long stage or session. The valving came out of motorsport work and is tuned to the weight and spring rates of a GC rather than adapted from a generic curve, with 2-way combined compression and rebound adjustment at each corner so the car can be set firmer or softer without pulling anything apart. The reservoir is internal, so there’s nothing remote to mount or route.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Every Nitron NTR-R1 Coilover Kit for the GC Subaru Impreza is hand assembled to order in the UK. Spring rates and valving are matched to how the car will really be used, whether that’s spirited road driving or competition, and custom spring rates are available for owners who want to move the balance of the car one way or the other.

Features

OEM rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: OEM
Droplinks Included: No

Applications

Subaru Impreza: GC | 1992-2000 | EJ16 1.6L H4 (FWD, AWD)
Subaru Impreza: GC | 1992-2000 | EJ18 1.8L H4
Subaru Impreza: GC | 1992-2000 | EJ20 2.0L H4
Subaru Impreza: GC | 1992-2000 | EJ20 2.0L H4 turbo
Subaru Impreza: GC | 1992-2000 | EJ22 2.2L H4

Other Suspension Kits for GC Subaru Impreza

NTR-R3 Coilover Kit

Notes

Does not fit Coupe or Wagon models
Fitment includes the 1.6, 1.6 AWD, 1.8 AWD, 2.0 AWD, 2.0 Turbo GT AWD, and 2.2 AWD variants
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Which GC Subaru Impreza models does the GC Impreza NTR-R1 kit fit? The Nitron NTR-R1 fits the GC Impreza in the 1.6, 1.6 AWD, 1.8 AWD, 2.0 AWD, 2.0 Turbo GT AWD, and 2.2 AWD variants.
What does the Nitron NTR-R1 replace on the GC Impreza? It replaces the factory springs and dampers at all four corners with Nitron NTR-R1 coilover units, adding adjustable damping, adjustable ride height, and firmer race springs.
What kind of adjustment does the Nitron NTR-R1 offer? Combined compression and rebound adjustment at each corner, with an internal reservoir so there is no remote reservoir to mount or route.
Is the Nitron NTR-R1 suitable for a daily driven GC Impreza? Yes. The Nitron NTR-R1 is built for owners who want firmer springs and real damper control for spirited road driving, rally, and track days, and the adjustment lets it be set up for how the car is used.
Can the ride height and top mounts be adjusted? Yes. The Nitron NTR-R1 has adjustable spring perches for independent ride height setting at each corner, and adjustable top mounts at both the front and rear.
Can I get custom spring rates for my setup? Yes. Every kit is hand assembled to order, and custom spring rates outside the standard range are available by contacting us directly.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
