Do the Nitron FD2 Type R top plates adjust camber and caster?

Yes. The Nitron FD2 Type R top plates adjust both camber and caster at the top of each front strut. On most applications, the two adjustments are independent, so you can add negative camber for front grip without changing caster, or add caster for steering weight and braking stability without moving your camber setting.

Will the Nitron FD2 Type R top plates work with coilovers from other brands?

Nitron designed the FD2 Type R top plates for its own coilovers only, including the Nitron NTR-R1 and NTR-R3 kits for the FD2.

Why do FD2 owners add camber after lowering the car?

Lowering an FD2 changes ride height but leaves the strut tops fixed, which limits how much you can adjust the front alignment. The FD2’s front tires do the steering, the braking and all the driving. Adding negative camber with the Nitron FD2 Type R top plates keeps more of each tire’s contact patch working in a corner, which improves front grip and tire wear.

Are the Nitron FD2 Type R top plates louder than factory mounts?

Yes, a little. The Nitron FD2 Type R top plates have no rubber, which keeps the strut tops held firmly and alignment settings consistent under load. Some of the road noise and vibration the factory rubber absorbed now reaches the cabin. For an FD2 that sees regular track use, most owners see the sharper steering and stable geometry as worth it.

Can the Nitron FD2 Type R top plates keep factory alignment settings?

Yes. The Nitron FD2 Type R top plates can be set to standard factory geometry. That lets you fit them now for the rigid mounting and steering feel, then add negative camber or more caster later as you change tires, start tracking the car or move to a more aggressive setup, without buying new hardware.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

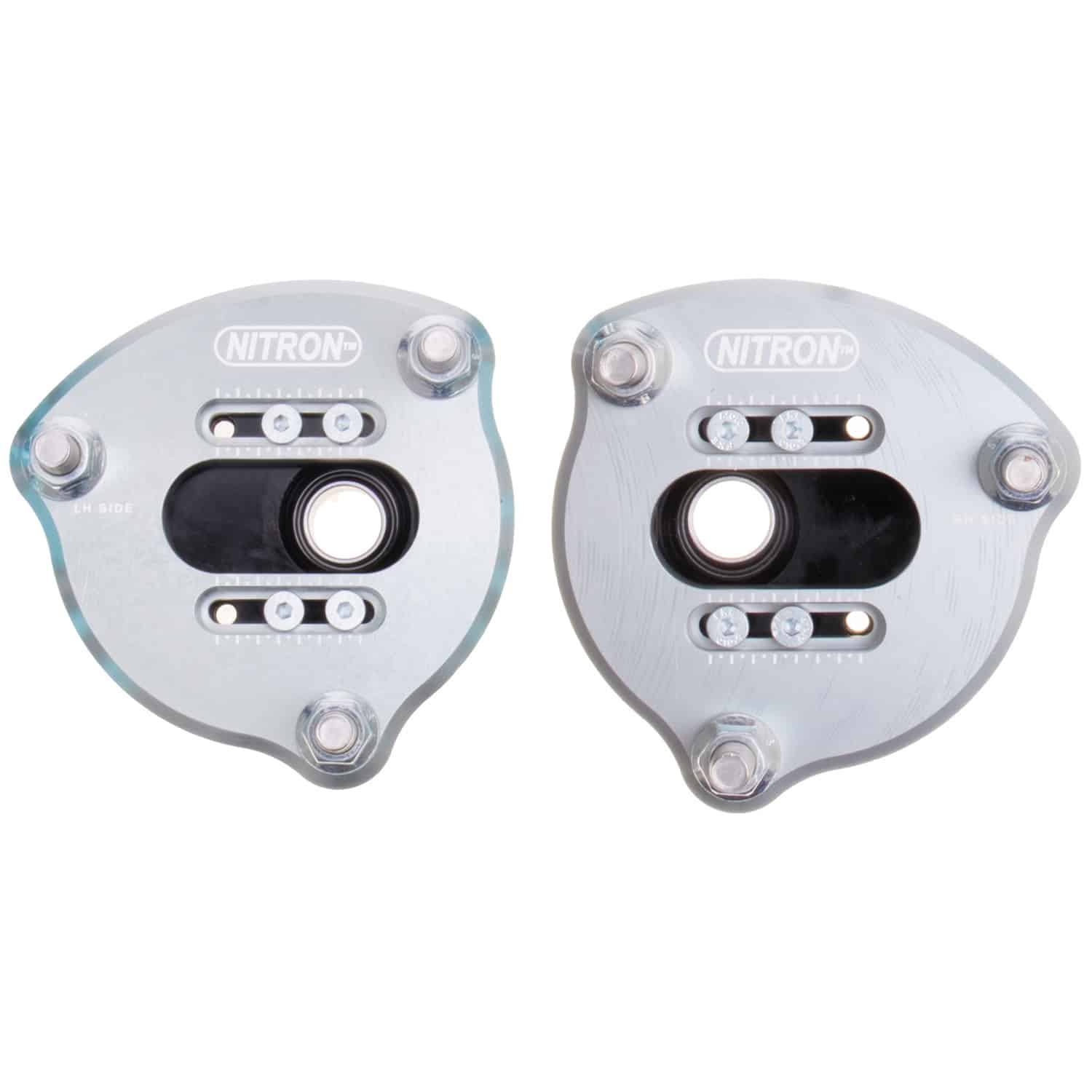

Nitron Front Adjustable Top Plates for FD2 Honda Civic Type R

Lowering an FD2 on coilovers takes care of ride height, but it does nothing to the front alignment settings. The top of each front strut is still bolted to a fixed rubber mount, and that leaves very little room to fine-tune the geometry the front tires depend on. Nitron’s FD2 Type R top plates move the adjustment to the top of the strut. Camber and caster can both be set right at the mount, using rigid aluminum plates in place of the factory rubber. On a front-wheel-drive car that already loads its front tires hard through the K20’s rev range, being able to add negative camber for mid-corner grip is the difference between a front end that pushes and one that holds. Extra caster adds steering weight and stability on the brakes. Standard geometry can also be kept if you’d rather leave alignment alone. The Nitron FD2 Type R top plates come as a pair for the front axle, finished in Nitron’s titanium grey anodizing.

Rubber-Free Construction

Rubber mounts are designed to absorb vibration, but they also let the strut top move under load. Hard braking and fast corners push the geometry away from what was set on the alignment rack. Nitron developed these top plates to international motorsport standards, with no rubber at all. Positive location and adjustment mechanisms hold each strut in place, so the camber and caster you dial in are the camber and caster you actually run on track. The steering also gets more direct, with fewer layers between the tires and your hands. The trade-off is more road noise and vibration reaching the cabin, something most FD2 track owners accept willingly.

Machined for Nitron Coilovers

Nitron designed these top plates to work with its own dampers, and they pair naturally with the Nitron FD2 Type R NTR-R1 and NTR-R3 coilover kits. On most applications, Nitron makes camber and caster adjust independently. That lets you change one setting at a track day and know exactly what caused the difference you feel, without the other setting drifting with it.

Features

Independent camber and caster adjustment
No rubber components
Positive location and adjustment systems
High-grade aluminium construction
Titanium grey anodized finish
Supplied as pairs

Applications

Honda Civic Type R: FD2 | 2006-2011

Notes

Only compatible on FD2 Sedan models, does not fit FN2 Hatchback models
Sold as a pair
Suitable only for use with smaller diameter motorsport springs
Designed only to be used with Nitron coilovers; modification may be required for them to be used with other manufacturers shock absorbers
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Do the Nitron FD2 Type R top plates adjust camber and caster? Yes. The Nitron FD2 Type R top plates adjust both camber and caster at the top of each front strut. On most applications, the two adjustments are independent, so you can add negative camber for front grip without changing caster, or add caster for steering weight and braking stability without moving your camber setting.
Will the Nitron FD2 Type R top plates work with coilovers from other brands? Nitron designed the FD2 Type R top plates for its own coilovers only, including the Nitron NTR-R1 and NTR-R3 kits for the FD2.
Why do FD2 owners add camber after lowering the car? Lowering an FD2 changes ride height but leaves the strut tops fixed, which limits how much you can adjust the front alignment. The FD2’s front tires do the steering, the braking and all the driving. Adding negative camber with the Nitron FD2 Type R top plates keeps more of each tire’s contact patch working in a corner, which improves front grip and tire wear.
Are the Nitron FD2 Type R top plates louder than factory mounts? Yes, a little. The Nitron FD2 Type R top plates have no rubber, which keeps the strut tops held firmly and alignment settings consistent under load. Some of the road noise and vibration the factory rubber absorbed now reaches the cabin. For an FD2 that sees regular track use, most owners see the sharper steering and stable geometry as worth it.
Can the Nitron FD2 Type R top plates keep factory alignment settings? Yes. The Nitron FD2 Type R top plates can be set to standard factory geometry. That lets you fit them now for the rigid mounting and steering feel, then add negative camber or more caster later as you change tires, start tracking the car or move to a more aggressive setup, without buying new hardware.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
