Will the Nitron FD2 Type R NTR-R1 Coilover Kit ride better than the factory FD2 suspension?

For most owners, yes. The factory FD2 setup relies on stiff springs with fairly basic damping, which makes it harsh on rough roads. The Nitron Type R NTR-R1 matches its springs and valving to each other, and its low-friction internals react to small bumps. The car can stay firm and controlled without hitting as hard over broken pavement.

What does a full coilover rear mean on the NTR-R1?

It means each rear damper on the Nitron FD2 Type R NTR-R1 Coilover Kit has its spring mounted around the damper body, just like at the front. Ride height and spring preload are set right at the damper. That gives you even control at both ends of the FD2, which makes it easier to balance the car and set corner weights properly.

Does Nitron's FD2 Type R NTR-R1 kit include top plates?

Yes. Nitron top plates come with every NTR-R1 kit, so you don’t need to reuse the original front mounts. Mounts that have spent this long in a car often develop play or noise, and fresh top plates mean you start the install without carrying those problems over.

How do you adjust the damping on the Nitron NTR-R1?

Each Nitron NTR-R1 damper has one adjuster that changes bump and rebound together along a curve Nitron sets for the car. Turning it firmer stiffens both directions at once, and turning it softer relaxes both. You can swap between a road setting and a track setting quickly without balancing separate circuits.

Can I order the Nitron FD2 Type R NTR-R1 Coilover Kit with spring rates for my build?

Yes. Every kit is individually sprung and valved before it ships, so a stock-power daily driver and a track car on R-compound tires can each get a suitable setup. Contact us directly with how you use the car, your tires and any modifications, and we will help specify the kit.

Is the Nitron NTR-R1 or Nitron NTR-R3 the better choice for an FD2?

The Nitron NTR-R1 suits FD2 owners who drive on the road and do track days, and who want simple setup. The Nitron NTR-R3 adds separate adjustment for rebound, low-speed compression and high-speed compression, plus reservoirs for better heat control. That suits serious track or competition cars where fine tuning pays off.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

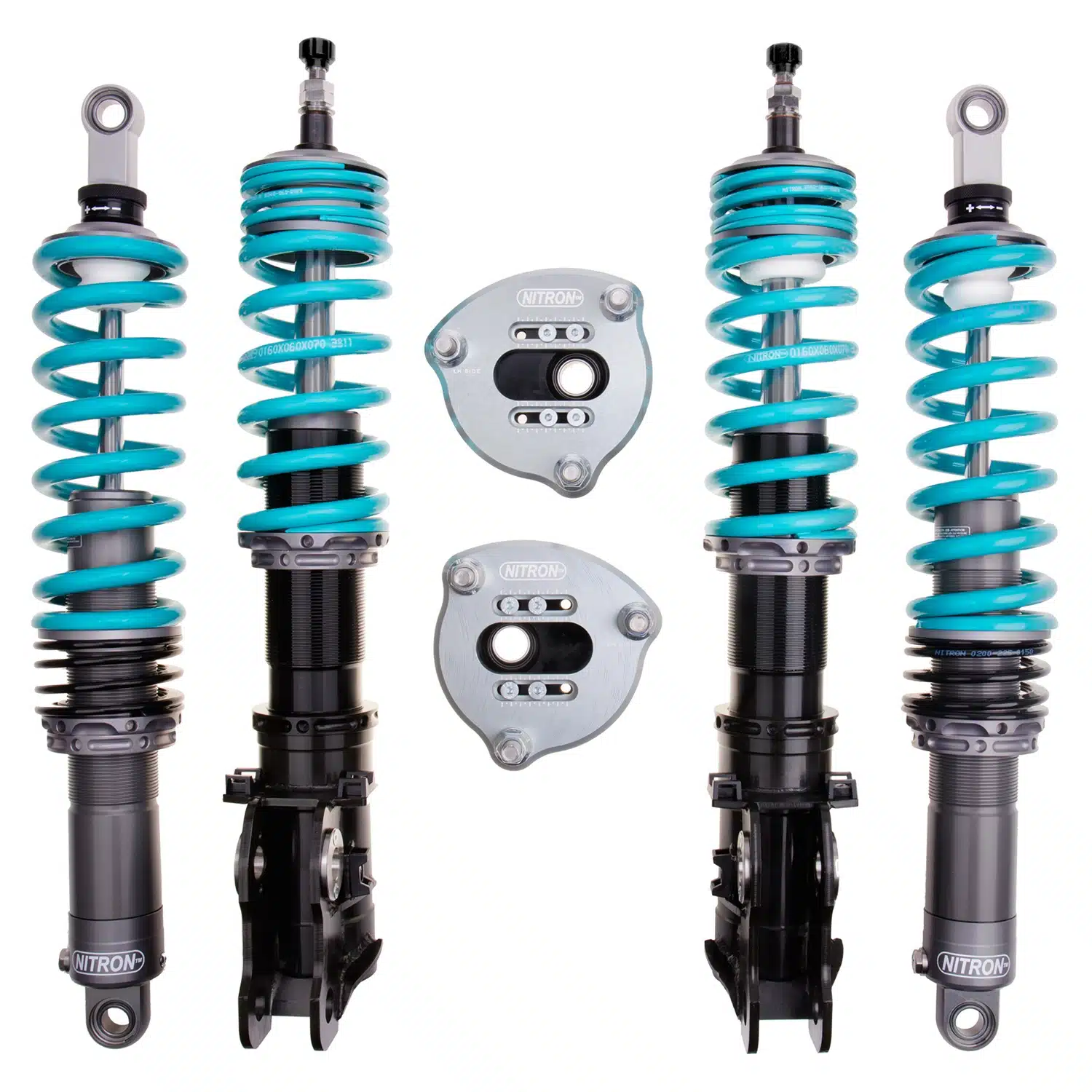

Nitron NTR-R1 Coilover Kit for FD2 Honda Civic Type R

Honda set up the FD2 for smooth Japanese circuits, and on anything rougher the car shows it. The factory suspension is stiff enough to send every expansion joint straight into the seat, yet it still runs out of control when a fast corner has bumps in it. Nitron’s FD2 Type R NTR-R1 Coilover Kit takes a different approach. Instead of high spring rates paired with dampers that can’t keep up, Nitron matches the springs and valving to each other, so the car can be firm and still move with the road. The rear is a full coilover, with the spring around the damper body, which gives you proper control of ride height and corner weights at the back as well as the front. A single adjuster at each corner sets bump and rebound together, that makes the Nitron FD2 Type R NTR-R1 quick to set up whether the car is commuting all week or lapping Sunday morning.

Unique Technology

Nitron’s race department is where the NTR-R1 came from. It carries over much of the internal hardware from the NTR-R3 that Nitron runs in international motorsport, with the remote canister left off. For the FD2, that keeps each corner compact and the install free of hose routing. Because the internals have very little friction, the Nitron NTR-R1 damper starts working at the first millimeter of travel instead of waiting for a big enough hit. That is where an FD2 owner notices the change most, as the constant small jolts the factory setup passes into the cabin start to smooth out. The K20 loves to be held near its redline, and the NTR-R1 is built for drivers who do that for a full session. Its damping resists fade, so the car feels the same at the end of the session as it did at the start.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Each Nitron FD2 Type R NTR-R1 kit is built by hand once the order is placed, not pulled from a box of identical units. Nitron chooses spring rates and valving around the car’s real use, and an FD2 can be anything from a lightly modified daily driver to a stripped track car on R-compound tires, so that choice matters. Hard-anodized components and titanium-finish hardware keep the weight down and hold off corrosion. That is good insurance on a car old enough that many examples now live in climates far wetter and saltier than the one Honda designed for. Each Nitron NTR-R1 damper can also be fully serviced and revalved, so the suspension can follow the car through tire changes, power upgrades or a move to more serious track work.

Features

Coilover rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: Coilover
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 400lbs/inch (70N/mm)
  - Rear: 400lbs/inch (70N/mm)
- TDS – Track Day Spec:
  - Front: 457lbs/inch (80N/mm)
  - Rear: 400lbs/inch (70N/mm)

Applications

Honda Civic Type R: FD2 | 2006-2011

Other Suspension Kits for FD2 Type R

NTR-R3 Coilover Kit

Notes

Only compatible on FD2 Sedan models, does not fit FN2 Hatchback models
Custom spring rates also available
Please feel free to contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Will the Nitron FD2 Type R NTR-R1 Coilover Kit ride better than the factory FD2 suspension? For most owners, yes. The factory FD2 setup relies on stiff springs with fairly basic damping, which makes it harsh on rough roads. The Nitron Type R NTR-R1 matches its springs and valving to each other, and its low-friction internals react to small bumps. The car can stay firm and controlled without hitting as hard over broken pavement.
What does a full coilover rear mean on the NTR-R1? It means each rear damper on the Nitron FD2 Type R NTR-R1 Coilover Kit has its spring mounted around the damper body, just like at the front. Ride height and spring preload are set right at the damper. That gives you even control at both ends of the FD2, which makes it easier to balance the car and set corner weights properly.
Does Nitron’s FD2 Type R NTR-R1 kit include top plates? Yes. Nitron top plates come with every NTR-R1 kit, so you don’t need to reuse the original front mounts. Mounts that have spent this long in a car often develop play or noise, and fresh top plates mean you start the install without carrying those problems over.
How do you adjust the damping on the Nitron NTR-R1? Each Nitron NTR-R1 damper has one adjuster that changes bump and rebound together along a curve Nitron sets for the car. Turning it firmer stiffens both directions at once, and turning it softer relaxes both. You can swap between a road setting and a track setting quickly without balancing separate circuits.
Can I order the Nitron FD2 Type R NTR-R1 Coilover Kit with spring rates for my build? Yes. Every kit is individually sprung and valved before it ships, so a stock-power daily driver and a track car on R-compound tires can each get a suitable setup. Contact us directly with how you use the car, your tires and any modifications, and we will help specify the kit.
Is the Nitron NTR-R1 or Nitron NTR-R3 the better choice for an FD2? The Nitron NTR-R1 suits FD2 owners who drive on the road and do track days, and who want simple setup. The Nitron NTR-R3 adds separate adjustment for rebound, low-speed compression and high-speed compression, plus reservoirs for better heat control. That suits serious track or competition cars where fine tuning pays off.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
