What can I adjust on the Nitron Evo VI NTR-R3 Coilover Kit?

Each damper has four separate controls, high speed compression, low speed compression, high speed rebound, and low speed rebound. They work independently, so you can change one without altering the other three.

Which settings affect body roll and which affect bumps?

The low speed settings govern body movement such as dive, roll, and squat. The high speed settings govern how the damper reacts to sharp bumps, curbs, and rough surfaces.

Does every damper on the Evo VI NTR-R3 use a hose?

Yes. The kit has hose-connected reservoirs at the front and the rear, so all four dampers have a remote reservoir that you mount away from the damper body.

What do the Bi-Axis fittings do?

They rotate 720 degrees on two axes, so each hose can be turned toward its reservoir and secured with no kinks or strain on the fitting.

Does Nitron's Evo VI NTR-R3 kit keep the factory rear suspension type?

Yes. It is made for the OEM rear suspension type, so the rear stays as designed and the Nitron spring and damper replace the factory ones.

Are top plates included with this Evo VI NTR-R3 Coilover Kit, and is an alignment needed?

Adjustable top plates come with the kit, and a professional alignment is required after installation. The R3 has more to adjust than a single-control kit, so a proper setup session is worth the time.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

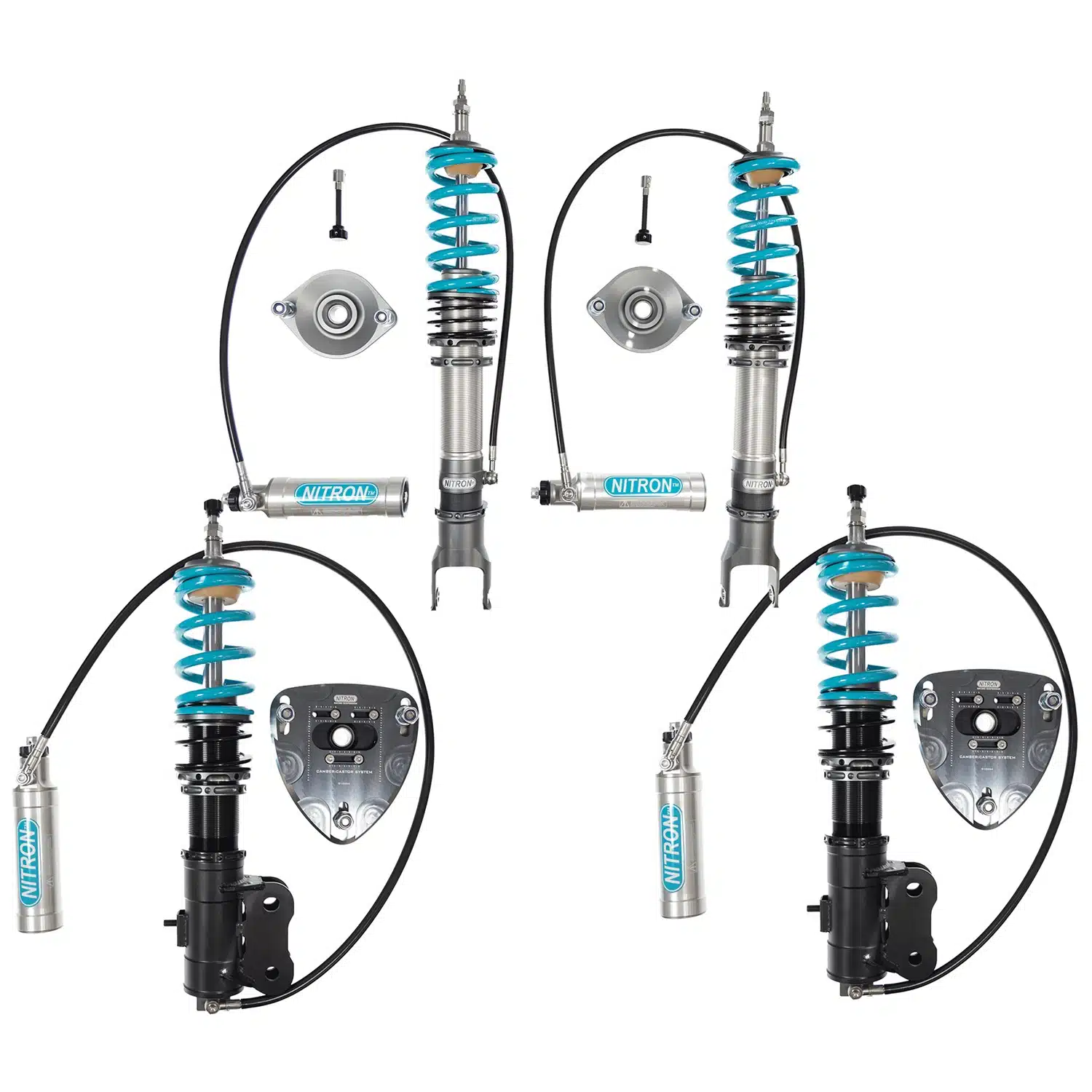

Nitron NTR-R3 Coilover Kit for CP9A Mitsubishi Lancer Evo VI

A four-wheel-drive Mitsubishi Evo VI asks a lot of its dampers, and Nitron’s Evo VI NTR-R3 Coilover Kit gives each corner four separate adjustments so you can answer it properly. High speed and low speed compression and rebound are all set independently, which means the way the body moves and the way the car takes a rough surface stop being one compromise. Every damper has its reservoir on a hose, the rear keeps the OEM suspension type, and adjustable spring perches and race springs complete the setup. If you have outgrown what a single adjuster can do, the Evo VI NTR-R3 is the kit to move up to.

Specialized Bi-Axis Hose Fittings

With a hose at every corner, the way each line leaves its damper has a lot to do with how tidy and secure the install ends up. The fittings on these dampers turn 720 degrees on two axes, which is what Nitron calls Bi-Axis, so every hose can be pointed at its reservoir before it is tightened. Front or rear, that gives each line a short, direct run without kinks or strain on the connector, and it makes it easier to find a sensible place for the reservoirs in a car with limited room around the suspension.

Unique Technology

The easiest way to think about the R3 is as two dampers in one body. The low speed circuits handle what the whole car does, such as pitching forward under the brakes, leaning on turn-in, and sitting down on the rear when the boost builds. The high speed circuits handle what each wheel does, such as hitting a curb, dropping into a rut, or crossing a seam at the apex. A harsh ride over broken pavement can be eased on the high speed side without softening the body control you set on the low speed side, and the reverse also holds. Each damper is a passive, nitrogen-pressurized monotube with a remote reservoir, assembled by hand in the UK to order.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron builds each Evo VI NTR-R3 to order for the CP9A, specifying damper lengths, hose lengths, and perch positions for the car and not adapting a universal part. The rear keeps the OEM suspension type, which puts the rear dampers back where the factory ones came out and leaves the car’s rear geometry as it was designed. Race springs are supplied with the kit, and the adjustable perches let you set ride height and corner balance without changing components. The aim is a kit that bolts into the car as if it were made for it, so your time goes into tuning and not fitting.

Features

Hose reservoir type
OEM rear suspension type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 514lbs/inch (90N/mm)
  - Rear: 500lbs/inch (88N/mm)
- TDS – Track Day Spec:
  - Front: 628lbs/inch (110N/mm)
  - Rear: 600lbs/inch (105N/mm)

Applications

Mitsubishi Lancer Evolution: CP9A | 1991-2001

Other Suspension Kits for Evo VI

NTR-R1 Coilover Kit

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only; specific details, finishes and end fittings may differ from that shown

Frequently Asked Questions

What can I adjust on the Nitron Evo VI NTR-R3 Coilover Kit? Each damper has four separate controls, high speed compression, low speed compression, high speed rebound, and low speed rebound. They work independently, so you can change one without altering the other three.
Which settings affect body roll and which affect bumps? The low speed settings govern body movement such as dive, roll, and squat. The high speed settings govern how the damper reacts to sharp bumps, curbs, and rough surfaces.
Does every damper on the Evo VI NTR-R3 use a hose? Yes. The kit has hose-connected reservoirs at the front and the rear, so all four dampers have a remote reservoir that you mount away from the damper body.
What do the Bi-Axis fittings do? They rotate 720 degrees on two axes, so each hose can be turned toward its reservoir and secured with no kinks or strain on the fitting.
Does Nitron’s Evo VI NTR-R3 kit keep the factory rear suspension type? Yes. It is made for the OEM rear suspension type, so the rear stays as designed and the Nitron spring and damper replace the factory ones.
Are top plates included with this Evo VI NTR-R3 Coilover Kit, and is an alignment needed? Adjustable top plates come with the kit, and a professional alignment is required after installation. The R3 has more to adjust than a single-control kit, so a proper setup session is worth the time.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
