How many adjustments does the Nitron Evo VI NTR-R1 have?

One per corner. That single control changes compression and rebound together, which keeps the Evo VI NTR-R1 quick to set up and easy to change.

Do I have to change the rear suspension to fit the Evo VI NTR-R1?

No. The kit is made for the OEM rear suspension type, so the rear keeps its layout and the Nitron spring and damper replace the factory pair.

How do I lower the Evo VI with this kit?

Use the adjustable spring perches. They set ride height and corner balance, so you can lower the car, or keep it near stock height, to suit how you use it.

Is there a remote reservoir on the Evo VI NTR-R1?

No. It uses an internal reservoir, so the dampers fit in the original place with no hoses or canisters to find room for.

Are top plates part of the Evo VI NTR-R1 kit?

Yes. Adjustable top plates are included, and a professional alignment is required after installation so camber and ride height are set correctly.

Can I change the spring rates on an Evo VI kit?

Yes. Custom spring rates are available by contacting us directly, which is worth doing if the car is used mainly on the road or mainly on track.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

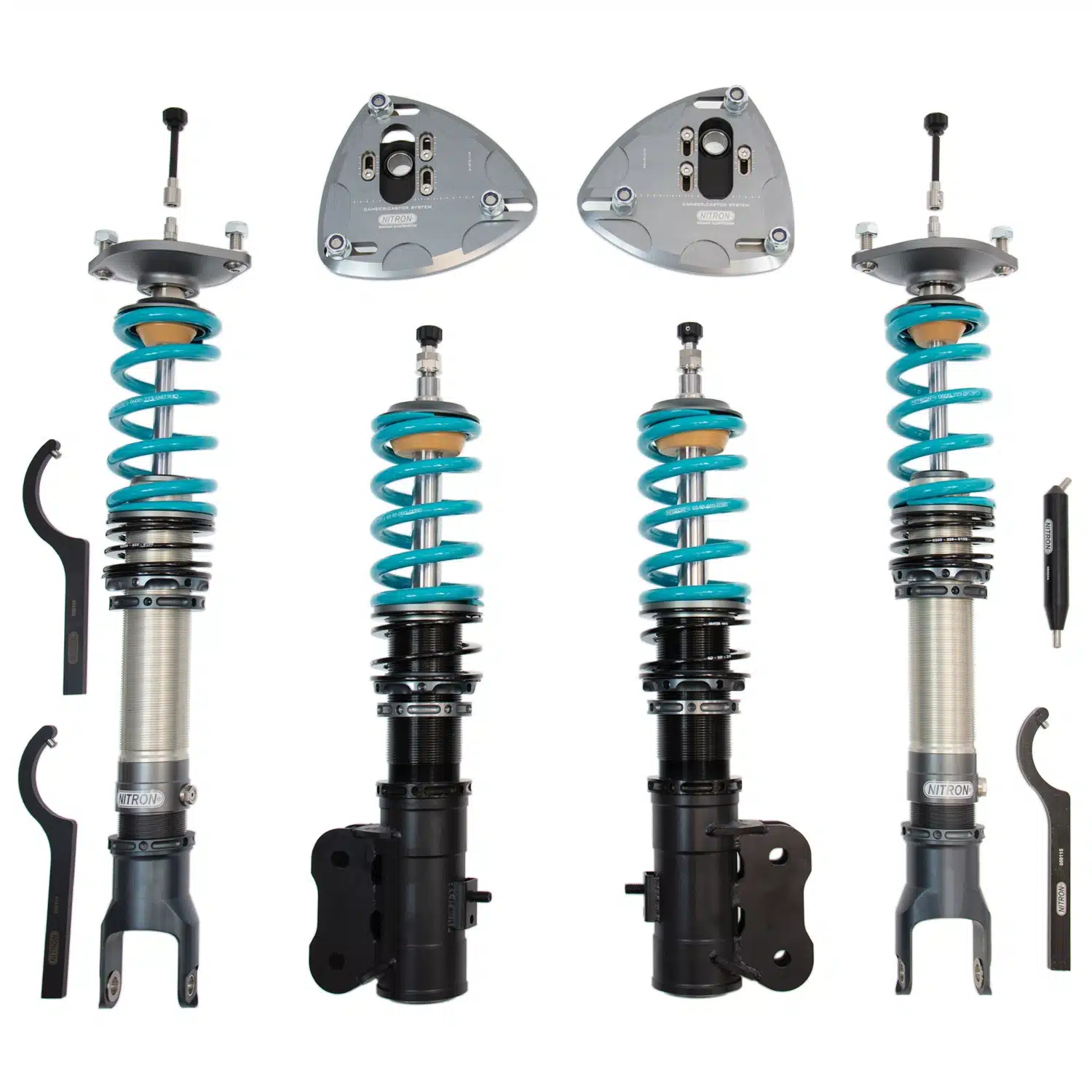

Nitron NTR-R1 Coilover Kit for CP9A Mitsubishi Lancer Evo VI

By the Evo VI, Mitsubishi had put forged suspension parts under the car, and Nitron Suspension’s Evo VI NTR-R1 Coilover Kit is aimed at owners who want dampers that deserve that hardware. The VI is a 280 PS, full-time four-wheel-drive sedan, and after two decades the original springs and dampers are usually the weakest link in how it drives. The Evo VI NTR-R1 swaps them for a passive damper with one combined compression and rebound control at each corner, so a single adjustment changes how the car feels. Spring perches adjust for ride height, race springs are included, and the rear stays with the OEM suspension type.

Unique Technology

Single-adjuster dampers are the easy way to a well-controlled car, and the Evo VI NTR-R1 is built that way on purpose. Each damper is a nitrogen-pressurized monotube with an internal reservoir, so the whole unit sits where the old shock was, with no hoses to run and no canisters to mount. Turn the control and compression and rebound move together. For an Evo that is a daily car on weekdays and a stage car on a Sunday, that makes it quick to go softer for the commute or firmer for a day on the circuit.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron builds each Evo VI NTR-R1 to order by hand in the UK, with damper lengths and perch positions specified for the CP9A and not borrowed from a universal part. The rear keeps the OEM suspension type, so the rear dampers go back in the place the factory ones came out of, and the car’s rear geometry stays as it left the factory. Race springs come in the kit, and the adjustable perches let you set ride height and corner balance without swapping parts. That leaves you spending your time dialing the car in and not working out how to make the kit fit.

Features

OEM rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 514lbs/inch (90N/mm)
  - Rear: 500lbs/inch (88N/mm)
- TDS – Track Day Spec:
  - Front: 628lbs/inch (110N/mm)
  - Rear: 600lbs/inch (105N/mm)

Applications

Mitsubishi Lancer Evolution: CP9A | 1991-2001

Other Suspension Kits for Evo VI

NTR-R3 Coilover Kit

Notes

Custom spring rates also available
Please feel free to contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

How many adjustments does the Nitron Evo VI NTR-R1 have? One per corner. That single control changes compression and rebound together, which keeps the Evo VI NTR-R1 quick to set up and easy to change.
Do I have to change the rear suspension to fit the Evo VI NTR-R1? No. The kit is made for the OEM rear suspension type, so the rear keeps its layout and the Nitron spring and damper replace the factory pair.
How do I lower the Evo VI with this kit? Use the adjustable spring perches. They set ride height and corner balance, so you can lower the car, or keep it near stock height, to suit how you use it.
Is there a remote reservoir on the Evo VI NTR-R1? No. It uses an internal reservoir, so the dampers fit in the original place with no hoses or canisters to find room for.
Are top plates part of the Evo VI NTR-R1 kit? Yes. Adjustable top plates are included, and a professional alignment is required after installation so camber and ride height are set correctly.
Can I change the spring rates on an Evo VI kit? Yes. Custom spring rates are available by contacting us directly, which is worth doing if the car is used mainly on the road or mainly on track.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
