What does the Nitron Mitsubishi Evo IV NTR-R1 Coilover Kit adjust?

Each corner has one control that changes compression and rebound together. That keeps the Evo IV NTR-R1 simple to set up, and one setting per damper changes how the car feels.

Does the Evo IV NTR-R1 keep the OEM rear suspension?

Yes. The kit is made for the OEM rear suspension type, so the rear keeps its original layout and the Nitron spring and damper replace the factory parts.

Can I change the ride height on the Mitsubishi Evo IV NTR-R1?

Yes. Adjustable spring perches let you set ride height and corner balance, so you can adjust the stance to suit road or track use.

Does this coilover kit use remote reservoirs?

No. This Mitsubishi Evo IV NTR-R1 uses an internal reservoir, so there are no hoses to run and no reservoirs to find a place for. That keeps the installation neat.

Are top plates included with the Mitsubishi Evo IV NTR-R1?

Yes. Adjustable top plates come with the kit, and a professional alignment is required after installation so ride height and camber are set correctly.

Can I order different spring rates for my Evo IV or V?

Yes. Custom spring rates are available by contacting us directly, which is worth doing if your car is set up for mostly road or mostly track use.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

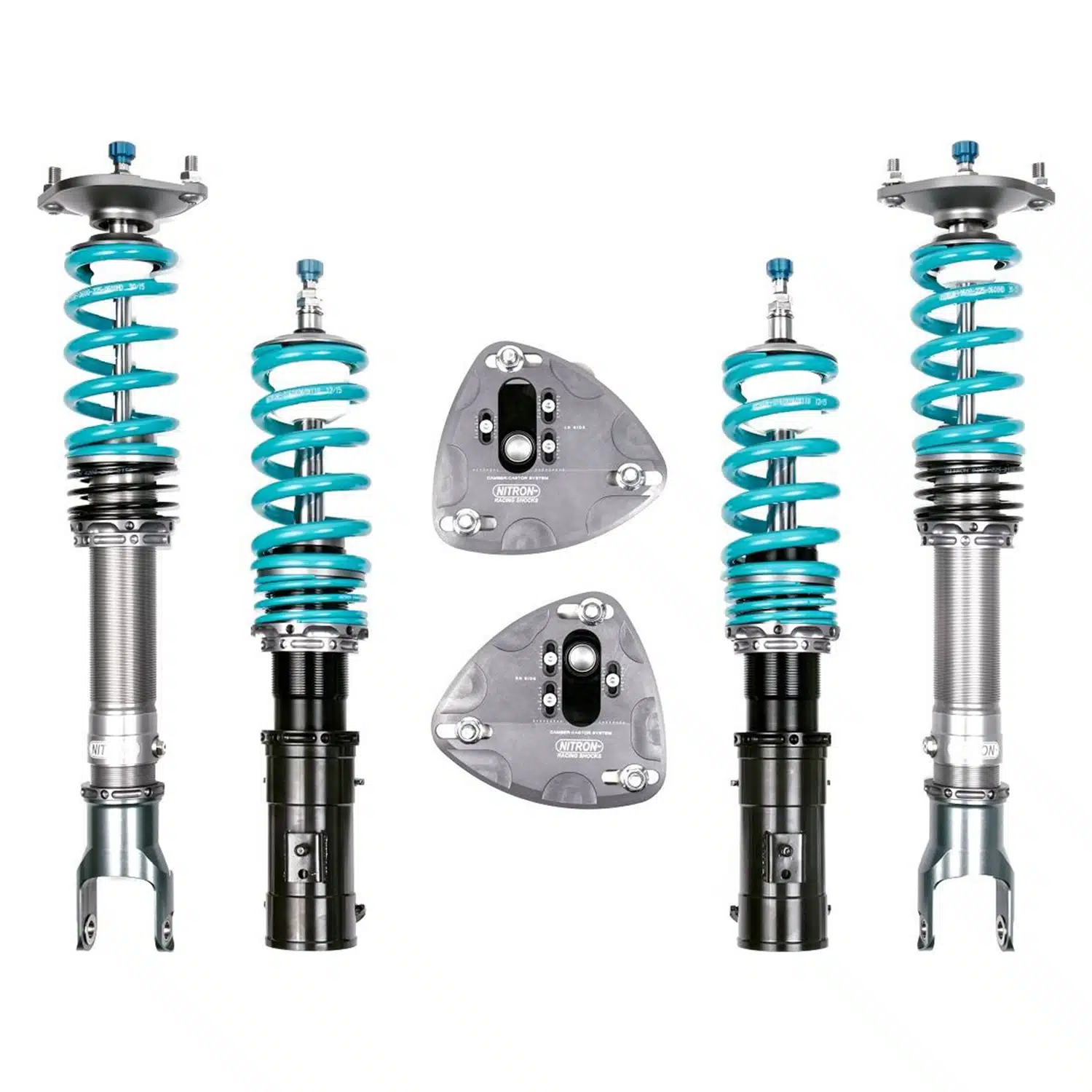

Nitron NTR-R1 Coilover Kit for CN9A / CP9A Mitsubishi Lancer Evo IV and V

The Nitron Mitsubishi Evo IV NTR-R1 Coilover Kit is for CN9A Evo IV and CP9A Evo V owners whose suspension is old, soft, or worn, and who want fresh, adjustable damping that suits a turbocharged all-wheel-drive car meant to be driven hard. The Mitsubishi Evo IV NTR-R1 replaces the spring and damper at each corner with a passive nitrogen-pressurized monotube that has one combined compression and rebound adjustment, so you can change how the car feels with a single setting. Adjustable spring perches set ride height, race springs come with the kit, and the rear keeps the OEM suspension type. For an Evo that sees back roads, track days, or rally-style stages, the Mitsubishi Evo IV NTR-R1 gives you a direct way to rebuild the car’s control.

Unique Technology

Cars like the Evo IV are quick on rough surfaces and in a hurry on corner exits, which puts a lot of work on the dampers. Each Mitsubishi Evo IV NTR-R1 damper has an internal reservoir, so there are no remote hoses to route and nothing to mount in the engine bay or trunk. One control per corner changes compression and rebound together, so the setup stays simple. Start in the middle, drive the car on roads you know, and move the settings in small steps until the body movement and the bump control suit how you drive.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron hand assembles every kit to order in the UK and builds the Mitsubishi Evo IV NTR-R1 kit around the CN9A and CP9A. The rear keeps the OEM suspension type, so the car’s multi-link rear geometry stays as Mitsubishi designed it, and the front and rear dampers are made to suit the chassis. Race springs and adjustable perches let you set ride height and corner balance the way you want them.

Features

OEM rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 514lbs/inch (90N/mm)
  - Rear: 500lbs/inch (88N/mm)
- TDS – Track Day Spec:
  - Front: 628lbs/inch (110N/mm)
  - Rear: 600lbs/inch (105N/mm)

Applications

Mitsubishi Lancer Evolution: CN9A, CP9A | 1996-1999

Other Suspension Kits for Evo IV / V

NTR-R3 Coilover Kit

Notes

Custom spring rates also available
Please feel free to contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

What does the Nitron Mitsubishi Evo IV NTR-R1 Coilover Kit adjust? Each corner has one control that changes compression and rebound together. That keeps the Evo IV NTR-R1 simple to set up, and one setting per damper changes how the car feels.
Does the Evo IV NTR-R1 keep the OEM rear suspension? Yes. The kit is made for the OEM rear suspension type, so the rear keeps its original layout and the Nitron spring and damper replace the factory parts.
Can I change the ride height on the Mitsubishi Evo IV NTR-R1? Yes. Adjustable spring perches let you set ride height and corner balance, so you can adjust the stance to suit road or track use.
Does this coilover kit use remote reservoirs? No. This Mitsubishi Evo IV NTR-R1 uses an internal reservoir, so there are no hoses to run and no reservoirs to find a place for. That keeps the installation neat.
Are top plates included with the Mitsubishi Evo IV NTR-R1? Yes. Adjustable top plates come with the kit, and a professional alignment is required after installation so ride height and camber are set correctly.
Can I order different spring rates for my Evo IV or V? Yes. Custom spring rates are available by contacting us directly, which is worth doing if your car is set up for mostly road or mostly track use.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
