How does 3-way adjustment help a lowered EK9 on track?

A lowered EK9 has limited suspension travel. The Nitron EK9 Type R NTR-R3 lets you firm up low-speed compression so the body uses less travel in roll and pitch. High-speed compression is set separately so the wheel can still absorb curbs and bumps. That keeps the car off its bump stops without making it harsh over rough surfaces.

Where do the reservoirs go on the Nitron EK9 Type R NTR-R3?

The Nitron EK9 Type R NTR-R3 uses hose-mounted reservoirs at both ends, each connected to its damper by a hose. Nitron’s Bi-Axis fittings let each hose leave the damper at the correct angle, which keeps routing clean in the EK9’s tight packaging. Plan the reservoir locations before installation so the compression adjusters stay easy to reach.

Does the Nitron Civic Type R NTR-R3 require changes to the EK9 suspension?

No. The Nitron Civic Type R NTR-R3 bolts into the EK9’s factory double wishbone mounting points front and rear and keeps the OEM-type rear layout. You don’t need to modify the arms or the chassis, so the factory geometry stays intact while the dampers give you full 3-way control over how the car moves.

Should an EK9 owner choose the Nitron NTR-R3 or the Nitron NTR-R1?

Choose the Nitron NTR-R3 if the EK9 is mainly a track, time-attack or race car. It adds independent rebound, low-speed compression and high-speed compression adjustment, plus remote reservoirs for consistent damping over long sessions. The Nitron NTR-R1 uses one combined adjuster and no reservoirs, which suits road driving and occasional track days.

Can the Nitron EK9 Type R NTR-R3 be rebuilt and revalved?

Yes. Every Nitron EK9 Type R NTR-R3 damper is fully serviceable and rebuildable, including revalving and spring changes. Track and race EK9 owners often have their dampers refreshed between seasons, and revalving is common when changing ride height, moving to slicks or switching series. Contact us directly to arrange service.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

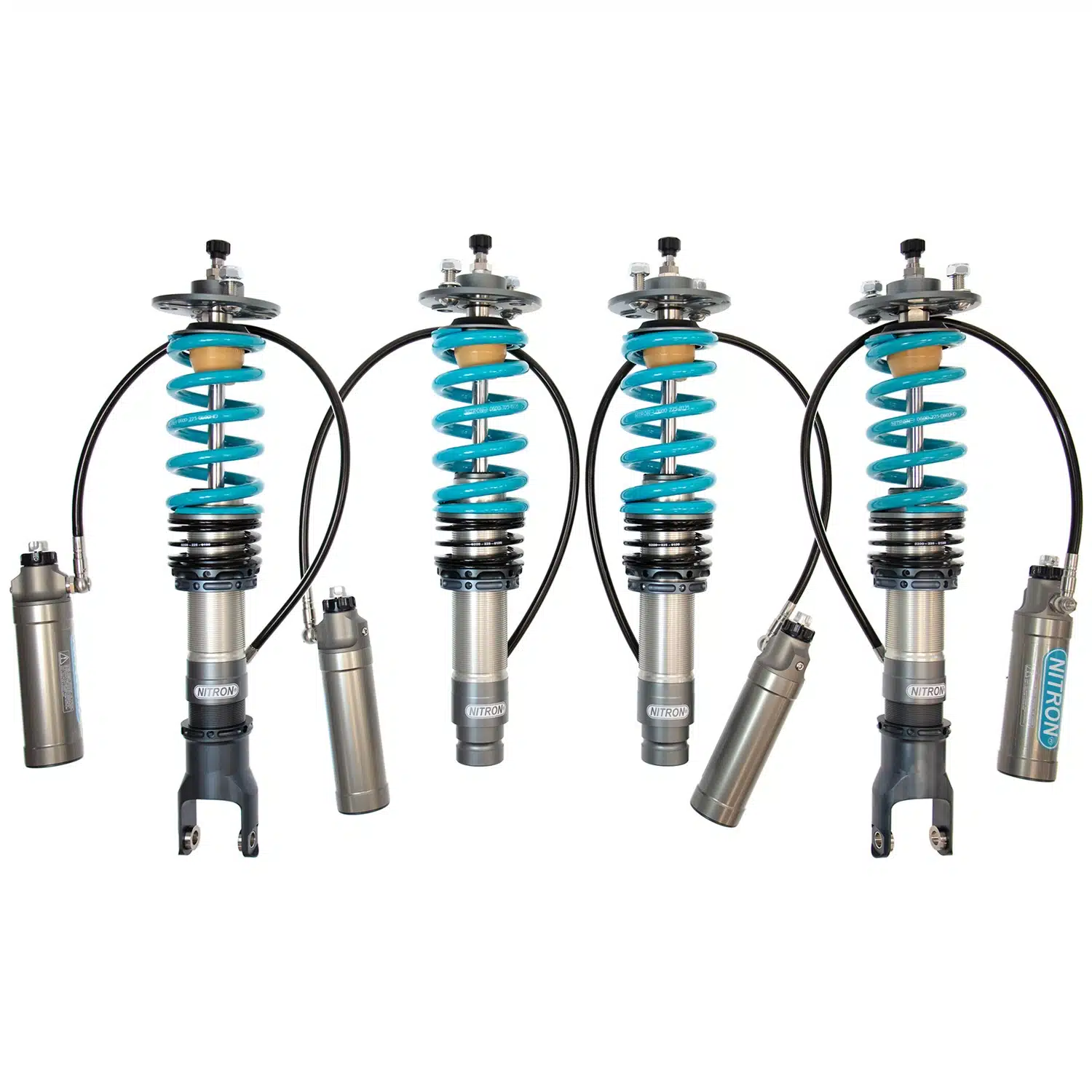

Nitron NTR-R3 Coilover Kit for EK9 Honda Civic Type R

Track-built EK9s tend to run low, and low means short suspension travel. When there’s only so much stroke left, the damper has to hold the body up through braking and long corners and still let the wheel absorb a curb. Doing both is difficult with a single adjuster. The Nitron EK9 Type R NTR-R3 coilover kit gives each of those jobs its own adjustment, with independent rebound, low-speed compression and high-speed compression at every corner. Firm up low-speed compression and the car rolls and pitches less, so it isn’t using its travel just to handle weight transfer. Ease off high-speed compression and the wheel can still move quickly over a curb or a sharp bump without crashing into the bump stop. This is how you get a low EK9 to carry speed and keep its momentum, which is the whole point of the car. Hose-mounted reservoirs front and rear keep the compression adjusters easy to reach. The rear follows the OEM suspension layout, so the Nitron EK9 Type R NTR-R3 bolts into the factory double wishbone mounting points at both ends.

Specialized Bi-Axis Hose Fittings

The EK9 is a compact car with a busy engine bay, and running reservoirs at both ends means four hoses that each need a safe path. Each one has to clear bodywork, brake lines and suspension movement. Nitron’s exclusive Bi-Axis fittings swivel on two planes where each hose leaves the damper. On the Nitron EK9 Type R NTR-R3, that lets every hose point straight toward its reservoir rather than being forced into a tight bend. Installation is cleaner at the front and rear, and the hoses stay clear through full bump, full droop and full steering lock.

Unique Technology

The Nitron NTR-R3 is a proven race winner and lap record holder across international motorsport. It is built around a large-diameter piston and an ultra-strong piston rod. Because the large piston moves a lot of oil through the valving for every millimeter of travel, the damper builds force accurately even over short strokes. That matters on a lowered car, and each adjuster click produces a clear change. The hose-mounted reservoirs add oil volume away from the damper body, so damping stays consistent as heat builds through a long session or a race stint. Independent high- and low-speed compression adjusters sit on each reservoir. That lets you solve a body-control problem or a curb-handling problem on the Nitron Civic Type R NTR-R3 without one change undoing the other.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Every Nitron EK9 Type R NTR-R3 kit is hand-built after the order is placed. Springs and valving are specified for the car’s real job, whether that’s a road-registered EK9 that does a lot of track days, a time-attack car on R-compound tires or a dedicated race build with a cage and slicks. Hard-anodized components and titanium hardware cut weight and resist corrosion. That’s good protection on a chassis this old, especially one that runs at wet circuits all season. These dampers are meant to be maintained for the long term. Each Nitron NTR-R3 unit can be fully serviced and rebuilt, and revalving for new tires, aero or regulations keeps the kit in step with the car as it develops.

Features

Hose reservoir type
OEM rear suspension type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, and hoses
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 650lbs/inch (114N/mm)
  - Rear: 400lbs/inch (79N/mm)
- TDS – Track Day Spec:
  - Front: 900lbs/inch (158N/mm)
  - Rear: 65000lbs/inch (114N/mm)

Applications

Honda Civic Type R: EK9 | 1997-2000

Other Suspension Kits for EK9 Civic Type R

NTR-R1 Coilover Kit

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only; specific details, finishes and end fittings may differ from that shown

Frequently Asked Questions

How does 3-way adjustment help a lowered EK9 on track? A lowered EK9 has limited suspension travel. The Nitron EK9 Type R NTR-R3 lets you firm up low-speed compression so the body uses less travel in roll and pitch. High-speed compression is set separately so the wheel can still absorb curbs and bumps. That keeps the car off its bump stops without making it harsh over rough surfaces.
Where do the reservoirs go on the Nitron EK9 Type R NTR-R3? The Nitron EK9 Type R NTR-R3 uses hose-mounted reservoirs at both ends, each connected to its damper by a hose. Nitron’s Bi-Axis fittings let each hose leave the damper at the correct angle, which keeps routing clean in the EK9’s tight packaging. Plan the reservoir locations before installation so the compression adjusters stay easy to reach.
Does the Nitron Civic Type R NTR-R3 require changes to the EK9 suspension? No. The Nitron Civic Type R NTR-R3 bolts into the EK9’s factory double wishbone mounting points front and rear and keeps the OEM-type rear layout. You don’t need to modify the arms or the chassis, so the factory geometry stays intact while the dampers give you full 3-way control over how the car moves.
Should an EK9 owner choose the Nitron NTR-R3 or the Nitron NTR-R1? Choose the Nitron NTR-R3 if the EK9 is mainly a track, time-attack or race car. It adds independent rebound, low-speed compression and high-speed compression adjustment, plus remote reservoirs for consistent damping over long sessions. The Nitron NTR-R1 uses one combined adjuster and no reservoirs, which suits road driving and occasional track days.
Can the Nitron EK9 Type R NTR-R3 be rebuilt and revalved? Yes. Every Nitron EK9 Type R NTR-R3 damper is fully serviceable and rebuildable, including revalving and spring changes. Track and race EK9 owners often have their dampers refreshed between seasons, and revalving is common when changing ride height, moving to slicks or switching series. Contact us directly to arrange service.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
