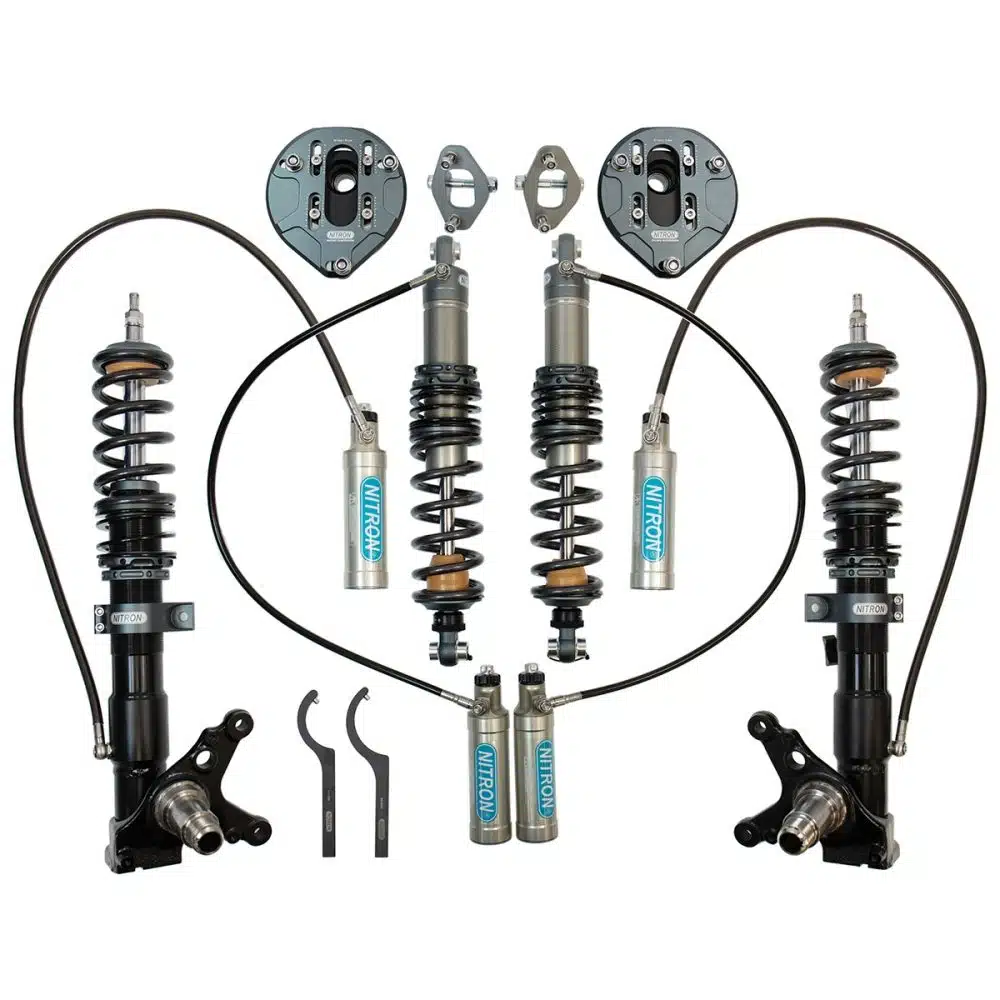

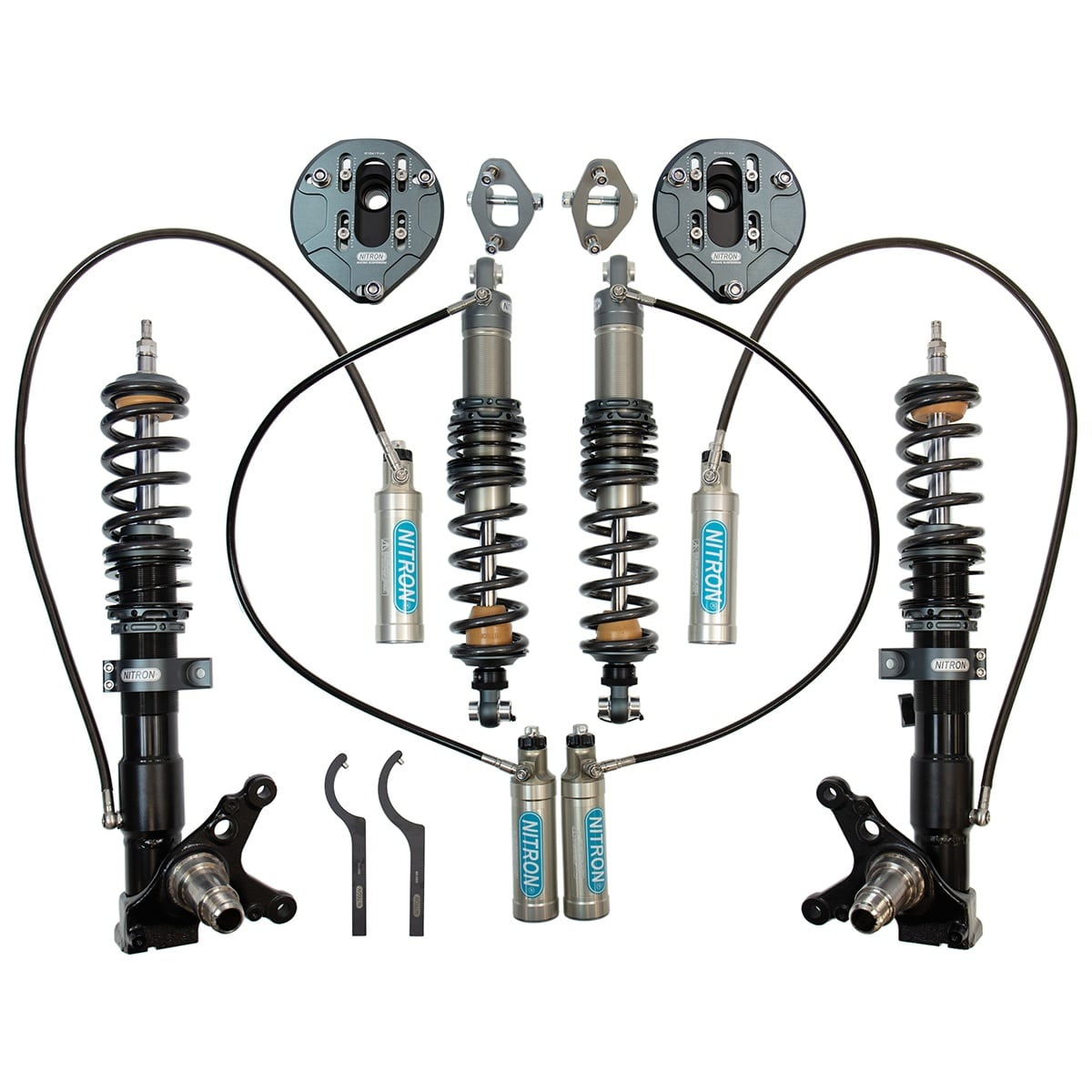

Nitron NTR-R3 Coilover Kit for E30 BMW 3 Series [NTCBM021R3]
$6,935.00
-
The Nitron E30 NTR-R3 Coilover Kit gives the non-M3 E30 BMW 3 Series independent high and low speed compression and rebound adjustment at each corner, with hose reservoirs front and rear to hold damping through a long session. It works with the customer’s own OE front suspension legs, uses a coilover rear, and includes adjustable top mounts. It fits the 318i, 318is, 325, 325e, 325es, 325i, 325is, and 325ix.
DONOR OE FRONT SUSPENSION LEGS MUST BE SUPPLIED BY THE CUSTOMER. ONCE THE ORDER IS PLACED, A BULLETPROOF AUTOMOTIVE SPECIALIST WILL CONTACT YOU DIRECTLY TO CONFIRM THE DETAILS.
This Nitron NTR-R3 kit does not fit the E30 M3
These items are typically not in stock and either made-to-order or special order from the manufacturer. After you order we will confirm the estimated lead time and other order details. If you have a specific deadline to receive this order please talk to us before placing your order to ensure that the manufacturer can meet your expectations.
The Nitron BMW E30 NTR-R3 Coilover Kit is for the E30 that gets driven hard enough to need more than a single-dial damper can offer. The car is light, balanced, and communicative, and it exposes the limits of a combined compression and rebound adjuster quickly once the springs go firmer and the car sees track days, with the setup that feels right over a rough surface never quite matching the one that controls the body in a corner. Nitron’s NTR-R3 splits those adjustments, with independent high and low speed compression and rebound at each corner, so sharp hits and the slower movements of weight transfer can be tuned on their own terms. Hose reservoirs at the front and rear add oil capacity so damping holds through a long session, and because the reservoirs mount remotely from the damper, they can be placed where there’s room for them. The front works with the customer’s own OE front suspension legs, and the rear is specified as a coilover, combining the spring and damper in a single unit in place of the separate parts the E30 carries from the factory, with adjustable top mounts so the alignment can be set up for how the car is driven. It fits the non-M3 range, the 318i, 318is, 325, 325e, 325es, 325i, 325is, and the all-wheel-drive 325ix.
Specialized Bi-Axis Hose Fittings
Every reservoir hose on the Nitron NTR-R3 for the E30 connects through a Nitron Bi-Axis fitting, which rotates 720 degrees at the damper end and at the reservoir end instead of fixing the hose at one angle. On an E30 running firm race springs, the front legs and the coilover rear are moving through their full travel all the time, and a hose that can’t turn with that movement ends up twisting or bending hard right where it leaves the fitting. The Bi-Axis design lets each hose settle into whatever position the damper puts it in, from full droop to full compression at all four corners, so the lines stay free of kinks and the fittings aren’t left to wear out as the car is driven on the road or at the track.
Unique Technology
Each Nitron NTR-R3 damper is a monotube design pressurized with nitrogen gas, which keeps the oil from aerating and holds damping consistent as temperatures climb. The piston and shim work came out of motorsport programs and is tuned for the weight and spring rates of an E30 rather than borrowed from a generic BMW curve, and the separate hose-fed reservoirs give the oil room to work through repeated hard laps without fading.
Basic Damper Design:
End Eye / Top Mount
Damper Piston & Shim Stack
Shaft / Rod
Floating / Separator Piston
Suspension Oil
Compressed Nitrogen Gas
Bespoke Engineering
Every Nitron NTR-R3 Coilover Kit for the E30 is hand assembled to order in the UK. Spring rates, valving, and hose lengths are matched to the car and how it’s driven, and custom spring rates are available for owners who want to move the balance of the car one way or the other.
Features
Hose reservoir type
Coilover rear suspension type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order
Specifications
Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
DONOR OE FRONT SUSPENSION LEGS MUST BE SUPPLIED BY THE CUSTOMER. ONCE THE ORDER IS PLACED, A BULLETPROOF AUTOMOTIVE SPECIALIST WILL CONTACT YOU DIRECTLY TO CONFIRM THE DETAILS.
This Nitron NTR-R3 kit does not fit the E30 M3
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only; specific details, finishes and end fittings may differ from that shown
Frequently Asked Questions
Which BMW 3 Series models does the E30 NTR-R3 Coilover Kit fit? The Nitron NTR-R3 fits the non-M3 E30 in the 318i, 318is, 325, 325e, 325es, 325i, 325is, and 325ix variants.
How does the Nitron NTR-R3 step up from the Nitron NTR-R1 on the E30? The Nitron E30 NTR-R3 separates high and low speed compression and rebound adjustment at each corner and adds remote hose reservoirs, where the Nitron NTR-R1 uses combined adjustment and an internal reservoir.
Why does the Nitron NTR-R3 use hose reservoirs? Hose reservoirs add oil capacity for more consistent damping under sustained hard use, and they let the reservoir be mounted away from the damper itself where there is more space.
Do I need to supply anything for the Nitron NTR-R3 front suspension? Yes. Customers must supply donor OE front suspension legs, and a Bulletproof Automotive specialist will contact you directly to confirm the details once the order is placed.
Can the ride height and top mounts be adjusted? Yes. The Nitron NTR-R3 has adjustable spring perches for independent ride height setting at each corner, and the kit includes adjustable top mounts.
Can I get custom spring rates for my setup? Yes. Every kit is hand assembled to order, and custom spring rates outside the standard range are available by contacting us directly.
About Nitron Suspension
Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
