Which BMW 1 Series models does the BMW 1 Series NTR-R1 Coilover Kit fit?

This specific NTR-R1 kit fits the E81, E82, and E87 across all models except the 1M.

What is the difference between the coilover and divorced rear options?

The divorced option keeps the rear spring and damper separate in their factory locations, while the coilover option mounts the spring around the damper in a single assembly. The Nitron NTR-R1 is available with either.

What kind of adjustment does the Nitron NTR-R1 offer?

Combined compression and rebound adjustment at each corner, with an internal reservoir so there is no remote reservoir to mount or route.

Is the Nitron NTR-R1 suitable for a daily driven 1 Series?

Yes. The Nitron NTR-R1 is built for owners who want firmer springs and real damper control for spirited road driving and track days, and the adjustment lets it be set up for how the car is used.

Can the ride height and top mounts be adjusted?

Yes. The Nitron NTR-R1 has adjustable spring perches for ride height and adjustable top mounts.

Can I get custom spring rates for my setup?

Yes. Every kit is hand assembled to order, and custom spring rates outside the standard range are available by contacting us directly.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

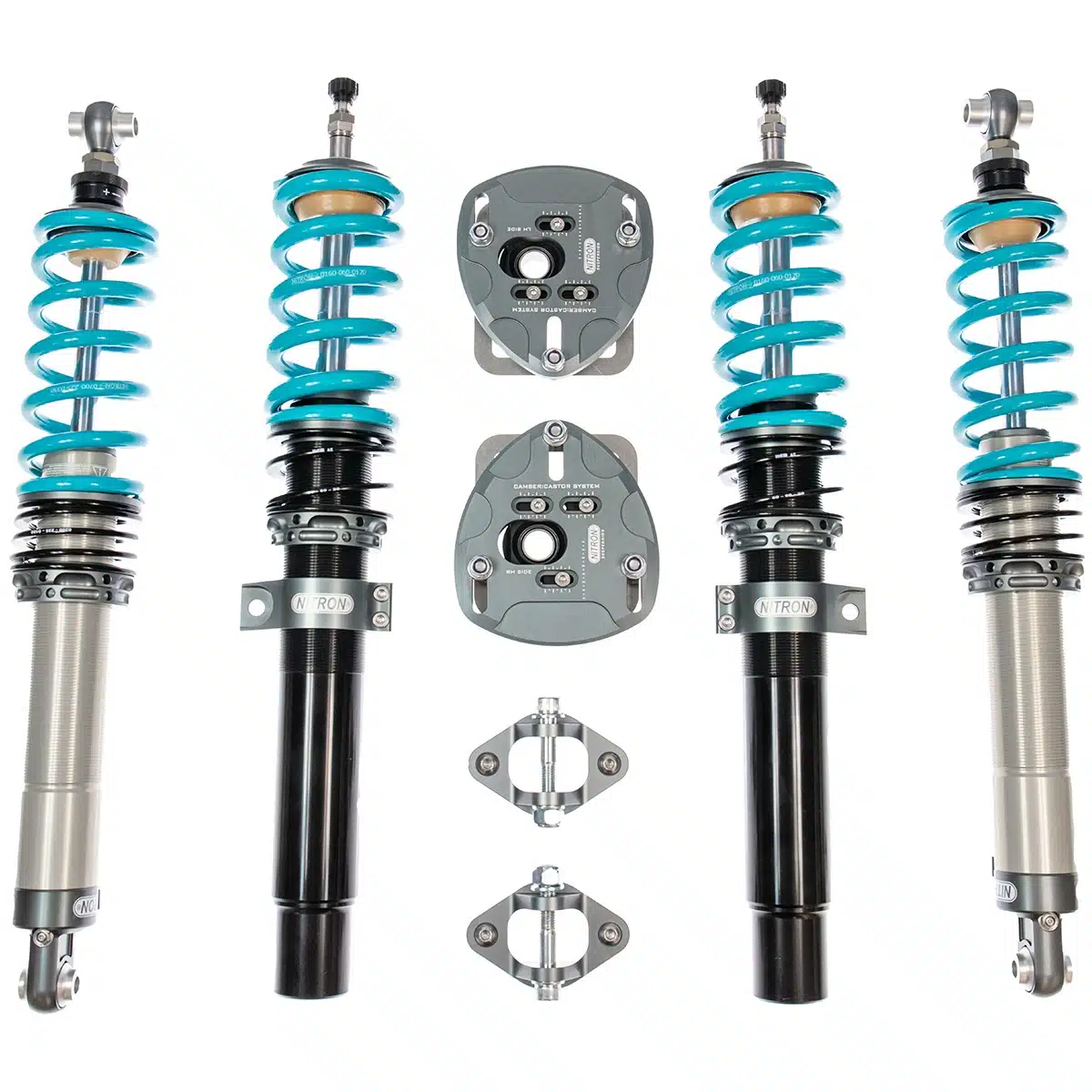

Nitron NTR-R1 Coilover Kit for E8x BMW 1 Series

The Nitron BMW 1 Series NTR-R1 Coilover Kit is for the E8x owner who has found out how much more this car has to give once the suspension stops holding it back. The 1 Series is a compact, front-engine, rear-drive BMW with close to even weight distribution, struts up front and a multi-link rear, and it responds to better dampers more than almost any other upgrade. The factory units on cars that are now well over a decade old have lost most of their control, and the soft factory springs let the body roll and pitch long before the tires are near their limit, which shows up as slow turn-in, a floaty front end over crests, and a rear that feels disconnected under load. Nitron’s NTR-R1 Coilover Kit replaces all of that with firmer race springs, a damper with enough control to manage them, and adjustable top mounts, and it fits the E81, E82, and E87 across every model except the 1M, whether that’s a 120i or a twin-turbocharged 135i. The rear can be specified as either a coilover or a divorced setup, so the kit can be matched to how the car is built and how it’s going to be used, from a daily driver that sees the occasional back road to a car that spends weekends at track days.

Coilover or Divorced Rear Suspension

The factory E8x rear carries its spring and damper as separate components, and the Nitron NTR-R1 gives a choice of how to handle that. The divorced option keeps the spring and damper apart in their original locations, so the factory spring location and load path stay as BMW designed them. The coilover option mounts the spring directly around the damper in a single assembly, which is the more traditional layout and suits owners who prefer a conventional coilover at all four corners. Either way the front is a coilover unit at each strut, and the choice only changes how the rear is set up.

Unique Technology

Each Nitron NTR-R1 damper is a monotube design pressurized with nitrogen gas, which keeps the oil from aerating and holds damping consistent as the dampers heat up over a long session. The valving was developed through motorsport work and then tuned to the weight and spring rates of an E8x rather than adapted from a generic BMW curve, with 2-way combined compression and rebound adjustment at each corner so the car can be dialed firmer or softer without pulling anything apart. The reservoir is internal, so there’s nothing remote to route.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Every Nitron NTR-R1 Coilover Kit for the 1 Series is hand assembled to order in the UK. Spring rates and valving are set to match how the car will really be used, and custom spring rates are available for owners who want to shift the balance of the car one way or the other.

Features

Coilover or divorced rear suspension types
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types:
- Coilover
- Divorced
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 685lbs/inch (120N/mm)
  - Rear:
    - Coilover: 350lbs/inch (61N/mm)
    - Divorced: 685lbs/inch (120N/mm)
- TDS – Track Day Spec:
  - Front: 799lbs/inch (140N/mm)
  - Rear:
    - Coilover: 400lbs/inch (70N/mm)
    - Divorced: 799lbs/inch (140N/mm)

Applications

BMW 116d: E81, E87 | 2009-2011
BMW 116i: E81, E87 | 2004-2011
BMW 118d: E81, E82, E87 | 2004-2013
BMW 118i: E81, E82, E87 | 2005-2011
BMW 120d: E81, E82, E87 | 2004-2013
BMW 120i: E81, E82, E87 | 2004-2011
BMW 123d: E81, E82, E87 | 2007-2013
BMW 125i: E82 | 2007-2013
BMW 125se: E82 | 2008-2013
BMW 128i: E82 | 2008-2013
BMW 130i: E81, E87 | 2005-2011
BMW 135i: E82 | 2007-2013
BMW 135is: E82 | 2013

Other Suspension Kits for E8x BMW 1 Series

NTR-R3 Coilover Kit

Notes

Not compatible with 1M models
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Which BMW 1 Series models does the BMW 1 Series NTR-R1 Coilover Kit fit? This specific NTR-R1 kit fits the E81, E82, and E87 across all models except the 1M.
What is the difference between the coilover and divorced rear options? The divorced option keeps the rear spring and damper separate in their factory locations, while the coilover option mounts the spring around the damper in a single assembly. The Nitron NTR-R1 is available with either.
What kind of adjustment does the Nitron NTR-R1 offer? Combined compression and rebound adjustment at each corner, with an internal reservoir so there is no remote reservoir to mount or route.
Is the Nitron NTR-R1 suitable for a daily driven 1 Series? Yes. The Nitron NTR-R1 is built for owners who want firmer springs and real damper control for spirited road driving and track days, and the adjustment lets it be set up for how the car is used.
Can the ride height and top mounts be adjusted? Yes. The Nitron NTR-R1 has adjustable spring perches for ride height and adjustable top mounts.
Can I get custom spring rates for my setup? Yes. Every kit is hand assembled to order, and custom spring rates outside the standard range are available by contacting us directly.
