Do I need Nitron coilovers to use these BMW 1 Series Top Plates?

Yes. These top plates are designed only for use with Nitron coilovers, and fitting them to another manufacturer’s dampers may require modification.

What do the Nitron BMW 1 Series Top Plates adjust?

Both camber and caster at the front of the car. The standard geometry settings can also be kept if preferred.

Why do the plates have no rubber in them?

Without rubber, nothing in the mount can flex under load, so the alignment set on the rack holds through hard braking and cornering instead of shifting.

Are the top plates sold as a pair?

Yes. One order supplies both front plates, one for each corner.

Which BMW models do the Nitron BMW 1 Series Top Plates fit?

Nitron's 1 Series Top Plates fit the E81, E82, and E87 across all models except the 1M.

What are the plates made from?

High-quality aluminum with Nitron’s titanium grey anodized finish.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

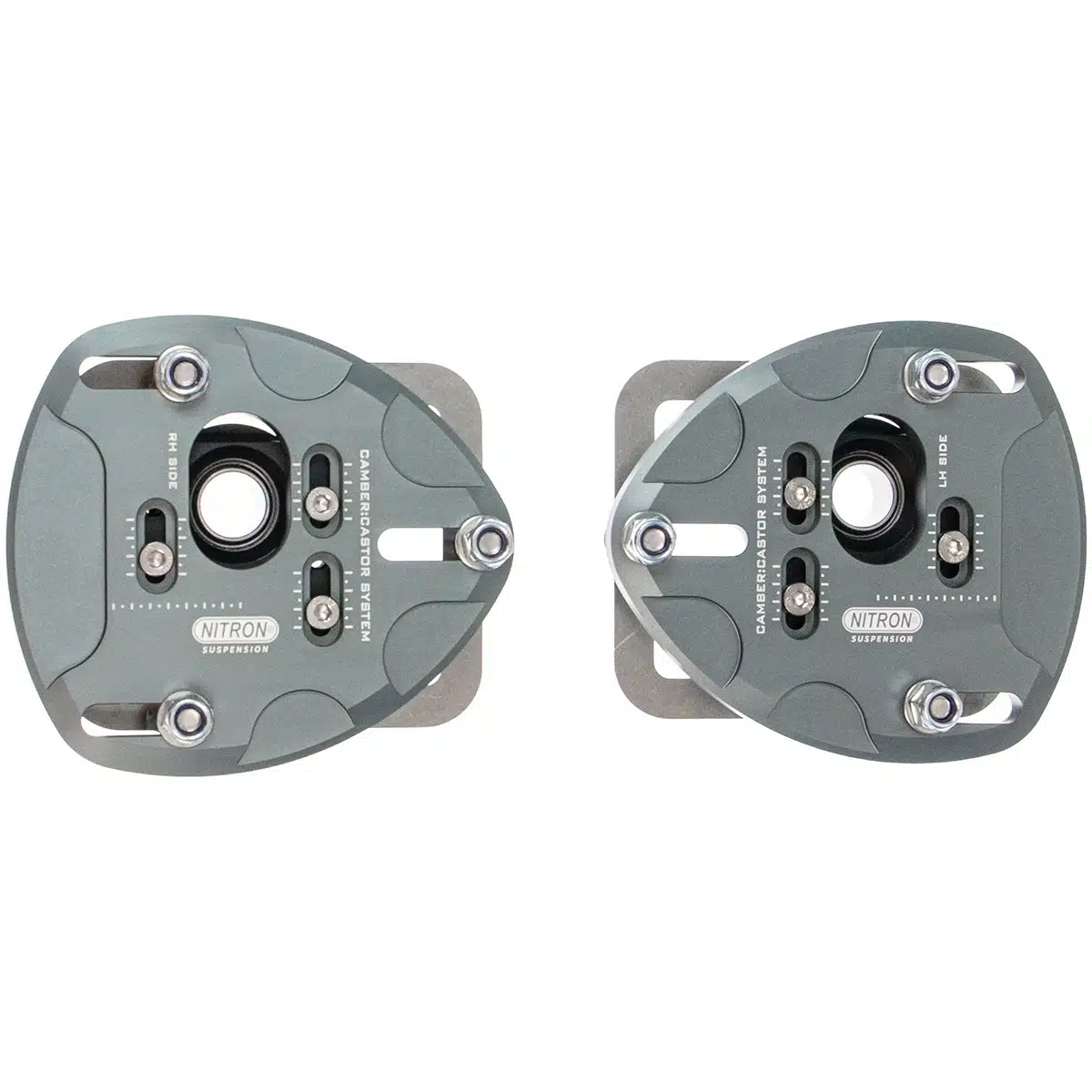

Nitron Front Adjustable Top Plates for E8x BMW 1 Series

The Nitron BMW 1 Series Top Plates are for owners who’ve gone firmer on springs and dampers and now want the front alignment to stay put and be set properly. On an E8x the factory strut mount is rubber, and it offers little in the way of adjustment, so a car that’s been lowered on stiffer springs and driven hard tends to lose the alignment it was given on the rack, with the front end changing how it turns in as the session goes on. Nitron’s top plates replace that mount with a machined aluminum plate that locates the strut positively and gives adjustment for both camber and caster, which is how a rear-drive 1 Series that sees regular track days or spirited back road driving gets a front end that responds the same way every time. The plates are made for the front of the E8x BMW 1 Series and designed to work with Nitron coilovers.

Rubber-Free Construction

Rubber is what lets a set alignment drift under load, and there’s none anywhere in the design of the Nitron Front Adjustable Top Plates. With nothing compliant in the mount, hard braking and cornering have nothing to move, and positive location and adjustment mechanisms hold the camber and caster settings where they were put. The front end behaves the same on the last lap of a session as it did on the first, and the alignment set on the rack is the alignment the car actually runs.

Machined for Nitron Coilovers

Each plate is machined from high-quality aluminum and finished in Nitron’s titanium grey anodized coating, which keeps weight down and stands up to the corrosion that comes with a car that lives outdoors. The Nitron Front Adjustable Top Plates are designed for use with Nitron coilovers, so they sit naturally with the Nitron NTR-R1 and NTR-R3 kits for the 1 Series instead of working as a universal part that needs adapting.

Bespoke Engineering

A universal top plate adapted to suit a car is a compromise, and Nitron doesn’t build these that way. The Nitron BMW 1 Series Top Plates are engineered around the E8x front strut setup, so the adjustment range, location system, and material choices come from what this platform needs at the front axle. The geometry of the car is part of the design from the start instead of something worked around afterward, which is the difference between a plate that fits a 1 Series and one that was built for it.

Features

Independent camber and caster adjustment
No rubber components
Positive location and adjustment systems
High-grade aluminium construction
Titanium grey anodized finish
Supplied as pairs

Applications

BMW 116d: E81, E87 | 2009-2011
BMW 116i: E81, E87 | 2004-2011
BMW 118d: E81, E82, E87 | 2004-2013
BMW 118i: E81, E82, E87 | 2005-2011
BMW 120d: E81, E82, E87 | 2004-2013
BMW 120i: E81, E82, E87 | 2004-2011
BMW 123d: E81, E82, E87 | 2007-2013
BMW 125i: E82 | 2007-2013
BMW 125se: E82 | 2008-2013
BMW 128i: E82 | 2008-2013
BMW 130i: E81, E87 | 2005-2011
BMW 135i: E82 | 2007-2013
BMW 135is: E82 | 2013

Notes

Sold as a pair
Not compatible with 1M models
Suitable only for use with smaller diameter motorsport springs
Designed only to be used with Nitron coilovers; modification may be required for them to be used with other manufacturers shock absorbers
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Do I need Nitron coilovers to use these BMW 1 Series Top Plates? Yes. These top plates are designed only for use with Nitron coilovers, and fitting them to another manufacturer’s dampers may require modification.
What do the Nitron BMW 1 Series Top Plates adjust? Both camber and caster at the front of the car. The standard geometry settings can also be kept if preferred.
Why do the plates have no rubber in them? Without rubber, nothing in the mount can flex under load, so the alignment set on the rack holds through hard braking and cornering instead of shifting.
Are the top plates sold as a pair? Yes. One order supplies both front plates, one for each corner.
Which BMW models do the Nitron BMW 1 Series Top Plates fit? Nitron’s 1 Series Top Plates fit the E81, E82, and E87 across all models except the 1M.
What are the plates made from? High-quality aluminum with Nitron’s titanium grey anodized finish.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
