Which Audi R8 models do the Moton 3-Way Motorsport Coilovers for Audi R8 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for Audi R8 for the Audi R8 Coupe / Spyder (without nose lift; 4S, 2015 to 2022). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the R8?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the R8. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the R8 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

What happens to the factory magnetic ride dampers?

Many 4S R8s were built with magnetic ride adaptive dampers. The MOTON dampers are adjusted by hand and have no electronic control, so ask us before ordering how the factory damper system is handled on the car to avoid warnings after installation.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the R8. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the R8 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an R8 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for Audi R8 4S without Nose Lift

Moton’s 3-Way Motorsport Coilovers for Audi R8 4S without Nose Lift give the 4S R8 three damping adjustments per corner, rebound and two compression circuits, with the compression pair on external reservoirs. MOTON lists this 3-way set for the 4S R8 coupe and Spyder without nose lift, with quick-disconnect couplings at the front. With slow and fast compression on separate adjusters, the R8 can be set up for one circuit and one tire, ideally with data or a setup engineer. It is built for an R8 that races or runs a serious track program.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the R8, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Quick-disconnect couplings at the front
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Audi R8 Coupe / Spyder (without nose lift): 4S | 2015-2022

Notes

The Moton 3-Way Motorsport Coilovers for Audi R8 fit 4S R8s without nose lift; cars with nose lift take the Moton 3-Way Motorsport Coilovers for Huracan EVO / STO Lamborghini and Audi R8 4S with Nose Lift
If the R8 has magnetic ride adaptive dampers, ask us how the factory damper control is handled before ordering; MOTON dampers are adjusted by hand
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

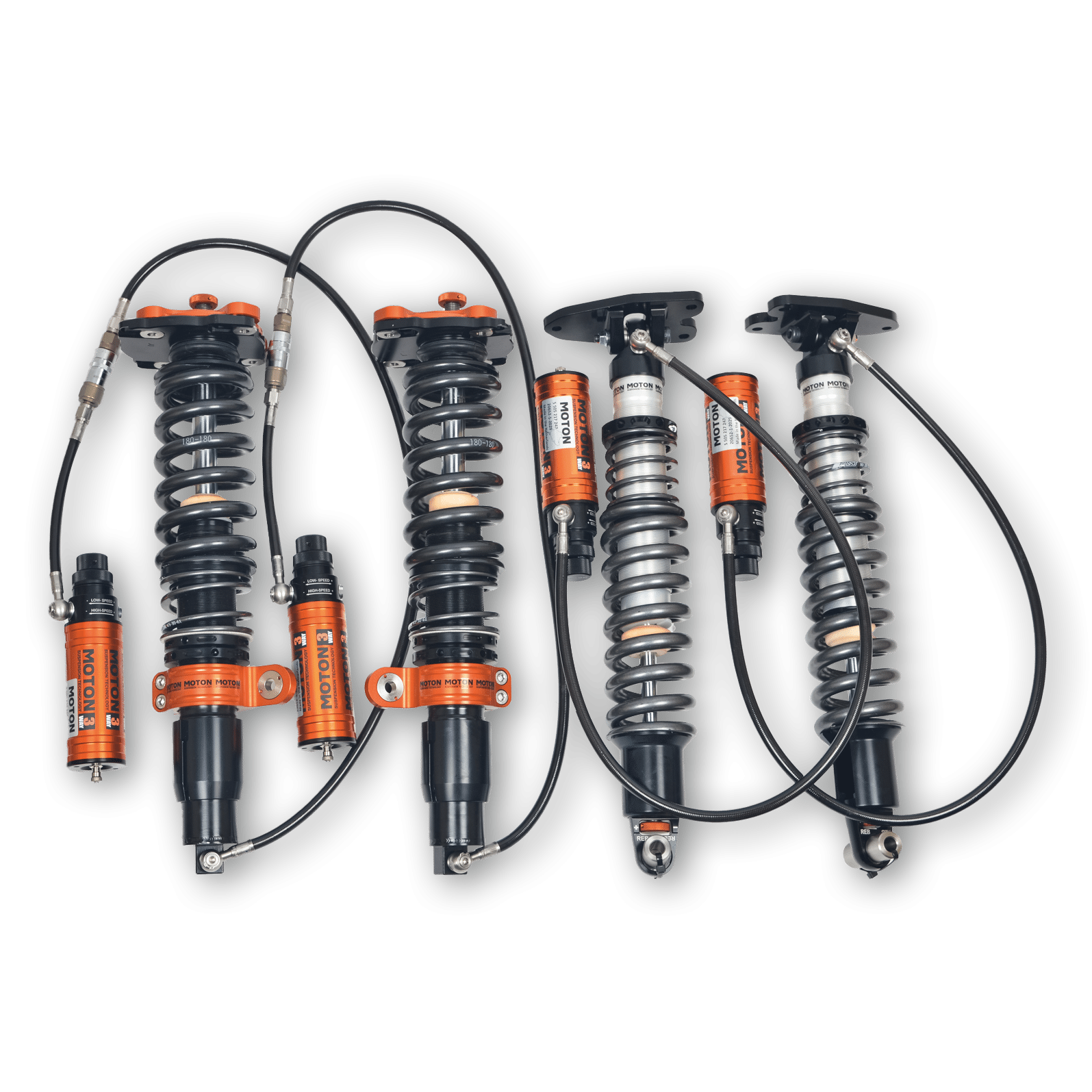

Images show representative MOTON kits

Frequently Asked Questions

Which Audi R8 models do the Moton 3-Way Motorsport Coilovers for Audi R8 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for Audi R8 for the Audi R8 Coupe / Spyder (without nose lift; 4S, 2015 to 2022). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the R8? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the R8. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the R8 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
What happens to the factory magnetic ride dampers? Many 4S R8s were built with magnetic ride adaptive dampers. The MOTON dampers are adjusted by hand and have no electronic control, so ask us before ordering how the factory damper system is handled on the car to avoid warnings after installation.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the R8. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the R8 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an R8 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
