Which Audi R8 models do the Moton 2-Way Clubsport Coilovers for Audi R8 fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for Audi R8 for the Audi R8 Coupe / Spyder (without nose lift; 4S, 2015 to 2022). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the R8?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the R8. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an R8 that tracks regularly.

How do I know whether my R8 has nose lift?

Nose lift was an option on the 4S R8 and is operated by a button in the cabin that raises the front axle. This set is for cars without it; an R8 with nose lift takes a different MOTON set that works with the factory lift. Check the build sheet or ask us with the VIN.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the R8. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the R8 kit?

Each damper in the R8 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 2-Way Clubsport Coilovers for Audi R8 4S without Nose Lift

Moton’s 2-Way Clubsport Coilovers for Audi R8 4S without Nose Lift give the 4S R8 separate rebound and compression adjustment, with compression set on an external reservoir at each corner. The second-generation 4S R8 shares its platform with the Lamborghini Huracan, and MOTON builds this set for cars without the optional front-axle lift. Moving compression to the reservoir puts the adjuster where it is easy to reach and gives the R8 more oil volume to hold temperature on track. It fits the owner who tracks an R8 often and wants to tune grip and body control between sessions.

Design and Performance

Separating compression from rebound lets a driver change how the R8 takes a kerb or loads its outside tire without changing how it recovers. Separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers, the race kit for the R8.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Quick-disconnect couplings at the front
Fully rebuildable, 24-month AST x MOTON warranty

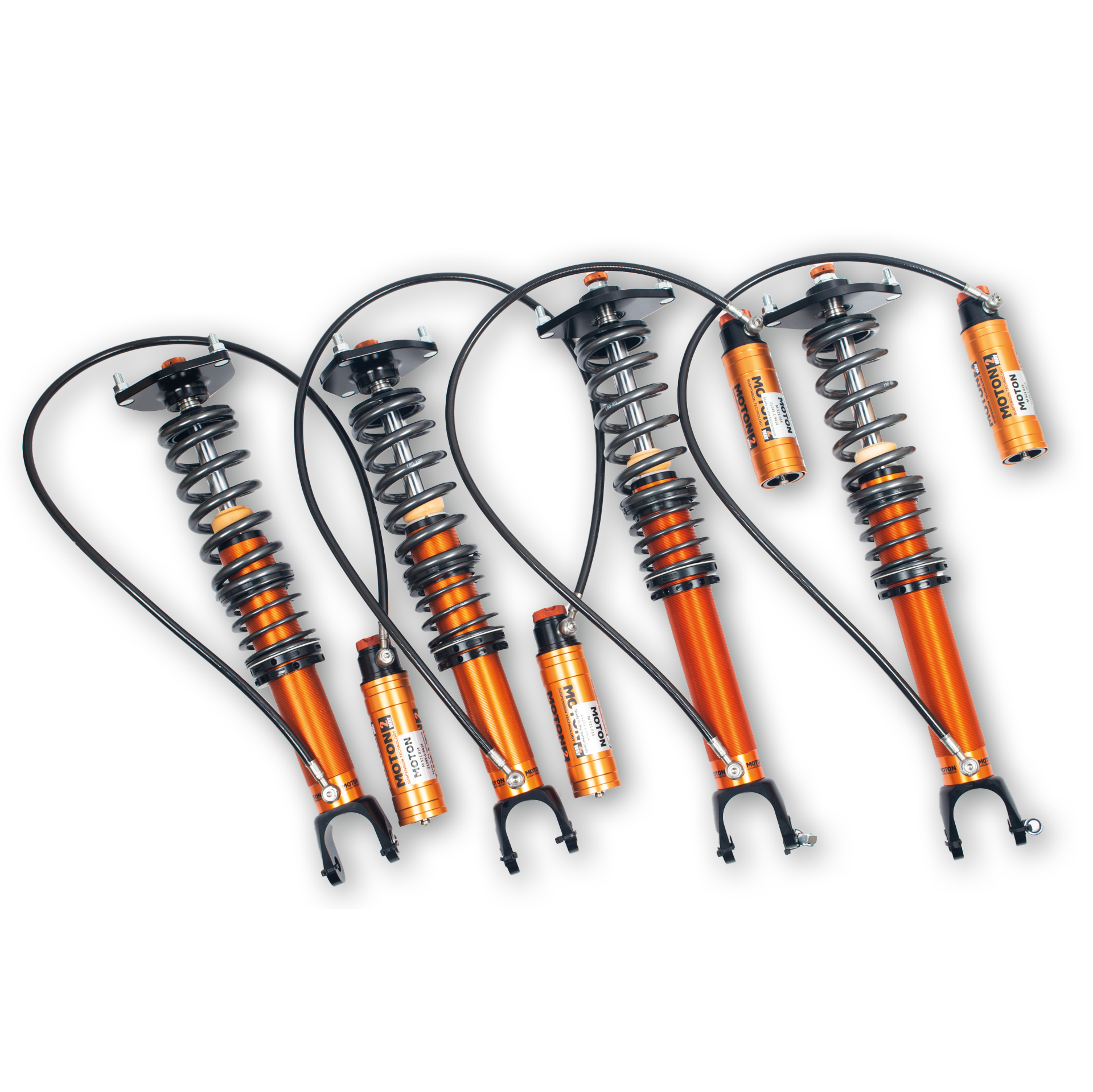

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Audi R8 Coupe / Spyder (without nose lift): 4S | 2015-2022

Notes

The Moton 2-Way Clubsport Coilovers for Audi R8 fit 4S R8s without nose lift; cars with nose lift take the Moton 2-Way Clubsport Coilovers for Huracan EVO / STO Lamborghini and Audi R8 4S with Nose Lift
If the R8 has magnetic ride adaptive dampers, ask us how the factory damper control is handled before ordering; MOTON dampers are adjusted by hand
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Audi R8 models do the Moton 2-Way Clubsport Coilovers for Audi R8 fit? MOTON lists the Moton 2-Way Clubsport Coilovers for Audi R8 for the Audi R8 Coupe / Spyder (without nose lift; 4S, 2015 to 2022). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the R8? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the R8. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an R8 that tracks regularly.
How do I know whether my R8 has nose lift? Nose lift was an option on the 4S R8 and is operated by a button in the cabin that raises the front axle. This set is for cars without it; an R8 with nose lift takes a different MOTON set that works with the factory lift. Check the build sheet or ask us with the VIN.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the R8. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the R8 kit? Each damper in the R8 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
