Which BMW M3 and 1M models do the Moton 2-Way Clubsport Coilovers for E9X fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for E9X for the BMW M3 Sedan / Coupe / Convertible (E90 / E92 / E93, 2007 to 2013) and BMW 1M Coupe (E82, 2011 to 2012). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the E9X M3 or 1M?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the E9X M3 or 1M. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. It is the kit for an E9X M3 or 1M that tracks regularly.

Which droplinks come with the kit?

The kit includes a pair of adjustable aluminum front droplinks, MOTON part DLA-10-258-276, with M10 threads and a length range of 258 mm to 276 mm. They let the front anti-roll bar be set back to neutral once the E9X M3 or 1M is lowered, and they replace the factory links.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the E9X M3 or 1M. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the E9X M3 or 1M kit?

Each damper in the E9X M3 or 1M kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

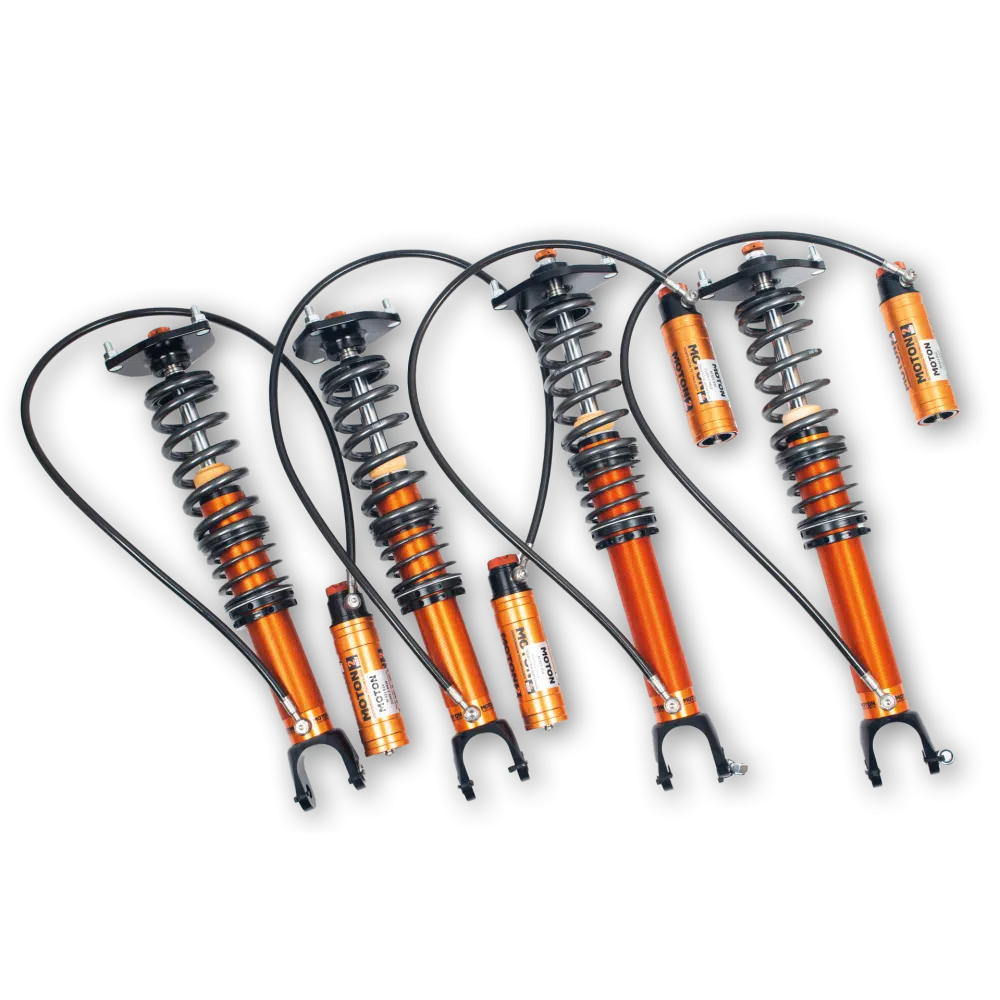

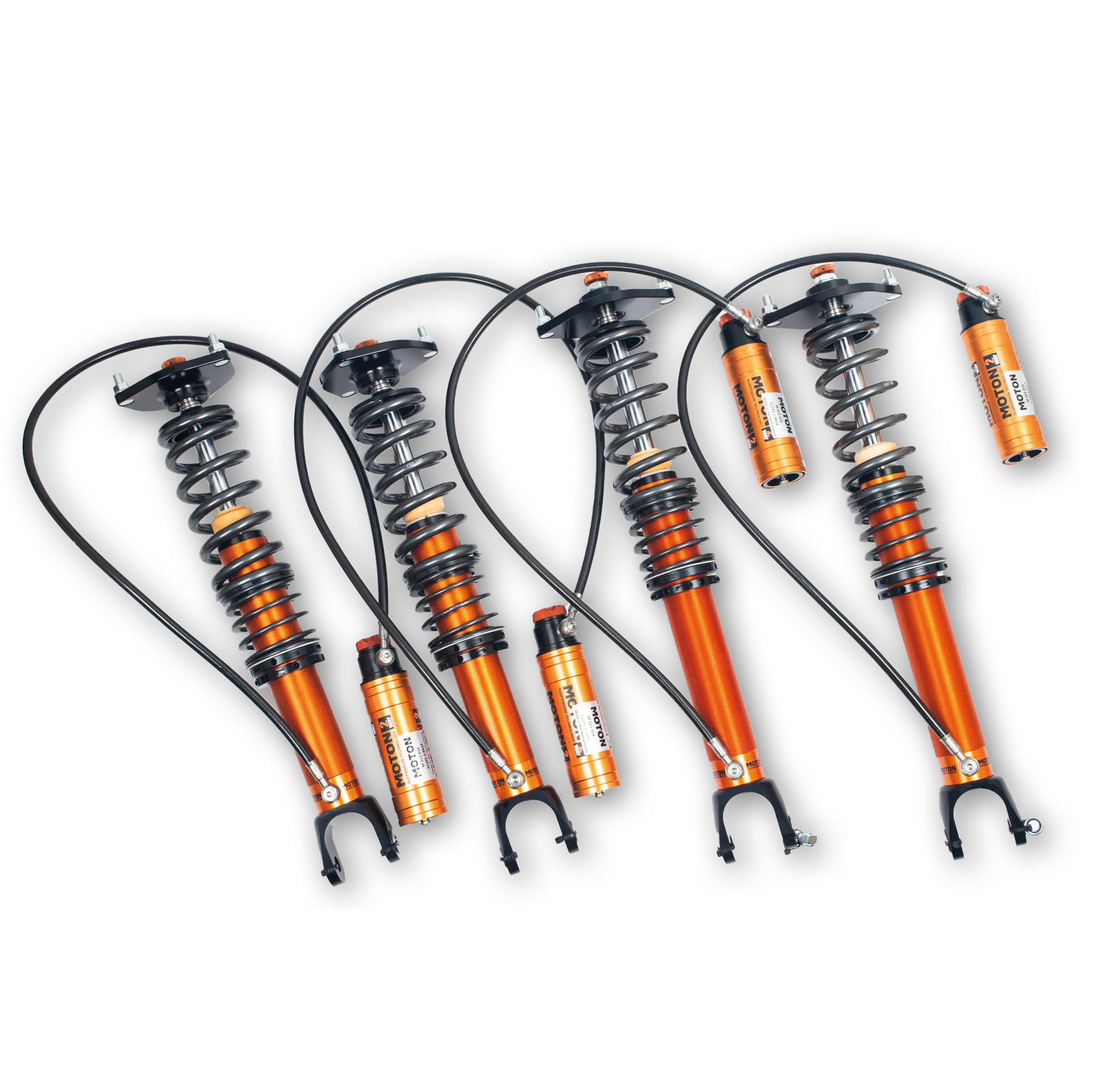

Moton 2-Way Clubsport Coilovers for E9X BMW M3 and E82 1M

Moton’s 2-Way Clubsport Coilovers for E9X BMW M3 and E82 1M bring two-way damping to the E9X M3 and 1M Coupe: rebound on the damper body and compression on a reservoir connected by hose. The E9X M3 was the only M3 with a V8, the 4.0-litre S65, and MOTON lists this set for the sedan, coupe and convertible as well as the 1M Coupe.

Design and Performance

Separating compression from rebound changes how the E9X M3 or 1M takes a kerb without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-258-276, M10, 258 mm to 276 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW M3 Sedan / Coupe / Convertible: E90 / E92 / E93 | 2007-2013
BMW 1M Coupe: E82 | 2011-2012

Notes

The Moton 2-Way Clubsport Coilovers for E9X fit the E90, E92 and E93 M3 and the E82 1M Coupe
E9X M3s with EDC need an EDC delete kit, sold separately; ask us for the correct part
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which BMW M3 and 1M models do the Moton 2-Way Clubsport Coilovers for E9X fit? MOTON lists the Moton 2-Way Clubsport Coilovers for E9X for the BMW M3 Sedan / Coupe / Convertible (E90 / E92 / E93, 2007 to 2013) and BMW 1M Coupe (E82, 2011 to 2012). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the E9X M3 or 1M? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the E9X M3 or 1M. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. It is the kit for an E9X M3 or 1M that tracks regularly.
Which droplinks come with the kit? The kit includes a pair of adjustable aluminum front droplinks, MOTON part DLA-10-258-276, with M10 threads and a length range of 258 mm to 276 mm. They let the front anti-roll bar be set back to neutral once the E9X M3 or 1M is lowered, and they replace the factory links.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the E9X M3 or 1M. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the E9X M3 or 1M kit? Each damper in the E9X M3 or 1M kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
