Should I choose the 10 or 20 injector Intake Manifold for LB724?

The standard Intake Manifold for LB724 carries 10 injectors, one per cylinder, and the 20 injector option adds a second injector per cylinder for builds that need more fuel than a single injector set can deliver. Boost Logic does not publish a power threshold, so make the choice with your tuner based on the target output and fuel.

What finishes are available?

Boost Logic offers three finishes: gloss powdercoat in the color of your choice at the base price, a polished finish, and 24k gold plating. The price changes with the finish and the injector layout selected at checkout. The carbon fiber top panels are part of the design in every finish, as the photos show.

Does the manifold fit the first-generation Audi R8?

Boost Logic lists the manifold for the Audi R8 and Lamborghini Huracán without naming an R8 generation. The installed photos show second-generation R8 engine bays. Owners of a first-generation R8 V10 should confirm fitment with Bulletproof Automotive before ordering, since the engine family changed between generations.

Do I need the billet manifold with a Boost Logic turbo kit?

No, it is not required. Boost Logic turbo kits can run on the factory manifold, and Boost Logic offers an OEM intake manifold reinforced sealing solution as a kit option for owners who are not using a billet manifold. The billet manifold suits builds chasing higher output or the 20 injector layout.

What comes with the manifold?

Boost Logic does not publish a contents list. The photos show the plenums with carbon fiber panels, and the 20 injector images show additional fuel rail hardware. Confirm injectors, fuel rails and gaskets with Bulletproof Automotive before ordering so the rest of the fuel system can be planned around the order.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Boost Logic Billet and Carbon Fiber Intake Manifold for LB724 Lamborghini Huracán and Audi R8

Boost Logic’s Intake Manifold for LB724 Lamborghini Huracán and Audi R8 replaces the factory V10 manifold with a billet and carbon fiber assembly, offered in a standard 10 injector layout or an optional 20 injector layout. The 20 injector version carries two injectors per cylinder, which is the setup for a high-output turbocharged V10 that has outgrown a single set of port injectors. Finishes are gloss powdercoat in the color of your choice, polished, or 24k gold plating. Boost Logic publishes no airflow or power figures for it, so this is a part for owners who already run, or are planning, a serious boosted build rather than a bolt-on for a stock car.

Design and Construction

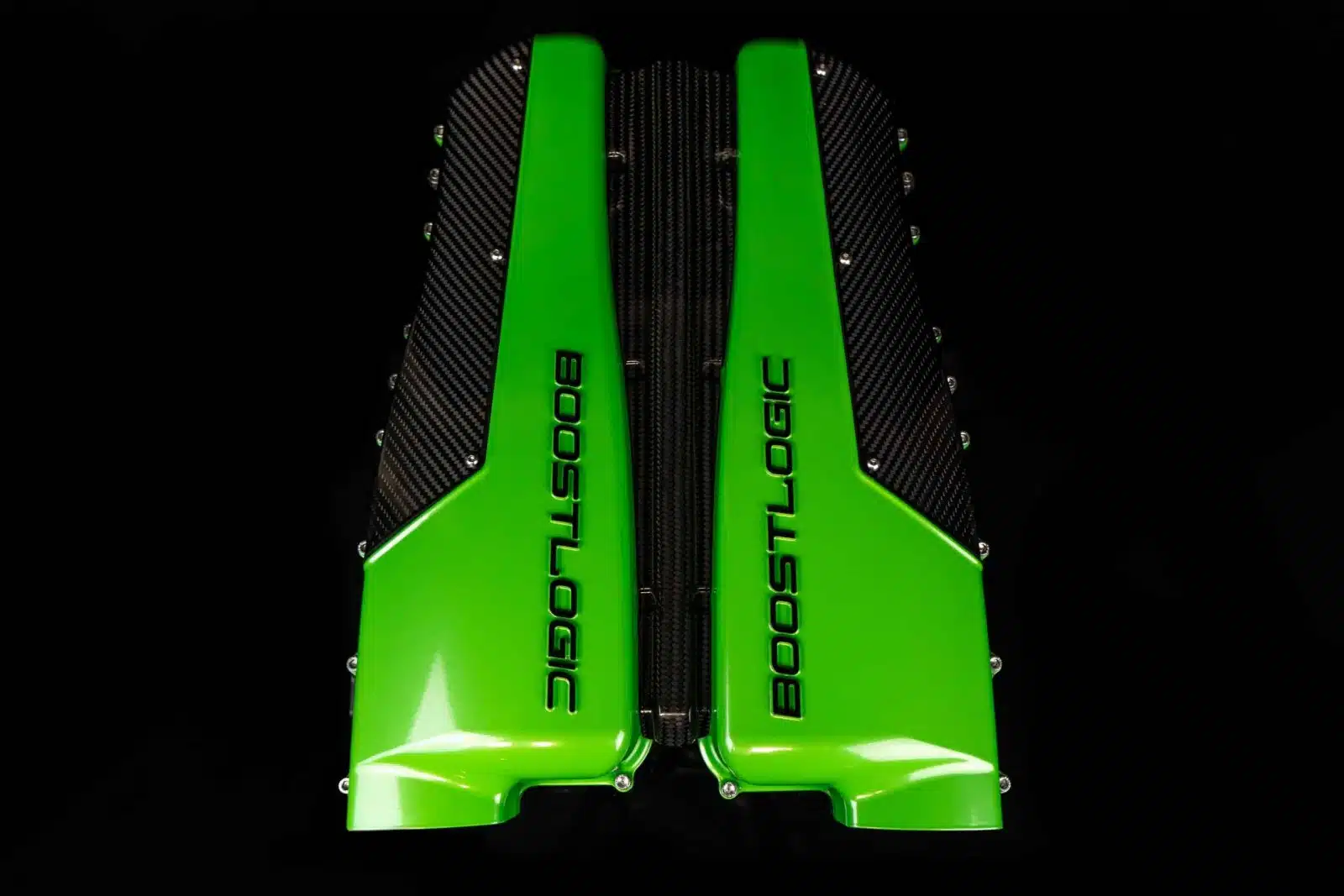

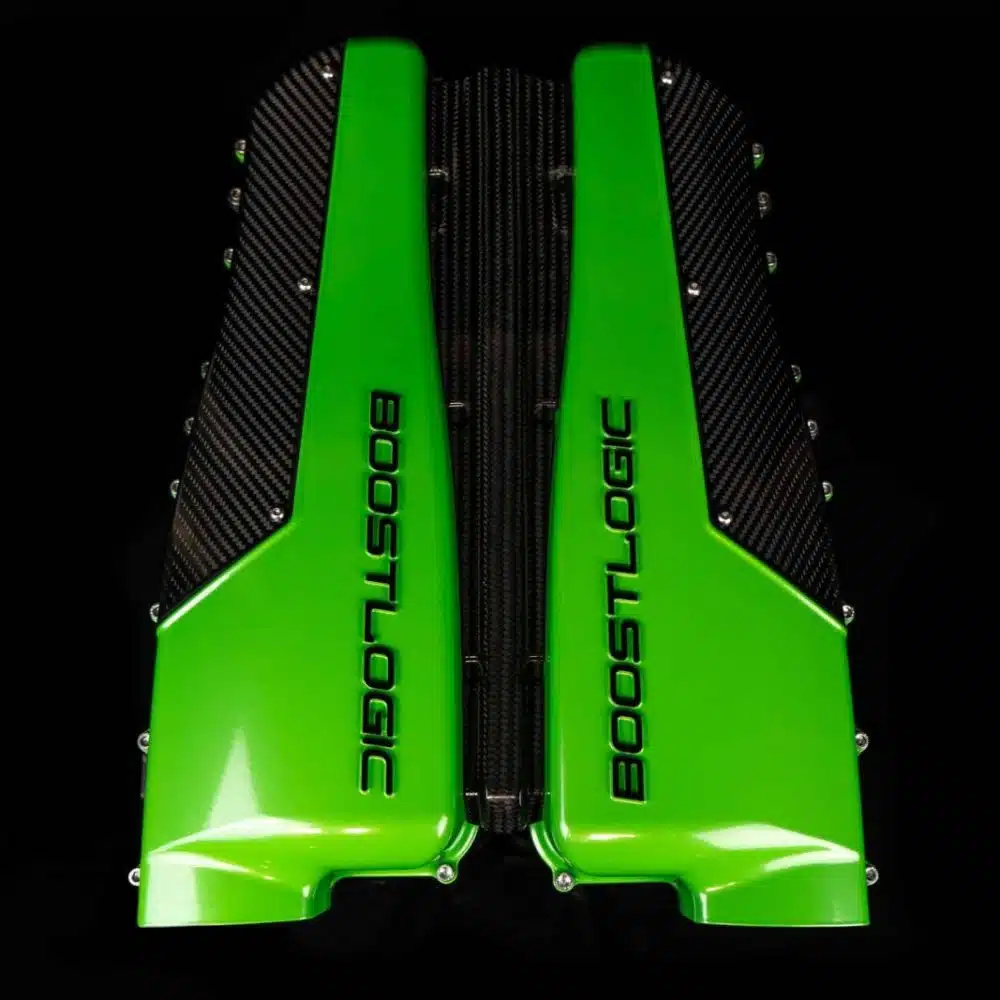

The manifold is pictured as two billet plenums, one per cylinder bank, each topped with a carbon fiber panel, with machined runners and injector bosses underneath. In the 20 injector layout a second fuel rail feeds the added injector bank. Boost Logic also offers a reinforced sealing solution for the factory manifold on its turbo kits, which it suggests for owners not using a billet manifold such as this one.

Features

Billet construction with carbon fiber top panels
Standard 10 injector or optional 20 injector layout
Gloss powdercoat in your choice of color, polished, or 24k gold plated
Two plenums, one per cylinder bank, as pictured
Built for boosted V10 builds beyond the reach of the factory manifold

Applications

Audi R8: 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

Choose the finish and injector layout at checkout; the price updates with each option
Tell Bulletproof Automotive your powdercoat color when ordering the gloss powdercoat finish
Boost Logic publishes no contents list for the Intake Manifold for LB724; confirm injectors, fuel rails and gaskets with Bulletproof Automotive before ordering
Boost Logic lists fitment as Audi R8 and Lamborghini Huracán without naming an R8 generation; confirm first-generation R8 fitment before ordering
Pairs with the Boost Logic Twin Turbo Kit for LB724 Lamborghini Huracán (BL 06011301) and the Boost Logic Twin Turbo Kit for 4S Audi R8 (BLTTR8)
The Boost Logic Fuel Rail Kit for LB724 Lamborghini Huracán and 4S Audi R8 (BL 06030802) is sold separately for turbocharged applications

Frequently Asked Questions

Should I choose the 10 or 20 injector Intake Manifold for LB724? The standard Intake Manifold for LB724 carries 10 injectors, one per cylinder, and the 20 injector option adds a second injector per cylinder for builds that need more fuel than a single injector set can deliver. Boost Logic does not publish a power threshold, so make the choice with your tuner based on the target output and fuel.
What finishes are available? Boost Logic offers three finishes: gloss powdercoat in the color of your choice at the base price, a polished finish, and 24k gold plating. The price changes with the finish and the injector layout selected at checkout. The carbon fiber top panels are part of the design in every finish, as the photos show.
Does the manifold fit the first-generation Audi R8? Boost Logic lists the manifold for the Audi R8 and Lamborghini Huracán without naming an R8 generation. The installed photos show second-generation R8 engine bays. Owners of a first-generation R8 V10 should confirm fitment with Bulletproof Automotive before ordering, since the engine family changed between generations.
Do I need the billet manifold with a Boost Logic turbo kit? No, it is not required. Boost Logic turbo kits can run on the factory manifold, and Boost Logic offers an OEM intake manifold reinforced sealing solution as a kit option for owners who are not using a billet manifold. The billet manifold suits builds chasing higher output or the 20 injector layout.
What comes with the manifold? Boost Logic does not publish a contents list. The photos show the plenums with carbon fiber panels, and the 20 injector images show additional fuel rail hardware. Confirm injectors, fuel rails and gaskets with Bulletproof Automotive before ordering so the rest of the fuel system can be planned around the order.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
