Which Porsche 911 models do the Moton 2-Way Clubsport Coilovers for 997 C4 fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for 997 C4 for the Porsche 911 Carrera 4 / Carrera 4S (997, 2005 to 2012) and Porsche 911 Turbo / Turbo S (997, 2005 to 2009). Confirm the exact model and year with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the 997 Carrera 4 or Turbo?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the 997 Carrera 4 or Turbo. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a 997 Carrera 4 or Turbo that tracks regularly.

Does this kit fit the rear-drive 997 Carrera?

No. This set is listed for the all-wheel-drive Carrera 4, Carrera 4S, Turbo and Turbo S. The rear-drive GT3 and GT2 take a separate MOTON kit, and the rear-drive 997 Carrera and Carrera S are not on this part number.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the 997 Carrera 4 or Turbo. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the 997 Carrera 4 or Turbo kit?

Each damper in the 997 Carrera 4 or Turbo kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 2-Way Clubsport Coilovers for 997 C4 / C4S and Turbo Porsche 911

Moton’s 2-Way Clubsport Coilovers for 997 C4 / C4S and Turbo Porsche 911 are the Clubsport damper MOTON builds for the 997 Carrera 4, 4S and Turbo, adjustable for rebound and for compression on a remote reservoir, with springs supplied. MOTON specifies quick-disconnect couplings front and rear on this set, and the part number covers the Carrera 4, Carrera 4S, Turbo and Turbo S.

Design and Performance

Separating compression from rebound changes how the 997 Carrera 4 or Turbo takes a kerb without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less; separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Quick-disconnect couplings, front and rear
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Porsche 911 Carrera 4 / Carrera 4S: 997 | 2005-2012
Porsche 911 Turbo / Turbo S: 997 | 2005-2009

Notes

The Moton 2-Way Clubsport Coilovers for 997 C4 fit the all-wheel-drive Carrera 4, 4S, Turbo and Turbo S; the GT3 and GT2 take the Moton 2-Way Clubsport Coilovers for 997 GT3 / GT3 RS and GT2 / GT2 RS Porsche 911
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

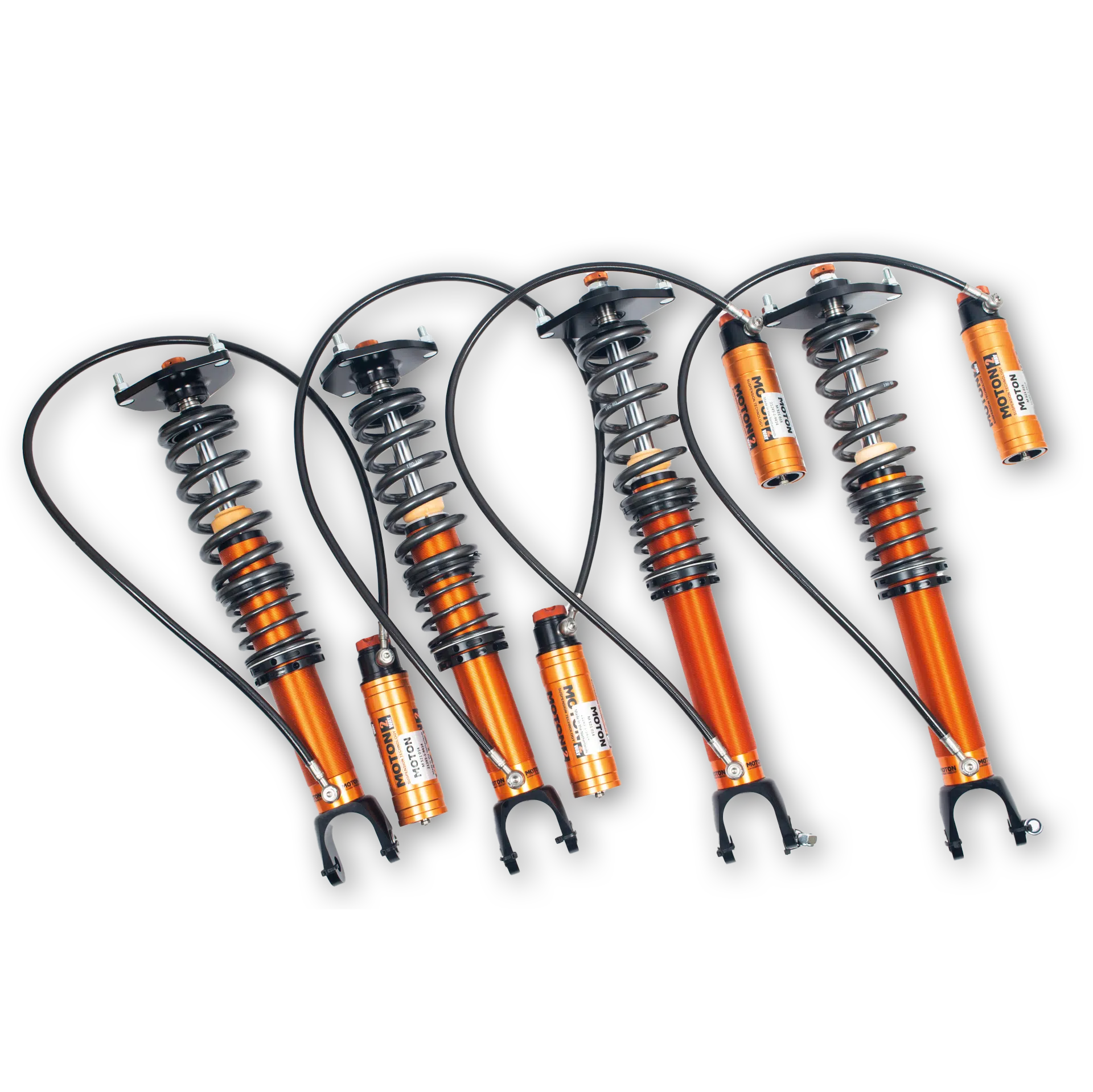

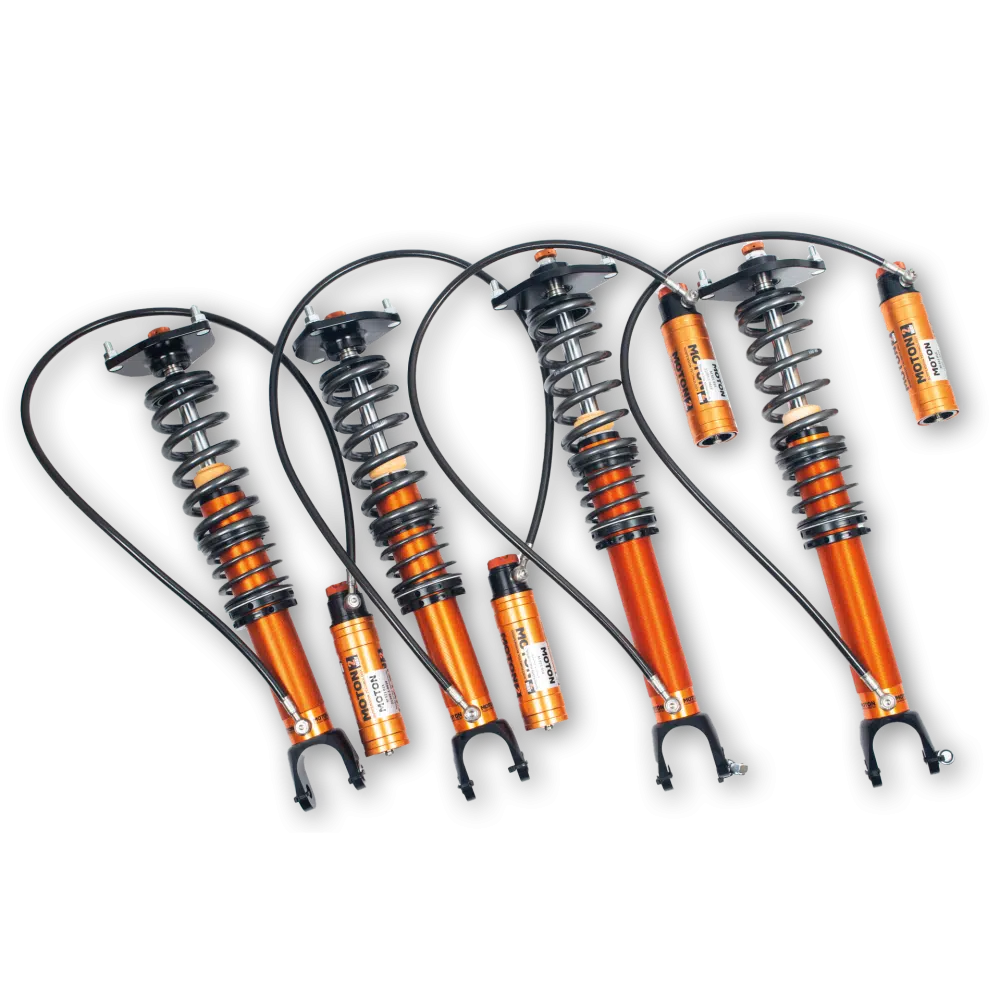

Images show representative MOTON kits

Frequently Asked Questions

Which Porsche 911 models do the Moton 2-Way Clubsport Coilovers for 997 C4 fit? MOTON lists the Moton 2-Way Clubsport Coilovers for 997 C4 for the Porsche 911 Carrera 4 / Carrera 4S (997, 2005 to 2012) and Porsche 911 Turbo / Turbo S (997, 2005 to 2009). Confirm the exact model and year with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the 997 Carrera 4 or Turbo? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the 997 Carrera 4 or Turbo. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a 997 Carrera 4 or Turbo that tracks regularly.
Does this kit fit the rear-drive 997 Carrera? No. This set is listed for the all-wheel-drive Carrera 4, Carrera 4S, Turbo and Turbo S. The rear-drive GT3 and GT2 take a separate MOTON kit, and the rear-drive 997 Carrera and Carrera S are not on this part number.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the 997 Carrera 4 or Turbo. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the 997 Carrera 4 or Turbo kit? Each damper in the 997 Carrera 4 or Turbo kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
