Which Porsche 911 models do the Moton 1-Way Coilovers for 997 C4 fit?

MOTON lists the Moton 1-Way Coilovers for 997 C4 for the Porsche 911 Carrera 4 / Carrera 4S (997, 2005 to 2012) and Porsche 911 Turbo / Turbo S (997, 2005 to 2009). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 1-Way kit compare with the other MOTON kits for the 997 Carrera 4 or Turbo?

The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the 997 Carrera 4 or Turbo. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits.

Does the kit fit both the 997.1 and 997.2 Turbo?

MOTON lists the 997 Turbo and Turbo S on this part number, with dates given as 2005 to 2009 in its fitment list. Because Turbo production and model years differ by market, send us the VIN of a Turbo or Turbo S before ordering and we will confirm the fitment with MOTON.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, built to order for the 997 Carrera 4 or Turbo. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

How difficult is installation on the 997 Carrera 4 or Turbo?

It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the 997 Carrera 4 or Turbo is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

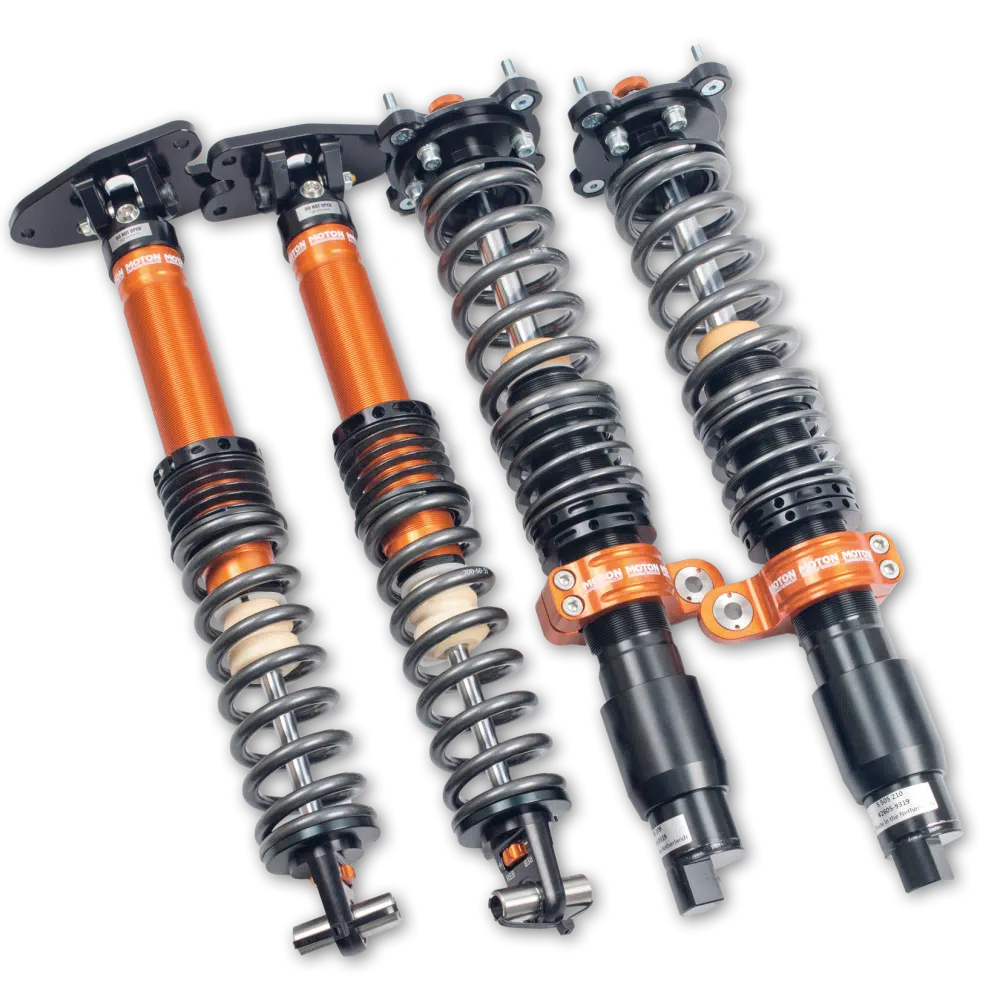

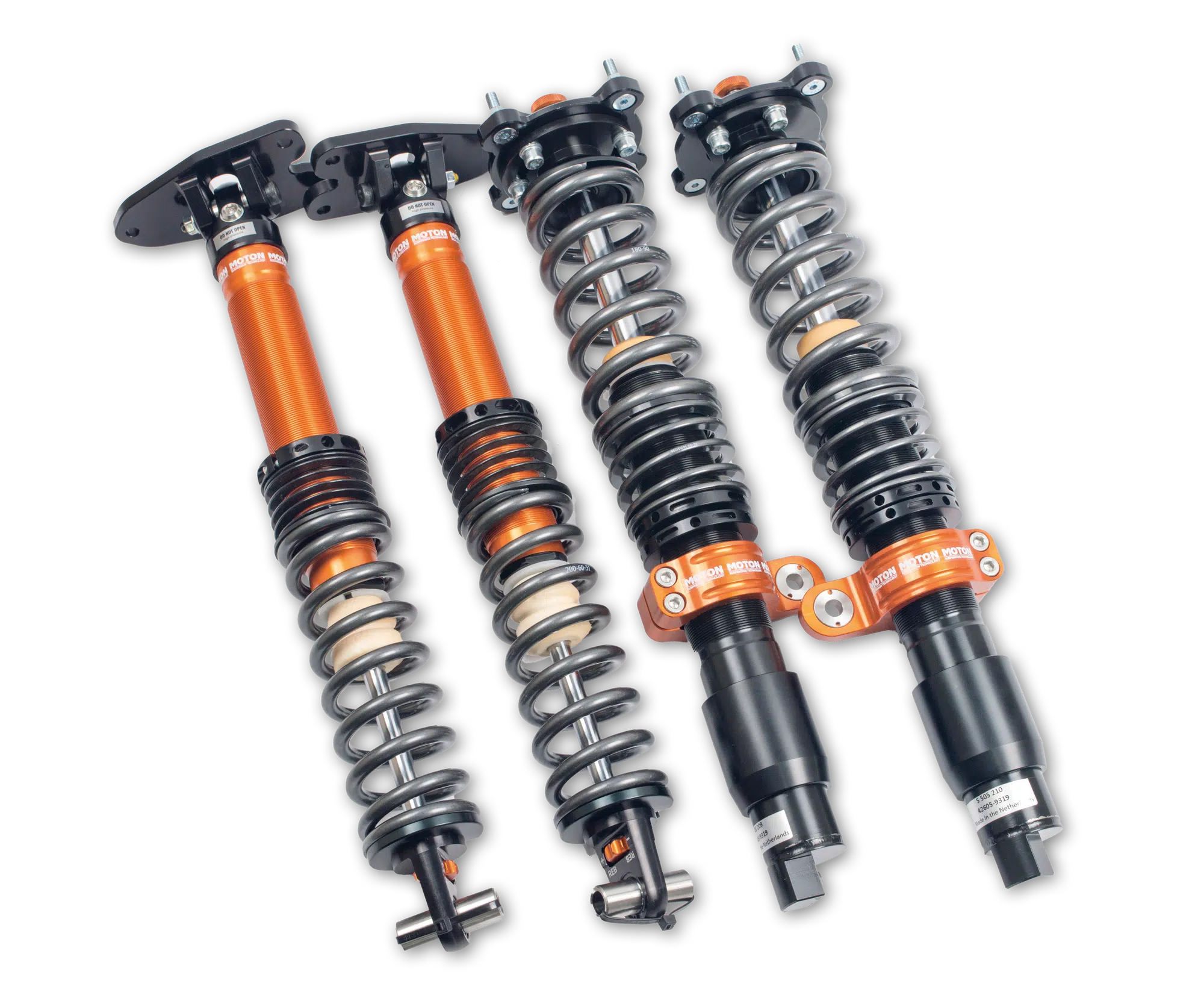

Moton 1-Way Coilovers for 997 C4 / C4S and Turbo Porsche 911

Moton’s 1-Way Coilovers for 997 C4 / C4S and Turbo Porsche 911 put one rebound adjuster on each corner of the 997 Carrera 4, 4S and Turbo, on threaded bodies that set ride height, with springs in the box. The all-wheel-drive 997 range shares the wide rear body between the Carrera 4, Carrera 4S and Turbo, and MOTON lists one set for all of them. With compression fixed by MOTON’s valving, setting up the 997 Carrera 4 or Turbo comes down to rebound and ride height, which keeps the kit easy to live with.

Design and Performance

The 1-Way gives the 997 Carrera 4 or Turbo one rebound adjuster per corner and leaves compression to MOTON’s valving, the right amount of adjustment for a road car with occasional track days. For compression control on the 997 Carrera 4 or Turbo, step up to the Moton 2-Way Clubsport Coilovers or the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound
Threaded ride height at all four corners
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers (L/R)
Rear coilovers (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Porsche 911 Carrera 4 / Carrera 4S: 997 | 2005-2012
Porsche 911 Turbo / Turbo S: 997 | 2005-2009

Notes

The Moton 1-Way Coilovers for 997 C4 fit the all-wheel-drive Carrera 4, 4S, Turbo and Turbo S; the GT3 and GT2 take the Moton 1-Way Coilovers for 997 GT3 / GT3 RS and GT2 / GT2 RS Porsche 911
MOTON dates the Turbo and Turbo S fitment 2005 to 2009; send us the VIN to confirm a 997 Turbo before ordering
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Porsche 911 models do the Moton 1-Way Coilovers for 997 C4 fit? MOTON lists the Moton 1-Way Coilovers for 997 C4 for the Porsche 911 Carrera 4 / Carrera 4S (997, 2005 to 2012) and Porsche 911 Turbo / Turbo S (997, 2005 to 2009). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 1-Way kit compare with the other MOTON kits for the 997 Carrera 4 or Turbo? The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the 997 Carrera 4 or Turbo. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits.
Does the kit fit both the 997.1 and 997.2 Turbo? MOTON lists the 997 Turbo and Turbo S on this part number, with dates given as 2005 to 2009 in its fitment list. Because Turbo production and model years differ by market, send us the VIN of a Turbo or Turbo S before ordering and we will confirm the fitment with MOTON.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, built to order for the 997 Carrera 4 or Turbo. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
How difficult is installation on the 997 Carrera 4 or Turbo? It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the 997 Carrera 4 or Turbo is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
