Will it fit my S2000 with the stock hood?

No. The duct cannot be fitted under the stock hood, and trimming the hood underside does not change that. It needs the Type-V vented hood from the same Osaka tuner or a Mugen carbon hood, neither of which is included. For a stock hood, choose the Type-N carbon duct made for it.

Does the Type-V Air Duct for AP1 cars also fit the AP2?

Yes. The Type-V Air Duct for AP1 cars is listed for every S2000 from 1999 to 2009, both AP1 and AP2. On later cars, including the AP2, the front performance rod inside the bumper must come out during installation, and every car needs the factory air guide cut.

Do I need an aftermarket intake to use it?

No. The duct is designed to work with the factory air cleaner box, so it can be added to an otherwise stock intake system. It routes cooler fresh air toward the box, and the manufacturer says the denser air it delivers reliably adds power.

How much power does it add?

The manufacturer states that cooler, denser intake air reliably increases power, but it does not publish a horsepower figure or test data for this duct. Treat it as one part of a balanced setup, since the maker develops intake, exhaust and ignition improvements to work together.

Is it suitable for track use?

Yes. The manufacturer describes the duct as usable at any stage, from daily street driving to circuit sessions. Its purpose is the same in both settings, supplying the factory air box with cooler fresh air than it would otherwise draw from around the engine.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

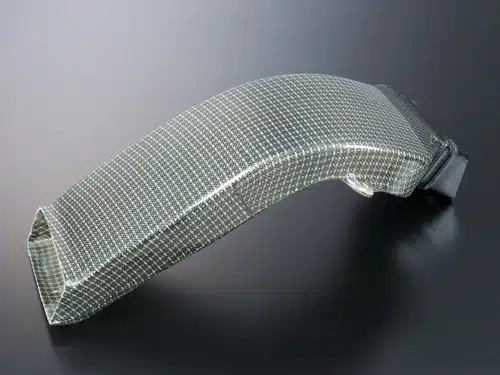

J’s Racing Type-V Air Duct for AP1 / AP2 Honda S2000

J’s Racing’s Type-V Air Duct for AP1 and AP2 S2000s is a carbon intake duct for cars running the company’s Type-V vented hood or a Mugen carbon hood, and it works with the factory air cleaner box. Its job is to feed the engine cooler, denser fresh air, which the Osaka tuner says reliably adds power. J’s Racing made it wider than the Type-N duct intended for stock hoods, and that extra width is why it only suits those two hoods. If your S2000 still wears the factory hood, look elsewhere: this duct will not fit even with the hood underside cut.

Design and Performance

J’s Racing develops its engine parts to raise intake, exhaust and ignition efficiency in balance, and this duct is its answer for the intake side on a car that already carries a vented or carbon hood. The company rates it for any stage of use, from daily street driving through to circuit sessions, and lists it as made to order in Japan.

Features

Wider duct than the Type-N version, sized for the Type-V and Mugen carbon hoods
Carbon construction, listed as CFRP by the US distributor
Works with the factory air cleaner box
Supplies cooler, denser intake air
Usable from street driving to circuit sessions

Applications

Honda S2000: AP1 | 1999-2003 | 2.0L F20C
Honda S2000: AP2 | 2004-2009 | 2.2L F22C

Notes

Requires the J’s Racing Type-V hood or a Mugen carbon hood, and neither is included
Not compatible with the stock hood, even with the hood underside trimmed
Installation involves cutting the factory air guide
On later cars, which J’s Racing identifies by the Japanese model codes AP1-130, AP1-135, AP1-200 and AP2, the front performance rod inside the bumper must be removed
Pair it with the Type-V Vented Hood for the AP1 / AP2 Honda S2000
For a stock hood, the Type-N Air Duct for the AP1 / AP2 Honda S2000 is the correct part
Made to order in Japan; Bulletproof Automotive confirms the lead time with J’s Racing USA once you order

Frequently Asked Questions

Will it fit my S2000 with the stock hood? No. The duct cannot be fitted under the stock hood, and trimming the hood underside does not change that. It needs the Type-V vented hood from the same Osaka tuner or a Mugen carbon hood, neither of which is included. For a stock hood, choose the Type-N carbon duct made for it.
Does the Type-V Air Duct for AP1 cars also fit the AP2? Yes. The Type-V Air Duct for AP1 cars is listed for every S2000 from 1999 to 2009, both AP1 and AP2. On later cars, including the AP2, the front performance rod inside the bumper must come out during installation, and every car needs the factory air guide cut.
Do I need an aftermarket intake to use it? No. The duct is designed to work with the factory air cleaner box, so it can be added to an otherwise stock intake system. It routes cooler fresh air toward the box, and the manufacturer says the denser air it delivers reliably adds power.
How much power does it add? The manufacturer states that cooler, denser intake air reliably increases power, but it does not publish a horsepower figure or test data for this duct. Treat it as one part of a balanced setup, since the maker develops intake, exhaust and ignition improvements to work together.
Is it suitable for track use? Yes. The manufacturer describes the duct as usable at any stage, from daily street driving to circuit sessions. Its purpose is the same in both settings, supplying the factory air box with cooler fresh air than it would otherwise draw from around the engine.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
