Do I need an alignment after fitting the arm?

Yes. The manufacturer requires an alignment whenever the compensator arm is installed. The arm exists to change rear toe, so the setting has to be measured and adjusted on an alignment rig. Booking the alignment for the same day as the installation keeps the car from being driven with an unknown toe setting.

What does a compensator arm do?

On the EG6 the compensator arm supports the rear toe angle, and the manufacturer calls it an important arm for that reason. With a turnbuckle in the arm, toe can be set in small increments to match the handling you want, whether the car is used on the street or on a circuit.

Is the Rear Compensator Arm for EG6 intended for US-market Civics?

No. The Rear Compensator Arm for EG6 cars is designed for the Japanese-market EG6 Civic SiR with the B16A engine and may not fit a US-market EG Civic. If your car is a US model or a converted chassis, check with Bulletproof Automotive before ordering so the fitment can be discussed.

Why replace the bushing with a pillow ball?

A rubber bushing deflects under load, which can cause judder and lets the alignment shift as the suspension works. A pillow ball joint does not give in the same way, so the manufacturer says it eliminates judder and reduces unwanted alignment changes during suspension input, keeping toe where you set it.

What does the compensator arm work best with?

The manufacturer says the compensator arm allows a more ideal setup when combined with its adjustable front upper arms and rear upper arms, sold separately. Together they give camber control at both ends plus rear toe, which is the most complete alignment package for the EG6.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

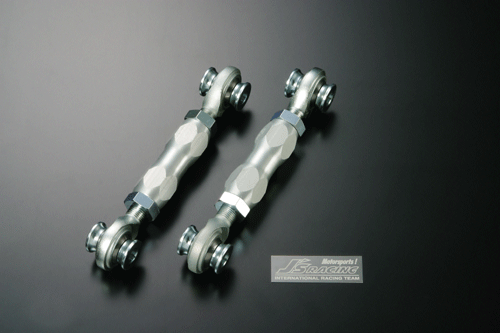

J’s Racing Rear Compensator Arm for EG6 Honda Civic

J’s Racing’s Rear Compensator Arm for EG6 Civic SiR chassis targets the arm that supports the rear toe angle, which J’s Racing describes as an important link in the rear suspension. The Osaka Honda specialist converts the arm to pillow ball joints and builds a turnbuckle into its body, so toe can be adjusted in fine steps instead of living with the factory value. Replacing the bushing with a pillow ball also removes judder and limits unwanted alignment change as the suspension moves. It is aimed at owners fine-tuning a circuit or autocross EG6; a daily driver on stock geometry gains little.

Tips

J’s Racing designed this arm to work as part of a set. Used together with its separately sold adjustable front upper arms and rear upper arms, it allows a more complete alignment, with camber controlled at both ends and toe at the rear. Whatever combination you run, an alignment must be carried out when the arm is installed.

Features

Turnbuckle built into the arm for fine rear toe adjustment
Pillow ball joint in place of the rubber bushing
Removes judder from the bushing area
Reduces unwanted alignment change under suspension load
More freedom to tune handling for street or circuit

Applications

Honda Civic SiR: EG6 | 1991-1995 | 1.6L B16A

Notes

J’s Racing designs this part for the JDM EG6 Civic with the B16A engine; it may not fit the US-market EG Civic
An alignment must be performed at installation
Designed to complement the Front Upper Arms for the EG6 Civic and Rear Upper Arms for the EG6 Civic, both sold separately
Shipped to the US by J’s Racing USA from the factory in Japan; Bulletproof Automotive gets back to you with availability and lead time after ordering

Frequently Asked Questions

Do I need an alignment after fitting the arm? Yes. The manufacturer requires an alignment whenever the compensator arm is installed. The arm exists to change rear toe, so the setting has to be measured and adjusted on an alignment rig. Booking the alignment for the same day as the installation keeps the car from being driven with an unknown toe setting.
What does a compensator arm do? On the EG6 the compensator arm supports the rear toe angle, and the manufacturer calls it an important arm for that reason. With a turnbuckle in the arm, toe can be set in small increments to match the handling you want, whether the car is used on the street or on a circuit.
Is the Rear Compensator Arm for EG6 intended for US-market Civics? No. The Rear Compensator Arm for EG6 cars is designed for the Japanese-market EG6 Civic SiR with the B16A engine and may not fit a US-market EG Civic. If your car is a US model or a converted chassis, check with Bulletproof Automotive before ordering so the fitment can be discussed.
Why replace the bushing with a pillow ball? A rubber bushing deflects under load, which can cause judder and lets the alignment shift as the suspension works. A pillow ball joint does not give in the same way, so the manufacturer says it eliminates judder and reduces unwanted alignment changes during suspension input, keeping toe where you set it.
What does the compensator arm work best with? The manufacturer says the compensator arm allows a more ideal setup when combined with its adjustable front upper arms and rear upper arms, sold separately. Together they give camber control at both ends plus rear toe, which is the most complete alignment package for the EG6.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
