Is mounting hardware included?

The manufacturer lists a trunk center mount and swan neck stays but does not publish a parts list for this wing. Ask Bulletproof Automotive to confirm the contents with the US distributor before ordering, especially whether a trunk base is supplied as it is with the wet carbon version.

Does the Phantom Swan-Neck GT-Wing for AP1 cars fit a standard body?

No. The Phantom Swan-Neck GT-Wing for AP1 cars is designed exclusively for wide-body S2000s such as the Type-GT kit, and its 1800mm span is matched to that bodywork. It is listed for both AP1 and AP2 chassis once the car carries a wide body.

What does dry carbon add over wet carbon?

The manufacturer chose dry carbon for its very high rigidity and thorough weight reduction. A stiffer wing holds its shape under load, which matters on a part this wide that is generating heavy downforce at speed on a time attack car.

The wing spans 1800mm with a 330mm chord, and the swan neck stays are 400mm tall. It mounts at the center of the trunk and offers up to 10 steps of up-and-down adjustment to balance it against the front aero.

What are the serrated end plates for?

The end plates reach well below the wing, and their trailing edge carries a serrated, saw-tooth shape. The manufacturer says this lets the wing make a high level of downforce while holding drag down, one of several details taken from current GT racing practice.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

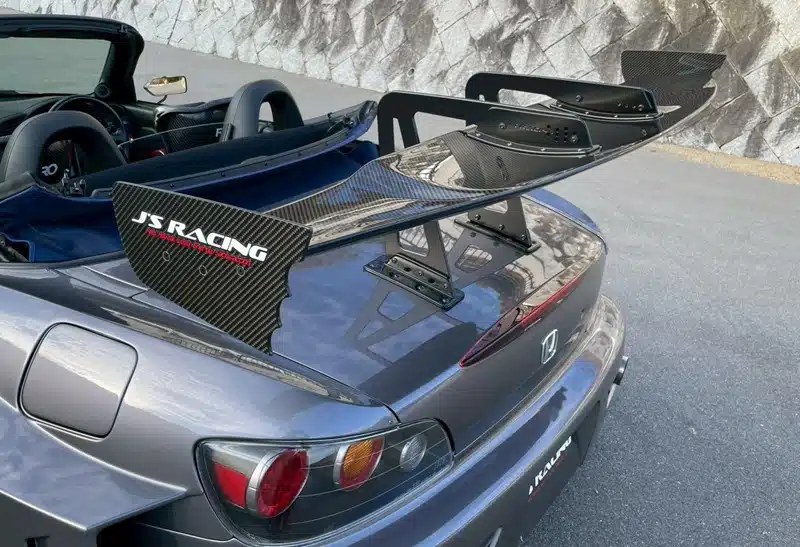

J’s Racing Phantom Swan-Neck GT-Wing for AP1 / AP2 Honda S2000

J’s Racing’s Phantom Swan-Neck GT-Wing for AP1 and AP2 S2000s is the full model change of the Osaka tuner’s wide-body wing, now built in dry carbon for very high stiffness and a thorough weight cut. It keeps the 1800mm span for cars wearing the Type-GT body kit and other wide bodies, hung from swan neck stays of the kind seen in Super GT and FIA GT3 so the underside airflow stays undisturbed. J’s Racing calls it its top aero part and a time attack weapon; it is meant for wide-body cars chasing lap times, not standard S2000s.

Features

Dry carbon construction for high rigidity and low weight
1800mm span and 3D shape built around wide-body S2000s
Swan neck stays that keep the underside airflow clean
Downward-extended end plates with a serrated trailing edge
Up to 10 steps of up-and-down adjustment
330mm chord, 400mm stay height and trunk center mounting

Applications

Honda S2000: AP1 | 1999-2003 | 2.0L F20C
Honda S2000: AP2 | 2004-2009 | 2.2L F22C

Notes

Made for wide-body S2000s; see the J’s Racing Type-GT widebody kit for the AP1 / AP2 S2000
Mounting hardware contents are not listed by J’s Racing; confirm with us before ordering
Shipped from Japan by J’s Racing USA, with lead time confirmed by Bulletproof Automotive at order

Frequently Asked Questions

Is mounting hardware included? The manufacturer lists a trunk center mount and swan neck stays but does not publish a parts list for this wing. Ask Bulletproof Automotive to confirm the contents with the US distributor before ordering, especially whether a trunk base is supplied as it is with the wet carbon version.
Does the Phantom Swan-Neck GT-Wing for AP1 cars fit a standard body? No. The Phantom Swan-Neck GT-Wing for AP1 cars is designed exclusively for wide-body S2000s such as the Type-GT kit, and its 1800mm span is matched to that bodywork. It is listed for both AP1 and AP2 chassis once the car carries a wide body.
What does dry carbon add over wet carbon? The manufacturer chose dry carbon for its very high rigidity and thorough weight reduction. A stiffer wing holds its shape under load, which matters on a part this wide that is generating heavy downforce at speed on a time attack car.
How large is it? The wing spans 1800mm with a 330mm chord, and the swan neck stays are 400mm tall. It mounts at the center of the trunk and offers up to 10 steps of up-and-down adjustment to balance it against the front aero.
What are the serrated end plates for? The end plates reach well below the wing, and their trailing edge carries a serrated, saw-tooth shape. The manufacturer says this lets the wing make a high level of downforce while holding drag down, one of several details taken from current GT racing practice.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
