Does the 3D GT Wing for EK9 cars need drilling to install?

Yes. The 3D GT Wing for EK9 cars requires holes to be drilled for mounting, so plan for permanent modification and ideally a professional install. The source does not describe the stays or hardware supplied, so ask us to confirm the full contents with the US distributor before your installer starts work.

How wide is the wing and what is it made of?

The wing is 1350mm wide and made from wet carbon, with a single flap. The manufacturer shapes the top surface like a banana so that it gains wing area without growing wider overall, which keeps the overall span compact on a small hatchback like the Civic.

Can the wing be adjusted?

Yes. It has a four-step adjustment range, which the Osaka tuner says lets it perform on low-speed circuits, high-speed circuits and the street. The manufacturer does not publish the angle covered by each step, so expect to test and choose a setting that suits your track and the balance of the car.

Does the carbon need protecting from sunlight?

Yes, for a car kept outdoors or a wing you plan to run for years. The manufacturer recommends a UV-cut clear coat to protect the carbon from sun fading. That coating is not included, so have a paint shop apply it before installation if your car lives outside.

Can this wing go on a US-market Civic?

No, not without checking first. The only application the Osaka tuner gives is the Japanese-market EK9 Civic Type R. Since the mounting process involves drilling, confirm that your rear body panels match before a single hole is made, and get in touch with us if there is any doubt about your car.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

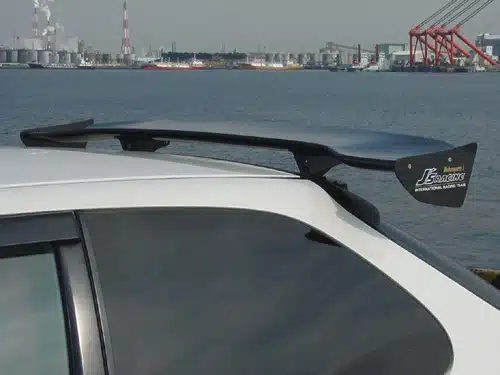

J’s Racing 3D GT Wing for EK9 Honda Civic Type R

J’s Racing’s 3D GT Wing for EK9 Civic Type R builds brings the three-dimensional wing shape that has become standard in GT racing, tuned cars and time attack to the B16B hatchback. This version is wet carbon, 1350mm wide, with a single flap. To find more wing area without a wider span, J’s Racing curves the top surface into a banana shape, and the complex three-dimensional section catches the airflow coming off the roof to cut drag. The result, the company says, is efficient downforce and faster cornering through high-speed bends. It belongs on an EK9 that sees circuit time; for a street car it is mainly a statement.

Features

Wet carbon construction, 1350mm overall width
Single-flap element with a banana-shaped upper surface for extra area within that width
Three-dimensional airfoil section shaped to work with airflow from the roof
Designed to produce downforce efficiently while reducing drag
Four-step adjustment range for low-speed tracks, fast circuits and the street

Applications

Honda Civic Type R: EK9 | 1997-2000 | 1.6L B16B

Notes

Designed by J’s Racing for the JDM EK9 Civic Type R with the B16B engine; it may not fit the US-market EK Civic
Installation requires drilling
For cars stored outdoors or kept long term, J’s Racing recommends a UV-cut clear coat to stop the carbon fading, and that coating is not part of this listing
The source does not list the mounting stays or hardware supplied with the wing
Built to order in Japan; J’s Racing USA handles export and Bulletproof Automotive gives you the confirmed lead time after ordering

Frequently Asked Questions

Does the 3D GT Wing for EK9 cars need drilling to install? Yes. The 3D GT Wing for EK9 cars requires holes to be drilled for mounting, so plan for permanent modification and ideally a professional install. The source does not describe the stays or hardware supplied, so ask us to confirm the full contents with the US distributor before your installer starts work.
How wide is the wing and what is it made of? The wing is 1350mm wide and made from wet carbon, with a single flap. The manufacturer shapes the top surface like a banana so that it gains wing area without growing wider overall, which keeps the overall span compact on a small hatchback like the Civic.
Can the wing be adjusted? Yes. It has a four-step adjustment range, which the Osaka tuner says lets it perform on low-speed circuits, high-speed circuits and the street. The manufacturer does not publish the angle covered by each step, so expect to test and choose a setting that suits your track and the balance of the car.
Does the carbon need protecting from sunlight? Yes, for a car kept outdoors or a wing you plan to run for years. The manufacturer recommends a UV-cut clear coat to protect the carbon from sun fading. That coating is not included, so have a paint shop apply it before installation if your car lives outside.
Can this wing go on a US-market Civic? No, not without checking first. The only application the Osaka tuner gives is the Japanese-market EK9 Civic Type R. Since the mounting process involves drilling, confirm that your rear body panels match before a single hole is made, and get in touch with us if there is any doubt about your car.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
