Is this HIPERMAX S Coilover Kit still available?

No. HKS has discontinued this 2025 specification and replaced it with the current HKS HIPERMAX S kit for the FL5, part number 80330-AH013CP. The replacement keeps the pillow ball front upper mount, the camber adjustment and the included Suspension Error Canceller, so nothing is lost by moving to it.

What is the difference between this kit and the current one?

Both pair the HIPERMAX S Coilover Kit damper with a camber-adjustable pillow ball front upper mount and both include the Suspension Error Canceller. HKS revised the specification and issued the replacement under a new part number, 80330-AH013CP. Owners shopping now should buy the current kit rather than this superseded version.

Does it include the Suspension Error Canceller?

Yes. HKS supplied the Canceller in the box, which is what the CP suffix in the part number denotes. Without it the factory adaptive damper circuit records a fault once the original dampers are removed, so no separate purchase was required with this kit.

What does the pillow ball upper mount do?

It replaces the rubber front upper mount with a spherical bearing, taking deflection out of the steering and sharpening response. It also allows camber adjustment at the top of the strut, which lets a front-drive chassis run wider tyres and more negative camber to reduce understeer.

Is the spherical bearing a wear item?

Yes, HKS lists it as a consumable and sells replacement bearings separately. It carries steering loads directly and transmits more road input than a rubber mount, so it will need replacing on a schedule that depends on mileage and use. Bulletproof Automotive does not currently stock the replacement bearings.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

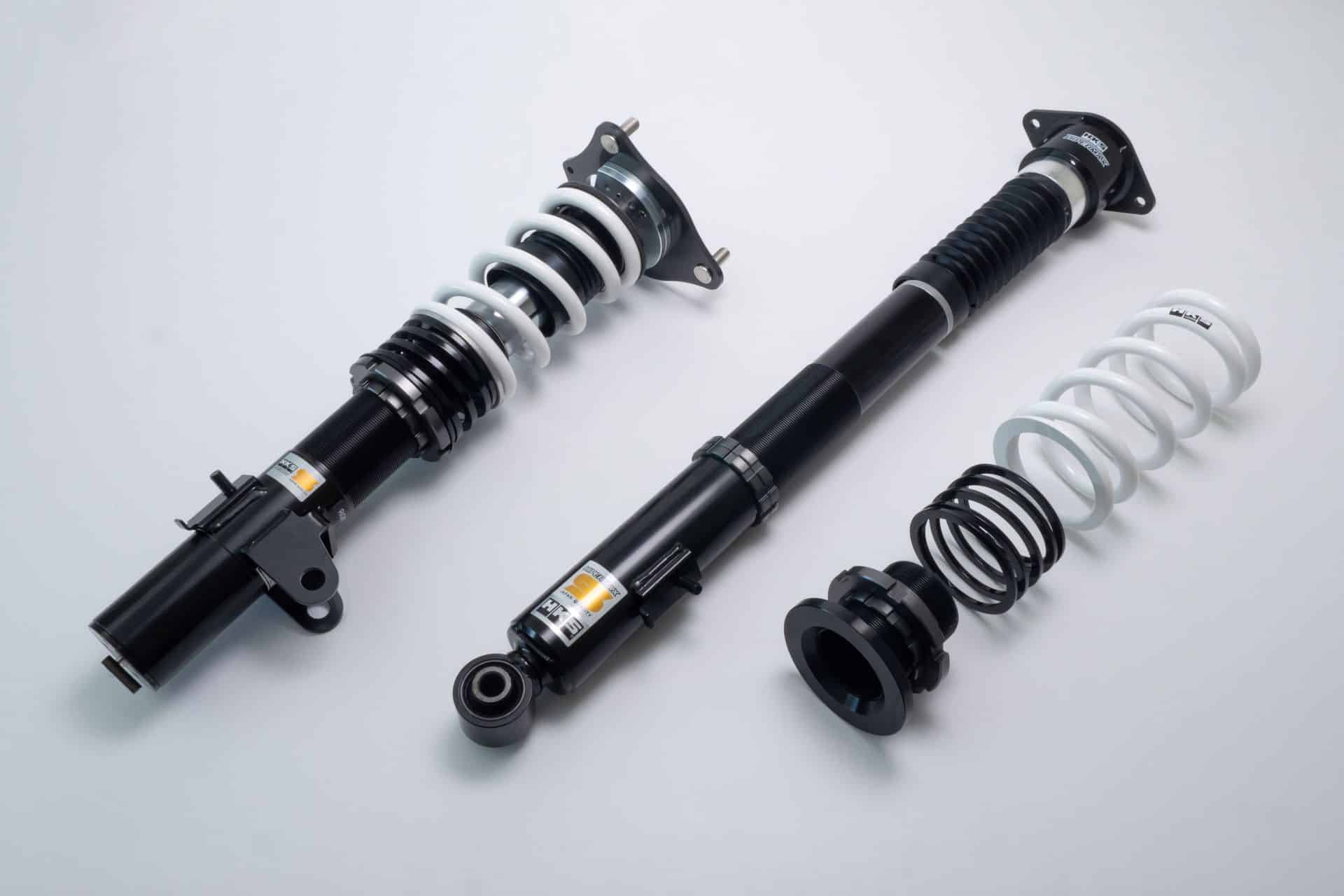

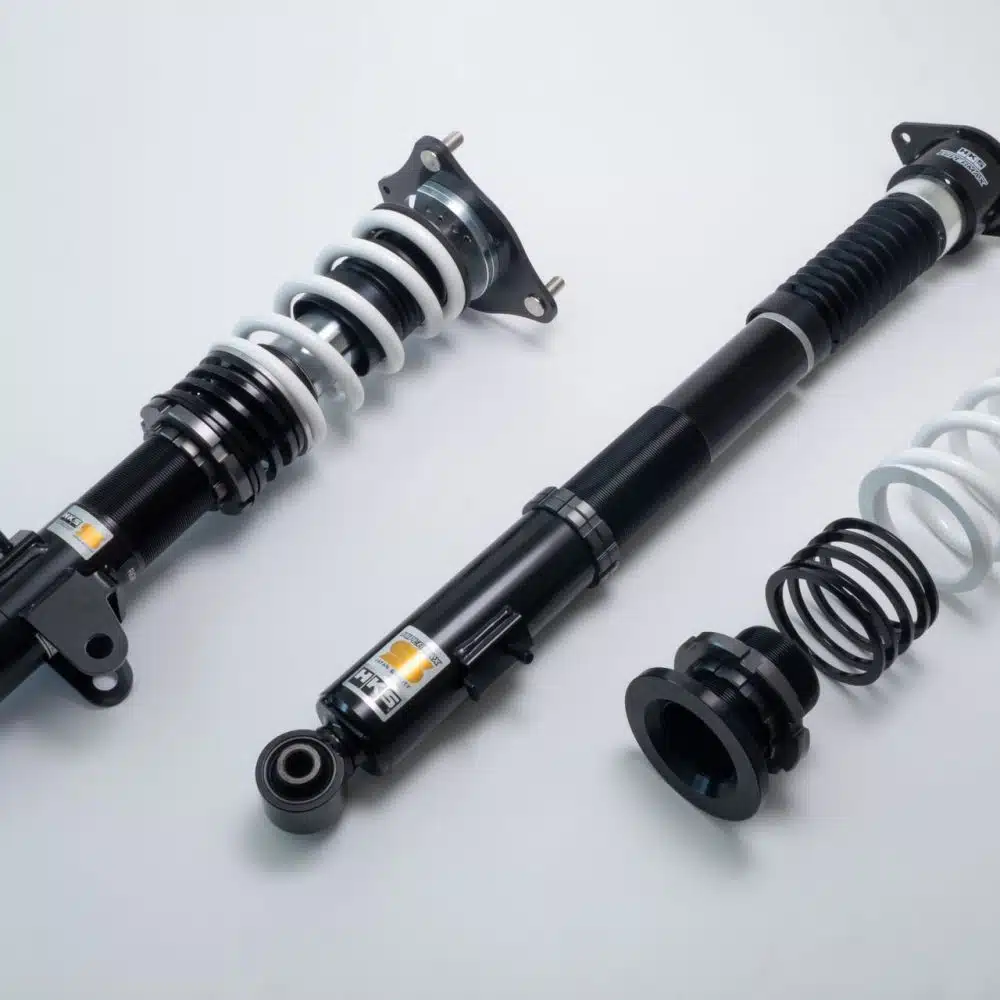

HKS HIPERMAX S Coilover Kit for FL5 Honda Civic Type R (2025 Specification)

HKS’s HIPERMAX S Coilover Kit in this 2025 specification was the first FL5 Civic Type R application to pair the HIPERMAX S damper with a front pillow ball upper mount, and it set the pattern HKS still builds to. The spherical bearing removes the deflection a rubber mount allows, sharpening steering response, and it opens up camber adjustment so a wider tyre and more negative camber can be used to reduce understeer rather than fought. Dual PVS valving, a Wide Range Needle and an Advanced Bump Rubber underpinned what HKS described as the best ride quality in the history of its suspension, and a Suspension Error Canceller was supplied in the box.

Design and Performance

Thirty steps of damping at each corner, a spherical-bearing front upper mount with camber adjustment, and helper springs to keep the car settled over poor surfaces. Dual PVS valving separates low-speed from high-speed damping behaviour, the Wide Range Needle keeps the extremes of the adjustment range usable rather than academic, and the Advanced Bump Rubber manages the end of the stroke instead of letting the car crash into it. HKS aimed this HIPERMAX S Coilover Kit at owners who wanted a Type R that stayed flexible and comfortable while still rewarding a hard drive.

Features

Front pillow ball upper mount with camber adjustment
Suspension Error Canceller included, so the factory adaptive damper circuit logs no fault
30 steps of damping adjustment front and rear
Dual PVS valving, Wide Range Needle and Advanced Bump Rubber
Helper springs for low-speed compliance
Product weight 32kg

Applications

Honda Civic Type R: FL5 | 2023-present | K20C

Notes

HKS has discontinued this specification. The current replacement is the HKS HIPERMAX S Coilover Kit for FL5 Honda Civic Type R 80330-AH013CP, which carries the same pillow ball front upper mount and Suspension Error Canceller.
The spherical bearing in the front upper mount is a consumable. HKS sells replacement bearings separately, and Bulletproof Automotive does not currently stock them.
Ships as a single box measuring 850 x 330 x 450mm at 32kg
For a more track-focused damper on the same chassis, see the HKS Hipermax R Coilover Kit w/ Canceller Kit for FL5 Honda Civic Type R 80310-AH005C
Browse the full HKS range on Bulletproof Automotive

Frequently Asked Questions

Is this HIPERMAX S Coilover Kit still available? No. HKS has discontinued this 2025 specification and replaced it with the current HKS HIPERMAX S kit for the FL5, part number 80330-AH013CP. The replacement keeps the pillow ball front upper mount, the camber adjustment and the included Suspension Error Canceller, so nothing is lost by moving to it.
What is the difference between this kit and the current one? Both pair the HIPERMAX S Coilover Kit damper with a camber-adjustable pillow ball front upper mount and both include the Suspension Error Canceller. HKS revised the specification and issued the replacement under a new part number, 80330-AH013CP. Owners shopping now should buy the current kit rather than this superseded version.
Does it include the Suspension Error Canceller? Yes. HKS supplied the Canceller in the box, which is what the CP suffix in the part number denotes. Without it the factory adaptive damper circuit records a fault once the original dampers are removed, so no separate purchase was required with this kit.
What does the pillow ball upper mount do? It replaces the rubber front upper mount with a spherical bearing, taking deflection out of the steering and sharpening response. It also allows camber adjustment at the top of the strut, which lets a front-drive chassis run wider tyres and more negative camber to reduce understeer.
Is the spherical bearing a wear item? Yes, HKS lists it as a consumable and sells replacement bearings separately. It carries steering loads directly and transmits more road input than a rubber mount, so it will need replacing on a schedule that depends on mileage and use. Bulletproof Automotive does not currently stock the replacement bearings.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
