Does this set fit the second generation tC?

No. Injector Dynamics lists this application for the 2005 to 2010 Scion tC with the 2.4 liter engine. The 2011 and later tC is not part of that listing, so check the model year before ordering. The same first generation application is also offered in two other flow classes.

Is the ID1750-XDS Fuel Injector Set the right size for a turbo tC?

Yes, for an ethanol or high boost build. The ID1750-XDS Fuel Injector Set delivers 1728cc per minute per injector while holding minimum fuel mass at the ID1700 level. A lighter turbo build on gasoline may suit the ID1300-XDS, while the ID2600-XDS is meant for the largest fuel demands.

Do these plug into the tC wiring?

Yes, with an adapter where needed. The injectors use USCAR connectors, and engines with other plugs need an Injector Dynamics plug and play adapter, sold separately. Denso, EV1 and OBD2 versions exist, and the Denso adapter is stocked here. Check the connector on your factory injector first.

Will the ECU need adjustment after the swap?

Yes. The ECU or standalone must be calibrated with the flow rate, offset and short pulse data that Injector Dynamics publishes for the 1750. Without it, a 1728cc per minute injector would run the 2.4 liter rich at idle and leave fueling wrong across the load range.

How long is the warranty?

One year from purchase against manufacturer defects, with the condition that the injectors run correct fuel through proper filtration. The four injectors are flow matched, so Injector Dynamics supplies any single replacement directly, and it runs a cleaning, inspection and flow test service in Arizona.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

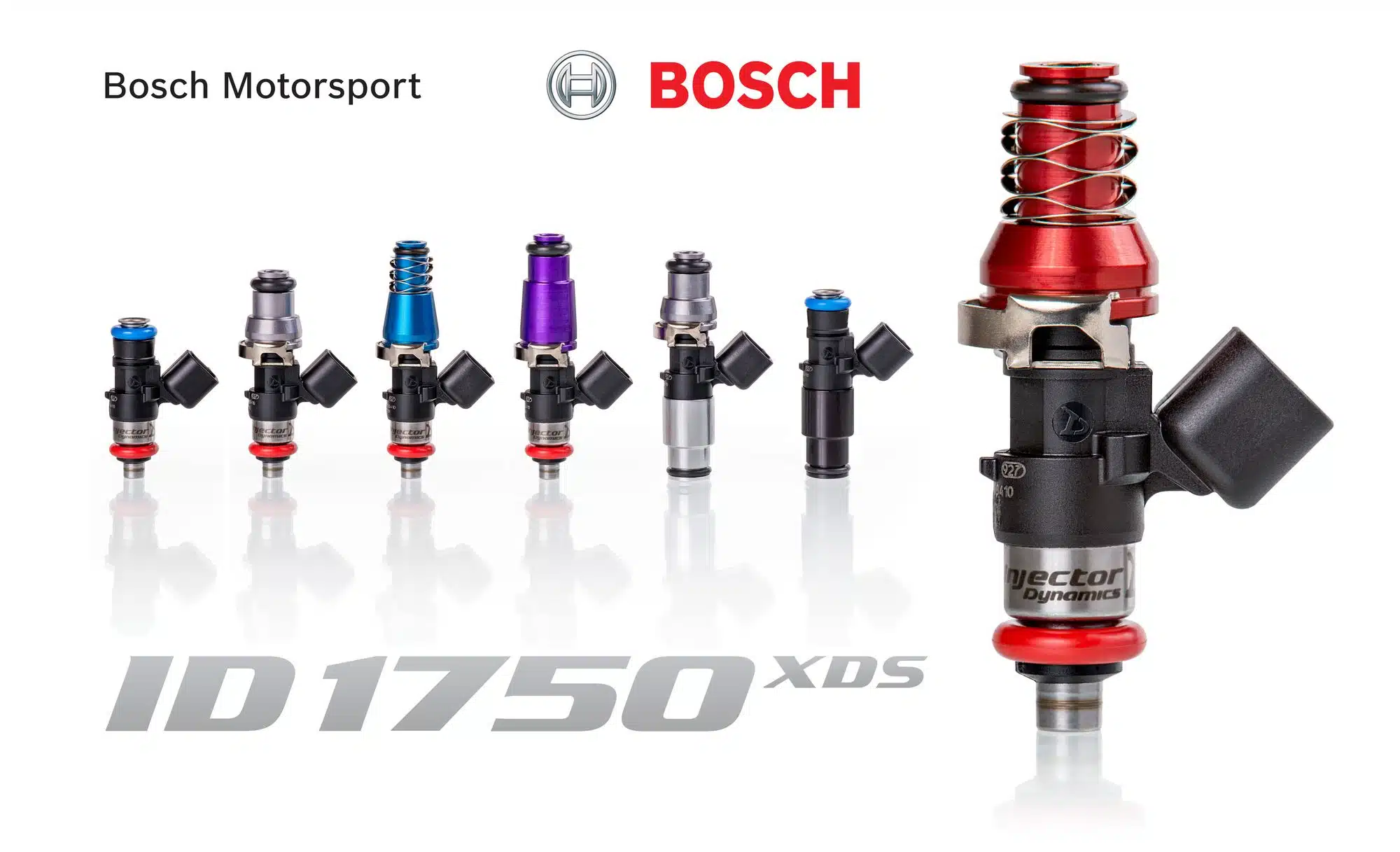

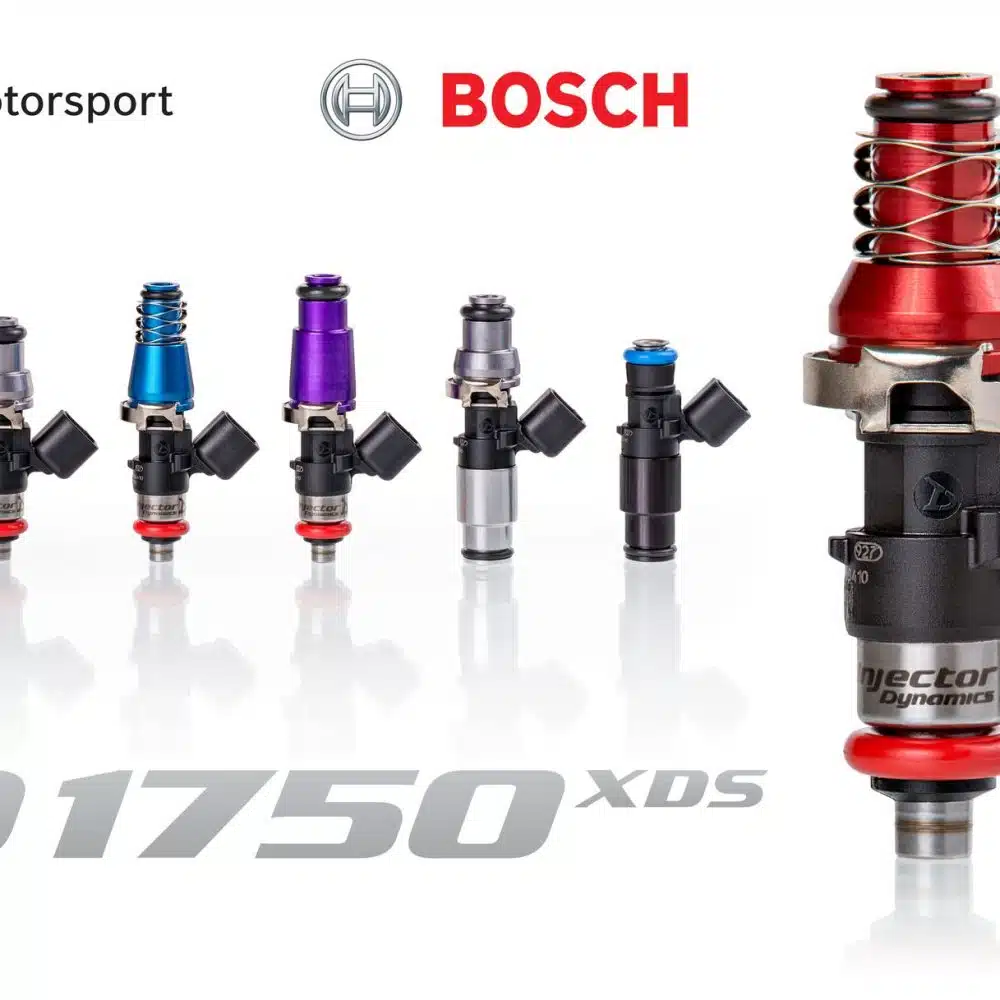

Injector Dynamics ID1750-XDS Fuel Injector Set for 2005-2010 Scion tC 2.4L

Injector Dynamics’ ID1750-XDS Fuel Injector Set for the 2005-2010 Scion tC 2.4L brings four 1728cc/min injectors on 60mm bodies with 11mm tops, made to the Injector Dynamics application code for that engine. It is a set for a turbocharged or supercharged tC, especially one switching to E85, where the factory injectors cannot keep pace. On an unmodified or naturally aspirated tC it is far more injector than the engine can use.

Configuration

The 17.01 code marks the first-generation tC 2.4L application, the 60 is the 60mm body length and the 11 is the 11mm top. The same tC application is offered in the ID1300-XDS and ID2600-XDS flow classes.

Features

ID1750-XDS Fuel Injector Set coded for the 2005-2010 tC 2.4L
Four 60mm injectors with 11mm tops
Rated for E85, methanol, MTBE and nitromethane as well as gasoline
Improved pressure sensitivity over the ID1700

Specifications

Nominal flow: 1728cc/min at 3.0 bar (43.5 psi), E10 certification fuel at 49C (120F)
Maximum differential fuel pressure: 7.0 bar (101.5 psi)
Offset at 43.5 psi: 1169 microseconds at 12 volts
Electrical connector: USCAR
Body length: 60mm
Top: 11mm

What’s Included

ID1750-XDS fuel injectors with 11mm tops (x4)

Applications

Scion tC: 2005-2010 | 2.4L

Notes

USCAR connectors are fitted and no adapters are supplied; Denso plugs take the Injector Dynamics USCAR to Denso PnP Adapter, and EV1 or OBD2 adapters come from Injector Dynamics
A retune with the Injector Dynamics characterization data is required after installation
The same tC application is offered as the ID1300-XDS Fuel Injector Set for the Scion tC and the ID2600-XDS Fuel Injector Set for the Scion tC

Frequently Asked Questions

Does this set fit the second generation tC? No. Injector Dynamics lists this application for the 2005 to 2010 Scion tC with the 2.4 liter engine. The 2011 and later tC is not part of that listing, so check the model year before ordering. The same first generation application is also offered in two other flow classes.
Is the ID1750-XDS Fuel Injector Set the right size for a turbo tC? Yes, for an ethanol or high boost build. The ID1750-XDS Fuel Injector Set delivers 1728cc per minute per injector while holding minimum fuel mass at the ID1700 level. A lighter turbo build on gasoline may suit the ID1300-XDS, while the ID2600-XDS is meant for the largest fuel demands.
Do these plug into the tC wiring? Yes, with an adapter where needed. The injectors use USCAR connectors, and engines with other plugs need an Injector Dynamics plug and play adapter, sold separately. Denso, EV1 and OBD2 versions exist, and the Denso adapter is stocked here. Check the connector on your factory injector first.
Will the ECU need adjustment after the swap? Yes. The ECU or standalone must be calibrated with the flow rate, offset and short pulse data that Injector Dynamics publishes for the 1750. Without it, a 1728cc per minute injector would run the 2.4 liter rich at idle and leave fueling wrong across the load range.
How long is the warranty? One year from purchase against manufacturer defects, with the condition that the injectors run correct fuel through proper filtration. The four injectors are flow matched, so Injector Dynamics supplies any single replacement directly, and it runs a cleaning, inspection and flow test service in Arizona.

About Injector Dynamics

Injector Dynamics is an Arizona injector specialist and an authorized technical partner of Bosch Motorsport, developing its injectors to its own specification rather than modifying production parts. It introduced slope and offset matching in 2007, and its Dual Slope Matching, developed by engineer Aaron Looft, extends matching into the short pulse widths that boosted and ethanol engines rely on. Its flow benches are built in house and calibrated against a NIST-traceable flow prover. Injector Dynamics supplied the emissions-compliant injectors for the twin-turbo Noble M600, and its injectors were fitted to the first seven-second Nissan GT-R and the first 300 mph motorcycle.
