Do I need a new charge pipe with the GrimmSpeed Top Mount Intercooler Kit for VA Subaru WRX?

No. The GrimmSpeed Top Mount Intercooler Kit for VA Subaru WRX connects to the factory charge pipe, and GrimmSpeed describes its own charge pipe as an optional upgrade. The GrimmSpeed Charge Pipe Kit, with 2.5 inch aluminum tubing, can be added at the same time or later.

Does this top mount intercooler require a tune?

GrimmSpeed does not list a tune requirement for this intercooler, and nothing in the kit changes boost control. The larger core pays off most once boost has been raised. If the WRX already runs a custom tune, have the tuner review datalogs after installation.

What happens to the factory engine cover?

The factory engine cover comes off and stays off. GrimmSpeed supplies a two-piece aluminum splitter in its place, laser cut, CNC bent and powdercoated textured black. Its shape pulls air from the entire width of the hood scoop and directs it onto the larger GrimmSpeed core.

What is the difference between Raw Aluminum and Black Thermal Coating?

Both finishes use the same core, end tanks, splitter and couplers, so fitment is identical. Raw Aluminum leaves the assembly bare, while the black version carries the thermal dispersant coating that GrimmSpeed and its distributor list for this part. GrimmSpeed publishes no cooling difference between the two.

Can I add water methanol injection later?

Yes. GrimmSpeed casts a 1/8 NPT bung into the outlet end tank, machine taps it and ships it plugged. When a water methanol kit goes in, the plug comes out and the nozzle threads into the tank, with no drilling or welding.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

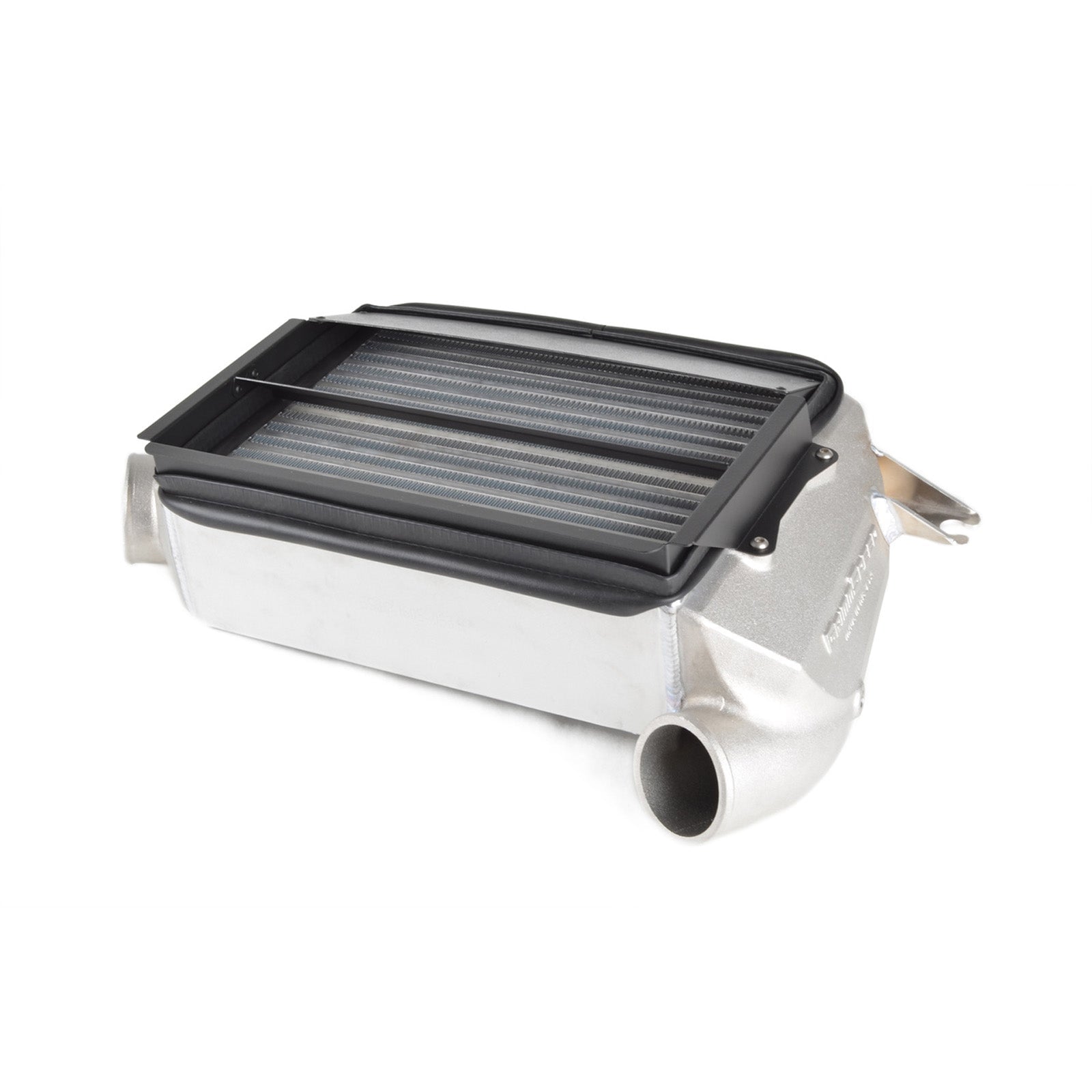

GrimmSpeed Top Mount Intercooler Kit for VA Subaru WRX

The GrimmSpeed Top Mount Intercooler Kit for VA Subaru WRX swaps the plastic-tanked factory top mount on the 2.0L FA20DIT for a 13.1 x 10 x 3.75 in bar-and-plate core welded to cast aluminum end tanks, and adds a two-piece splitter that takes the place of the engine cover. The stock unit suits a stock car, but raised boost sends hotter air through it, inviting knock and lost power. After more than a year of testing and revision, the result makes the most sense on a tuned WRX driven hard; an untouched car at factory boost gains far less.

Construction

GrimmSpeed casts and machines those tanks in Minnesota, inspects them, TIG welds them to the high-density core, then pressure tests, cleans and seals the finished assembly. The splitter halves are laser cut from aluminum sheet, CNC bent and powdercoated textured black before stainless hardware fixes them to the factory hood scoop.

Features

13.1 x 10 x 3.75 in cross flow core, sized to balance heat transfer against pressure drop
Cast aluminum end tanks with machined mounting points for the splitter
Two-piece aluminum splitter replaces the factory engine cover and collects air across the whole scoop opening
Custom molded 5-ply silicone throttle body coupler with stainless high-torque clamps
1/8 NPT water methanol bung cast into the outlet tank, tapped and plugged
Reuses the factory mounts for vibration isolation

What’s Included

GrimmSpeed top mount intercooler assembly
Two-piece splitter with stainless mounting hardware
5-ply silicone throttle body coupler
Stainless high-torque clamps

Applications

Subaru WRX: VA | 2015-2021 | 2.0L FA20DIT

Notes

The Top Mount Intercooler Kit for VA Subaru WRX installs on the factory charge pipe; the GrimmSpeed Charge Pipe Kit for VA Subaru WRX is an optional upgrade
The included splitter replaces the factory engine cover, which is not refitted
This kit is for the FA20DIT WRX only; the EJ257 STI of the same years uses the GrimmSpeed Top Mount Intercooler Kit for GD, GR / GV and VA Subaru STI
GrimmSpeed does not state a tune requirement for the Top Mount Intercooler Kit for VA Subaru WRX

Frequently Asked Questions

Do I need a new charge pipe with the GrimmSpeed Top Mount Intercooler Kit for VA Subaru WRX? No. The GrimmSpeed Top Mount Intercooler Kit for VA Subaru WRX connects to the factory charge pipe, and GrimmSpeed describes its own charge pipe as an optional upgrade. The GrimmSpeed Charge Pipe Kit, with 2.5 inch aluminum tubing, can be added at the same time or later.
Does this top mount intercooler require a tune? GrimmSpeed does not list a tune requirement for this intercooler, and nothing in the kit changes boost control. The larger core pays off most once boost has been raised. If the WRX already runs a custom tune, have the tuner review datalogs after installation.
What happens to the factory engine cover? The factory engine cover comes off and stays off. GrimmSpeed supplies a two-piece aluminum splitter in its place, laser cut, CNC bent and powdercoated textured black. Its shape pulls air from the entire width of the hood scoop and directs it onto the larger GrimmSpeed core.
What is the difference between Raw Aluminum and Black Thermal Coating? Both finishes use the same core, end tanks, splitter and couplers, so fitment is identical. Raw Aluminum leaves the assembly bare, while the black version carries the thermal dispersant coating that GrimmSpeed and its distributor list for this part. GrimmSpeed publishes no cooling difference between the two.
Can I add water methanol injection later? Yes. GrimmSpeed casts a 1/8 NPT bung into the outlet end tank, machine taps it and ships it plugged. When a water methanol kit goes in, the plug comes out and the nozzle threads into the tank, with no drilling or welding.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
