Is a Y-pipe included with the GrimmSpeed Top Mount Intercooler Kit for GD and later STI models?

No. The GrimmSpeed Top Mount Intercooler Kit for GD and later STI models is designed around the factory STI Y-pipe, and the kit supplies new Y-pipe gaskets and bolts. Owners without one can choose the bundled GrimmSpeed intercooler and cast aluminum Y-pipe kit.

How much power will this top mount intercooler support?

GrimmSpeed designed the core for Subaru builds making up to approximately 550 whp and says it will support about 575 whp before a front mount intercooler is likely to be the better choice. The core itself flows over 1,500 CFM.

Does the intercooler fit a 2002-2007 WRX or Forester XT?

Yes, with an STI-style Y-pipe, which these vehicles do not have from the factory. GrimmSpeed sells this exact intercooler with its cast aluminum Y-pipe, couplers and clamps as a single kit for the 2002-2007 WRX and 2004-2008 Forester XT, so nothing else needs sourcing.

Will the larger core add pressure drop or lag?

Very little, according to GrimmSpeed testing. On a stock TD04 turbo test car running 19 psi, the recorded pressure drop peaked just above 0.2 psi and averaged about 0.1 psi. GrimmSpeed also found the factory unit losing efficiency from about 3,800 rpm.

Do I need a new hood scoop splitter?

Not necessarily, but GrimmSpeed recommends one. Its lightweight splitter is shaped for this core and whichever hood scoop is fitted, and GrimmSpeed says STI owners benefit too. The splitter is sold separately and is not included with this intercooler kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

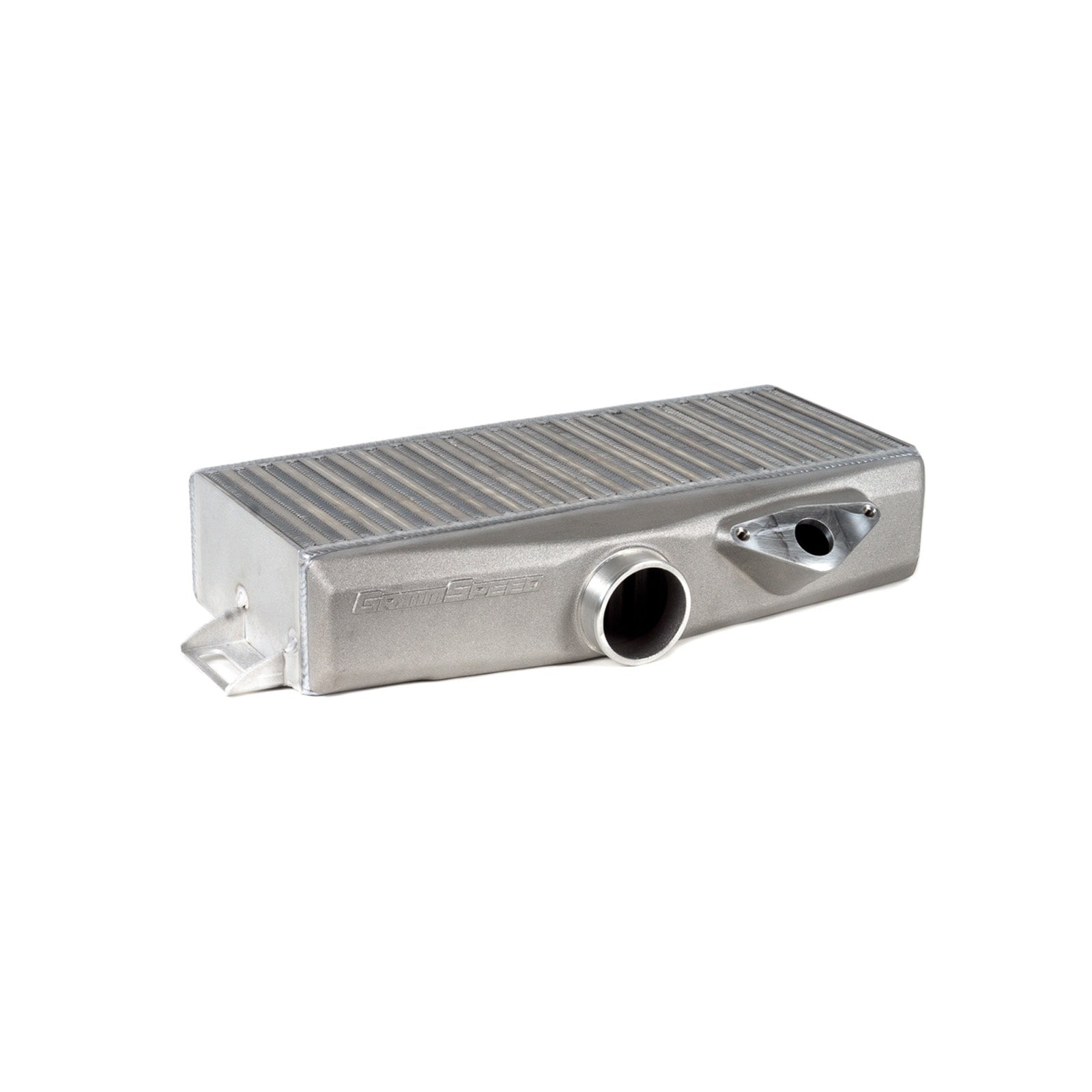

GrimmSpeed Top Mount Intercooler Kit for GD, GR / GV and VA Subaru STI

The GrimmSpeed Top Mount Intercooler Kit for GD, GR / GV and early VA Subaru STI models pairs a custom bar-and-plate core rated at over 1,500 CFM with permanent mold cast end tanks, and bolts to the factory Y-pipe of the 2.5L EJ257. GrimmSpeed sized the core for builds up to roughly 550 whp and says it holds up to about 575 whp before a front mount becomes the better tool. That covers most tuned street STIs that keep the top mount layout.

Features

End tanks cast in a single CNC machined permanent mold rather than single-use sand molds, then machined on every mating surface
Hand TIG welded, with 5052 aluminum tabs that accept the stock bushings
Stainless threaded inserts against cross-threading
GrimmSpeed inlet and bypass valve gaskets supplied

Specifications

Core Flow: over 1,500 CFM
Design Target: up to approximately 550 whp
Upper Limit: about 575 whp before a front mount may suit better
Pressure Test: 50 psi, every assembly
Mounting Tabs: laser cut, CNC bent 5052 aluminum
Measured Pressure Drop: just above 0.2 psi peak, about 0.1 psi average

What’s Included

GrimmSpeed top mount intercooler
GrimmSpeed bypass valve gasket
GrimmSpeed STI TMIC Y-pipe gaskets (x2)
36 in length of 1/2 in PCV hose
1/2 in tee fitting and 1/2 in hose connector
Black M8 x 1.25 x 18 mm Y-pipe bolts (x4)
M8 x 1.25 x 25 mm bypass valve bolts (x2)
GrimmSpeed stencil

Applications

Subaru WRX STI: GD, GR / GV and VA | 2004-2016 | 2.5L EJ257

Notes

The Top Mount Intercooler Kit for GD and later STI models reuses the factory STI Y-pipe, which is not included
For the 2002-2007 WRX and 2004-2008 Forester XT, GrimmSpeed packages this same intercooler with its cast aluminum Y-pipe as the GrimmSpeed Top Mount Intercooler and Y-Pipe Kit for GD Subaru WRX and SG Forester XT
GrimmSpeed sells a matching hood scoop splitter separately; it is not part of the Top Mount Intercooler Kit for GD and later STI models
Pressure drop figures come from a stock TD04 turbo 2.0L car with a full exhaust, a GrimmSpeed boost control solenoid and a 19 psi tune. The whp figures are GrimmSpeed sizing guidance, not measured gains.

Frequently Asked Questions

Is a Y-pipe included with the GrimmSpeed Top Mount Intercooler Kit for GD and later STI models? No. The GrimmSpeed Top Mount Intercooler Kit for GD and later STI models is designed around the factory STI Y-pipe, and the kit supplies new Y-pipe gaskets and bolts. Owners without one can choose the bundled GrimmSpeed intercooler and cast aluminum Y-pipe kit.
How much power will this top mount intercooler support? GrimmSpeed designed the core for Subaru builds making up to approximately 550 whp and says it will support about 575 whp before a front mount intercooler is likely to be the better choice. The core itself flows over 1,500 CFM.
Does the intercooler fit a 2002-2007 WRX or Forester XT? Yes, with an STI-style Y-pipe, which these vehicles do not have from the factory. GrimmSpeed sells this exact intercooler with its cast aluminum Y-pipe, couplers and clamps as a single kit for the 2002-2007 WRX and 2004-2008 Forester XT, so nothing else needs sourcing.
Will the larger core add pressure drop or lag? Very little, according to GrimmSpeed testing. On a stock TD04 turbo test car running 19 psi, the recorded pressure drop peaked just above 0.2 psi and averaged about 0.1 psi. GrimmSpeed also found the factory unit losing efficiency from about 3,800 rpm.
Do I need a new hood scoop splitter? Not necessarily, but GrimmSpeed recommends one. Its lightweight splitter is shaped for this core and whichever hood scoop is fitted, and GrimmSpeed says STI owners benefit too. The splitter is sold separately and is not included with this intercooler kit.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
