Will the GrimmSpeed Charge Pipe Kit for VA clear an aftermarket radiator?

Usually, but not always. GrimmSpeed notes that some aftermarket radiators may need a slimmer radiator fan setup before the Charge Pipe Kit for VA fits properly. If the WRX already wears an aftermarket radiator, check its fan depth and clearance before ordering, and plan for a thinner fan if space is tight.

Does the bypass valve have to be relocated?

No. GrimmSpeed deliberately kept the bypass valve in its factory position on this pipe. That avoids extra fittings and brackets, shortens installation, and lets the factory valve or a compatible aftermarket valve bolt on in the usual place, so the engine bay layout stays familiar.

Does it work with the GrimmSpeed top mount intercooler?

Yes. GrimmSpeed designed this pipe for the 2015-2021 WRX top mount layout, and its own top mount intercooler kit lists the charge pipe as an optional upgrade. The two can be installed together in one session or one at a time as the budget allows.

Can I use this pipe with a front mount intercooler?

No. This pipe routes charge air from the turbo to a top mount intercooler, and Turn 14 lists it as a TMIC charge pipe. GrimmSpeed front mount kits supply their own aluminum piping, so this part is not needed for a front mount conversion.

Why does the turbo flange use an O-ring?

GrimmSpeed machines the turbo flange to accept a custom O-ring because a poor seal at that joint is a failure it has seen on other aftermarket charge pipes. The O-ring gives a positive seal at the turbo outlet under boost, where a leak would cost response and power.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

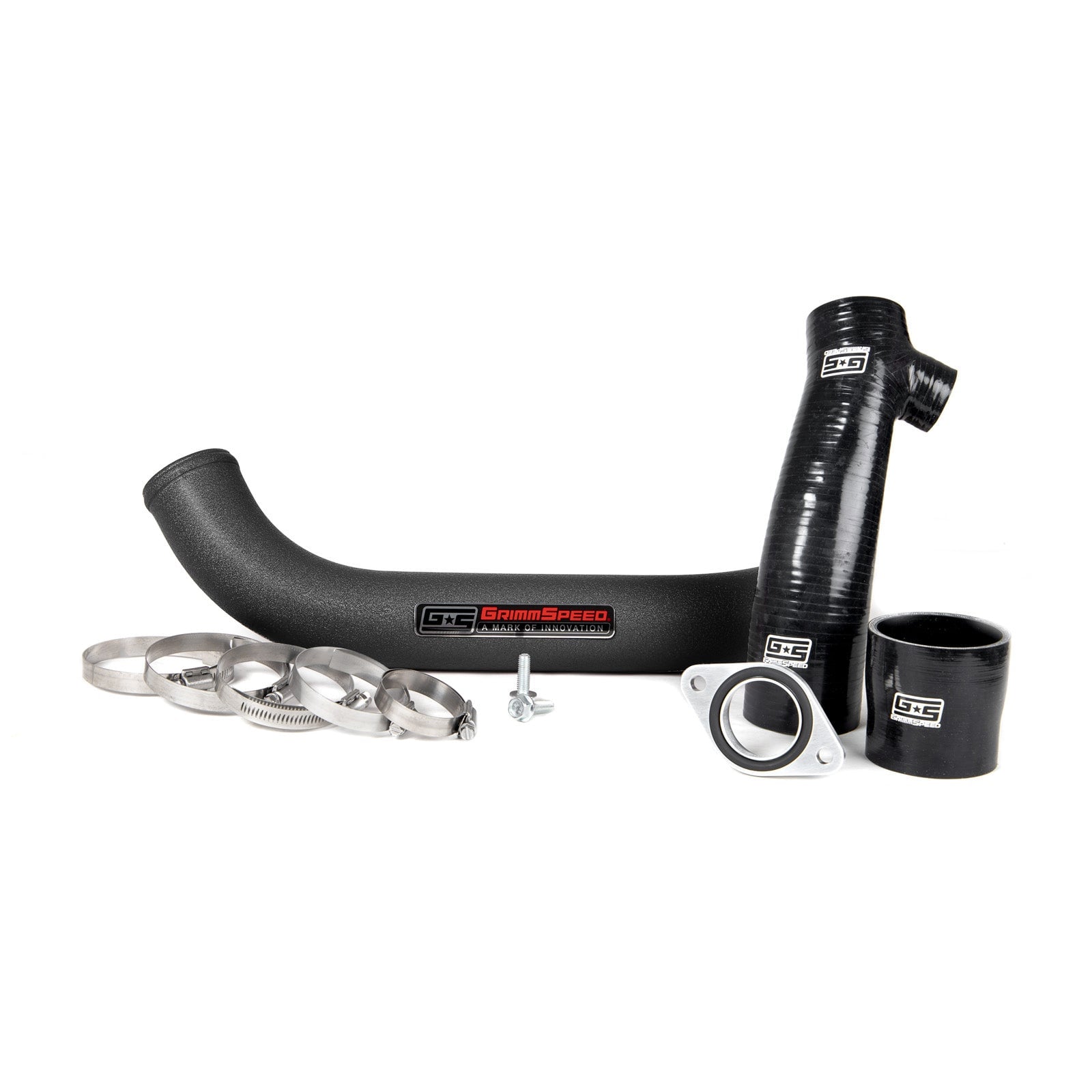

GrimmSpeed Charge Pipe Kit for VA Subaru WRX

GrimmSpeed’s Charge Pipe Kit for VA Subaru WRX replaces the plastic factory pipe on the 2.0L FA20DIT with 2.5 in CNC mandrel bent 6061 aluminum and custom formed silicone, running from a machined, tapered turbo adapter to the top mount intercooler. The argument is straightforward: more diameter and gentler bends give the charge air less to fight, which GrimmSpeed credits with better performance and quicker spool. It belongs on a VA WRX that keeps the top mount layout, and GrimmSpeed’s own top mount kit lists it as the natural companion. An owner already planning a front mount conversion can skip it, because a front mount kit carries its own piping.

Design

The silicone sections are placed where the pipe meets the hot turbo area, insulating the charge air there, while the aluminum runs shed heat on the way to the intercooler. GrimmSpeed machines the turbo flange to carry a custom O-ring, aimed at a leak point it has seen on other aftermarket pipes, and leaves the bypass valve where Subaru put it, which keeps parts count down and installation quicker. With the silicone tucked out of sight, the finished pipe reads almost factory under the hood.

Features

2.5 in 6061 aluminum tubing, CNC mandrel bent on large radius bends
US-sourced 6061 aluminum for the tubing and the turbo outlet adapter
Tapered turbo adapter with smooth transitions through to the intercooler
Machined turbo flange designed around a custom O-ring seal
Bypass valve stays in its factory location
Textured black or red powdercoat finished with the GrimmSpeed badge logo

Applications

Subaru WRX: VA | 2015-2021 | 2.0L FA20DIT

Notes

With some aftermarket radiators, GrimmSpeed advises that a slimmer radiator fan setup may be needed for the Charge Pipe Kit for VA to fit
Built for the top mount layout and pairs directly with the GrimmSpeed Top Mount Intercooler Kit for VA Subaru WRX
Fits the FA20DIT WRX only; the EJ257 STI is not covered by this pipe

Frequently Asked Questions

Will the GrimmSpeed Charge Pipe Kit for VA clear an aftermarket radiator? Usually, but not always. GrimmSpeed notes that some aftermarket radiators may need a slimmer radiator fan setup before the Charge Pipe Kit for VA fits properly. If the WRX already wears an aftermarket radiator, check its fan depth and clearance before ordering, and plan for a thinner fan if space is tight.
Does the bypass valve have to be relocated? No. GrimmSpeed deliberately kept the bypass valve in its factory position on this pipe. That avoids extra fittings and brackets, shortens installation, and lets the factory valve or a compatible aftermarket valve bolt on in the usual place, so the engine bay layout stays familiar.
Does it work with the GrimmSpeed top mount intercooler? Yes. GrimmSpeed designed this pipe for the 2015-2021 WRX top mount layout, and its own top mount intercooler kit lists the charge pipe as an optional upgrade. The two can be installed together in one session or one at a time as the budget allows.
Can I use this pipe with a front mount intercooler? No. This pipe routes charge air from the turbo to a top mount intercooler, and Turn 14 lists it as a TMIC charge pipe. GrimmSpeed front mount kits supply their own aluminum piping, so this part is not needed for a front mount conversion.
Why does the turbo flange use an O-ring? GrimmSpeed machines the turbo flange to accept a custom O-ring because a poor seal at that joint is a failure it has seen on other aftermarket charge pipes. The O-ring gives a positive seal at the turbo outlet under boost, where a leak would cost response and power.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
