Are rotors and pads included with the 316mm Brake Caliper Kit for VB?

No. The 316mm Brake Caliper Kit for VB cars includes two calipers, two VB-specific brackets, hardware, a fitment template and instructions. GrimmSpeed pairs it with Subaru OEM rotor 26300AN010, a 316 x 28mm part, and with F40 pads to FMSI D968, both purchased separately.

Can I keep using Subaru rotors with this GrimmSpeed kit?

Yes. GrimmSpeed lists Subaru OEM rotor 26300AN010 for this kit, a 316 x 28mm rotor that GrimmSpeed says fits only the VB WRX. Staying on that part number keeps replacements easy to order from a Subaru parts counter, and aftermarket rotors of the same dimensions also work.

Will the GrimmSpeed VB calipers fit behind my wheels?

Probably, but check first. GrimmSpeed states the caliper is 3.5mm wider on the outboard side than the STI caliper and 11.5mm taller at the spring bridge securing point, and it has verified select 17 inch wheels with appropriate offsets. Test the 1:1 template against your wheel before ordering rotors.

Do the GrimmSpeed calipers need new brake lines on a VB WRX?

No. The calipers attach to the factory lines using the supplied banjo bolts and crush washers, and GrimmSpeed does not include lines. GrimmSpeed does say new lines may be recommended depending on the vehicle, so braided lines are a reasonable addition for a VB that sees track days.

Should I choose the 316mm or the 340mm VB kit?

Choose the 316mm kit to stay on the VB-specific Subaru rotor, part 26300AN010. Choose the 340mm kit to step up to a 340 x 30mm rotor, Subaru part 26300VA000, if your wheels clear it. Both kits share the forged caliper, F40 pads and Red or Gunmetal Gray finishes.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

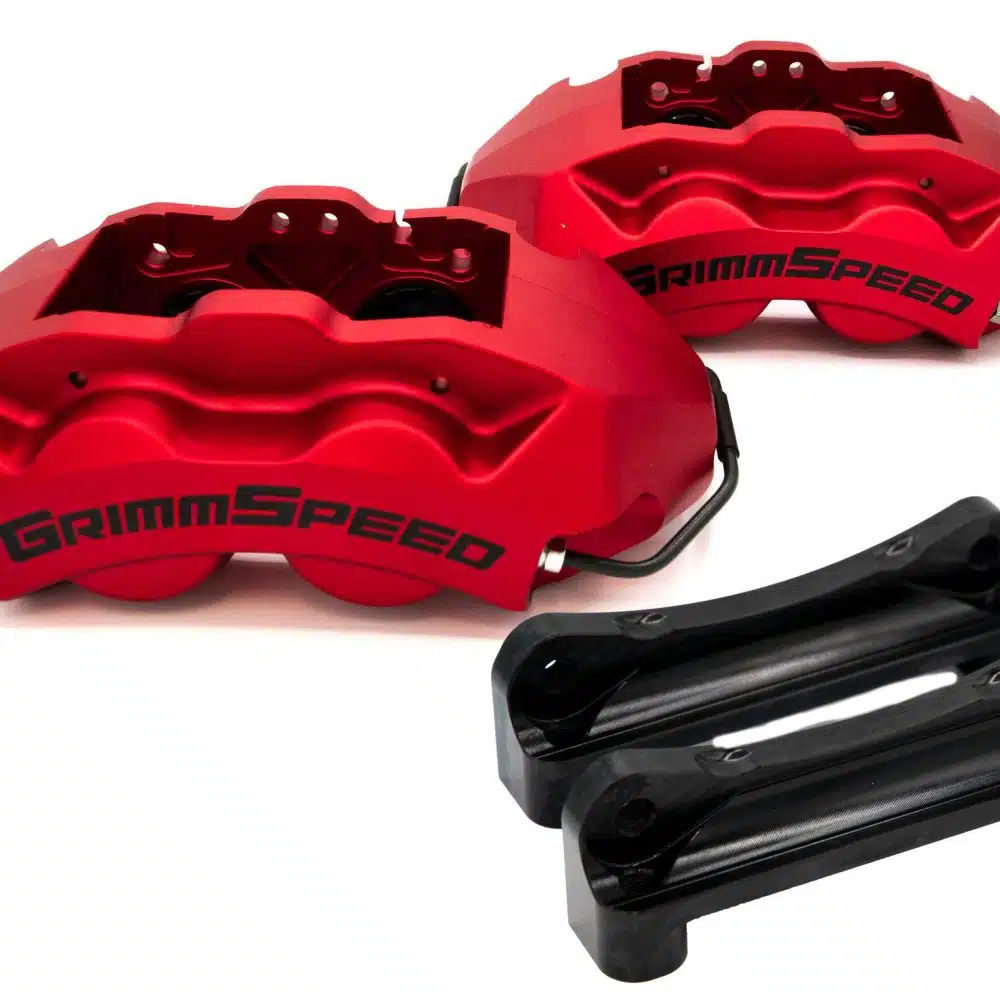

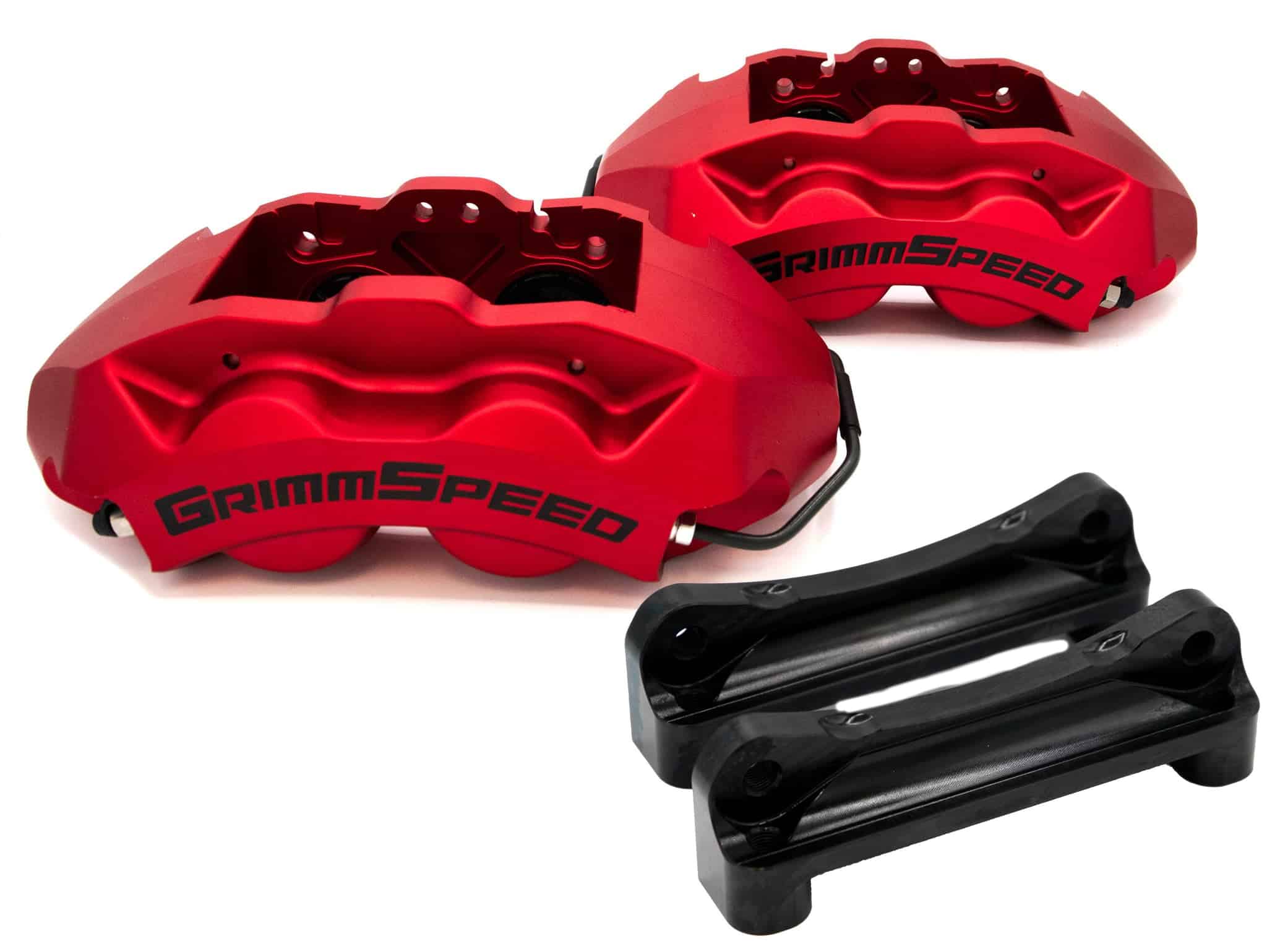

GrimmSpeed 4-Piston 316mm Brake Caliper Kit for VB Subaru WRX

With the GrimmSpeed 316mm Brake Caliper Kit for VB Subaru WRX, the 2022 and later WRX gets fixed 4-piston calipers forged from 6061-T6 aluminum while staying on a Subaru rotor: GrimmSpeed matches the kit to OEM part 26300AN010, a 316 x 28mm rotor it describes as fitting only the VB. Pads are the F40 shape, FMSI D968. It suits a VB owner who wants the heat handling and pedal consistency of a fixed caliper but would rather keep replacement rotors simple to buy.

Features

Hard anodized two-piece body forged from 6061-T6 aluminum
Paired 44mm primary and 41mm secondary pistons per side to reduce pad taper
Vented 6061-T6 billet pistons, Type 3 hard anodized
VB-specific billet 4140 chromoly brackets with an electrocoated finish
Lightweight, at roughly 9.9 lb per corner complete with bracket and hardware
Designed for the OEM hub and the factory brake lines

What’s Included

GrimmSpeed 4-piston brake calipers, Red or Gunmetal Gray (x2)
Vehicle-specific billet 4140 steel caliper brackets (x2)
Hardware kit: bridge bolts, banjo bolts, crush washers, bleeder dust caps, caliper guide pins, security cotter pins, caliper spring bridges and bolts
Printable 1:1 fitment template
Installation instructions

Applications

Subaru WRX: VB | 2022-present | 2.4L FA24DIT

Notes

Rotors and brake pads are not included; the 316mm Brake Caliper Kit for VB cars needs 316 x 28mm rotors such as Subaru 26300AN010, plus F40 pads to FMSI D968
Factory brake lines are reused and none are supplied; GrimmSpeed notes new lines may be recommended depending on the vehicle
Wheel clearance can be checked with the printable 1:1 template that comes in the box

Frequently Asked Questions

Are rotors and pads included with the 316mm Brake Caliper Kit for VB? No. The 316mm Brake Caliper Kit for VB cars includes two calipers, two VB-specific brackets, hardware, a fitment template and instructions. GrimmSpeed pairs it with Subaru OEM rotor 26300AN010, a 316 x 28mm part, and with F40 pads to FMSI D968, both purchased separately.
Can I keep using Subaru rotors with this GrimmSpeed kit? Yes. GrimmSpeed lists Subaru OEM rotor 26300AN010 for this kit, a 316 x 28mm rotor that GrimmSpeed says fits only the VB WRX. Staying on that part number keeps replacements easy to order from a Subaru parts counter, and aftermarket rotors of the same dimensions also work.
Will the GrimmSpeed VB calipers fit behind my wheels? Probably, but check first. GrimmSpeed states the caliper is 3.5mm wider on the outboard side than the STI caliper and 11.5mm taller at the spring bridge securing point, and it has verified select 17 inch wheels with appropriate offsets. Test the 1:1 template against your wheel before ordering rotors.
Do the GrimmSpeed calipers need new brake lines on a VB WRX? No. The calipers attach to the factory lines using the supplied banjo bolts and crush washers, and GrimmSpeed does not include lines. GrimmSpeed does say new lines may be recommended depending on the vehicle, so braided lines are a reasonable addition for a VB that sees track days.
Should I choose the 316mm or the 340mm VB kit? Choose the 316mm kit to stay on the VB-specific Subaru rotor, part 26300AN010. Choose the 340mm kit to step up to a 340 x 30mm rotor, Subaru part 26300VA000, if your wheels clear it. Both kits share the forged caliper, F40 pads and Red or Gunmetal Gray finishes.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
