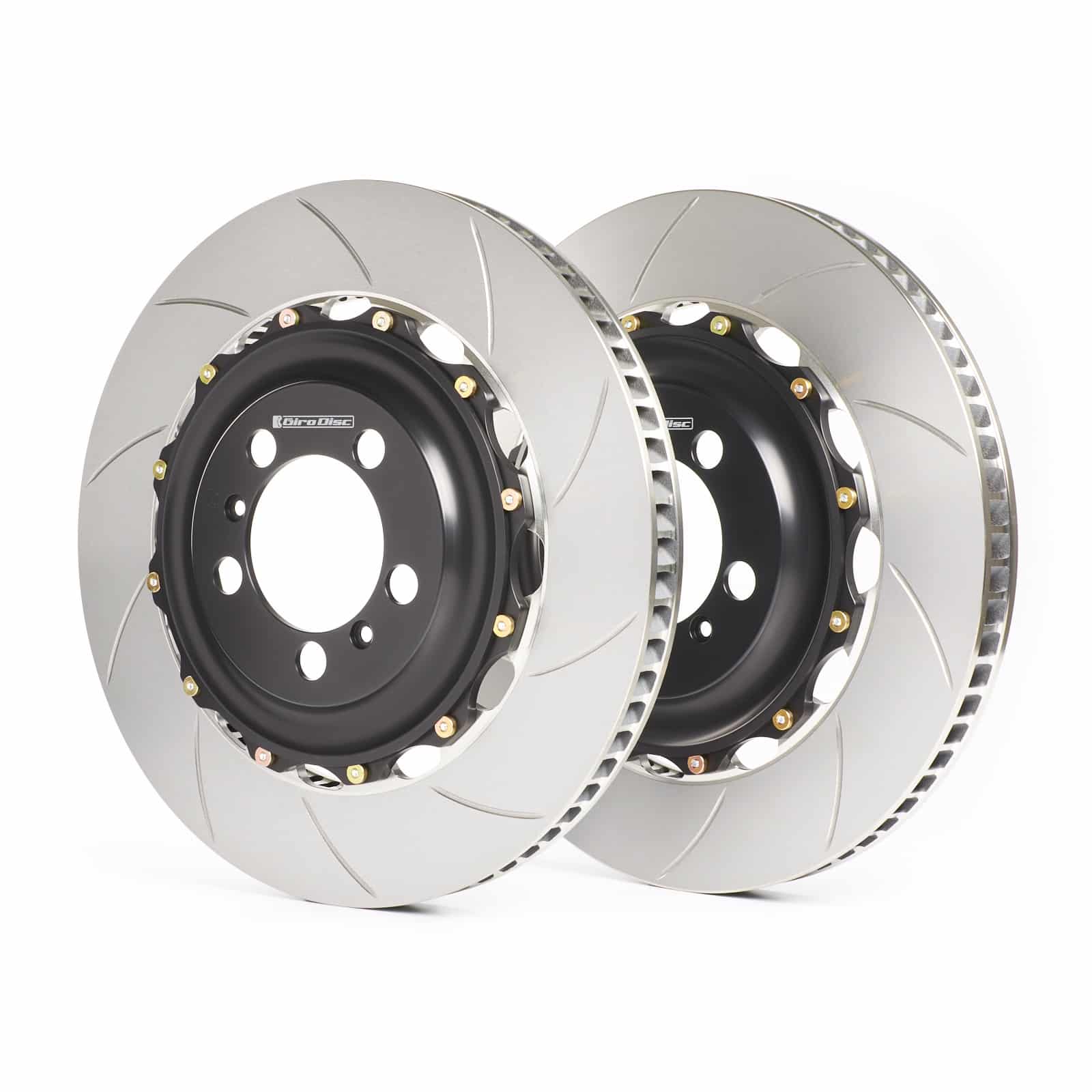

GiroDisc Dimpled Slotted Front Rotors for W463 Mercedes-AMG G63

GiroDisc’s Dimpled Slotted Front Rotors for W463 Mercedes-AMG G63 put a dimpled and slotted friction face on GiroDisc’s two-piece floating design, for owners who want that surface on the front of the big AMG. The rotor bolts straight on in place of the original disc and works with the factory calipers, so there is nothing to modify. Its ring is GiroDisc’s own cast iron, poured in the USA and machined in Bellingham, Washington, and it runs on ten cadmium-plated alloy steel drive pins.

Design and Performance

Ten drive pins carry the braking load from the ring to the 6061-T6 aluminum hat while letting the ring move axially and radially as it heats. Class 12.9 cap screws with hardened washers hold the pins, and anti-noise spring washers stop the cold rattle floating rotors are known for. The GiroDisc Dimpled Slotted Front Rotors for W463 also pump air through curved internal vanes, and the two-piece build trims rotating and unsprung mass.

Features

Dimpled and slotted friction face
Direct replacement that works with the factory front calipers
Ten high-strength alloy steel drive pins, cadmium plated
Class 12.9 cap screws with hardened washers
Curved internal vanes that pump air from the hub outward
US-sourced 6061-T6 aluminum hat

What’s Included

Front rotor assemblies (L/R)

Applications

Mercedes-AMG G63: W463

Notes

Replacement rings for these hats are the GiroDisc G63 dimpled and slotted front replacement rings
The rear axle is covered by the GiroDisc dimpled slotted rear rotors for the G63
GiroDisc also offers a standard G63 front rotor that comes with caliper spacers for a 410mm disc
Stock photography may not depict the actual product

Frequently Asked Questions

What is the difference between the GiroDisc Dimpled Slotted Front Rotors for W463 and the standard version? The GiroDisc Dimpled Slotted Front Rotors for W463 carry a dimpled and slotted friction face and are sold as part A1-260DS. The standard A1-260 rotor is a separate part that GiroDisc supplies with caliper spacers and longer bolts. Both are two-piece floating assemblies for the G63 with aluminum hats and GiroDisc iron rings.
Do these rotors work with the original G63 front calipers? Yes. GiroDisc describes the A1-260DS as a direct replacement for the factory disc that bolts to the vehicle and works with the original calipers. No modification is needed, which also means the factory brake bias and the ABS behavior stay as Mercedes-AMG engineered them.
How many drive pins hold each dimpled ring to its hat? Ten. Each ring is fixed to its aluminum hat by ten high-strength alloy steel drive pins that GiroDisc makes in the USA and cadmium plates against corrosion. The pins take the braking load while allowing the ring to float, and they are secured by class 12.9 cap screws with hardened washers.
Can the dimpled rings be replaced without buying new hats? Yes. The hats are reused for the life of the rotor. Once the rings wear to the minimum thickness marked on the hat and the ring edge, a pair of D1-260DS dimpled and slotted replacement rings bolts on with new hardware supplied, and the cap screws are set to no more than 60 in-lb.
Will the floating rings make noise at parking lot speeds? No, not under normal conditions. GiroDisc fits anti-noise spring washers to the drive pins on the rotor side. They let the ring expand as it heats yet hold it firmly enough when cold to remove the rattle that floating rotors without them can produce at walking pace.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
