Are the hats included with the dimpled ring pair?

No. The pair includes a left ring, a right ring and new mounting hardware. The aluminum hats already fitted to the G63 are reused, which is what keeps the running cost of a two-piece rotor below that of buying complete assemblies each time the iron wears out.

Can another brand of ring be fitted to the G63 dimpled hats?

No. GiroDisc designs its hats and rings to work together. Rings from other manufacturers are not designed for GiroDisc hats, and GiroDisc states that its own rings are intended only for GiroDisc hats, not for other brands or for factory two-piece rotors.

What torque do the cap screws take after a G63 front ring change?

GiroDisc sets a ceiling of 60 in-lb, which is 7 Nm, for the cap screws that hold the drive pins. They are not meant to clamp the ring tight. The floating mount relies on a small amount of movement, so the screws can look loose even when correctly installed.

How is a cracked G63 front ring handled?

GiroDisc advises replacing the rings if a crack leads to the outer edge, even when the thickness remains above the marked minimum. The D1-260DS pair then goes onto the existing hats with the new hardware supplied, the worn rings are retired and the hats return to service.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

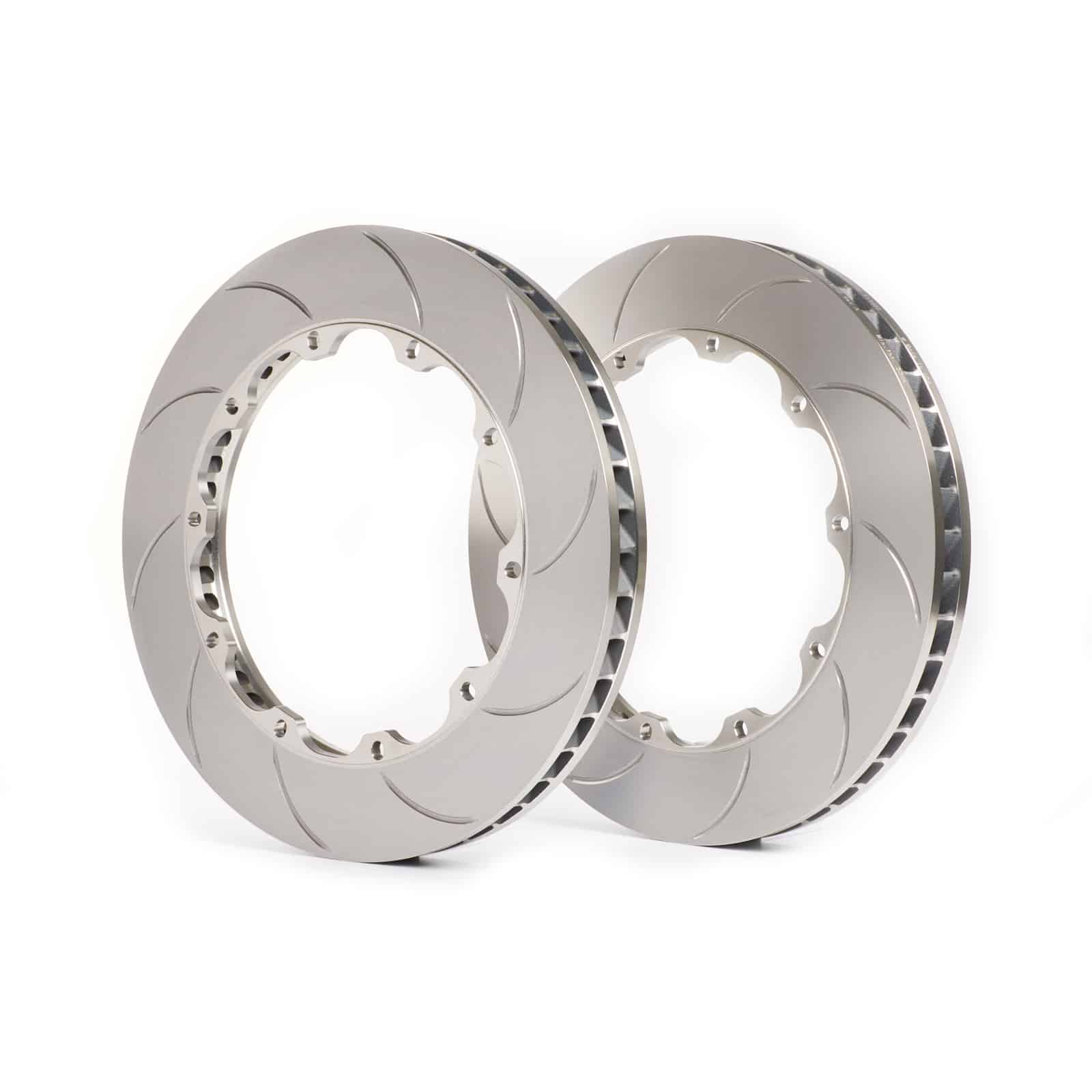

GiroDisc Dimpled Slotted Front Replacement Rings for W463 Mercedes-AMG G63

GiroDisc’s Dimpled Slotted Front Replacement Rings for W463 Mercedes-AMG G63 are the service part for the A1-260DS front rotors, putting new dimpled and slotted iron on the existing aluminum hats. The ring measures 410mm across, per GiroDisc, and the pair ships with new mounting hardware so the floating mount is renewed along with the friction surface. GiroDisc pours the iron in the USA and machines it in Bellingham, Washington. For a G63 owner who chose the dimpled look, these keep it consistent through every ring change.

Fitment and Installation

Only GiroDisc hats take these rings; other brands and factory two-piece hats are not compatible. The swap is a bench job once the rotors are off: unbolt the worn rings, fit the GiroDisc Dimpled Slotted Front Replacement Rings for W463 with the new hardware, and tighten the cap screws to no more than 60 in-lb. Each rotor is handed, so keep left and right rings on the correct hats.

Features

410mm outer diameter
Dimpled and slotted friction face
Proprietary GiroDisc iron, poured in the USA
Machined start to finish in Bellingham, Washington
New mounting hardware included with the pair
Left and right handed curved vanes

What’s Included

Front replacement rings (L/R)
Replacement mounting hardware

Applications

Mercedes-AMG G63: W463 | with GiroDisc A1-260DS front rotors

Notes

Made for the hats of the GiroDisc G63 dimpled slotted front rotors and no other hats
The aluminum hats are not included and stay on the vehicle
The rear axle uses the GiroDisc G63 dimpled and slotted rear replacement rings
Stock photography may not depict the actual product

Frequently Asked Questions

Which rotor do the GiroDisc Dimpled Slotted Front Replacement Rings for W463 belong to? The GiroDisc Dimpled Slotted Front Replacement Rings for W463 are listed by GiroDisc for its A1-260DS front rotor on the Mercedes-AMG G63. They bolt to the aluminum hats from that rotor and renew the dimpled and slotted friction surface without replacing the hats themselves.
Are the hats included with the dimpled ring pair? No. The pair includes a left ring, a right ring and new mounting hardware. The aluminum hats already fitted to the G63 are reused, which is what keeps the running cost of a two-piece rotor below that of buying complete assemblies each time the iron wears out.
Can another brand of ring be fitted to the G63 dimpled hats? No. GiroDisc designs its hats and rings to work together. Rings from other manufacturers are not designed for GiroDisc hats, and GiroDisc states that its own rings are intended only for GiroDisc hats, not for other brands or for factory two-piece rotors.
What torque do the cap screws take after a G63 front ring change? GiroDisc sets a ceiling of 60 in-lb, which is 7 Nm, for the cap screws that hold the drive pins. They are not meant to clamp the ring tight. The floating mount relies on a small amount of movement, so the screws can look loose even when correctly installed.
How is a cracked G63 front ring handled? GiroDisc advises replacing the rings if a crack leads to the outer edge, even when the thickness remains above the marked minimum. The D1-260DS pair then goes onto the existing hats with the new hardware supplied, the worn rings are retired and the hats return to service.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
