What do the GiroDisc 345mm Rear Replacement Rings bolt to?

The GiroDisc 345mm Rear Replacement Rings bolt to the hats of the GiroDisc A2-307 rear rotors on the GR Supra 3.0 and the BMW G-chassis M Performance models. They work with GiroDisc hats only and do not fit factory rotors or hats from other makers.

What is the wear limit on these rear rings?

The rings start at 24mm thick and GiroDisc sets the minimum at 22mm. Measure them at each service and replace the pair once either ring reaches 22mm, or immediately if a crack runs out to the edge of the ring.

Is hardware included with the rear ring set?

Yes. GiroDisc supplies replacement mounting hardware with each pair of rings, so nothing from the worn rings is reused except the aluminum hats. The cap screws are tightened to no more than 60 in-lb, or 7 Nm, on reassembly, which keeps the float the design depends on.

Can the rear rings go on either side of the vehicle?

No. The 48 curved vanes in each ring are directional, so GiroDisc makes a left and a right ring and labels each one. Fitting them on the marked side keeps the vanes pumping air outward as intended and keeps the cooling effective.

Where are these rear rings produced?

GiroDisc manufactures its hats, rings and drive pins in house at its facility in Bellingham, Washington, using domestically sourced materials. The rings themselves are machined from a proprietary high-carbon iron casting made to GiroDisc specifications, which GiroDisc says holds up better under hard use.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

GiroDisc 345mm Rear Replacement Rings for Toyota GR Supra and BMW G-Chassis M Performance Models

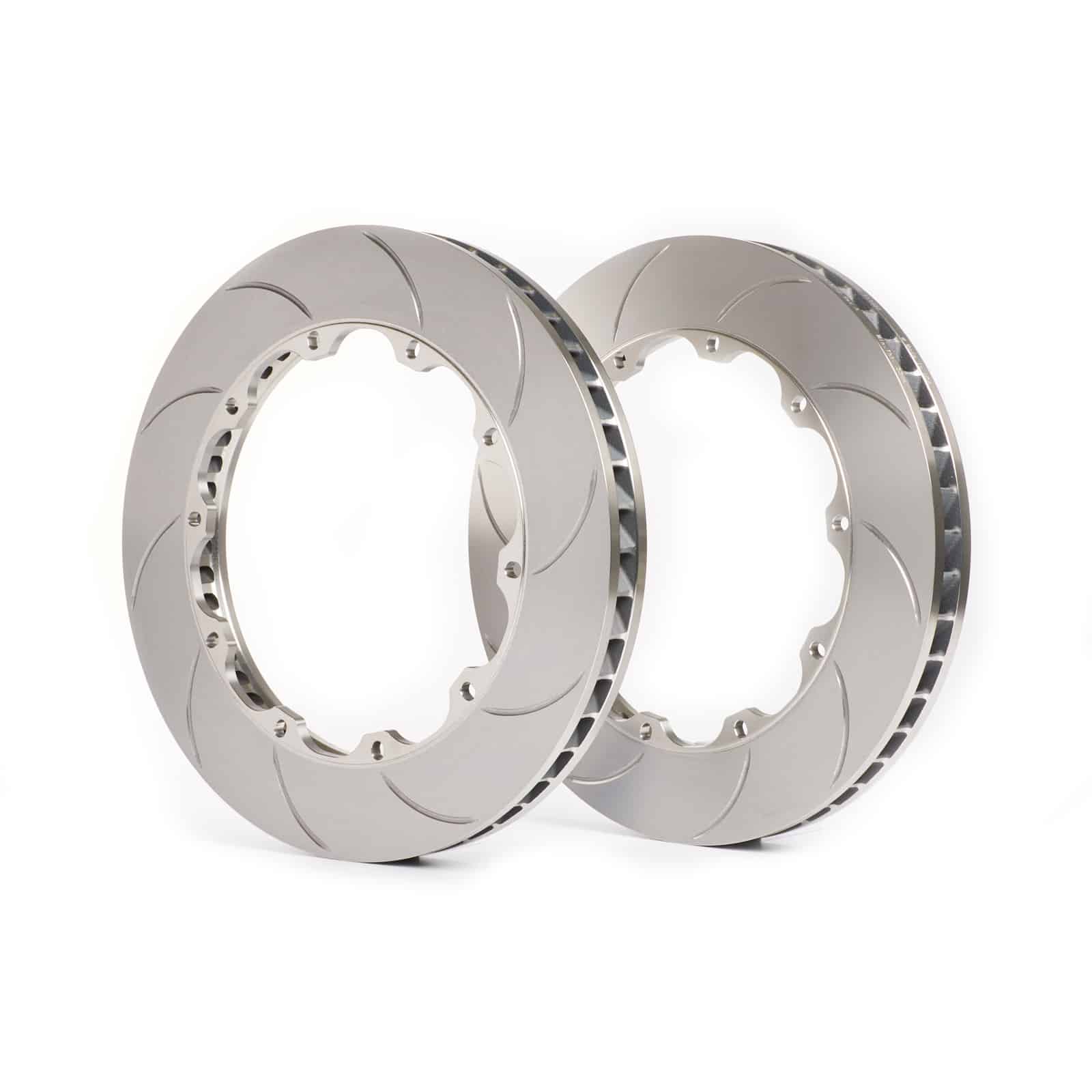

GiroDisc’s 345mm Rear Replacement Rings for Toyota GR Supra and BMW G-chassis M Performance models are the service part for GiroDisc A2-307 rear rotors: two 24mm iron rings and new hardware that bolt to the hats already on the vehicle. GiroDisc casts the high-carbon iron to its own formula and machines each ring in Bellingham, Washington. When a ring reaches the 22mm limit, this is the set to order, and the anodized hats simply carry on.

Construction

Each ring has 48 curved vanes that draw air in at the hub and drive it out through the disc, and a slotted face that keeps the friction surface clean and clear of water. The ring floats on the GiroDisc hat through spring clips and spring washers, which allow heat expansion without the rattle of loose hardware.

Features

345mm outer diameter, 24mm thick new
22mm minimum thickness
48 curved cooling vanes
Sold in pairs with replacement hardware
Proprietary high-carbon iron casting
Handed left and right and labeled

What’s Included

Rear replacement rings (L/R)
Replacement mounting hardware

Applications

BMW M340i with optional M Sport brakes: G2X
BMW M440i with optional M Sport brakes: G2X
BMW X3 M40i: G01
BMW X4 M40i: G02
BMW Z4 M40i: G29
Toyota GR Supra: 3.0L

Notes

The 345mm Rear Replacement Rings fit GiroDisc hats only; hats are not included
They bolt to the hats of the GiroDisc 345mm rear rotors and fit those hats only
The front axle uses the GiroDisc 348mm front replacement rings
Replace the rings at 22mm or if a crack reaches the edge of the ring
Stock photography may not depict the actual product

Frequently Asked Questions

What do the GiroDisc 345mm Rear Replacement Rings bolt to? The GiroDisc 345mm Rear Replacement Rings bolt to the hats of the GiroDisc A2-307 rear rotors on the GR Supra 3.0 and the BMW G-chassis M Performance models. They work with GiroDisc hats only and do not fit factory rotors or hats from other makers.
What is the wear limit on these rear rings? The rings start at 24mm thick and GiroDisc sets the minimum at 22mm. Measure them at each service and replace the pair once either ring reaches 22mm, or immediately if a crack runs out to the edge of the ring.
Is hardware included with the rear ring set? Yes. GiroDisc supplies replacement mounting hardware with each pair of rings, so nothing from the worn rings is reused except the aluminum hats. The cap screws are tightened to no more than 60 in-lb, or 7 Nm, on reassembly, which keeps the float the design depends on.
Can the rear rings go on either side of the vehicle? No. The 48 curved vanes in each ring are directional, so GiroDisc makes a left and a right ring and labels each one. Fitting them on the marked side keeps the vanes pumping air outward as intended and keeps the cooling effective.
Where are these rear rings produced? GiroDisc manufactures its hats, rings and drive pins in house at its facility in Bellingham, Washington, using domestically sourced materials. The rings themselves are machined from a proprietary high-carbon iron casting made to GiroDisc specifications, which GiroDisc says holds up better under hard use.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
