Do the GiroDisc 345mm Rear Rotors for Toyota GR Supra also fit BMW models?

Yes. GiroDisc lists the GiroDisc 345mm Rear Rotors for Toyota GR Supra 3.0 cars as a direct replacement on the G2X M340i and M440i with optional M Sport brakes, the G01 X3 M40i, the G02 X4 M40i and the G29 Z4 M40i. Other G-chassis vehicles with 345mm rear discs may also fit.

How much does each rear rotor weigh?

GiroDisc lists each complete rear assembly at 15.5 lb, including the aluminum hat. The ring is 345mm in diameter and 24mm thick, and inside it 48 curved vanes act as a centrifugal pump, drawing air in through the hub to cool the disc.

When do the rear rings need replacing?

GiroDisc sets a minimum thickness of 22mm for these rings, down from 24mm new. Replace them at that point with GiroDisc part number D2-307, or straight away if a crack reaches the edge of the ring, even when thickness remains.

Are these rear rotors quiet enough for daily use?

Yes. GiroDisc assembles every rotor with spring clips and spring washers, which give the ring race-ready float but stop the noise that loose floating hardware can make. On a road-driven Supra or BMW, the rotors stay quiet in traffic and around town.

What are the hats on the rear rotors made from?

The hats are machined from 6061-T6 aluminum and finished in black anodize. GiroDisc makes the hats, rings and drive pins in house in Bellingham, Washington, from domestically sourced materials, and the hat is reused each time new rings are fitted.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

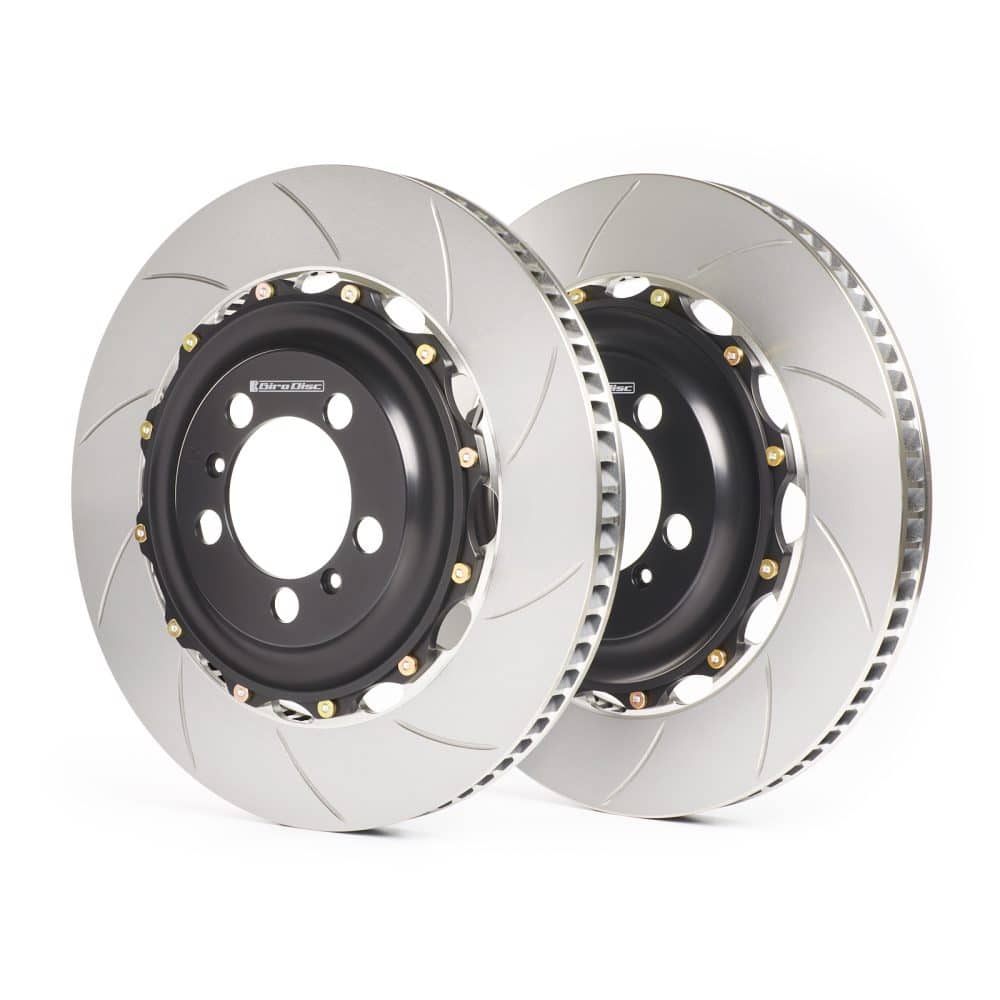

GiroDisc 345mm Rear Rotors for Toyota GR Supra 3.0 and BMW G-Chassis M Performance Models

GiroDisc’s 345mm Rear Rotors for Toyota GR Supra 3.0 and BMW G-chassis M Performance models put a 15.5 lb floating assembly at each rear corner, according to GiroDisc, in place of the factory 345mm one-piece disc. The 24mm ring is cast from GiroDisc’s high-carbon iron with 48 curved vanes, and it rides on a black-anodized 6061-T6 hat. Paired with the matching fronts, it gives a GR Supra or M40i owner a complete GiroDisc setup with reusable hats at both ends.

Design and Performance

Spring clips and spring washers give the ring the float it needs for hard use while keeping the assembly quiet on the street, with no noise from loose hardware. The cadmium-plated, high-strength steel drive pins resist corrosion, and every major component, from hat to ring to pin, is made in-house by GiroDisc in Bellingham, Washington, from domestically sourced materials.

Features

15.5 lb per rotor assembly, per GiroDisc
48 curved vanes for hub-to-rim airflow
24mm ring with a 22mm minimum thickness
Black-anodized 6061-T6 aluminum hat
Spring clips and washers for quiet, race-ready float
Direct replacement for the factory 345mm rear disc

Specifications

Outer diameter: 345mm
Thickness: 24mm
Minimum thickness: 22mm
Weight: 15.5 lb per rotor assembly
Vane count: 48 curved vanes

What’s Included

Rear rotor assemblies (L/R)

Applications

BMW M340i with optional M Sport brakes: G2X
BMW M440i with optional M Sport brakes: G2X
BMW X3 M40i: G01
BMW X4 M40i: G02
BMW Z4 M40i: G29
Toyota GR Supra: 3.0L

Notes

The 345mm Rear Rotors for Toyota GR Supra and BMW models fit only vehicles with the factory 345mm rear disc
Replacement rings are the GiroDisc 345mm rear replacement rings, which bolt to these hats
The front axle takes the GiroDisc 348mm front rotors, which exclude the GR Supra Final Edition
Other BMW G-chassis vehicles with 345mm rear discs may fit; confirm with Bulletproof Automotive before ordering
Stock photography may not depict the actual product

Frequently Asked Questions

Do the GiroDisc 345mm Rear Rotors for Toyota GR Supra also fit BMW models? Yes. GiroDisc lists the GiroDisc 345mm Rear Rotors for Toyota GR Supra 3.0 cars as a direct replacement on the G2X M340i and M440i with optional M Sport brakes, the G01 X3 M40i, the G02 X4 M40i and the G29 Z4 M40i. Other G-chassis vehicles with 345mm rear discs may also fit.
How much does each rear rotor weigh? GiroDisc lists each complete rear assembly at 15.5 lb, including the aluminum hat. The ring is 345mm in diameter and 24mm thick, and inside it 48 curved vanes act as a centrifugal pump, drawing air in through the hub to cool the disc.
When do the rear rings need replacing? GiroDisc sets a minimum thickness of 22mm for these rings, down from 24mm new. Replace them at that point with GiroDisc part number D2-307, or straight away if a crack reaches the edge of the ring, even when thickness remains.
Are these rear rotors quiet enough for daily use? Yes. GiroDisc assembles every rotor with spring clips and spring washers, which give the ring race-ready float but stop the noise that loose floating hardware can make. On a road-driven Supra or BMW, the rotors stay quiet in traffic and around town.
What are the hats on the rear rotors made from? The hats are machined from 6061-T6 aluminum and finished in black anodize. GiroDisc makes the hats, rings and drive pins in house in Bellingham, Washington, from domestically sourced materials, and the hat is reused each time new rings are fitted.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
