Which AFlow Catted Downpipe for B46 or B48 do I need?

Match the option to the engine code on your Supra 2.0. Active Autowerke builds the AFlow Catted Downpipe for B46 and B48 engines as two versions, each supplied with its own turbo gasket. A Toyota dealer can confirm the engine code from the VIN before you order, which avoids a return.

Does the Supra 2.0 need a tune after fitting it?

No. Active Autowerke sells the downpipe as a no-tune part and states that its AFlow converter will not set a catalyst efficiency code on factory software. A tune can make more of the 3.5 inch pipe, and the 300 to 500 horsepower converter rating leaves room for one.

Will it fit the 3.0 liter Supra?

No. This downpipe is built for the four-cylinder GR Supra 2.0 sold from 2021. The six-cylinder B58 Supra 3.0 uses a larger Active Autowerke downpipe, 4.5 inches at the turbo with a 4.5 inch converter, offered in AFlow and GESI versions.

How does the downpipe install?

It bolts on with no cutting or welding. A cast stainless V-band secures it at the turbo with the gasket already seated in the flange, and a stainless flex joint leads to the factory exhaust through its ball flare or slip-in connection. A lift makes the job much easier.

What is the converter made from?

The Active AFlow converter is 304 stainless throughout, including the 400 cell substrate, which is furnace brazed to the mantle. It is EPA registered and OBD2 compliant, withstands exhaust temperatures up to 1500F and reaches operating efficiency within 9 seconds of startup.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

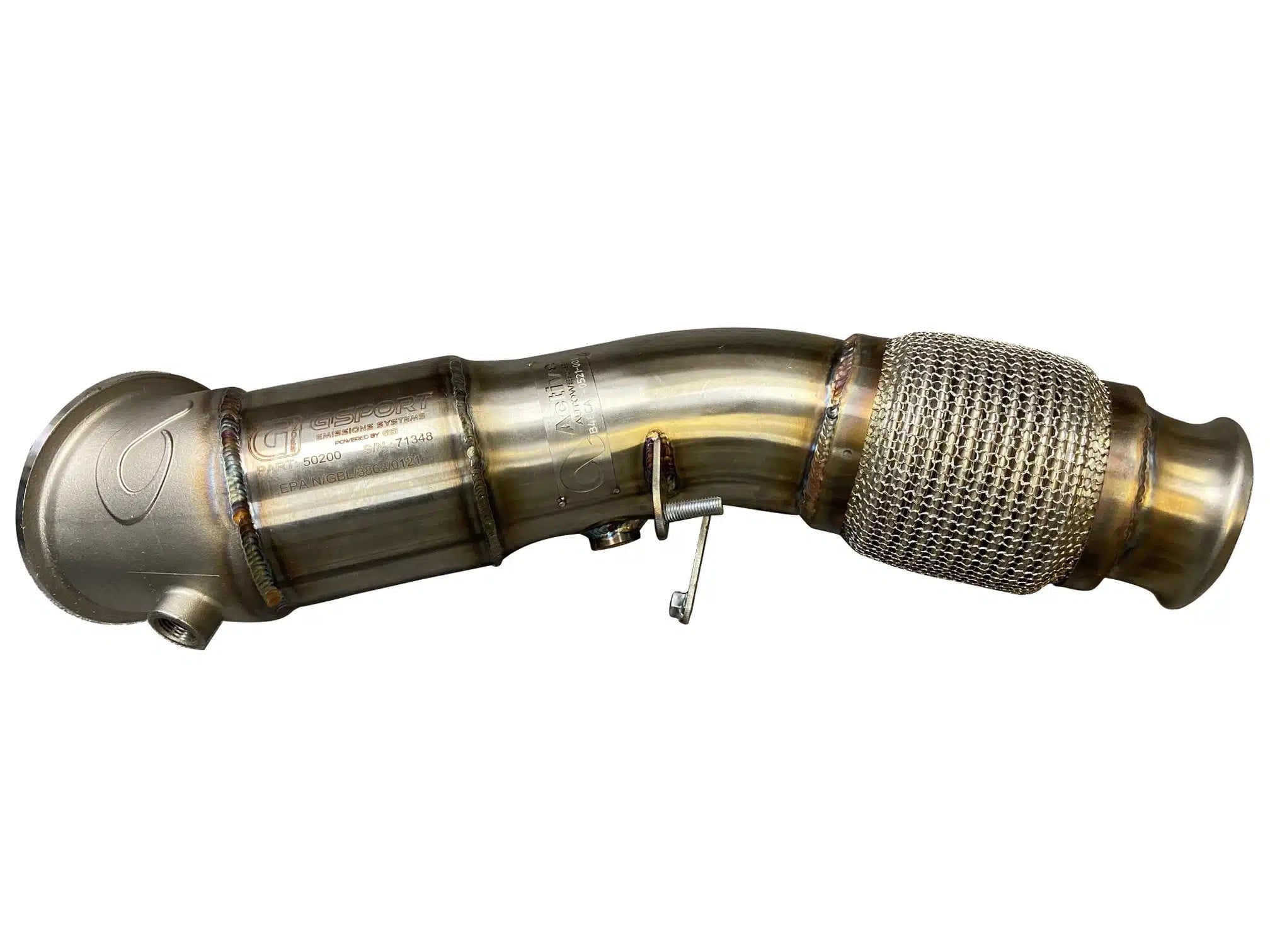

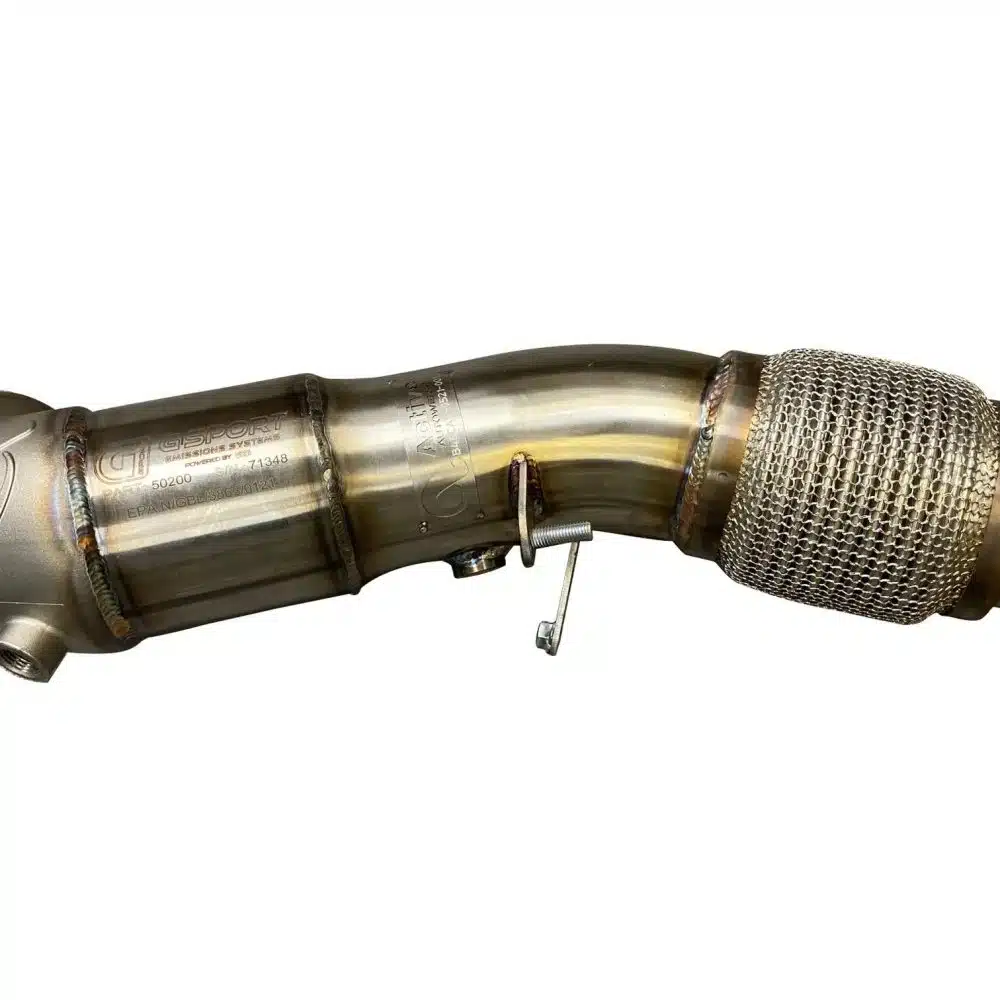

Active Autowerke AFlow Catted Downpipe for B46 / B48 Toyota GR Supra 2.0

Active Autowerke’s AFlow Catted Downpipe for B46 / B48 Toyota GR Supra 2.0 brings the company’s BMW four-cylinder downpipe to the Supra that arrived for 2021 with the same single turbo engine family BMW uses in the 330i. Its 3.5 inch 304 stainless pipe carries a 4 inch Active AFlow converter rated for 300 to 500 horsepower, and a stainless flex joint leads to the factory ball flare or slip-in connection, with the turbo gasket already seated in the flange. Both catalyst choices for this car share that rating, so the AFlow is the better value; the GESI Catted Downpipe for B46 / B48 suits owners who specifically want a GESI catalyst.

Features

Active AFlow high flow converter with a stainless substrate furnace brazed to the mantle
EPA registered and OBD2 compliant converter
Active Autowerke states it will not set a catalyst efficiency check engine light
Cast stainless upper V-band at the turbo
Turbo gasket pre-installed in the downpipe flange
No performance tune needed
TIG welded 304 stainless steel, made in Miami, Florida

Specifications

Piping diameter: 3.5 in
Wall thickness: 1.5mm
Converter diameter: 4 in
Catalyst cell density: 400 cpsi
Rated output: 300 to 500 hp
Heat tolerance: Up to 1500F
Light-off time: Within 9 seconds of startup

Applications

Toyota GR Supra 2.0: 2021-2024 | 2.0L B46 / B48

Notes

Select the B46 or B48 option of the AFlow Catted Downpipe for B46 / B48 to match the engine code on your Supra 2.0
The six-cylinder Supra takes the AFlow Catted Downpipe for A90 GR Supra 3.0
Warranty is 5 years or 50,000 miles on the shell and tube ends and 2 years or 25,000 miles on the catalytic core, to the original purchaser, and excessive burble beyond stock voids it

Frequently Asked Questions

Which AFlow Catted Downpipe for B46 or B48 do I need? Match the option to the engine code on your Supra 2.0. Active Autowerke builds the AFlow Catted Downpipe for B46 and B48 engines as two versions, each supplied with its own turbo gasket. A Toyota dealer can confirm the engine code from the VIN before you order, which avoids a return.
Does the Supra 2.0 need a tune after fitting it? No. Active Autowerke sells the downpipe as a no-tune part and states that its AFlow converter will not set a catalyst efficiency code on factory software. A tune can make more of the 3.5 inch pipe, and the 300 to 500 horsepower converter rating leaves room for one.
Will it fit the 3.0 liter Supra? No. This downpipe is built for the four-cylinder GR Supra 2.0 sold from 2021. The six-cylinder B58 Supra 3.0 uses a larger Active Autowerke downpipe, 4.5 inches at the turbo with a 4.5 inch converter, offered in AFlow and GESI versions.
How does the downpipe install? It bolts on with no cutting or welding. A cast stainless V-band secures it at the turbo with the gasket already seated in the flange, and a stainless flex joint leads to the factory exhaust through its ball flare or slip-in connection. A lift makes the job much easier.
What is the converter made from? The Active AFlow converter is 304 stainless throughout, including the 400 cell substrate, which is furnace brazed to the mantle. It is EPA registered and OBD2 compliant, withstands exhaust temperatures up to 1500F and reaches operating efficiency within 9 seconds of startup.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
