Which trucks does the PowerMax GT3794VA Stage 1 Turbo fit?

Garrett lists the PowerMax GT3794VA Stage 1 Turbo for the 2004.5-2009 Chevrolet and GMC 2500 and 3500 with the 6.6L Duramax. It is outline interchangeable with the factory turbo on those trucks. The later LML trucks from 2011 take a different PowerMax turbo.

How much power will Stage 1 support?

The Garrett estimate is 590 horsepower. It is worked out from where the compressor map reaches choke flow, so it describes the most the turbo can feed the engine as flywheel power rather than a figure measured on a truck. On a Duramax, the injectors, the fuel system and the tune set how close a build gets.

Stage 1 uses a 65mm compressor inducer, 48 trim, with a 73mm turbine, and is rated at 590 horsepower. Stage 2 steps to a 68mm, 52 trim compressor and a larger GT40 turbine wheel and vanes, rated at 630 horsepower. Stage 1 suits a tuned or towing truck; Stage 2 suits a higher power build.

Is it a good stock replacement?

Yes. Garrett describes it as suitable both as a performance upgrade and as a replacement for the original turbo, and outline interchangeable for a correct fit. Its GT Series wheel design is aimed at lower back pressure and lower intake and exhaust gas temperatures.

What does the variable nozzle add?

It lets one turbo cover the whole rev range of the Duramax. The vanes close down to speed the turbine at low rpm and open up as exhaust flow rises, moved by a patented electro-hydraulic actuator and proportional solenoid. Garrett also credits the AVNT design with more compressor and turbine flow than the factory unit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

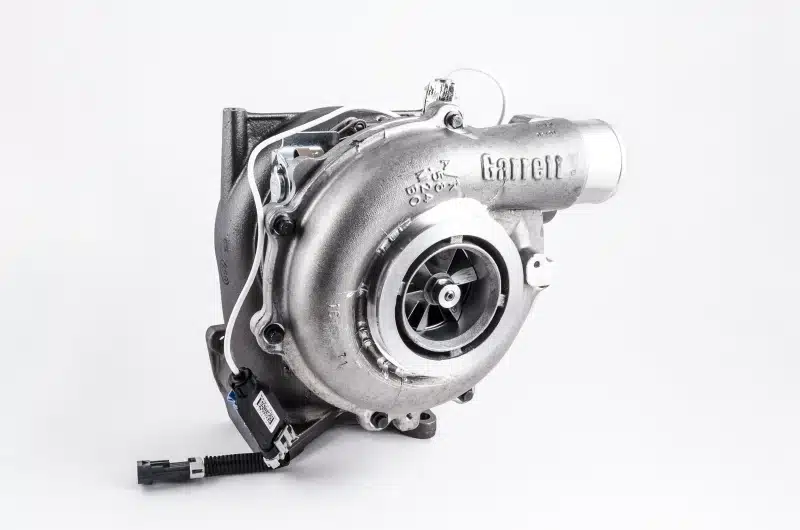

Garrett PowerMax GT3794VA Stage 1 Turbo for 2004.5-2009 Chevrolet and GMC 6.6L Duramax

Garrett’s PowerMax GT3794VA Stage 1 Turbo for the 2004.5-2009 Chevrolet and GMC 2500 and 3500 6.6L Duramax is an AVNT turbocharger that serves as either a performance upgrade or a replacement for the original. Garrett estimates 590 horsepower from the choke flow of the compressor map. Its GT Series wheels are designed for lower back pressure and lower intake and exhaust gas temperatures, which matters on a truck that tows or runs a tune. Builds aiming higher than this should consider the Stage 2, which Garrett rates at 630 horsepower with a larger turbine.

AVNT Design

Nine movable vanes in the turbine housing give the Garrett Advanced Variable Nozzle Turbine more compressor and turbine flow, significantly higher turbine efficiency and better performance from idle launch through peak torque. Integral electro-hydraulic actuation with a proportional solenoid provides infinitely variable control. The turbo is outline interchangeable with the factory unit.

Features

Patented Advanced Variable Nozzle Turbine with nine movable vanes
GT Series wheel design for lower back pressure and lower intake and exhaust gas temperatures
Electro-hydraulic actuation and proportional solenoid for infinitely variable control
Outline interchangeable with the original turbo; suitable as an upgrade or replacement

Specifications

Turbo model: GT3794VA
Compressor inducer and exducer: 65mm and 94mm
Compressor trim and A/R: 48 trim, 0.58 A/R
Turbine inducer and exducer: 73mm and 67mm
Turbine trim and A/R: 78 trim, 0.90 A/R
Garrett power rating: 590 horsepower

Applications

Garrett lists the PowerMax GT3794VA Stage 1 Turbo for these 6.6L Duramax trucks:

Chevrolet 2500: 2004.5-2009 | 6.6L Duramax
Chevrolet 3500: 2004.5-2009 | 6.6L Duramax
GMC 2500: 2004.5-2009 | 6.6L Duramax
GMC 3500: 2004.5-2009 | 6.6L Duramax

Notes

Garrett also offers the Duramax PowerMax Stage 2 turbo, rated at 630 horsepower
The 590 horsepower figure is an estimate from the choke flow of the compressor map; truck results depend on modifications and calibration
Garrett publishes adaptor cable instructions and speed sensor kit instructions for this turbo; see Garrett speed sensor kits

Frequently Asked Questions

Which trucks does the PowerMax GT3794VA Stage 1 Turbo fit? Garrett lists the PowerMax GT3794VA Stage 1 Turbo for the 2004.5-2009 Chevrolet and GMC 2500 and 3500 with the 6.6L Duramax. It is outline interchangeable with the factory turbo on those trucks. The later LML trucks from 2011 take a different PowerMax turbo.
How much power will Stage 1 support? The Garrett estimate is 590 horsepower. It is worked out from where the compressor map reaches choke flow, so it describes the most the turbo can feed the engine as flywheel power rather than a figure measured on a truck. On a Duramax, the injectors, the fuel system and the tune set how close a build gets.
Stage 1 or Stage 2? Stage 1 uses a 65mm compressor inducer, 48 trim, with a 73mm turbine, and is rated at 590 horsepower. Stage 2 steps to a 68mm, 52 trim compressor and a larger GT40 turbine wheel and vanes, rated at 630 horsepower. Stage 1 suits a tuned or towing truck; Stage 2 suits a higher power build.
Is it a good stock replacement? Yes. Garrett describes it as suitable both as a performance upgrade and as a replacement for the original turbo, and outline interchangeable for a correct fit. Its GT Series wheel design is aimed at lower back pressure and lower intake and exhaust gas temperatures.
What does the variable nozzle add? It lets one turbo cover the whole rev range of the Duramax. The vanes close down to speed the turbine at low rpm and open up as exhaust flow rises, moved by a patented electro-hydraulic actuator and proportional solenoid. Garrett also credits the AVNT design with more compressor and turbine flow than the factory unit.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
