Who is the EVO and MONO4 GT Big Brake Kit for R35 built for?

Owners of the 2020-2024 GT-R NISMO and 2022-2024 T-spec who want to replace the factory carbon-ceramic brakes with cast iron for track use. Endless Japan developed the EVO front and MONO4 GT rear for those cars, and says factory NISMO wheels fit over them.

What did Endless find in testing?

Endless reports that in its own testing at Fuji, the EVO on MX72 Plus pads gave stable braking over five laps, while the factory carbon-ceramic system faded after two. That is Endless test data on its own car, so read it as the maker result rather than an independent figure.

Will my wheels clear the calipers on the Racing MONO6 EVO and MONO4 GT set for the R35 GT-R?

Endless says factory NISMO wheels fit over the EVO front caliper, and gives 19 inch as its general minimum. For aftermarket wheels, send us the size, brand and offset and we will check them against the Endless template before the order is placed.

Why does Endless ask for the hub bolt size on the Racing MONO6 EVO and MONO4 GT set for the R35 GT-R?

The R35 has been produced with M12 and M14 hub bolts, and Endless supplies the kit to suit. We take the size with your order for this Big Brake Kit for R35 and pass it to Endless with the rest of the specification.

What is included with the EVO and MONO4 GT set?

Two Racing MONO6 EVO front calipers, two Racing MONO4 GT rear calipers, RCP123 front and RCP002 rear pads, mounting brackets, two 415mm front rotors, two 392mm three-piece rear rotors and four brake lines. DOT4 or higher fluid is required for the bleed and is not supplied.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Endless Racing MONO6 EVO / Racing MONO4 GT Front and Rear Big Brake Kit for R35 Nissan GT-R with 415mm Front Rotors

Endless’s Racing MONO6 EVO / Racing MONO4 GT Front and Rear Big Brake Kit for R35 Nissan GT-R is the complete cast-iron system Endless Japan built for the carbon-ceramic GT-R NISMO of 2020-2024 and T-spec of 2022-2024. The front uses the buff-chrome MONO6 EVO, a forged monobloc of 3,100g that takes rotors up to 420mm, here clamping 415mm x 36mm two-piece E-slit rotors. In its own Fuji testing on MX72 Plus pads, Endless reports the EVO held steady over five laps where the factory ceramic system faded after two.

Features

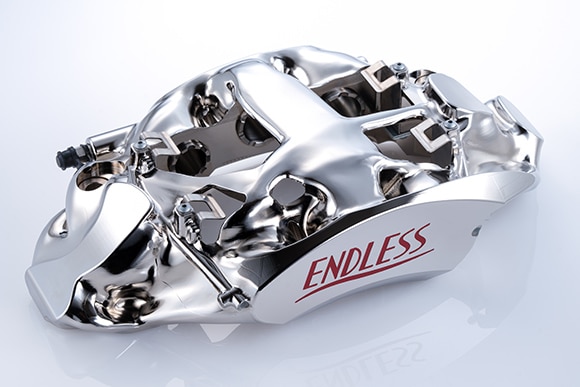

Racing MONO6 EVO forged monobloc front caliper, 3,100g
415mm x 36mm two-piece E-slit front rotors
Racing MONO4 GT forged monobloc rear caliper, 2,610g
392mm x 33mm three-piece rear rotors
Buff chrome calipers front and rear
Factory NISMO wheels fit, per Endless

Specifications

Front caliper: Endless Racing MONO6 EVO, six-piston forged monobloc
Front caliper weight: 3,100g
Front rotors: 415mm x 36mm, two-piece
Rear caliper: Endless Racing MONO4 GT, four-piston forged monobloc
Rear caliper weight: 2,610g
Rear rotors: 392mm x 33mm, three-piece
Pad shapes: RCP123 front, RCP002 rear
Minimum wheel size: 19 inch front, per Endless

What’s Included

Endless Racing MONO6 EVO front calipers (2)
Endless Racing MONO4 GT rear calipers (2)
Front and rear Endless brake pad sets
Caliper mounting brackets, front and rear
Front rotors (2), 415mm x 36mm two-piece
Rear rotors (2), 392mm x 33mm three-piece
Brake lines (4)

Applications

Nissan GT-R: R35 | 2009-2025

Notes

Endless Japan built this set for the 2020-2024 GT-R NISMO and 2022-2024 T-spec. Confirm fitment with us for other R35 years
This Big Brake Kit for R35 is the same set as the listing led by the 392mm rear rotors
Endless needs the hub bolt size, M12 or M14, when the order is placed
The Fuji fade result is Endless test data on MX72 Plus pads
The three-piece rear rotors retain the factory parking brake
Made to order in Japan; use DOT4 or higher fluid

Frequently Asked Questions

Who is the EVO and MONO4 GT Big Brake Kit for R35 built for? Owners of the 2020-2024 GT-R NISMO and 2022-2024 T-spec who want to replace the factory carbon-ceramic brakes with cast iron for track use. Endless Japan developed the EVO front and MONO4 GT rear for those cars, and says factory NISMO wheels fit over them.
What did Endless find in testing? Endless reports that in its own testing at Fuji, the EVO on MX72 Plus pads gave stable braking over five laps, while the factory carbon-ceramic system faded after two. That is Endless test data on its own car, so read it as the maker result rather than an independent figure.
Will my wheels clear the calipers on the Racing MONO6 EVO and MONO4 GT set for the R35 GT-R? Endless says factory NISMO wheels fit over the EVO front caliper, and gives 19 inch as its general minimum. For aftermarket wheels, send us the size, brand and offset and we will check them against the Endless template before the order is placed.
Why does Endless ask for the hub bolt size on the Racing MONO6 EVO and MONO4 GT set for the R35 GT-R? The R35 has been produced with M12 and M14 hub bolts, and Endless supplies the kit to suit. We take the size with your order for this Big Brake Kit for R35 and pass it to Endless with the rest of the specification.
What is included with the EVO and MONO4 GT set? Two Racing MONO6 EVO front calipers, two Racing MONO4 GT rear calipers, RCP123 front and RCP002 rear pads, mounting brackets, two 415mm front rotors, two 392mm three-piece rear rotors and four brake lines. DOT4 or higher fluid is required for the bleed and is not supplied.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
