Does the Boost Logic Drag Brake Kit for R35 require a parachute?

Yes. Boost Logic designed the Drag Brake Kit for R35 specifically for drag racing and states that a parachute is required. The much smaller rotors and calipers are chosen for weight and wheel clearance, not repeated high speed stops, so the car needs a parachute to slow at the end of a pass. Boost Logic sells an R35 parachute kit.

What wheel size can I run with this kit?

At the rear, the kit allows a 15-inch wheel with the correct offset for the largest possible sidewall, but the OEM control arm limits the car to 16-inch wheels until it is replaced. At the front, the large spindle rules out 15-inch wheels, and Boost Logic recommends 17-inch or 18-inch front wheels.

How much weight does the kit save?

Boost Logic lists the factory brakes at 145.6 lbs and the complete Boost Logic kit at 51.6 lbs, a reduction of 94 lbs. It states that 83.2 lbs of that saving is rotational mass, and that unsprung weight is greatly reduced as well. Those figures cover the full front and rear kit together.

Can I buy only the front or rear kit?

Yes. Boost Logic sells the front kit and the rear kit separately at the same price, or both together as a complete front and rear kit at twice that price. Choose the version that matches the build at checkout, keeping in mind that the parachute requirement applies to any car running the kit.

Is installation bolt-on?

Yes, apart from one small job. Boost Logic describes the kit as 100% bolt-on, with a slight modification to the rear dust shields required. Owners going to 15-inch rear wheels also need to replace the OEM control arm, which is a separate part and is not included in this brake kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

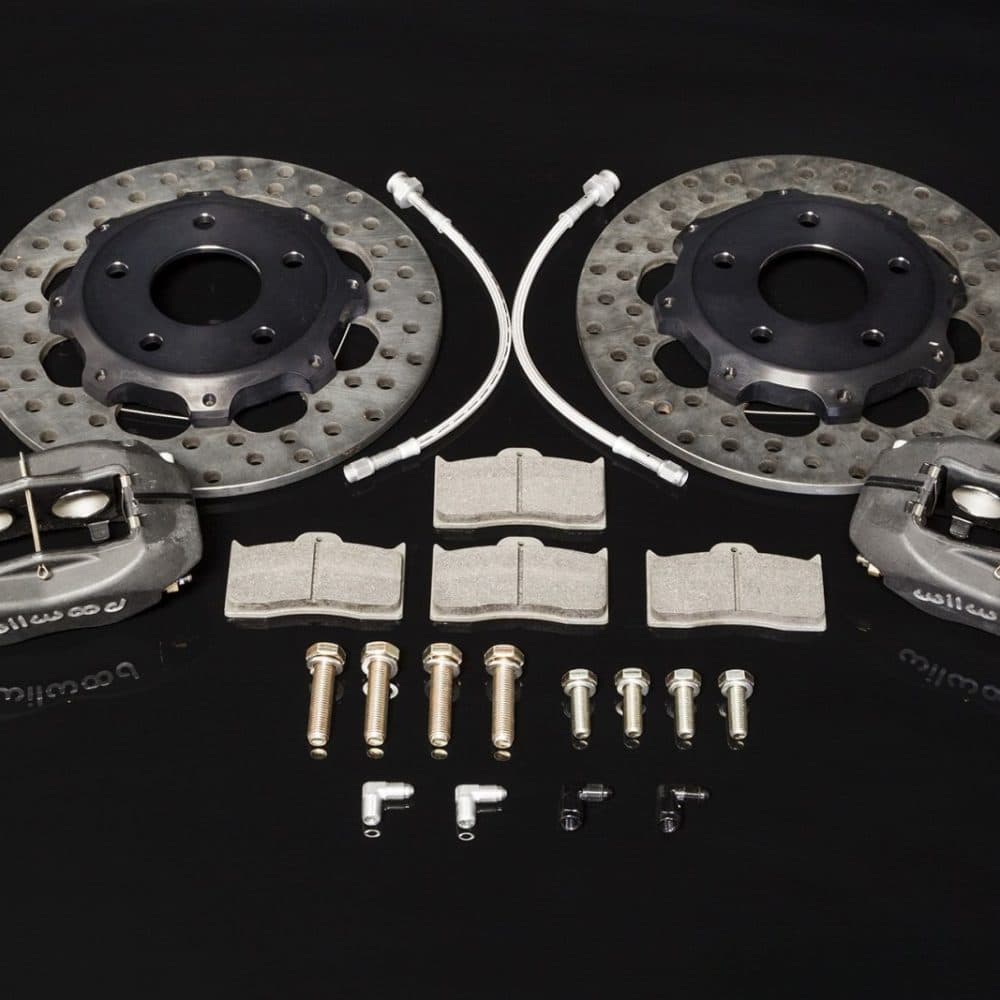

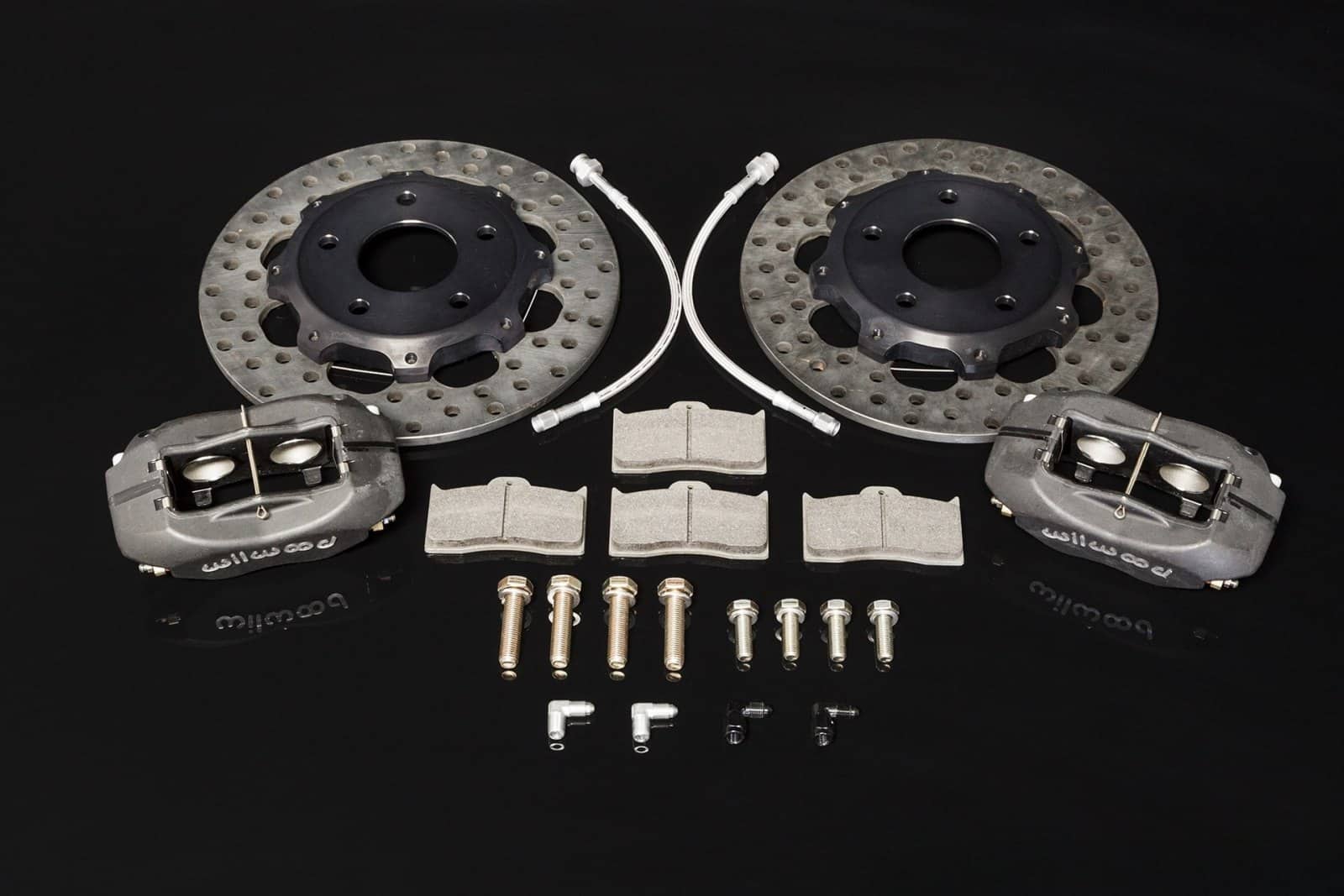

Boost Logic Lightweight Drag Brake Kit for R35 Nissan GT-R

Boost Logic’s Drag Brake Kit for R35 Nissan GT-R replaces the factory Brembo brakes with a much smaller, lighter drag racing setup so the car can run smaller wheels and taller sidewall tires for a larger contact patch. Boost Logic lists the full kit at 51.6 lbs against 145.6 lbs for the factory brakes, a 94 lb reduction, and states that 83.2 lbs of it is rotational mass. The kit is 100% bolt-on apart from a slight modification to the rear dust shields. It is built for drag racing only and requires a parachute, so it has no place on a street or road course GT-R.

Design and Performance

Boost Logic took the idea from its Supra drag cars, where smaller non-turbo rear brakes made room for smaller wheels and thicker sidewall tires. On the GT-R, even with the ATTESA E-TS all-wheel drive system and drag radials on 18-inch wheels, 60 foot times were limited by traction; downsizing the brakes lets the car run a 15-inch rear wheel with the correct offset for the largest possible sidewall.

Features

Drag racing specific lightweight brake kit
94 lbs lighter than the factory brakes, per Boost Logic
Rotational mass reduced by more than 83 lbs, per Boost Logic
Allows a 15-inch rear wheel with the correct offset for maximum sidewall
100% bolt-on apart from a slight rear dust shield modification
Front and rear kits sold separately or together

Specifications

OEM Brembo caliper: 11.4 lbs
OEM rear caliper: 10.2 lbs
OEM front rotor with pads: 25 lbs
OEM rear rotor with pads: 26.2 lbs
OEM brakes total: 145.6 lbs
Boost Logic front caliper with pads and bracket: 4.8 lbs
Boost Logic front rotor: 10 lbs
Boost Logic rear rotor: 6.2 lbs
Boost Logic rear caliper with pads and bracket: 4.8 lbs
Boost Logic kit total: 51.6 lbs

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Designed for drag racing only; a parachute is required. Boost Logic sells the Boost Logic Parachute Kit for R35 Nissan GT-R (BL02010102)
The OEM control arm limits the car to 16-inch wheels; the control arm must be replaced to run 15-inch wheels and is not included
The large front spindle prevents 15-inch front wheels; Boost Logic recommends 17-inch or 18-inch front wheels
Rear dust shields need slight modification during installation
Weights for the Drag Brake Kit for R35 are Boost Logic figures, with the totals covering a complete front and rear kit

Frequently Asked Questions

Does the Boost Logic Drag Brake Kit for R35 require a parachute? Yes. Boost Logic designed the Drag Brake Kit for R35 specifically for drag racing and states that a parachute is required. The much smaller rotors and calipers are chosen for weight and wheel clearance, not repeated high speed stops, so the car needs a parachute to slow at the end of a pass. Boost Logic sells an R35 parachute kit.
What wheel size can I run with this kit? At the rear, the kit allows a 15-inch wheel with the correct offset for the largest possible sidewall, but the OEM control arm limits the car to 16-inch wheels until it is replaced. At the front, the large spindle rules out 15-inch wheels, and Boost Logic recommends 17-inch or 18-inch front wheels.
How much weight does the kit save? Boost Logic lists the factory brakes at 145.6 lbs and the complete Boost Logic kit at 51.6 lbs, a reduction of 94 lbs. It states that 83.2 lbs of that saving is rotational mass, and that unsprung weight is greatly reduced as well. Those figures cover the full front and rear kit together.
Can I buy only the front or rear kit? Yes. Boost Logic sells the front kit and the rear kit separately at the same price, or both together as a complete front and rear kit at twice that price. Choose the version that matches the build at checkout, keeping in mind that the parachute requirement applies to any car running the kit.
Is installation bolt-on? Yes, apart from one small job. Boost Logic describes the kit as 100% bolt-on, with a slight modification to the rear dust shields required. Owners going to 15-inch rear wheels also need to replace the OEM control arm, which is a separate part and is not included in this brake kit.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
