Does the R32 GT-R elec-TRON R3 coilover kit with standalone FAL include a Nitron DCU as well?

Yes. The DCU is included with this kit and manages the solenoid valve independently, since the R32 GT-R doesn't have a factory electronic damping system to integrate with.

How much lift does the Standalone FAL provide on this kit?

The FAL raises the front axle 25mm at the shock, enough to clear driveways, speed bumps, and parking obstacles without changing the damping setup underneath.

Does the manual compression adjustment still work alongside the electronic control?

Yes. The independent manual high and low speed compression adjustment sets the mechanical baseline, and the DCU adjusts the solenoid valve in real time on top of that, so both systems work together rather than one replacing the other.

Does raising the FAL affect how the car drives once it's lowered back down?

No. The FAL only lifts the front axle when activated and returns to the set ride height afterward, so neither the manual nor the electronic damping settings change once it's back down.

What kind of reservoirs does this R32 GT-R elec-TRON R3 coilover kit use?

Piggyback reservoirs mount directly to each damper front and rear, keeping the oil and gas chambers close to the shock instead of running hose lines out to a separate canister.

Can custom spring rates be ordered with this kit?

Yes. Every kit is custom built to order, and custom spring rates beyond the standard setup are available by contacting us directly for a consultation.

Does the R32 GT-R elec-TRON R3 coilover kit with standalone FAL include a Nitron DCU as well?

Yes. The DCU is included with this kit and manages the solenoid valve independently, since the R32 GT-R doesn't have a factory electronic damping system to integrate with.

How much lift does the Standalone FAL provide on this kit?

The FAL raises the front axle 25mm at the shock, enough to clear driveways, speed bumps, and parking obstacles without changing the damping setup underneath.

Does the manual compression adjustment still work alongside the electronic control?

Yes. The independent manual high and low speed compression adjustment sets the mechanical baseline, and the DCU adjusts the solenoid valve in real time on top of that, so both systems work together rather than one replacing the other.

Does raising the FAL affect how the car drives once it's lowered back down?

No. The FAL only lifts the front axle when activated and returns to the set ride height afterward, so neither the manual nor the electronic damping settings change once it's back down.

What kind of reservoirs does this R32 GT-R elec-TRON R3 coilover kit use?

Piggyback reservoirs mount directly to each damper front and rear, keeping the oil and gas chambers close to the shock instead of running hose lines out to a separate canister.

Can custom spring rates be ordered with this kit?

Yes. Every kit is custom built to order, and custom spring rates beyond the standard setup are available by contacting us directly for a consultation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

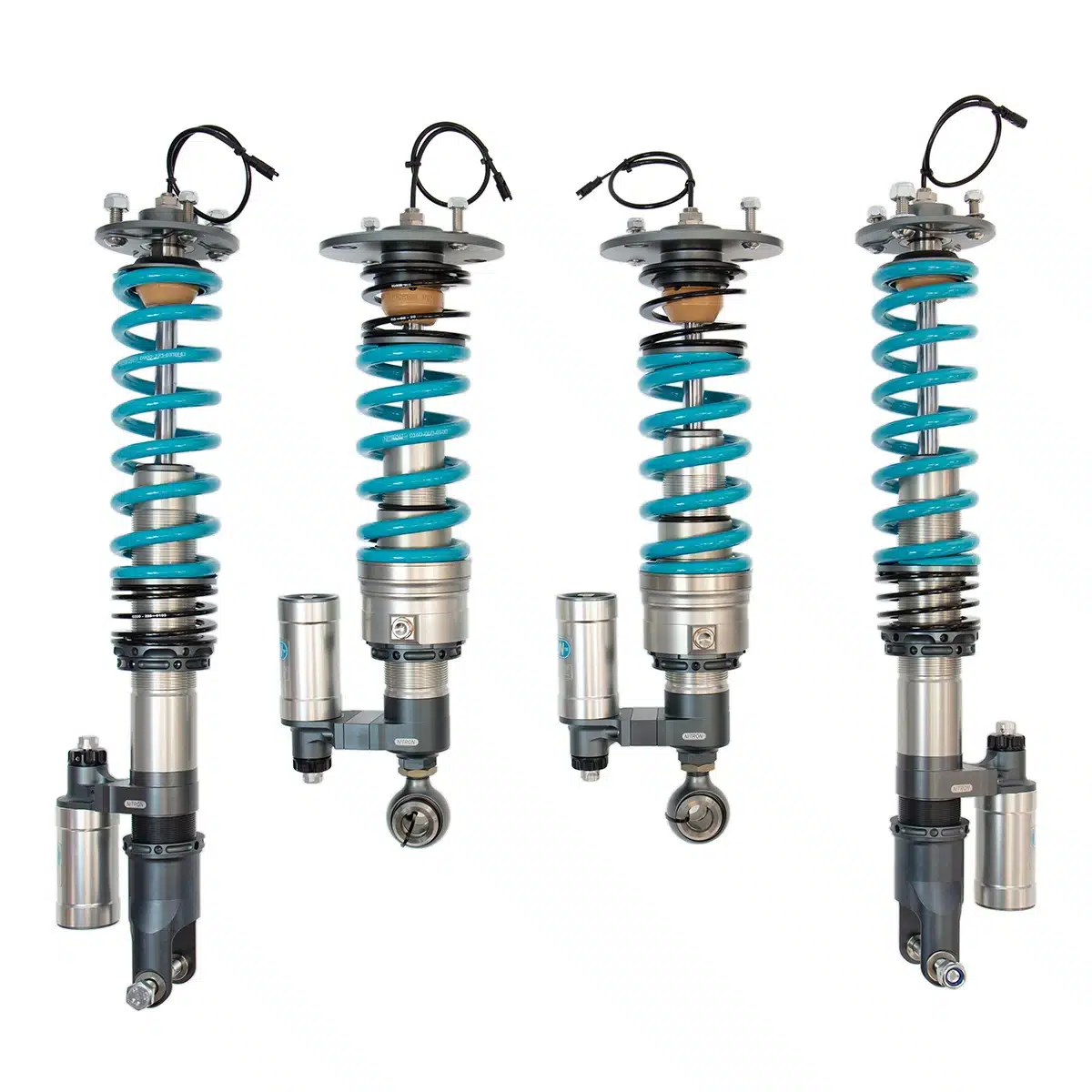

Nitron elec-TRON R3 Coilover Kit w/ Standalone FAL for R32 Nissan Skyline GT-R

The R32 GT-R elec-TRON R3 coilover kit with standalone FAL adds a front-end lift to the same combined electronic and manual damping control that makes the base R3 kit worth having on this platform. Piggyback reservoirs front and rear give independent manual adjustment over high and low speed compression, while the included DCU manages the solenoid valve in real time on top of that mechanical baseline. Because the R32 never came with a factory electronic damping system, the DCU ships as part of this kit rather than as a separate purchase, managing the solenoid valves independently of anything the ATTESA E-TS chassis shipped with from the factory. The standalone FAL raises the front axle 25mm at the shock, clearing driveways, speed bumps, and parking obstacles without touching the suspension setup or changing how the car drives once it’s back down. Adjustable top mounts and race springs come standard, and the whole kit is custom built and fully serviceable.

elec-TRON

The elec-TRON R3 pairs a proprietary proportional solenoid valve in each shock with independent manual compression adjustment, so the driver isn’t choosing between electronic control and a mechanical baseline, both work together. On the R32, the DCU manages that solenoid valve entirely on its own, since the car doesn’t have a factory electronic damping system to plug into. The system reads g-load, vehicle speed, road surface, and driver input at once, adjusting damping every six milliseconds, well ahead of the 100 to 150 milliseconds it takes a human eye to blink.

elec-TRON DCU (Damper Control Unit)

The DCU included with this kit keeps the electronic side of the elec-TRON R3 running independently of the manual compression adjustment set at each corner. It reads the forces acting on the car under braking, cornering, and acceleration, and repositions each solenoid valve roughly every 5 milliseconds based on that data. A control knob on the unit switches between Rain, Tour, Sport, and Race maps, so the driver picks the overall character while the fine adjustment underneath keeps happening automatically, on top of whatever manual compression settings are dialed in.
- Supplied with a custom or universal wiring harness
- Utilizes Arm Cortex-M4 processor
- Independent control of 4 electronic dampers
- 6 position rotary control switch or visual rotary display and control allows user to access a number of pre-installed damping maps (x3 passive and x3 adaptive)
- 2x 3 axis accelerometers
- 1x 3 axis gyroscope
- 200 Hz damping control rate
- Configured for application location and settings
- Ideal for resto-mod applications
- Fully resin bonded

The Nitron Front Axle Lift (FAL)

An R32 running a lowered stance rarely gets along with a steep driveway or a parking curb, and most owners work out an approach angle just to avoid a scrape. The Standalone FAL built into this kit removes that guesswork, raising the front axle 25mm at the shock whenever it’s needed and dropping back to the set ride height once the car’s clear. Nothing about the damping setup, electronic or manual, changes when the lift is used, it’s there for the obstacle and then it’s out of the way.
- 250W pump
- 25mm lift height
- Typical lift time under 3-seconds
- Audible in-cabin warning system
- Switch with built-in warning light
- Auto off function
- Protects your car from damage caused by steep driveways and speed bumps
- Compatible with a wide range of suspension setups

Unique Technology

Every Nitron shock goes through machining, inspection, and validation long before it’s called finished, with each component checked individually by a trained technician rather than sampled from a batch. The modular design behind the elec-TRON R3 gives Nitron room to build this R32 GT-R application around what the chassis actually needs rather than adapting something already on the shelf. New materials, finishes, and processes only reach production after extensive testing, and Nitron’s own proprietary engineering carries through the whole build instead of being added onto a generic base. That discipline is what’s kept the brand ahead of the competition, on the street and on the track.

Bespoke Engineering

Nitron doesn’t take a damper built for a lighter, rear-drive car and adjust the valving until it works on a GT-R. This elec-TRON R3 application is developed from the ground up, with components, spring rates, and damping characteristics chosen specifically for the R32’s double wishbone and multi-link geometry and the added mass of the ATTESA E-TS all-wheel drive system, rather than borrowed from something in a similar class. That’s the difference between a kit built around a GT-R and one that was only ever adjusted to fit one.

Features

Piggyback reservoir type
No manual damping adjustments are required, fully controlled by the solenoid valve
Preload adjuster
Full alloy body
Nitron FAL raises 25mm at the shock
Consists of 4 coilovers, reservoirs, hoses, and adjustable top mounts (+FAL kit)
FAL kit contains all components (cylinders, hydraulic lines, pump, wiring loom and controller)
Hand made to order

Specifications

Coilover Type: elec-TRON R3 with standalone FAL
Reservoir Type: Piggyback
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 600lbs/inch (105N/mm)
  - Rear: 350lbs/inch (61N/mm)
- TDS – Track Day Spec:
  - Front: 800lbs/inch (140N/mm)
  - Rear: 425lbs/inch (74N/mm)

Applications

Nissan Skyline GT-R: R32 | 1989-1994

Other Suspension Kits for the R32 GT-R

Notes

Nitron DCU is included with order
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Does the R32 GT-R elec-TRON R3 coilover kit with standalone FAL include a Nitron DCU as well? Yes. The DCU is included with this kit and manages the solenoid valve independently, since the R32 GT-R doesn’t have a factory electronic damping system to integrate with.
How much lift does the Standalone FAL provide on this kit? The FAL raises the front axle 25mm at the shock, enough to clear driveways, speed bumps, and parking obstacles without changing the damping setup underneath.
Does the manual compression adjustment still work alongside the electronic control? Yes. The independent manual high and low speed compression adjustment sets the mechanical baseline, and the DCU adjusts the solenoid valve in real time on top of that, so both systems work together rather than one replacing the other.
Does raising the FAL affect how the car drives once it’s lowered back down? No. The FAL only lifts the front axle when activated and returns to the set ride height afterward, so neither the manual nor the electronic damping settings change once it’s back down.
What kind of reservoirs does this R32 GT-R elec-TRON R3 coilover kit use? Piggyback reservoirs mount directly to each damper front and rear, keeping the oil and gas chambers close to the shock instead of running hose lines out to a separate canister.
Can custom spring rates be ordered with this kit? Yes. Every kit is custom built to order, and custom spring rates beyond the standard setup are available by contacting us directly for a consultation.
