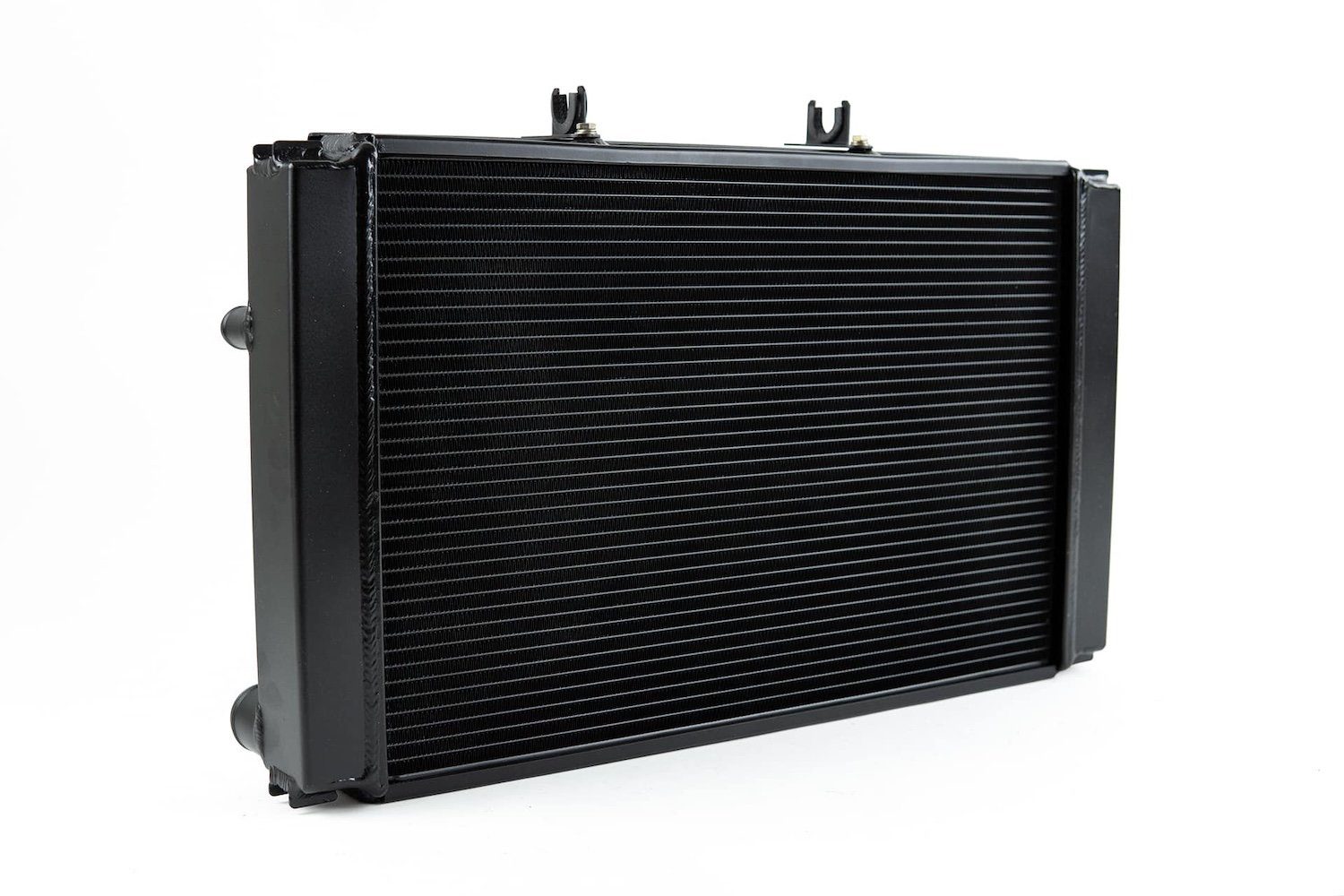

CSF High-Performance Radiator for Porsche 924 / 944 Turbo & S / 968 [7088]

CSF High-Performance Radiator for Porsche 924 / 944 Turbo & S / 968 [7088]

CSF acknowledges that while the Porsche 944 may not be the first car associated with the term “classic Porsche,” it holds a special place in the hearts of many enthusiasts. Maintaining optimal engine cooling is a key concern for 944 owners striving to keep their vehicles running like new. With OEM replacements becoming increasingly scarce and limited reliable aftermarket options, CSF collaborated closely with Joe Anselmo Motorsports to develop a solution. CSF is proud to introduce its high-performance all-aluminum radiator and fan & shroud kit, designed specifically for the Porsche 944 (NA and Turbo).

Design & Engineering

• CSF collaborated with Joe Anselmo Motorsports, a leading Porsche service center in Southern California specializing in 944 models, to design a radiator compatible with all Porsche 944 variants. Leveraging Joe’s expertise, CSF developed a high-performance radiator that serves as a true plug-and-play, drop-in fit upgrade. CNC-machined mounting brackets ensure precise fitment, and the OEM-style slip-on inlet/outlet connections allow compatibility with both OEM and aftermarket radiator hoses. Recognizing the common incompatibility between OEM NA and Turbo radiators—due to the Turbo version being approximately one inch taller—CSF based its design on the dimensions of the NA radiator while increasing core capacity to surpass the cooling performance of the OEM Turbo radiator. Featuring a 2-row 42mm core with CSF’s exclusive B-Tube Technology, the radiator achieves superior cooling without size limitations. To address the height differential for 944 Turbo installations, CSF includes CNC billet spacers, ensuring seamless fitment across all models.

Attention to Detail

• CSF incorporated removable and adjustable crossover pipe brackets on the top of the radiator to accommodate the specific needs of the Porsche 944 Turbo. The Turbo model features a crossover cooling pipe, which distributes coolant from the reservoir to the radiator and from the coolant pump housing to the cylinder head, while the NA version does not require this feature. Traditionally, the factory design relies on zip ties to secure this pipe, preventing it from rattling. With input from Joe Anselmo, CSF added these brackets as a thoughtful enhancement, offering a more refined and secure installation that exceeds the factory setup.

Features

• 2-row – 42mm ultra-high-performance core
• Csf’s exclusive B-tube technology
• 6.5mm tall ultra-efficient fins with a multi-louvered design for maximum surface area contact
• Cnc machined mounting brackets, fittings, and oem style inlet / outlet
• 100% all-aluminum tig-welded construction
• Satin black finish for OEM+ look
• Includes upgraded yellow zinc hardware
• Includes adjustable top end plate radiator crossover tube brackets
• True plug-and-play “drop-in fit” installation requires absolutely no modifications
• Individually leak and pressure tested
• 2-year limited warranty
• Optional shroud & dual 9-inch spal fan kit available

Applications

• Porsche 924S: (1987-1988) – 2.5L I4 M44/40
• Porsche 944: (1983-1991) – 2.5L I4 M44/40, 2.7L I4 M44/12, 3.0L I4 M44/41
• Porsche 944 Turbo: (1985-1991) – 2.5L Turbo I4 M44/51
• Porsche 944 Turbo S: (1985-1991) – 2.5L I4 M44/40
• Porsche 968: (1992-1995) – 3.0L I4 M44/12, 3.0L turbo I4

Notes

• Fits manual transmission models only
• For 1983-1985 manual transmission models, PN 944.106.245.02 is required to fit
